PIPETMAX® 268

Setup Guide

OVERVIEW

I Unpacking

II Install Removable Tray

III Make Connections and Power On

IV Run PIPETMAX Alignment Utility

V Prepare to Run Protocol

VI Run Protocol

gilson.com/contactus

I UNPACKING

PIPETMAX is delivered with most major components already assembled. Keep the original packaging

if PIPETMAX must be returned to the factory.

Installation Site Requirements

Power Requirements (External Power Supply)

Voltage Input

Frequency: 50 to 60 Hz

Voltage: 100–240V AC

Voltage Output

Voltage: 24V DC

Current rating: 6.25A, 150W

Temperature Range

5°C–40°C

Stable, level surface

Maximum Dimensions (W x D x H)

PIPETMAX with Rotating Cover Installed on

Optional Riser Assembly for Off-Bed Tip Disposal

54.4 x 65.5 x 69.6 cm (21.4 x 25.8 x 27.4 in)

Accessories and Documentation

●Allen wrench

(for removing shippingbracket)

●Removable Tray

●Pipette Head(s)

●Black Plug

●Power Supply

●Power Cord

●USB Cable

●Tip Reload Block

●Tip Disposal Bin

●USB Drive

●Installation Qualification Procedure

●Declaration of Conformity

●Quality Control Checklist

●Items Included Checklist

●Packing List

Instructions

These instructions assume that you have already cut the shipping straps and tape and have cut open

the box.

1 Remove the open-ended cardboard box.

2 Remove the box of accessories and open it.

3 Lift the printed, outer cardboard box up to remove.

CAUTION

It is recommended that two people lift PIPETMAX out of the box as it weighs approximately

24.9 kg (55lbs.).

4 Grip PIPETMAX at the recesses near the base. There is one recess in the front, one in the

back, and one on each side. Use these recesses when lifting PIPETMAX out of the foam-lined,

cardboard tray.

NOTICE

Do not attempt to lift PIPETMAX from the cover or from the X-arm (the horizontal arm).

Always lift the instrument from its base.

5 Place PIPETMAX with cover on a lab bench.

PIPETMAX is configured with one of two safety interlocks. One interlock is internal to the

rotating cover installed on the instrument, and the other interlock is an external sensor used

when the instrument is located in a hood. The safety interlocks prevent the instrument from

operating when the rotating cover or hood door is open. If PIPETMAX was ordered without a

rotating cover, it must run in a hood. When the instrument is installed in the hood, the external

sensor must face the door of the hood and be located within 15 cm (6 in) of the door.

PIPETMAX Configured with External Safety Interlock Sensor and Placed in Hood

6 Remove the film protecting the rotating cover (ifinstalled).

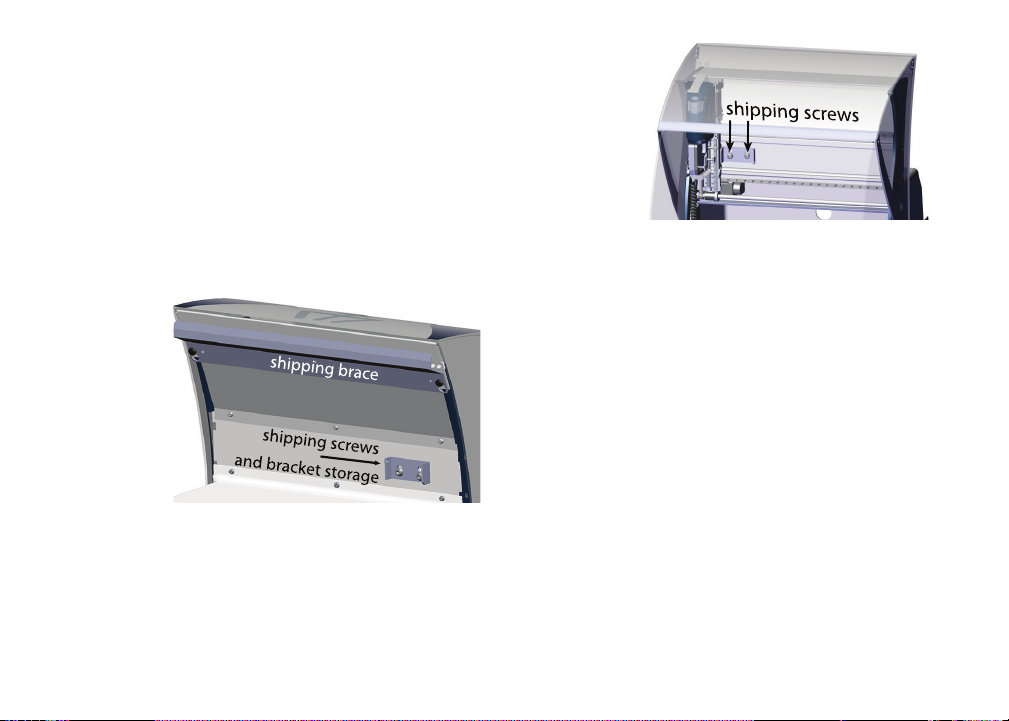

7 Remove the shipping screws and bracket using the

tool provided and then store the shipping screws and

bracket in the rear panel for future use if PIPETMAX

needs to be shipped or transported.

8 Remove the shipping brace from the rear panel by

loosening the thumb screws securing the shipping brace

to PIPETMAX. After removing and storing the shipping

brace, tighten the thumb screws.

Shipping Brace

(Rear View of PIPETMAX®)

9 Remove the foam block preventing the tray from moving.

10 Remove the tape securing the alignment cable.

Shipping Screws

(Front View of PIPETMAX®)

II INSTALL REMOVABLE TRAY

A removable tray for placement of labware and tip racks is required.

There are two removable tray options:

●9-position removable tray (microplate footprints, but not for 384-well microplates)

●9-position removable tray for 384-well microplates

1 While holding the handles on the sides of the tray, lower the removable tray onto the fixed tray.

It is keyed and will only mount one way.

2 Grip the removable tray and then gently rock it back and forth.

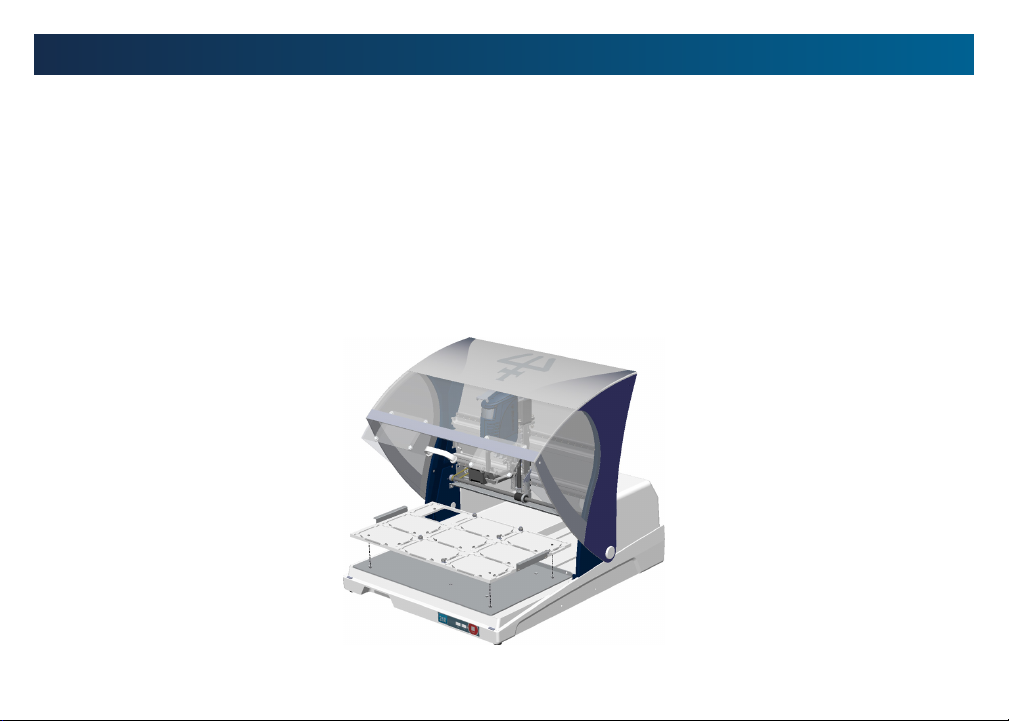

Removable Tray Installation on PIPETMAX with Rotating Cover

If it seems that the removable tray is shifting position on the fixed tray, use a 3 mm Allen wrench

and gentle pressure to adjust the spacers on either side of the fixed tray. Spacers should just barely

contact the removable tray. Remove and then place the removable tray again to ensure there is not

any significant interference.

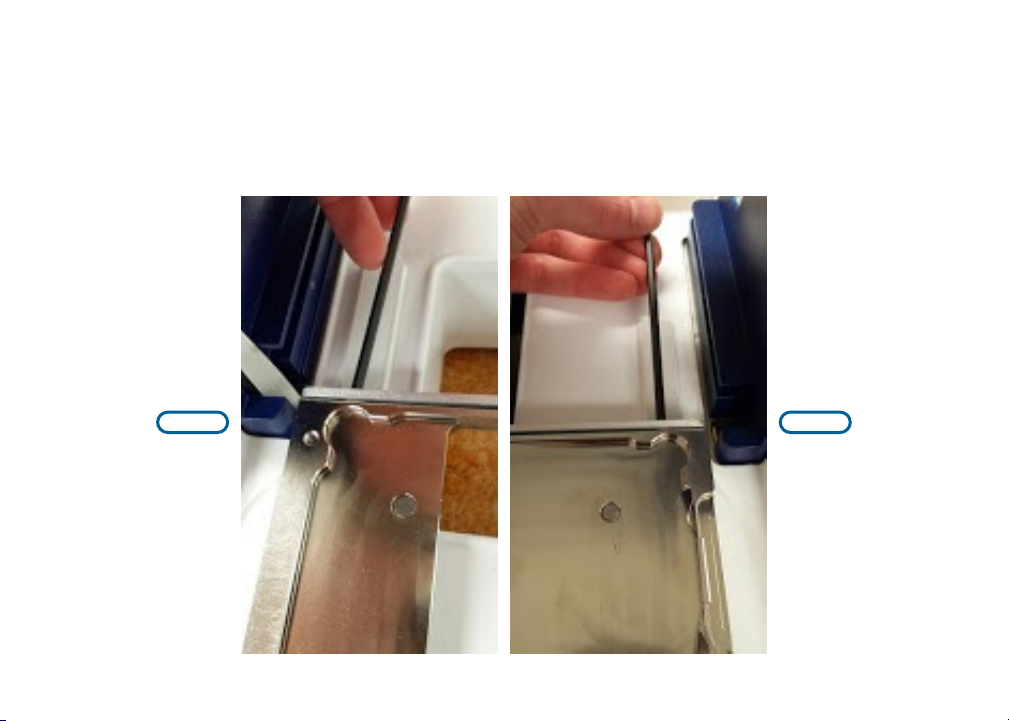

Spacer Adjustment

LEFT RIGHT

III MAKE CONNECTIONS AND POWER ON

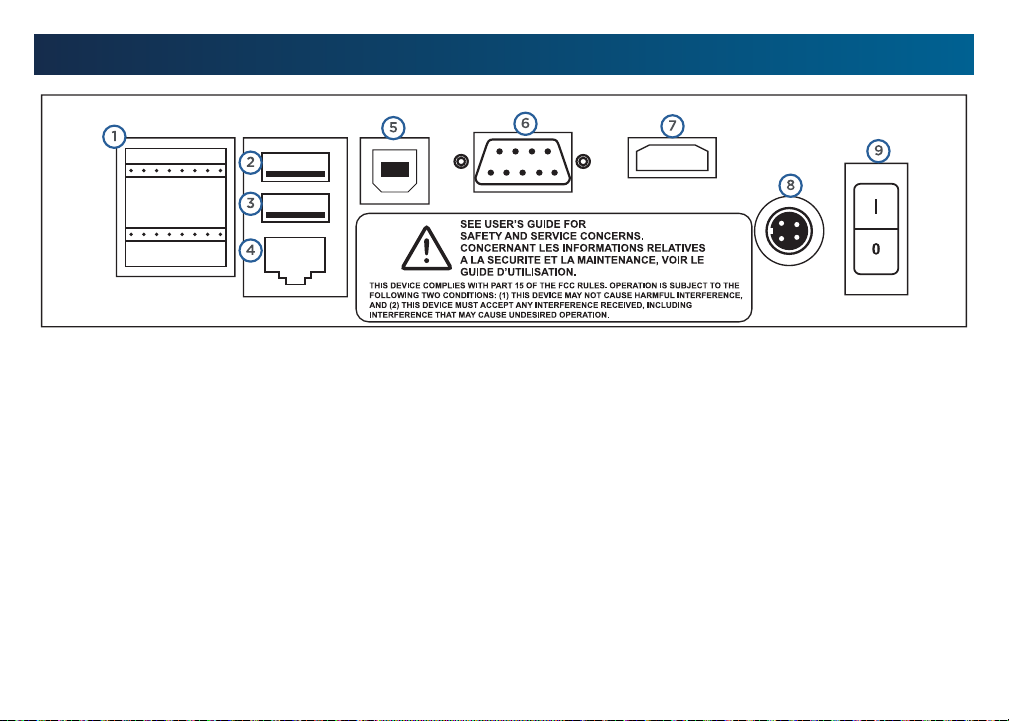

PIPETMAX® Rear Panel Connections

1. Input/Output

2. USB host (Not Supported)

3. USB host

4. Ethernet (Not Supported)

5. USB device

6. RS-232 (Not Supported)

7. HDMI (Not Supported)

8. Power receptacle

9. Power switch (MAINS)

1 Use the USB cable supplied in the accessory package to make the connection between the USB

device port on PIPETMAX and a USB port on the supplied tablet or PC.

2 The connection from the external power supply to PIPETMAX uses a connector with a locking

collar. Use the power cord from the external power supply to make the connection between the

power receptacle on PIPETMAX and the external power supply. Check the alignment of the pins

and then push in until it clicks and locks in place.

3 Use the supplied power cord to make the connection between the external power supply and

the AC power source.

4 Turn PIPETMAX power on using the power switch located on the rear panel. The indicator light

on the front panel illuminates.

5 Connect the supplied tablet or PC to a power source and power it on. Install

TRILUTION® micro Software on the PC per the supplied installation instructions.

TRILUTION micro is factory-installed on the tablet.

IV RUN PIPETMAX ALIGNMENT UTILITY

The PIPETMAX Alignment Utility is installed as part of the TRILUTION micro installation.

Run the PIPETMAX Alignment Utility to ensure proper alignment. It is only necessary when setting up

the instrument for the first time, or if instructed to do so by your local Gilson representative.

1 If your PIPETMAX does not have a rotating

cover and uses the external safety interlock

sensor, disconnect the BOTTOM terminal

block connector from the input/output ports

on the rear panel.

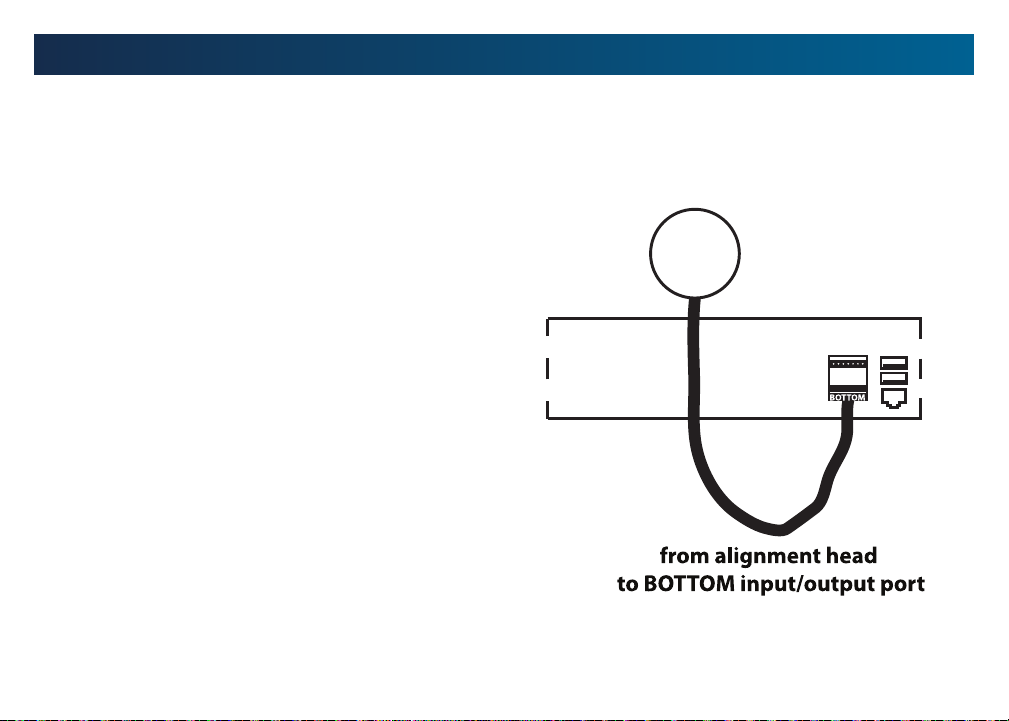

2 Pass the end of the alignment cable with

pre-wired connector through the access hole

at the back of PIPETMAX.

3 The connector is labeled BOTTOM because it

connects to the bottom set of input/output

ports on the rear panel of PIPETMAX. Make

the connection.
