Gofanco HDBaseT4P-4K Bedienungsanleitung

1x4 HDBaseT Extender/

Splitter 4K

User's Guide

G4-0068A

P/N:HDBaseT4P-4K

Thank you for purchasing from gofanco. Our products

aim to meet all your connectivity needs wherever you

go. For optimum performance and safety, please read

the instructions carefully and keep this User's Guide for

future reference. If you need more information about

our products, please visit www.gofanco.com. For

technical support, email us at [email protected].

For drivers or manual download, please go to

www.gofanco.com/download.

Important Safety Notices

Pleasereadsafetyinstructionscarefullybeforeinstallation

and operation.

• Please pay close attention to all warnings and hints

for this device

• Do not expose this unit to rain, heavy moisture, or

liquid

• Do not put any items into the device or attempt to

modify its operation

• Do not repair the device or open the enclosure

without professional guidance to avoid electric

shocks. Doing so may void your warranty

• Keep the product in a well-ventilated location to

avoid damage from overheating

• Shut off power and make sure environment is safe

before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid cable

damage. Make sure they are plugged into the

correct ports

• Use the included power adapter only. Make sure

the specification matches if using 3rd-party DC

power adapters

Introduction

The 1x4 HDBaseT Extender/Splitter 4K splits HDMI

signals from a source device into 3 HDBaseT outputs

plus one HDMI output.

Features

• Splits/extends HDMI signals to 4 displays

simultaneously

• 3HDBaseToutputsoverCATcableswith3Receivers

included and 1 HDMI output

• HDBaseT outputs support up to 230ft (70M) at

1080p & 130ft (40m) at 4K; HDMI output up to

26ft (8m)

• Compliant with HDMI 1.4 and HDCP 1.4/2.2.

Supports up to 4K@60Hz YUV 4:2:0, 4K@30Hz YUV

4:4:4, and 1080p 3D

• Supports Power over Cable (PoC), allowing all

HDBaseT Receivers to be powered by the

Extender/Splitter over CAT cables

• Supports bi-directional IR extension, EDID

management, firmware upgradable, and audio

extraction

Installation Requirements

• HDMI source device (DVD player, set top box, PC,

etc.)

• HDMI displays (SDTV/Monitor, HDTV/Monitor,

projector, etc.)

• HDMI cables (not included)

• CAT cables (not included)

PackageContents

HDMI HDBaseT Extender/Splitter

•1x 1x4 HDBaseT Extender/Splitter 4K

•2x Mounting ears with 4 screws

•4x Plastic cushions

•1x IR receiver

•1x IR emitter

•1x 5-Pin Terminal block

•1x Power adapter

•1x User guide

HDBaseT Receiver

•3x HDBaseT Receivers

•3x IR receivers

•6x Mounting ears with 6 screws

Figure 2: HDBaseT Splitter Rear Panel Layout

1 HDMI Input Connects to an HDMI source device

2 HDMI Output Connects to an HDMI display

3HDBT Out (1-3) Connects to the HDBT In of the Receiver unit

IR In (1-3) Connects to the IR Receiver Extension cable

4 L/R Out 3.5mm unbalanced Stereo audio output jack

5 Balanced Out Balanced Stereo de-embedded audio output

All In/Loop In IR Input routed to all HDBaseT IR outputs

IR Out Connects to IR Blaster Extension cable. Emits IR

signals received from the HDBaseT Receiver

Loop Out 3.5mm jack for connecting the IR LOOP IN port

of the next Extender/Splitter for IR cascading

7 DC 24V Connects to the included 24V power adapter

Product Layout

1 Power LED Off: No power

On: Extender/Splitter is powered on

2 HDMI In LED

Off: No HDMI input signal detected

On: HDMI input signal detected with HDCP

Flashing: HDMI input signal detected with no

HDCP

3HDMIOutLED

Off: No HDMI output signal detected

On: HDMI output signal detected with HDCP

Flashing: HDMI output signal detected with no

HDCP

4 EDID DIP Switch Select between Lo-Res, Default, Hi-Res modes

5 Service Micro USB port for firmware upgrade

Figure 1: HDBaseT Extender/Splitter Front Panel Layout

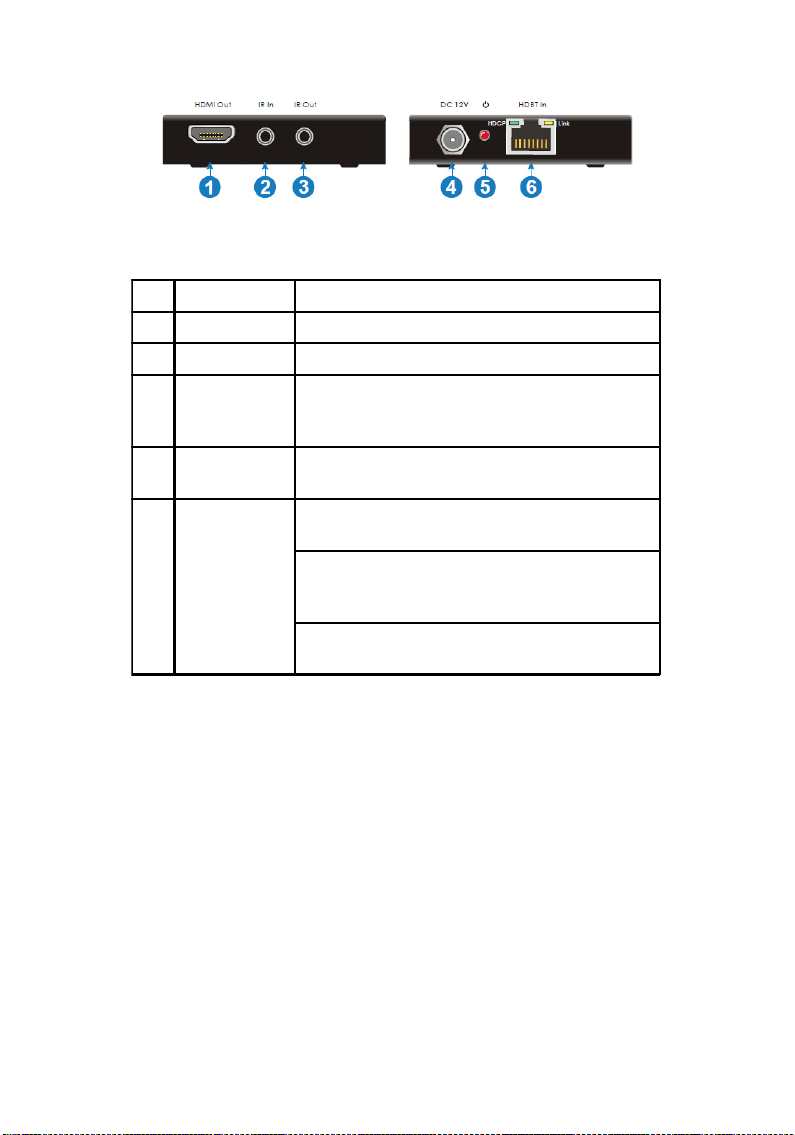

Figure 3: HDBaseT Receiver Layout

1 HDMI Out Connects to an HDMI display

2 IR In Connects to the IR Receiver Extension cable

3 IR Out Connects to the IR Blaster Extension cable

4DC12V

12VDC power jack. Typically not needed, the

receivers are powered over CAT cable by the

Extender/Splitter using PoC

5 Power LED Off: No power

On: Powered on

6HDBTIn

Connects to the Extender/Splitter's HDBaseT

Out using a CAT cable

HDCP LED: On when video signal contains

HDCP content, blinks when video signal is

transmitted without HDCP

Link LED: On when there is an HDBaseT link

between the Extender/Splitter and Receiver

Hardware Installation

1. Power off all devices including your HDMI source

and HDMI display(s).

2. ConnectyourHDMI source devicetotheHDBaseT

Extender/Splitter's HDMI Input connector with

an HDMI cable (HDMI cable not included).

3. Connect your CAT cables between the HDBaseT

Extender/Splitter and HDBaseT Receivers.

4. Connect an HDMI display to the HDMI Output

connectorof the HDBaseTExtender/Splitterusing

an HDMI cable (HDMI cable not included).

5. Connect your HDMI display to the HDBaseT

Receiver's HDMI Out connector with an HDMI

cable (HDMI cable not included).

6. Optional: Connect the IR Receiver Extension Cable

andtheIRBlasterExtensionCabletotheIRinterface

port. This connection is needed only if you need

to control your HDMI devices from the remote

location. See IR Control, on page 10 and 11, for

proper IR connection.

7. Plugthe included power adapterintotheHDBaseT

Extender/Splitter's Power Jack, then plug the

power adapter into a reliable power outlet.

Note: The HDBaseT Receivers do not need power

adapters, they can be powered from the Extender/

Splitter over CAT cable with PoC technology.

8. Power on your HDMI source device and HDMI

display. The extender is ready for use.

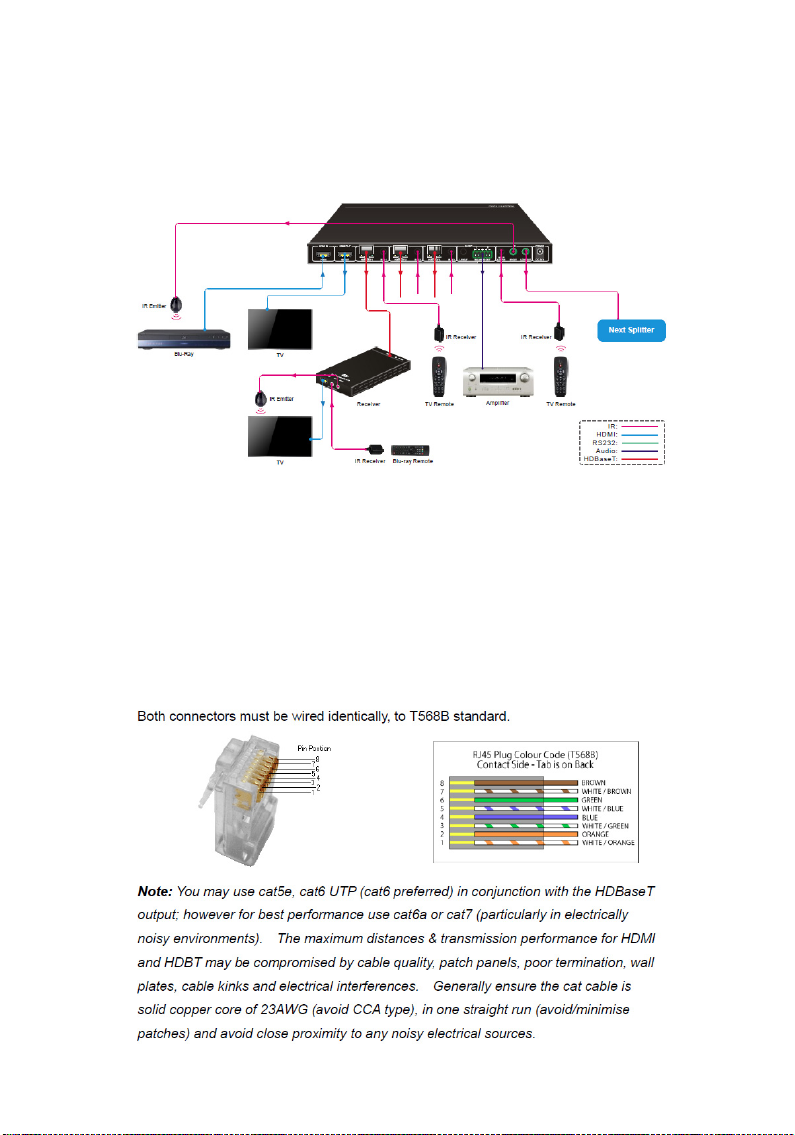

ApplicationDiagram

The application diagram shows the most typical input

and output devices used with the Extender/Splitter.

Figure 4: Application Diagram

CAT Cable Wiring

We suggest both RJ-45 connectors be wired identically

using T568B wiring standard for the best performance

and compatibility.

IR Control

Provides IR control of the connected devices. The IR

feature is bidirectional so either the source device or the

display device(s) can be remotely controlled.

Controlling the Display Device(s)

1. Connect an IR Receiver Extension Cable to the IR In

port of the HDBaseT Extender/Splitter.

2. Connect an IR Blaster Extension Cable to the IR Out

port on each HDBaseT Receiver.

3. Point the IR Blaster Extension Cable's IR eye in line

with the display's IR window.

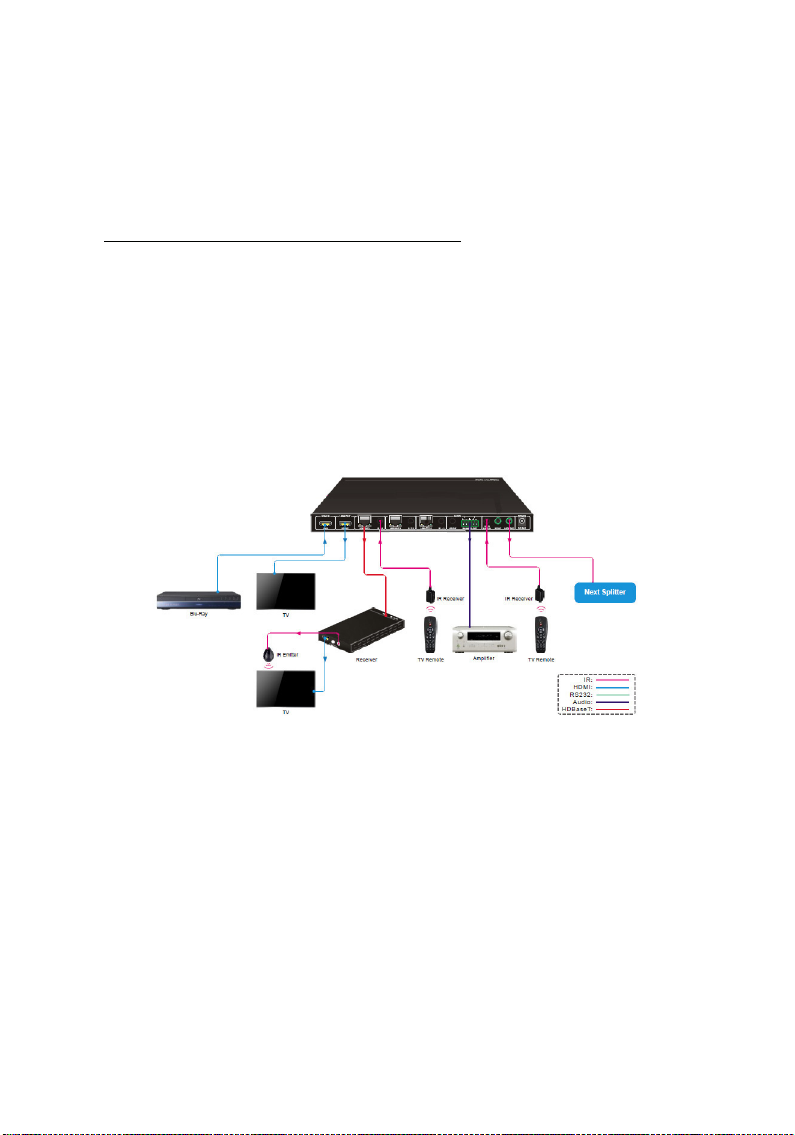

Figure 5: Display Device IR Control Connection Diagram

Controlling the Source Device

1. Connect an IR Blaster Extension Cable to the IR Out

port of the HDBaseT Extender/Splitter.

2. Point the IR Blaster Extension Cable's IR eye in line

with the source device's IR window.

3. Connect an IR Receiver Extension Cable to the IR In

port on each HDBaseT Receiver.

Figure 6: Source Device IR Control Connection Diagram

Note:

The IR ALL IN / IR LOOP IN will relay the received IR

signal to all the HDBaseT outputs whereas the IR IN

connectors associated with each HDBaseT output will

only relay the IR signal to its respective receiver. The IR

LOOP IN can also be connected to the IR LOOP OUT of

another Extender/Splitter when two or more units (up to

a maximum of five) are connected in a cascade mode

while using only a single IR detector at the start of the

cascade connection.

The IR OUT connector will output the IR signals received

from any of the HDBaseT receivers, so as to allow control

of a source from any of the remote receivers.
