gofanco HDbitT8P Bedienungsanleitung
8-Port HDMI HDbitT
Extender 1080p - 120m
User's Guide
G4-0074A
P/N:HDbitT8P
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers/manuals download, please go to http://
www.gofanco.com/download.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid cable
damage. Make sure they are plugged into the
correct ports
• Use the included power adapters only. Make sure
the specification matches if using 3rd-party DC
power adapters
3
Introduction
The8-Port HDMI HDbitTExtender 1080p - 120mextends
high definition 1080p signals up to 394ft (120m) over
CAT6 to 8 monitors.

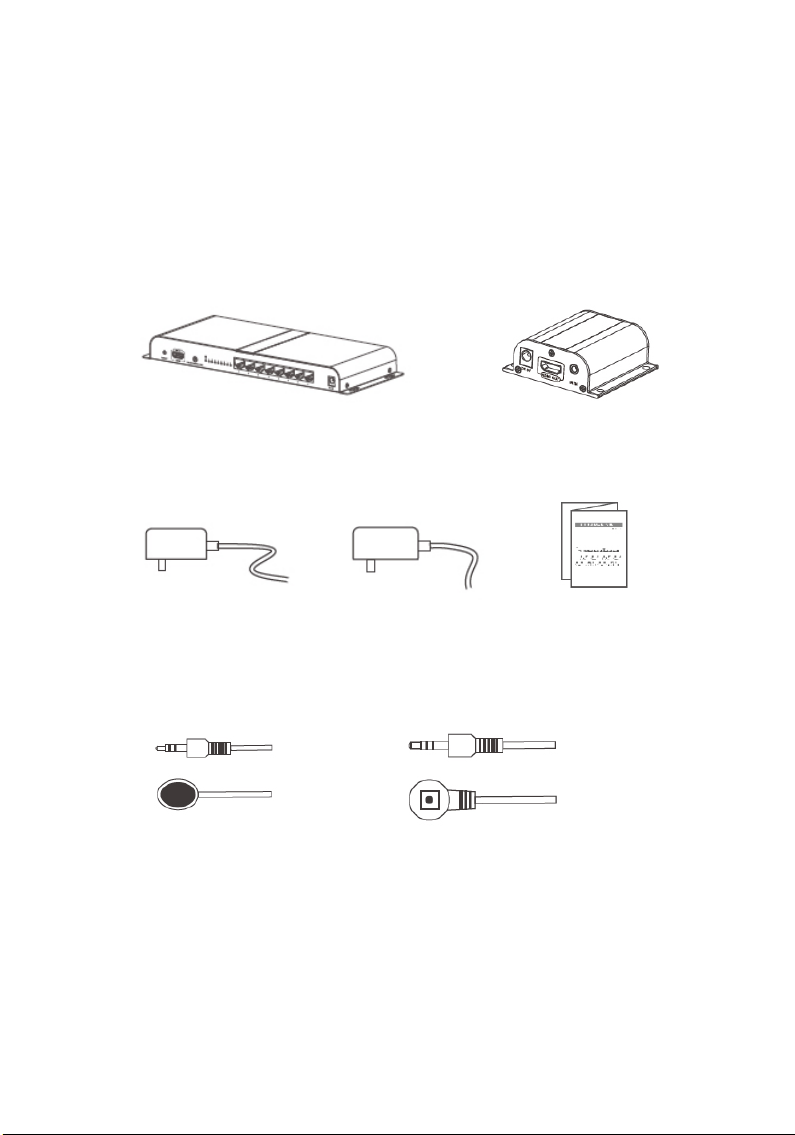

PackageContents
Transmitter (1pc)
Power Adapter
12V/3A (1pc)
Power Adapter
5V/1A (8pcs)
IR Blaster Cable (1pc)
Manual (1pc)
Receiver (8pcs)
IR Receiver Cable (8pcs)
4
Product Layout
Figure 1: Transmitter (TX)
1 Reset: Press to reset the Transmitter
2 HDMI In: Connects to the HDMI source device
3 IR Out: Infrared 3.5mm socket. Plug the IR Blaster
Cable here. See instructions on page 7
4 Data LED: Blinks when data transfer is detected
5 LinkLED(x8):LightsupwhenRJ45signalisdetected
6 RJ45 Out (x8): Connects to the Receiver's RJ45 In
using a Cat6 cable
7 Power Jack: Connect the included 12V/3A power
adapter here
5
Figure 3: Receiver (RX) - Input
1 Reset: Press to reset if the HDMI Extender doesn't
work properly
2 RJ45 In: Link to the Transmitter's RJ45 Out via Cat6
cable
3 Link LED: Blinks when powered on. On when the
Cat6 cable is connected/linked properly between
the Transmitter and Receiver
Figure 4: Receiver (RX) - HDMI Output
4 Power Jack: Connect the included 5V/1A power
adapter here
5 HDMI Out: Connect your HDMI display here with
an HDMI cable (HDMI cable not included)
6 IR In: Infrared 3.5mm socket. Plug the IR Receiver
Cable here. See instructions on page 7.
6
Installation Requirements
1. HDMI source device (DVD player, set top box, PC,
etc.)
2. HDMI display device (SDTV/Monitor, HDTV/
Monitor, projector, etc.)
3. HDMI cables (not included)
4. UTP/STP CAT6/6A/7 cable, following IEEE-568B
wiring standard
Cat Cable Writing
We suggest both RJ45 connectors be wired identically
using T568B wiring standard for the best performance
and compatibility.
7
Hardware Installation
To achieve optimal performance, Cat6 cable is
recommended.
1. Power off all devices including your HDMI source
and HDMI display.
2. Connect your HDMI source to the Transmitter's
HDMI In connector with an HDMI cable (HDMI
cable not included).
3. Optional: Connect the IR Blaster Cable to the
Transmitter's IR Out port. Face the eye towards
your HDMI source device's IR window. This
connection is needed only if you need to control
your HDMI source at the remote location.
4. Plug your Cat6 cable between the Transmitter's
RJ45 Out and Receiver's RJ45 In.
5. Connect your HDMI display to the Receiver's
HDMI Out connector with an HDMI cable (HDMI
cable not included).
6. Optional: Connect the IR Receiver Cable to the
Receiver's IR In port. This connection is needed
only if you need to control your HDMI source at
the remote location.
7. Plug the included 12V/3A power adapter into the
Transmitter's Power Jack.
8. Plug the included 5V/1A power adapter into the
Receiver's Power Jack, then plug all power
adapters into reliable power outlets.
9. Power on your HDMI source device and HDMI
displays. The extender is ready for use.
8
ConnectionDiagram
Power Adapter
Receiver (x8)
HDMI Source
IR Blaster
IR Receiver
Transmitter
Cat6 cable
Display (x8)
HDMI cable
HDMI cable
9
FAQ & Solutions
Q1: No image or audio output on the display?
A: 1. Check if the display is in standby mode.
2. Make sure the display's HDMI port is properly
connected to the HDMI cable.
3. Check the Link LED indicator on the Receiver is
on.
Q2: Not all displays are receiving a signal.
A: 1. Check the Cat6 cables for secure and solid
connection.
2. Press the Reset button on the Transmitter and
Receiver to reset the system.
3. Re-connect the Cat6 cable(s) corresponding to the
display(s) that are not working properly.
Q3: TV displays "Waiting forConnection" on thebottom
right corner.
A: 1. Check the Cat6 cables for secure and solid
connection.
2. Check the power supply on both transmitter and
receiver(s) is connected and powered on.
Q4: TV displays "Please check the TX input signal".
A: 1.PleasechecktheHDMIcableisconnectedproperly
and the HDMI source device is powered on.
2. Press the reset button on the Transmitter.
3. Connect the TV directly to the HDMI source
device to verify there is signal output.
10
Specifications
Item Specification
HDMI signal HDMI 1.3, HDCP 1.4
Input TX: 1x, 19-pin HDMI, Female
RX: 1x, RJ45; 1x, IR, 3.5mm socket
Output TX: 8x, RJ45; 1x, IR, 3.5mm socket
RX: 1x, 19-pin HDMI, Female
Resolution
480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz
Transmission distance Up to 394 ft (120m)
IR signal 20KHz - 60KHz
Operating temperature 32 F - 140 F (0 - 60 C)
Power adapter TX: 12VDC/3A
RX: 5VDC/1A
