HIK VISION Ds-7604ni-e1, ds-7608ni-e1 Bedienungsanleitung

www.hikvision.com/en/us

Quick Start Guide

Plug ’n Play NVR

DS-7604NI-E1/4P

DS-7608NI-E2/8P

DS-7616NI-E2/16P

Note: For more information refer to the complete User Manual located on the CD-ROM

www.hikvision.com/en/us

Please connecta monitor and a USB mouse (supplied) to the NVR for configuration purposes

CONTENTS

1. Overview

2. Device Activation

3. Main Menu Layout

4. Formatting the HDD

5. Date and Time Setup

6. Setting up Network Access

7. Adding IP Cameras (Non-PoE Models)

8. Setting up Recording

9. Configuring the Mobile APP

10.Playing Back Recorded Video

10.Making a Backup

www.hikvision.com/en/us

Please note, that the Quick Start Guide is compiled for the latest firmware versions. Please

upgrade the firmware of the NVR to the latest version before proceeding. Also note, thattheCD

maycontainoutdatedmanualsandsoftware.

Forthelatestfirmware,manualandsoftwaredownloadspleasevisit:

www.hikvision.com/en/us/download.asp

1. OVERVIEW

THE BOX CONTAINS:

NVR

USB Mouse

IR Remote

(Batteries not included)

Power Cord

Hard Drive Mounting

screws and brackets

Hard Drive

(Preinstalled)

Hard Drive Cables

Rack Mount Ear

(not included in 4-ch

model box)

Quick Start Guide

Manual/Software CD

www.hikvision.com/en/us

DS-7604NI-E1/4P

FRONT VIEW

1. Power, Status and Tx/Rx indicators

2. USB Port

REAR VIEW

1. Power Supply Port

2. Audio In

3. HDMI Monitor Output

4. Network Interface(RJ45)

5. Audio Out

6. VGA Output

7. USB Port

8. Grounding Screw

9. Power Switch

10.Built in POE Switch

11.Alarm In/Out

www.hikvision.com/en/us

NOTE: The rear panel of 7616NI-E2/16P provides 16 independent 100 Mbps PoE network

interfaces

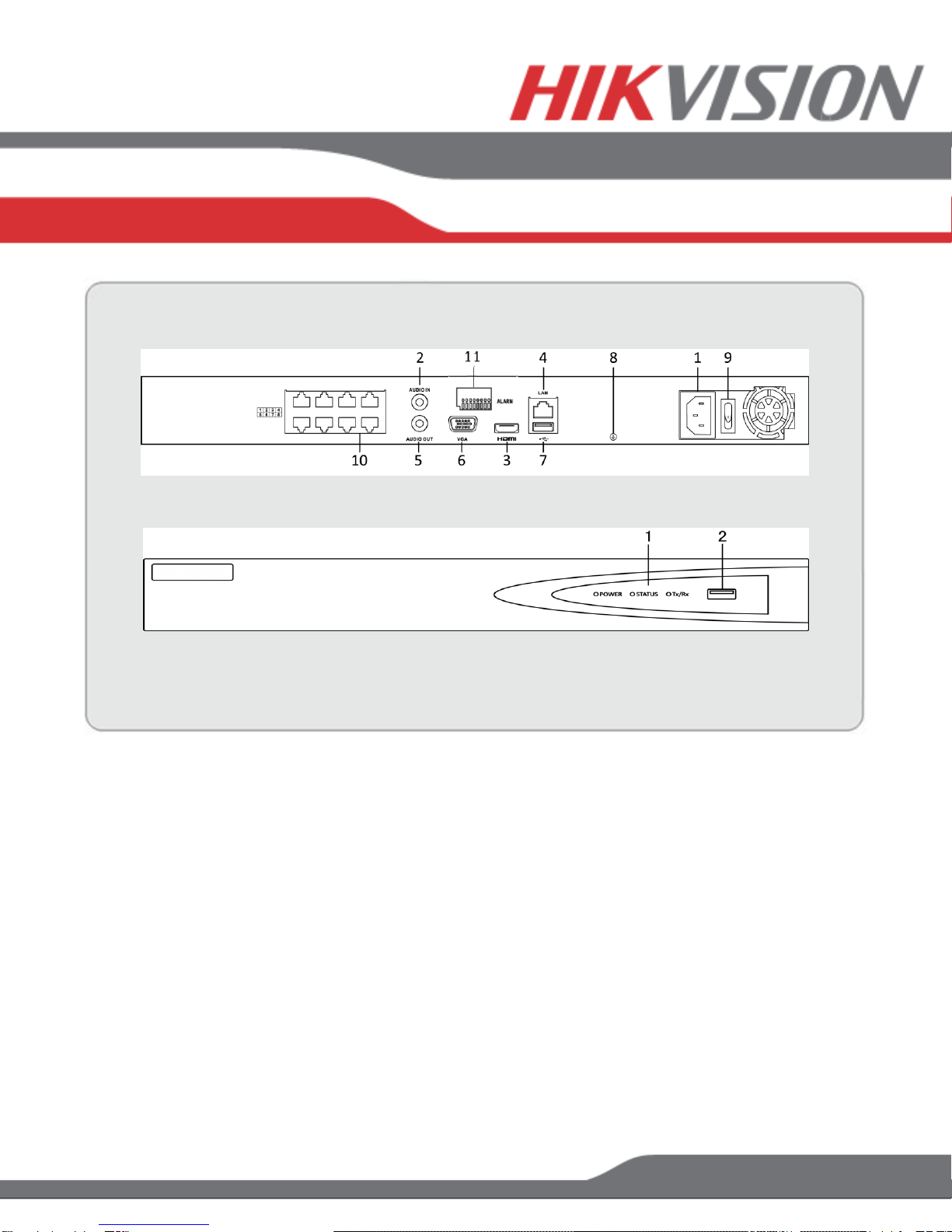

DS-7608NI-E2/8P / DS-7616NI-E2/16P

REAR VIEW

1. Power Supply Port

2. Audio In

3. HDMI Monitor Output

4. Network Interface(RJ45)

5. Audio Out

6. VGA Output

7. USB Port

8. Grounding Screw

9. Power Switch

10.Built in POE Switch

11.Alarm In/Out

FRONT VIEW

1. Power, Status and Tx/Rx indicators

2. USB Port

www.hikvision.com/en/us

To ensure the highest level of protection, Hikvision requires users to create a new

password for the admin account upon first login to a device. The system will check the

password strength; “Risky” passwords will not be accepted.

Device Firmware with Secure Activation

Device Type

Model Number

Firmware Version

Value Series IP Camera

DS-2CD2xxx

V5.3.0

Smart Series IP Camera

DS-2CD4xxx

V5.3.0

NVR/Hybrid

DS-9016HWI-ST

DS-96xxNI-ST

DS-7716NI-SP/16

V3.1.5

Plug-n-Play NVR

DS-76xxNI-EI(E2)/P

V3.1.0

Turbo DVR

DS-72xxHGHI-SH

DS-73xxHQHI-SH

V3.1.6

Super NVR

DS-96128NI-E24/H

DS-96256NI-E24/H

TBD

NOTE: DVRs/NVRs starting with the latest firmware (see chart, above) WILL NO

LONGER HAVE A DEFAULT PASSWORD. The user must activate the

DVR/NVR by creating a password for the admin account in one of four ways:

•Local Activation

2. DEVICE ACTIVATION

www.hikvision.com/en/us

1. Power on the DVR/NVR.

- A message will appear, prompting user to activate the device.

- The username field will be greyed-out with the username set to admin.

2. Type in a password of your choosing (see “Password Strength Levels” table for

guidelines).

- The password strength will be displayed, accompanied by a color indicator:

•Level 0–Risky (red indicator): Not acceptable

•Level 1–Weak (red indicator): Acceptable

•Level 2–Fair (orange indicator): Acceptable

•Level 3–Strong (blue indicator): Acceptable

- Activation will not be allowed unless the password is of acceptable strength.

NOTE: The strength level indicator colors can vary by activation process, model number, and

device type.

www.hikvision.com/en/us

3. Retype the password into the “Confirm Password” field.

4. After an acceptable password has been created, a confirmation message will

appear on the screen.

5. Press the OK button to proceed.

•SADP Software Activation (v2.2.3.5 or higher)

1. Launch the new version of the SADP software (v2.2.3.5).

- The software will display all Hikvision devices on the network.

- A new field called “Security” will be displayed

2. If the DVR/NVR is “Inactive,” highlight the DVR/NVR and enter a new password

into the “New Password” field on the bottom right of the screen.

- The password strength will be displayed, accompanied by a color indicator:

•Level 0–Risky (no indicator): Not acceptable

•Level 1–Weak (pink indicator): Acceptable

•Level 2–Medium (yellow indicator): Acceptable

•Level 3–Strong (green indicator): Acceptable

- Bar length indicates strength level.

- Activation will not be allowed unless the password is of acceptable strength. If

the password is unacceptable strength (“Risky”), a warning box will be

displayed.

3. Retype the password into the “Confirm Password” field.

4. After the password has been entered and confirmed, press the OK button to

display the pop-up confirmation window.

5. Press the “X” in the top right corner of the pop-up confirmation window to dismiss

the window.

www.hikvision.com/en/us

•iVMS-4200 Windows Client Software (v2.3.1.3 or higher) Activation

1. Launch the iVMS-4200 software.

2. Go to Control PanelDevice Management.

- On the bottom of the screen in the Online Devices section the screen will

display all Hikvision devices on the network.

- A new field called “Security” will be displayed.

3. If the DVR/NVR is “Inactive,” highlight the DVR/NVR and press the Activate

button to display the “Activation” window.

4. Enter a new password into the “Password” field.

- The password strength will be displayed, accompanied by a color indicator:

•Level 0–Risky (no indicator): Not acceptable

•Level 1–Weak (pink indicator): Acceptable

•Level 2–Medium (yellow indicator): Acceptable

•Level 3–Strong (green indicator): Acceptable

- Bar length indicates strength level.

- Activation will be allowed if the password is of acceptable strength.

- If the password is of unacceptable strength (“Risky”), a warning box will be

displayed explaining the requirements for an acceptable password.

5. Retype the password into the “Confirm Password” field.

6. After the password has been entered and confirmed, press the OK button.

- The DVR’s/NVR’s status will change to “Active.”

www.hikvision.com/en/us

•Web Interface Activation

1. In a Web browser, type the DVR’s/NVR’s IP address and press Enter.

- The Activation Window will appear instead of the login page.

2. Enter a new password into the “Password” field.

- The password strength will be displayed, accompanied by a color indicator:

•Level 0–Risky (no indicator): Not acceptable

•Level 1–Weak (pink indicator): Acceptable

•Level 2–Medium (yellow indicator): Acceptable

•Level 3–Strong (green indicator): Acceptable

- Bar length indicates strength level.

- Activation will be allowed if the password is of acceptable strength. A white

checkmark will appear in a green circle to the right of the password field.

- If the password is unacceptable strength (“Risky”, a white X will appear in a

red circle to the right of the password field and a warning dialog box will be

displayed explaining the requirements for an acceptable password.

3. Press the OK button.

- Upon successful activation, user will be logged in to the DVR’s/NVR’s live

view page.
