DS-9600/8600/7600NI-ST Series NVR

Quick Operation Guide

Version 2.1.2

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to DS-7608NI-ST, DS-7616NI-ST, DS-8608NI-ST, DS-8616NI-ST, DS-8632NI-ST;

DS-9608NI-ST, DS-9616NI-ST, DS-9632NI-ST series NVR.

Verify Contents

Verify that the package contents are correct by checking the items against the packing list.

Note: Please contact your dealer for damaged or missing items.

NVR Pre-Installation

The DS-9600/8600/7600NI-ST Series NVR is highly advanced surveillance equipment that should be installed

with care. Please take into consideration the following precautionary steps before installation of the NVR.

1. Keep all liquids away from the NVR.

2. Install the NVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

NVR Installation

During the installation of the NVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (~0.75-inch) of space between racks mounted devices.

6. Ensure the NVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC , 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the NVR. A factory

recommended HDD should be used for this installation.

Up to 8 SATA hard disks can be installed on your NVR.

Tools Required: Screwdriver.

Steps (for DS-9600NI-ST):

1. Fasten the hard disk mounting handle to the hard disk with screws.

2. Insert the key and turn in clockwise direction to open the panel lock.

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

3. Press the buttons on the panel of two sides and open the front panel.

4. Insert the hard disk along the slot until it is placed into position.

5. Repeat the above steps to install other hard disks onto the NVR. After having finished

the installation of all hard disks, replace the front panel and lock it with the key again.

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

Steps (for DS-8600NI-ST):

1. Remove the cover from the NVR by unfastening the screws on the back and side.

2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the

button to fix the HDD.

3. Connect one end of the data cable to the motherboard of NVR and the other end to the

HDD.

4. Connect the power cable to the HDD.

5. Re-install the cover of the NVR and fasten screws.

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

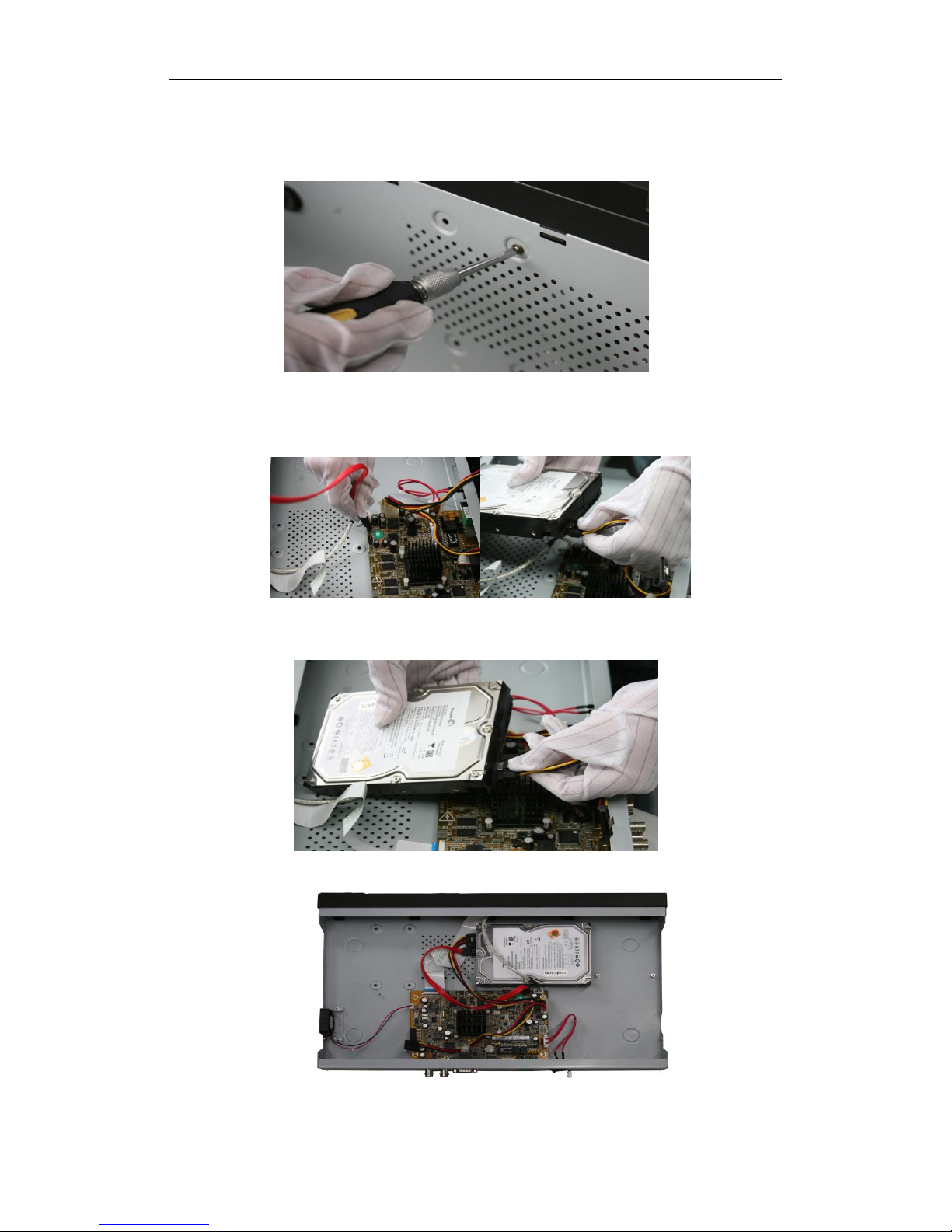

Steps (for DS-7600NI-ST):

1. Remove the cover from the DVR by unfastening the screws on the rear and side

panel.

2. Connect one end of the data cable to the motherboard of DVR and the other end to the HDD.

3. Connect the power cable to the HDD.

4. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

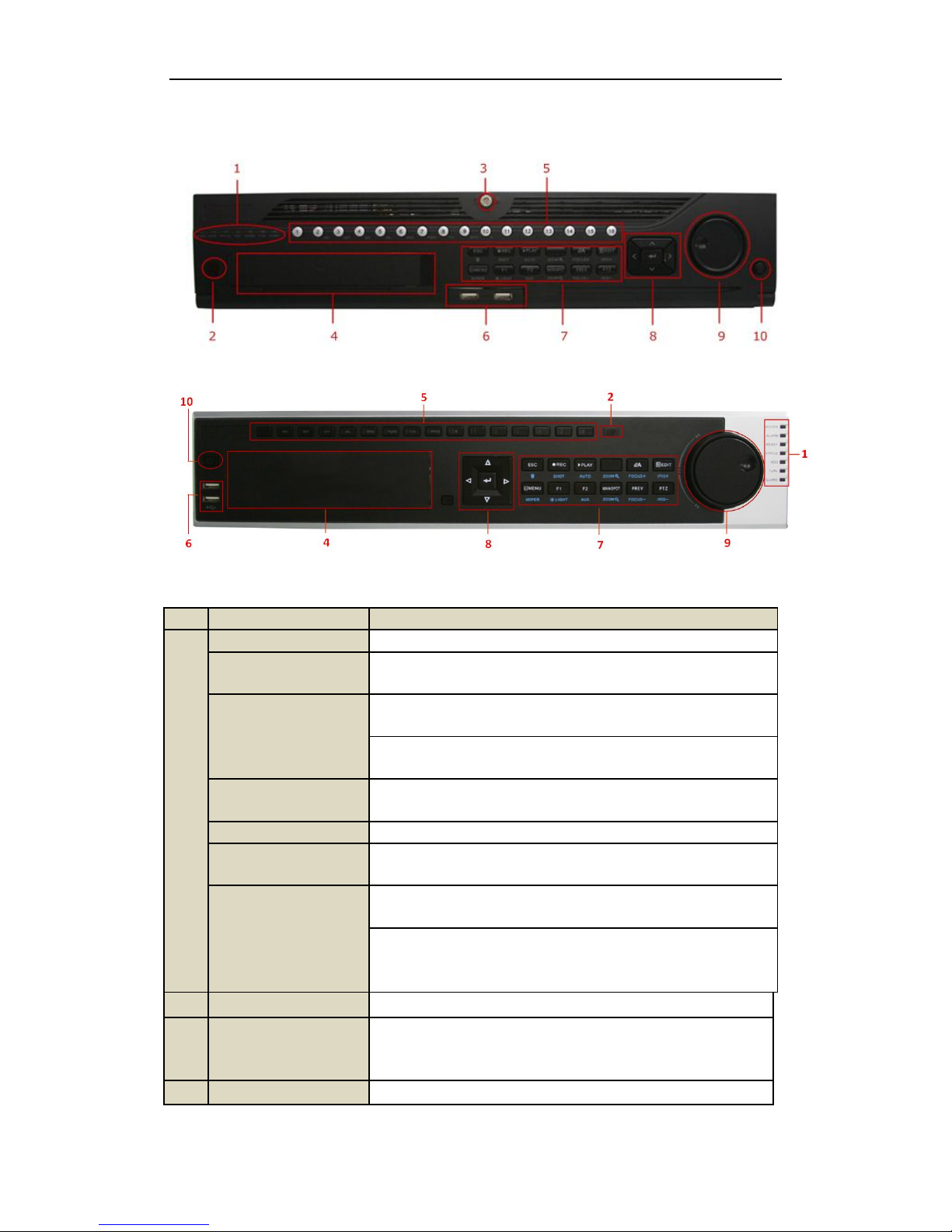

Front Panel

DS-9600NI-ST

DS-8600NI-ST

No.

Name

Function Description

ALARM

Alarm indicator turns red when a sensor alarm is detected.

READY

Ready indicator is normally blue, indicating that the device is functioning

properly.

STATUS

Status indicator turns blue when device is controlled by an IR remote.

Indicator turns red when controlled by a keyboard and purple when IR

remote and keyboard is used at the same time.

HDD

HDD indicator blinks red when data is being read from or written to

HDD.

MODEM

Reserved for future usage.

TX/RX

TX/RX indictor blinks blue when network connection is functioning

properly.

GUARD

Guard indicator turns blue when the device is in armed status; at this time,

an alarm is enabled when an event is detected.

The indicator turns off when the device is unarmed. The arm/disarm

status can be changed by pressing and holding on the ESC button for

more than 3 seconds in live view mode.

IR Receiver

Receiver for IR remote

Front Panel Lock

(for DS-9600NI-ST

series)

You can lock or unlock the panel by the key.

DVD-ROM

Slot for DVD-ROM. (Optional)

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

Alphanumeric Buttons

Switch to the corresponding channel in Live view or PTZ Control mode.

Input numbers and characters in Edit mode.

Switch between different channels in All-day Playback mode.

The light of the button is blue when the corresponding channel is

recording; it is red when the channel is in network transmission status; it

is pink when the channel is recording and transmitting.

USB Interfaces

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

ESC

Back to the previous menu.

Press for Arming/disarming the device in Live View mode.

REC/SHOT

Enter the Manual Record setting menu.

In PTZ control settings, press the button and then you can call a PTZ

preset by pressing Numeric button.

It is also used to turn audio on/off in the Playback mode.

PLAY/AUTO

The button is used to enter the All-day Playback mode.

It is also used to auto scan in the PTZ Control menu.

ZOOM+

Zoom in the PTZ camera in the PTZ Control setting.

A/FOCUS+

Adjust focus in the PTZ Control menu.

It is also used to switch between input methods (upper and lowercase

alphabet, symbols and numeric input).

EDIT/IRIS+

Edit text fields. When editing text fields, it will also function as a

Backspace button to delete the character in front of the cursor.

On checkbox fields, pressing the button will tick the checkbox.

In PTZ Control mode, the button adjusts the iris of the camera.

In Playback mode, it can be used to generate video clips for backup.

Enter/exit the folder of USB device and eSATA HDD.

MAIN/SPOT/ZOOM-

Switch between main and spot output.

In PTZ Control mode, it can be used to zoom out the image.

F1/ LIGHT

Select all items on the list when used in a list field.

In PTZ Control mode, it will turn on/off PTZ light (if applicable).

In Playback mode, it is used to switch between play and reverse play.

F2/ AUX

Cycle through tab pages.

In synchronous playback mode, it is used to switch between channels.

MENU/WIPER

Press the button will help you return to the Main menu (after successful

Press and hold the button for 5 seconds will turn off audible key beep.

In PTZ Control mode, the MENU/WIPER button will start wiper (if

applicable).

In Playback mode, it is used to show/hide the control interface.

PREV/FOCUS-

Switch between single screen and multi-screen mode.

In PTZ Control mode, it is used to adjust the focus in conjunction with

the A/FOCUS+ button.

PTZ/IRIS-

Enter the PTZ Control mode.

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

In the PTZ Control mode, it is used to adjust the iris of the PTZ camera.

DIRECTION

The DIRECTION buttons are used to navigate between different fields

and items in menus.

In the Playback mode, the Up and Down button is used to speed up and

slow down recorded video. The Left and Right button will select the next

and previous record files .

In Live View mode, these buttons can be used to cycle through channels.

In PTZ control mode, it can control the movement of the PTZ camera.

ENTER

The ENTER button is used to confirm selection in any of the menu

modes.

It can also be used to tick checkbox fields.

In Playback mode, it can be used to play or pause the video.

In single-frame Playback mode, pressing the button will advance the

video by a single frame.

In Auto-switch mode, it can be used to stop /start auto switch.

JOG SHUTTLE Control

Move the active selection in a menu. It will move the selection up and

down.

In Live View mode, it can be used to cycle through different channels.

In the Playback mode: For DS-9100/9000HFI-ST series, the ring is used

to jump 30s forward/backward in video files. For DS-8100/8000HFI-ST

series, the outer ring is used to speed up or slow down the record files

and the inner ring is used to jump 30s forward/backward in records files.

In PTZ control mode, it can control the movement of the PTZ camera.

POWER ON/OFF

Power on/off switch.

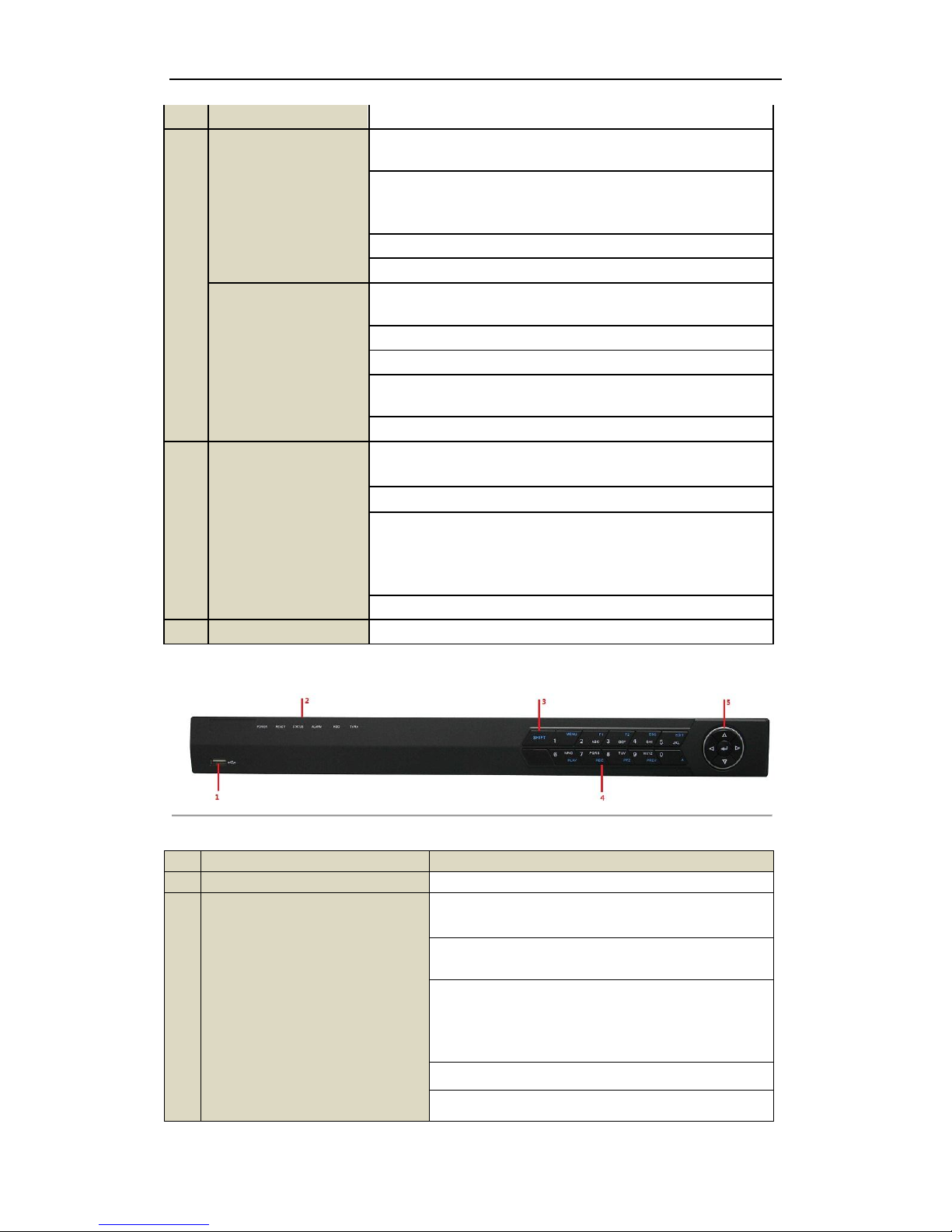

DS-7600NI-ST:

No.

Name

Function Description

USB Interface

Connects USB mouse or USE flash memory devices.

Status Indicators

POWER: the POWER indicator turns green when NVR is

powered up.

READY: The indicator light is green when the device is

running normally.

STATUS: 1.The light is green when the IR remote control is

enabled; 2.The light is red when the function of the composite

keys (SHIFT) are used; 3. The light is out when none of the

above condition is met/

ALARM: the light is red when there is an alarm occurring.

HDD: the indicator flickers red when HDD is reading/writing.

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

Tx/Rx: TX/RX indicator flickers green when network

connection is functioning normally.

SHIFT

Switch between the numeric or letter input and functions of

the composite keys. (Input letter or numbers when the light is

out; Realize functions when the light is red.)

Composite

Keys

1/MENU:

Enter numeral “1”;

Access the main menu interface.

2/ABC/F1:

Enter numeral “2”;

Enter letters “ABC”;

The F1 button when used in a list field will select all items in

the list.

In PTZ Control mode, it will turn on/off PTZ light and when

the image is zoomed in, the key is used to zoom out.

3/DEF/F2:

Enter numeral “3”;

Enter letters “DEF”;

The F2 button is used to change the tab pages.

In PTZ control mode, it zooms in the image.

4/GHI/ESC:

Enter numeral “4”;

Enter letters “GHI”;

Exit and back to the previous menu.

5/JKL/EDIT:

Enter numeral “5”;

Enter letters “JKL”;

Delete characters before cursor;

Check the checkbox and select the ON/OFF switch;

Start/stop record clipping in playback.

6/MNO/PLAY:

Enter numeral “6”;

Enter letters “MNO”;

Playback, for direct access to playback interface.

7/PQRS/REC:

Enter numeral “7”;

Enter letters “PQRS”;

Open the manual record interface.

8/TUV/PTZ:

Enter numeral “8”;

Enter letters “TUV”;

Access PTZ control interface.

9/WXYZ/PREV:

Enter numeral “9”;

Enter letters “WXYZ”;

Multi-channel display in live view.

0/A:

Enter numeral “0”;

Shift the input methods in the editing text field. (Upper and

lowercase, alphabet, symbols or numeric input).

Double press the button to switch the main and auxiliary

output.

Control Buttons

Directional buttons:

In menu mode, the direction buttons are used to navigate

between different fields and items and select setting

parameters.

In playback mode, the Up and Down buttons are used to

Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR

speed up and slow down record playing, and the Left and

Right buttons are used to move the recording 30s forwards or

backwards.

In the image setting interface, the up and down button can

adjust the level bar of the image parameters.

In live view mode, these buttons can be used to switch

channels.

Enter:

The Enter button is used to confirm selection in menu mode;

or used to check checkbox fields and ON/OFF switch.

In playback mode, it can be used to play or pause the video.

In single-frame play mode, pressing the Enter button will play

the video by a single frame.

And in auto sequence view mode, the buttons can be used to

pause or resume auto sequence.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION DVR Handbücher

HIK VISION

HIK VISION 7216HVI-S Bedienungsanleitung

HIK VISION

HIK VISION DS-8100-S Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7000HI Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7204HFI-SN Bedienungsanleitung

HIK VISION

HIK VISION DS-7600 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NI-H8 Bedienungsanleitung

HIK VISION

HIK VISION DS-9104HFI-ST series Benutzerhandbuch

HIK VISION

HIK VISION DS-7200-ST Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7300HFI-ST Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7200-ST Series Benutzerhandbuch

HIK VISION

HIK VISION DS-8100HFI-ST Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9000HFI-RH Series Bedienungsanleitung

HIK VISION

HIK VISION DS-8000 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7104NI-SL/W Bedienungsanleitung

HIK VISION

HIK VISION DS-6102HL Bedienungsanleitung

HIK VISION

HIK VISION Ds-7604ni-e1, ds-7608ni-e1 Bedienungsanleitung

HIK VISION

HIK VISION DS-7200HGHI-K1 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7604 Series Bedienungsanleitung

HIK VISION

HIK VISION 9100HFI-ST Series Bedienungsanleitung

HIK VISION

HIK VISION DS-77 NI-SP Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9100HFI-ST Bedienungsanleitung

HIK VISION

HIK VISION DS-8100-ST Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NI-I16 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-MP5 Series Bedienungsanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
