HIK VISION H1T Series Bedienungsanleitung

TURBO HD

H1T Series Dome Camera

User Manual

UD03908B

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE56H1T-(A)VPIT3Z

Type II Camera

DS-2CE56H1T-(A)ITZ

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or

update the products or procedures described in the

manual.

0100001061208

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot be

disposed of as unsorted municipal waste in

the European Union. See the product

documentation for specific battery

information. The battery is marked with

this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper

recycling, return the battery to your supplier or to a

designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the product, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Refer to technical specifications for detailed

information.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 24 V

AC or 12 V DC according to the IEC60950-1 standard.

Refer to technical specifications for detailed

information.

Do not connect several devices to one power adapter

as adapter overload may cause over-heating or a fire

hazard.

Make sure that the plug is firmly connected to the

power socket.

When the product is mounted on wall or ceiling, the

device shall be firmly fixed.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cable, and

then contact the service center.

If the product does not work properly, contact your

dealer or the nearest service center. Never attempt

to disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by

unauthorized repair or maintenance.)

Cautions

Make sure the power supply voltage is correct before

using the camera.

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers. If cleaning

is necessary, use clean cloth with a bit of ethanol and

wipe it gently. If the camera will not be used for an

extended period, replace the lens cap to protect the

sensor from dirt.

Do not aim the camera at the sun or extra bright

places. Blooming or smearing may occur otherwise

(which is not a malfunction), and affect the

endurance of sensor at the same time.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Do not place the camera in extremely hot, cold, dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

To avoid heat accumulation, good ventilation is

required for operating environment.

Keep the camera away from liquid while in use.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

1Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, underground parking lot, bar, etc..

The main features are as follows:

High performance CMOS sensor

Low illumination, 0.01 Lux@(F1.2, AGC ON), 0 Lux

with IR

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

internal synchronization

SMART IR mode

3-axis adjustment

Note:

Type II camera is applicable to indoor only.

1.2 Overview

Note:

The cables of device vary according to different

models. The cables of each type are shown in the

figures below, please refer to the actual sample.

You can debug the camera by connecting an

auxiliary HD TVI cable to the auxiliary video output.

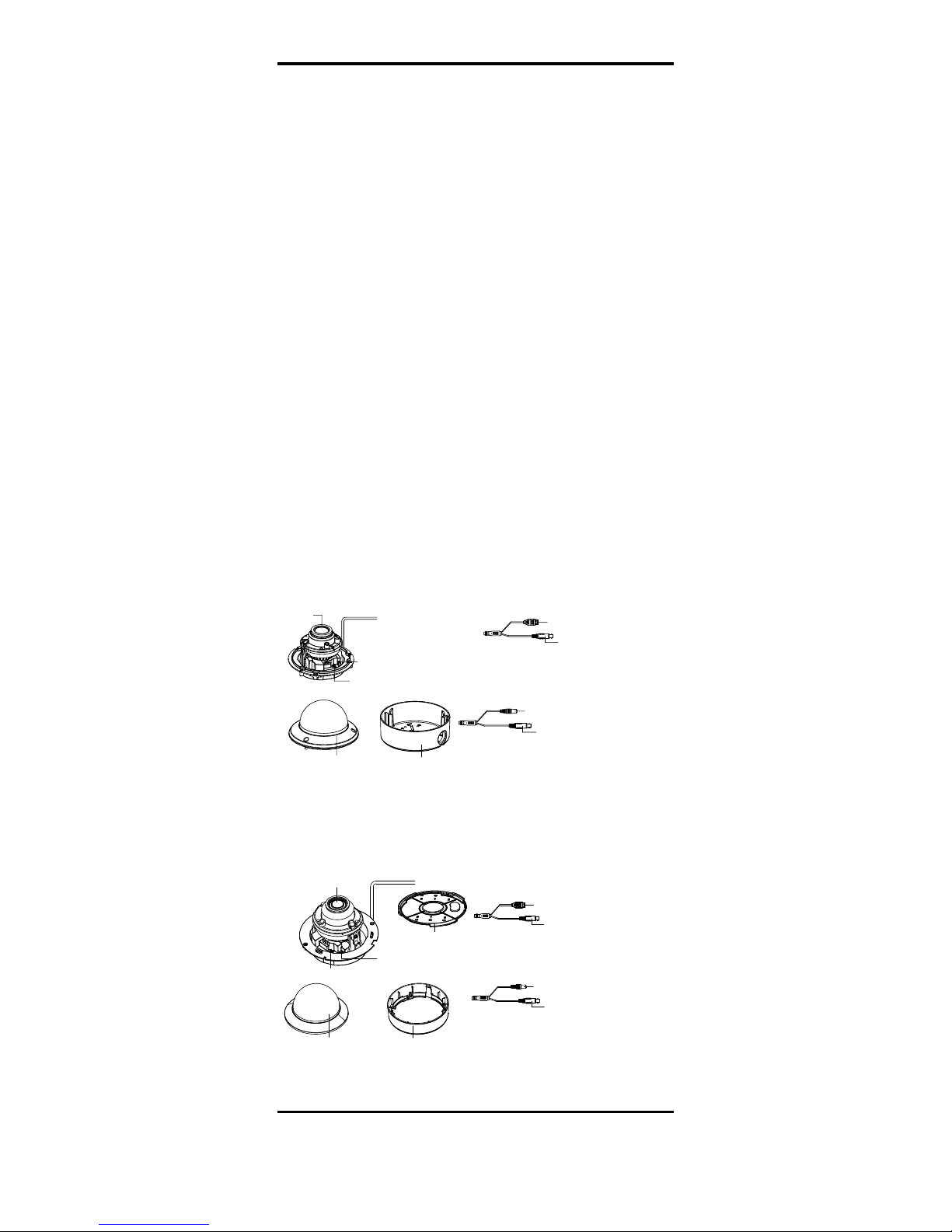

1.2.1 Overview of Type I Camera

Bubble

Auxiliary

Video Output

Lens

Back Box

Menu Button

Video Cable

24 VAC/12 VDC

Power Cord

Cables

Video Cable

12 VDC Power Cord

Model I Cables

Model II Cables

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Bubble

Auxiliary

Video Output

Lens

Back Box

Menu Button

Video Cable

24 VAC/12 VDC

Power Cord

Cables

Video Cable

12 VDC Power Cord

Model I Cables

Model II Cables

Base Plate

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid the damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

bracket.

If the wall is cement, you need to insert expansion

bolts before you install the camera. If the wall is

wooden, you can use self-tapping screws to secure

the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance

by yourself.

2.1 Ceiling Mounting

Note:

Both wall mounting and ceiling mounting are suitable

for the bullet camera. Ceiling mounting will be taken as

an example in this section. And you can take steps of

ceiling mounting as a reference for wall mounting.

Steps:

1. Paste the drill template to the celling.

2. Drill screw holes and the cable hole (optional) on

the ceiling according to the supplied drill template.

Note:

Drill the cable hole when adopting the ceiling outlet to

route the cable.

Type I Camera

Type II Camera

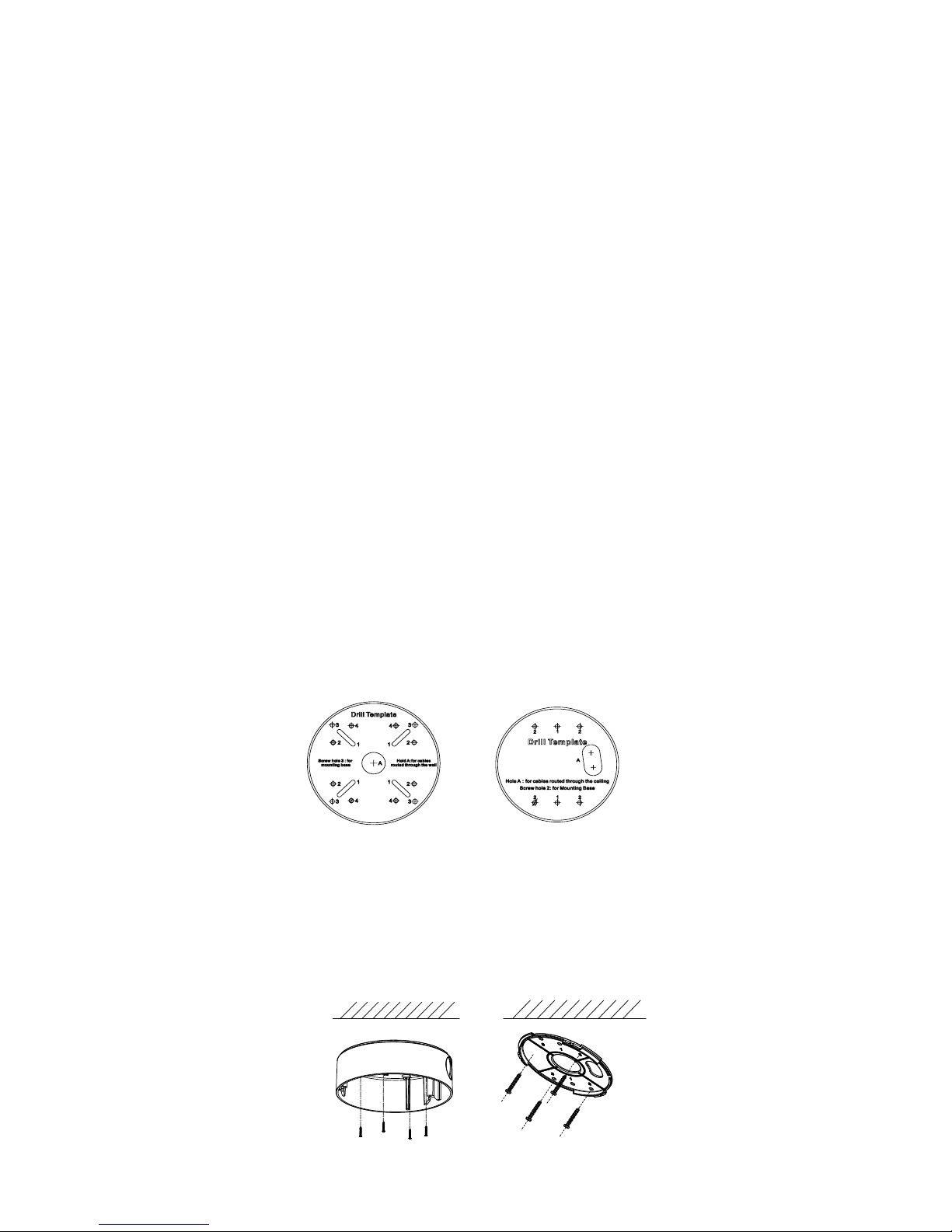

Figure 2-1 The Drill Template

3. Loosen the screws on the bubble of the dome

camera to remove the bubble and the black liner.

4. Attach the back box of type I camera/base plate of

type II camera to the ceiling and secure them with

supplied screws.

Type I Camera

Type II Camera

Figure 2-2 Attach the Back Box/Base Plate

Note:

In the supplied screw package, both self-tapping

screws and expansion bolts are contained.

For cement ceiling, expansion bolts are required to

fix the camera. For wooden ceiling, self-tapping

screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Align the camera with the back box/base plate, and

tighten the screws to secure the camera with the

back box/base plate.

Type I Camera

Type II Camera

Figure 2-3 Fix the camera to the Ceiling

7. Connect the corresponding cables, such as power

cable and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Type I Camera

0°to 355°

0°to 75°

0°to 355°

0°to 340°

0°to 75°

Type II Camera

Figure 2-4 3-Axis Adjustment

9. Fit the black liner back to the camera and tighten

the screws on the bubble of the dome camera to

finish the installation.

2.2 Wall Mounting

Note:

You need to purchase a wall mounting bracket

separately.

Steps:

1. Drill 4 screw holes in the wall according to the holes

of the bracket.

2. Attach the bracket to the wall by aligning the 4

screw holes of the bracket with expansion screws on

the wall.

3. Secure the bracket with 4 hex nuts and washers.

Type I Camera

Type II Camera

Figure 2-5 Install Wall Mounting Bracket

4. Refer to step 3 of 2.1 Ceiling Mounting to remove

dome camera’s bubble and the black liner.

5. Attach the back box/base plate of the dome camera

to the wall mounting bracket and secure them with

supplied screws.

Type I Camera

Type II Camera

Figure 2-6 Attach the Base Plate to the Bracket

6. Route the cables through the bracket.

7. Repeat steps 6 to 9 of the 2.1 Ceiling Mounting to

complete the installation.

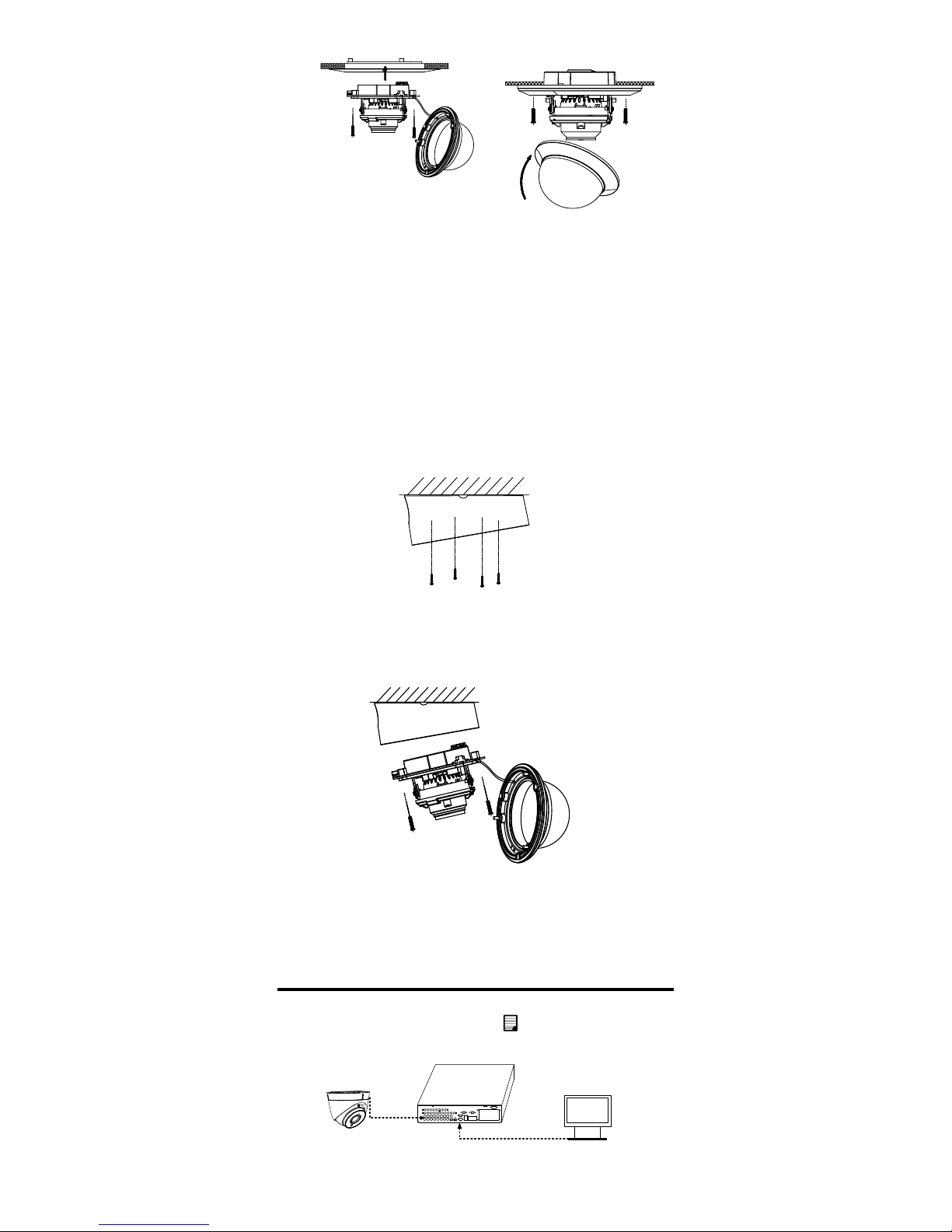

2.3 In-Ceiling Mounting

Note:

You need to purchase an in-ceiling mounting bracket

separately.

Steps:

1. Attach the drill template on the ceiling.

2. Drill the screw holes and cable holes (optional) in

the ceiling according to the supplied drill template.

Note:

Drill the cable hole when adopting the ceiling outlet to

route the cable.

3. Screw the bolts through the mounting bracket by

aligning with the 2 bolt holes. Fit the toggles onto

the bolts.

4. Push the two bolts through the two screw holes in

the ceiling. Rotate the bolt till the toggle holds the

ceiling tightly.

Figure 2-7 Install the In-Ceiling Mounting Bracket

5. Route the cables through the cable hole.

6. Fix the camera to the in-ceiling mounting bracket

with the supplied screws.

Type I Camera

Type II Camera

Figure 2-8 Fix the Camera to the Mount

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Repeat steps 8 to 9 of the 2.1 Ceiling Mounting to

complete the installation.

2.4 Mounting with Inclined Base of Type I Camera

Steps:

1. Drill 4 screw holes and the cable hole in the ceiling

according to the holes of the inclined base.

2. Install the inclined base to the ceiling with supplied

screws, as shown in Figure 2-9.

Figure 2-9 Fix the Inclined Base

3. Route the cables through the cable hole, or the side

opening of the inclined base.

4. Fix the camera to the inclined base with the

supplied screws.

Figure 2-10 Fix the Camera to the Base

5. Repeat the steps 7 to 9 of the 2.1 Ceiling Mounting

section to complete the installation.

3Menu Description

Purpose:

Call the menu by clicking button on the PTZ interface,

or call preset No.95.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

Steps:

1. Connect the camera with the TVI DVR, and the

monitor shown as the Figure 3-1.

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

5. Click the direction arrow to control the camera.

(1) Click up/down direction button to select the

item.

(2) Click Iris + to confirm the selection.

(3) Click left/right direction button to adjust the

value of the selected item.

OUTPUT

MODE

RESOLUTION

MAIN MENU

EXPOSURE

BACKLIGHT

WHITE

BAL

SPECIAL

ADJUST

EXIT

FRAME RATE

VIDEO OUT

RETURN

SHUTTER

FLICKER MODE

D-WDR

BLC

ATW

AWC- SET

MANUAL

COLOR

B/ W

AUTO

MIRROR

LANGUAGE

SHARPNESS

MONITOR

LSC

HLC

OFF

RETURN

BRIGHTNESS

DAY & NIGHT

DPC

RETURN

SAVE & END

RESET

NOT SAVE

SMART

FOCUS

Figure 3-2 Main Menu Overview

3.1 OUTPUT MODE

In the OUTPUT MODE submenu, you can set

RESOLUTION, FRAME RATE, and VIDEO OUT.

OUTPUT MODE

RESOLUTION

FRAME RATE

VIDEO OUT

RETURN

5 ME

20 P

PAL

RET

Figure 3-3 AE

Andere Handbücher für H1T Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION ECI-T24F Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CV2026G0-IDW Bedienungsanleitung

HIK VISION

HIK VISION HiLook D1 Series Bedienungsanleitung

HIK VISION

HIK VISION PanoVu iDS-2PT9122IX-DE/S Kurzanleitung

HIK VISION

HIK VISION HiLook B6 series Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD95C8-190ZK2FL/W Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD4166-50/V2 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2012-I Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC5181P-VF Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CE56D(F)7T-IT1 Bedienungsanleitung

HIK VISION

HIK VISION ECI-B62Z2 Bedienungsanleitung

HIK VISION

HIK VISION 2D Series Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD U7T Series Bedienungsanleitung

HIK VISION

HIK VISION Day/ Night Color Camera Bedienungsanleitung

HIK VISION

HIK VISION EZVIZ C6T MINI 360 PLUS Installationsanleitung

HIK VISION

HIK VISION UD04285B Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD5A46GO-IZS Bedienungsanleitung

HIK VISION

HIK VISION DS-2DF8C435MHS-DELW Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2955FWD-I Bedienungsanleitung

HIK VISION

HIK VISION 4 Inch High Speed Dome Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD7A85G0-IZHS Bedienungsanleitung

HIK VISION

HIK VISION UD01171B Bedienungsanleitung

HIK VISION

HIK VISION NETWORK CAMERA Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CE16H1T-IT1E Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
