Honeywell ZSTAT Installationshandbuch

- 1 -

Tech Support

Updated 6/7/11

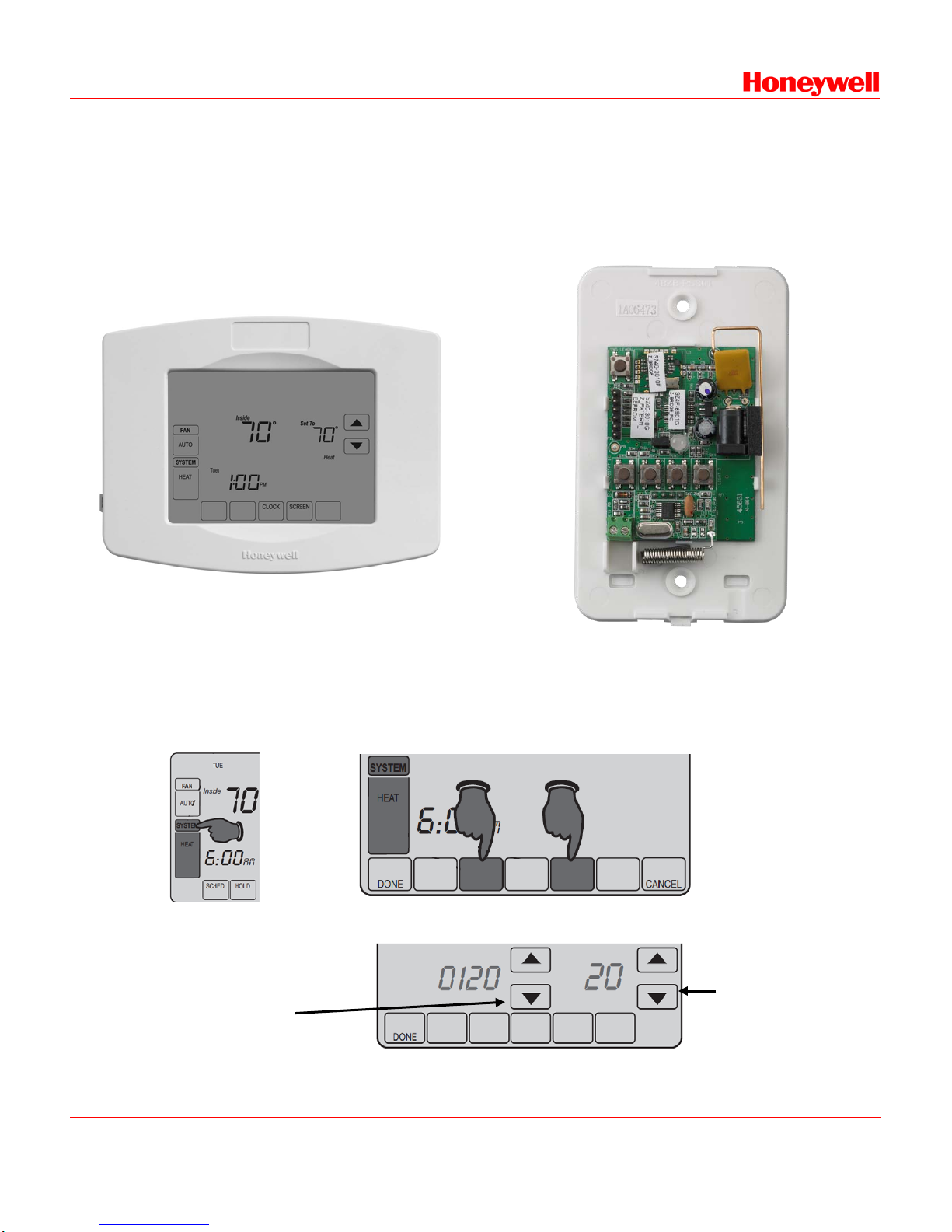

Basic Programming for the Honeywell ZSTAT Thermostat and 5800ZBRIDGE

Notes before you begin:

•If you need help wiring your thermostat, please call 1-800-468-1502

oIf required please have a licensed professional install your product for you.

Programming the thermostat:

1. Press System:

2. Press the 3rd and 5th buttons simultaneously

3. Used the following buttons to program:

Use the Up and down

arrows to scroll through the

questions (fields).

Use the Up and

down arrows to

enter the desired

value.

- 2 -

Tech Support

Updated 6/7/11

The Follow locations are the bare minimum fields required for operation:

Enrolling the House ID in the Z-Bridge Module:

1. Make sure your House ID is set in the panel or local mode of the RF keypads.

a. The following devices are compatible

•6150rf

•6160rf

•5883H

•Lynx Control Panels

2. Press the SW5 Learn switch for 1 second then release.

a. LED will Flash Orange

3. Arm and disarm the control panel.

a. The LED will now show status of the panel.

Enrolling the Z-Bridge Module into the Honeywell Z-wave thermostat:

1. Navigate through the programming of the thermostat until you reach the following screen:

Setup

Functions (Fields)

Settings & Options (Factory default is in bold)

0120

Year (First 2 Digits)

20 (2000-2078)

0130

Year (Second 2 Digits)

11 (2011)

0140

Month

6(1-12)

0150

Date

15 (1-31)

0160

Schedule Format

0 (Non Programmable)

(Does not affect Z-Wave Operation)

4 (Programmable)

0615

Energy Saving Heat Setpoint

65°F (18.5°C)

40-90°F (4.5°C-32°C)

0616

Energy Saving Cool Setpoint

78°F (25.5°C)

50-99°F (10°C-37°C)

- 3 -

Tech Support

Updated 6/7/11

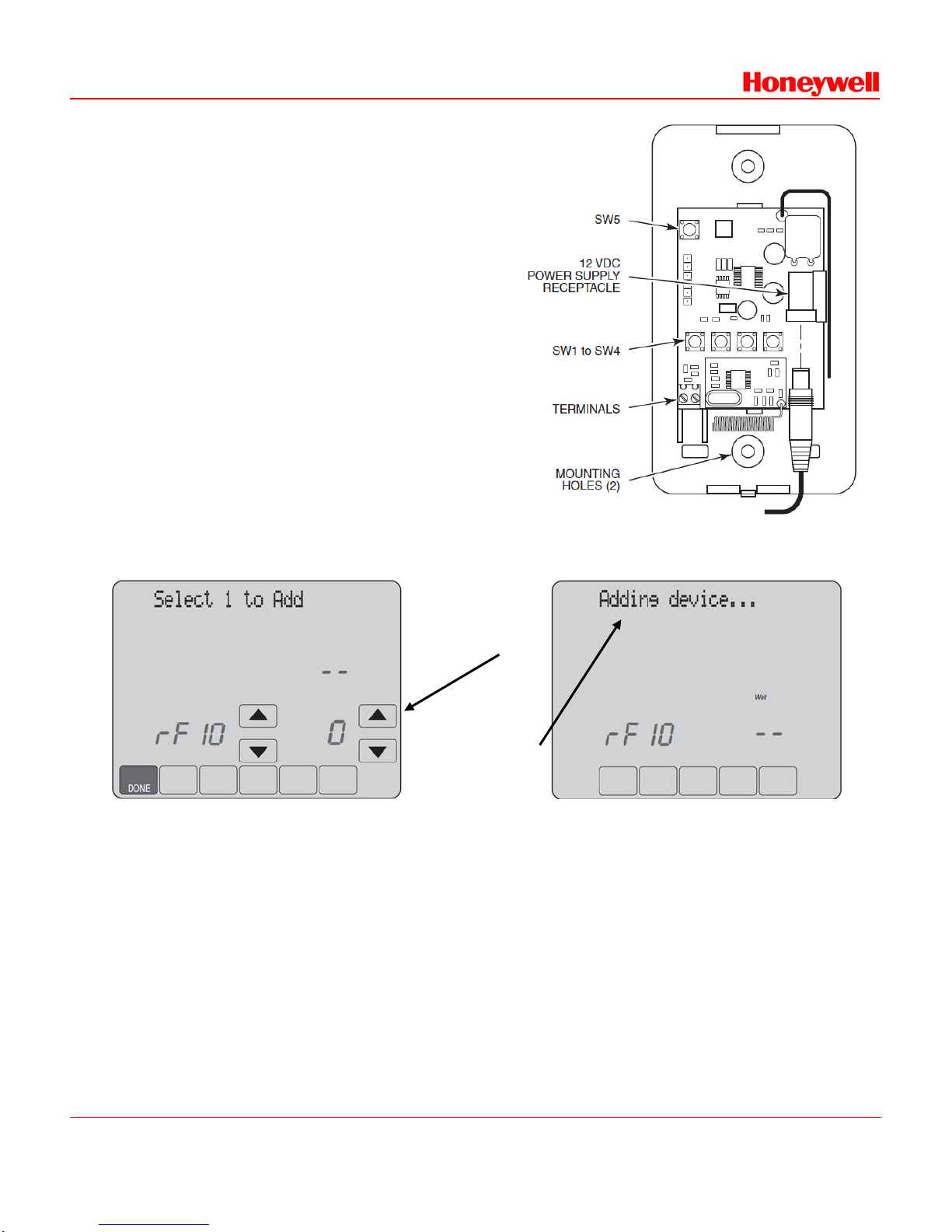

2. Next power up the Z-Bridge with the supplied 12v

power supply.

a. Upon power up the yellow LED will flash

3 times.

3. Press the corresponding switch (1-4) for 1 second

then release for any combination of four

Thermostats or Lights.

a. Switch 1 = Thermostat/Light 1

b. Switch 2 = Thermostat/Light 2

c. Switch 3 = Thermostat/Light 3

d. Switch 4 = Thermostat/Light 4

The LED on the Z-Bridge will begin flashing

green.

4. On the Thermostat, change the 0 to a 1 to learn the Z-Bridge.

Change this

value to a 1.

Once that is

done you will

see

Once learned in the LED will flash three times and return to the status of the control panel.

5. Press ‘Done’ to exit programming.

Notes:

1. To test the connectivity simply arm and disarm the panel and watch the LED on the Z-Bridge to

make sure it is illuminating properly (See Z-Bridge Installation Instructions).

2. To verify the Z-Bridge is communicating with the Thermostat look for the word ‘Saving’ which will

be present above the ‘Set To’ temperature. This represents the thermostat is in “Setback Mode’.

3. Locations 0615 (Heat Set Back) and 0616 (Cool Set Back) are End User Programmable. (See the

thermostat Owner’s Manual for more information)
