Installation and

User's Guide

AMD Opteron LS20

Type 8850 for IBM BladeCenter

Welcome.

Thank you for buying an

IBM blade server.

For more information about your

BladeCenter components and

features, you can view the

publications on the

http://www.ibm.com/support/

Your blade

server features superior

performance, availability,

and scalability.

This

contains information for setting up,

configuring, and using your

blade server.

Additionally, a service information

label is attached to each BladeCenter

unit and blade server. This label

provides a graphical summary of

many of the installation and service

activities that are associated with

each device.

CD or download from the

IBM Support Web site.

Go to

Installation and User's Guide

Documentation

The blade server is now

ready to use. Be sure to

blade server on the

IBM Support Web site.

Before installing the BladeCenter LS20

Type 8850 blade server in a BladeCenter unit,

complete the following procedures:

Install and configure the rack according

to the documentation that came with the rack.

Install the BladeCenter unit into the rack and

configure it, according to the documentation

provided with the BladeCenter unit.

Supply 200-240 V ac to the BladeCenter unit.

Install the latest firmware in all BladeCenter

components.

Before you install the blade server into the

BladeCenter unit, install options such as

drives, memory modules, processor or

expansion cards in the blade server, if applicable.

Install the blade server in the BladeCenter unit.

See Chapter 3 for more information.

Configure the blade server.

See Chapter 4 for more information.

Install the operating system.

See Chapter 5 for more information.

Install additional applications

according to the instructions provided

with the applications.

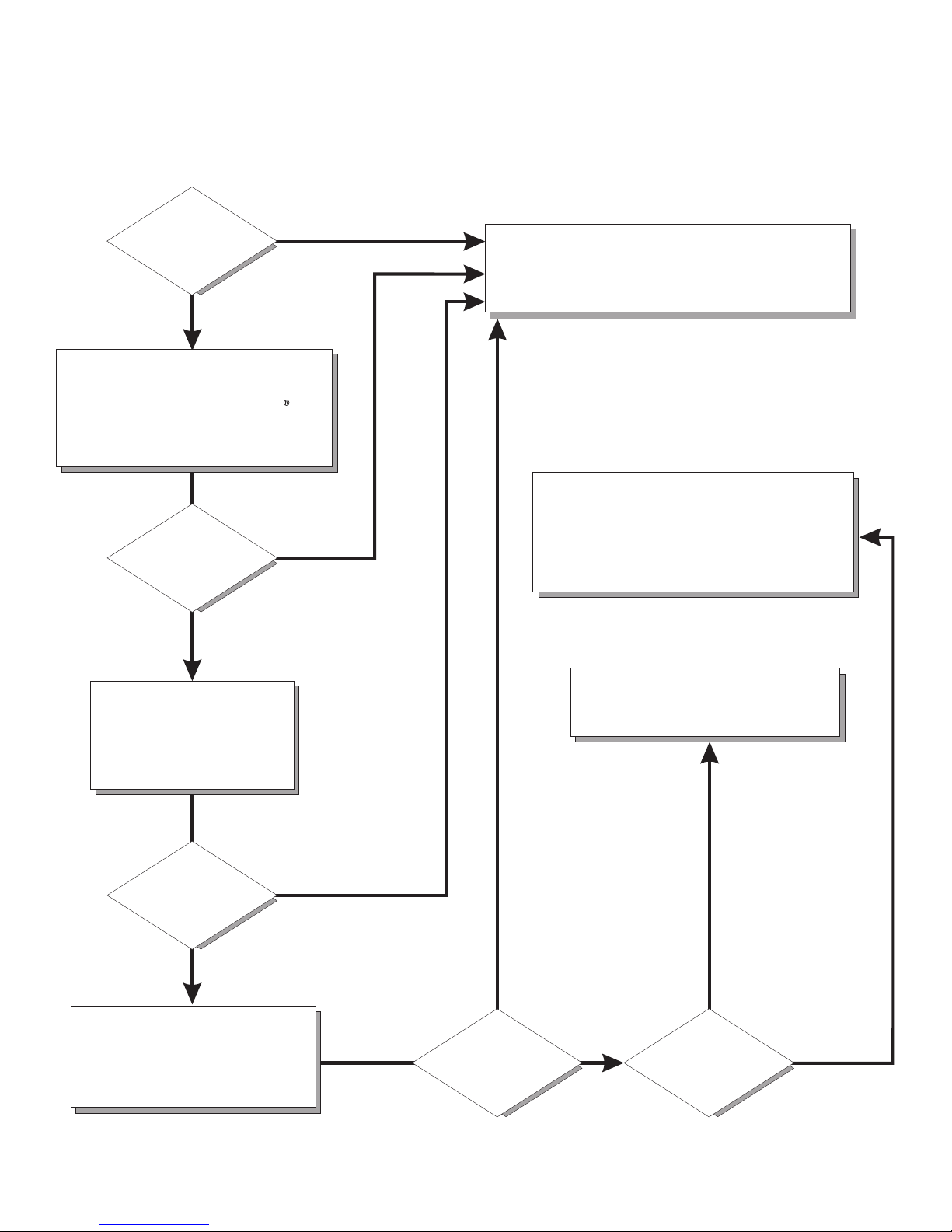

Server Support

Ye s

See the troubleshooting

information that comes with

the server to determine

the cause of the problem

and the action to take.

Update the firmware to the

latest level.

You can download firmware from

http://www.ibm.com/support/

No Software

Ye s

Hardware

Check all cables for loose connections

and verify that all optional devices you

installed are on the ServerProven list at

http://www.ibm.com/servers/eserver/

serverproven/compat/us/.

Is the server working

correctly?

Is the problem

solved?

Hardware or

software problem?

View support telephone numbers at

http://www.ibm.com/planetwide/.

View information about IBM Support Line at

or view support telephone numbers at

http://www.ibm.com/services/sl/products/

http://www.ibm.com/planetwide/.

http://www.ibm.com/support/mysupport/

Ye s

Is the problem

solved?

Is the problem

solved?

AMD Opteron LS20 Ty pe 8850

for IBM BladeCenter

Installation and User’s Guide



Note: Before using this information and the product it supports, read the general information in “Notices” on page 45 and the

Warranty and Support Information document for your blade server type on the Documentation CD.

Second Edition (April 2006)

US Government Users Restricted Rights –Use, duplication or disclosure restricted by GSA ADP Schedule Contract

with IBM Corp.

Contents

Safety ............................v

Chapter 1. Introduction ......................1

Related documentation ......................3

The IBM Documentation CD ....................3

Hardware and software requirements ................3

Using the Documentation Browser .................4

Notices and statements used in this document..............4

Features and specifications .....................5

What your LS20 Type 8850 blade server offers .............6

Reliability, availability, and serviceability features .............7

IBM Director ..........................7

Major components of the blade server .................9

Chapter 2. Power, controls, jumpers, switches, and indicators ......11

Turning on the blade server ....................11

Turning off the blade server ....................11

The control panel buttons and LEDs .................12

System board components and jumpers ...............14

Chapter 3. Installing options ...................15

Installation guidelines ......................15

System reliability guidelines ...................15

Handling static-sensitive devices .................15

Removing the blade server from the BladeCenter unit ..........16

Opening the blade server cover...................17

Removing the blade server bezel assembly ..............18

Installing aSCSI hard disk drive ..................19

Removing aSCSI hard disk drive ..................20

Installing memory modules ....................20

Installing an additional microprocessor ................22

Installing an I/O expansion card...................26

Installing asmall-form-factor expansion card .............26

Installing astandard-form-factor expansion card............27

Completing the installation.....................29

Installing the blade server bezel assembly ..............29

Closing the blade server cover ..................29

Installing the blade server in aBladeCenter unit............30

Updating the blade server configuration ...............32

Input/output connectors and devices .................32

Chapter 4. Configuring the blade .................33

Using the Configuration/Setup Utility program .............33

Configuration/Setup Utility menu choices ..............34

Using passwords .......................36

Firmware updates ........................37

Configuring the Gigabit Ethernet controllers ..............38

Blade server Ethernet controller enumeration ..............38

Configuring aSCSI RAID array ...................39

Using the LSI Logic Configuration Utility program ...........39

Using the ServeRAID configuration programs.............40

Chapter 5. Installing the operating system ..............41

©Copyright IBM Corp. 2006 iii

Using RDM Version 4.20 or later to install the operating system .......42

Downloading operating-system installation instructions ..........42

Chapter 6. Solving problems ...................43

Notices ...........................45

Trademarks ..........................45

Important notes.........................46

Product recycling and disposal ...................47

Battery return program ......................48

Electronic emission notices ....................48

Federal Communications Commission (FCC) statement .........48

Industry Canada Class Aemission compliance statement ........49

Australia and New Zealand Class Astatement ............49

United Kingdom telecommunications safety requirement.........49

European Union EMC Directive conformance statement .........49

Taiwanese Class Awarning statement ...............50

Chinese Class Awarning statement ................50

Japanese Voluntary Control Council for Interference (VCCI) statement ...50

Index ............................51

iv AMD Opteron LS20 Type 8850 for IBM BladeCenter: Installation and User’s Guide

Safety

Before installing this product, read the Safety Information.

Antes de instalar este produto, leia as Informações de Segurança.

Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.

Læs sikkerhedsforskrifterne, før du installerer dette produkt.

Lees voordat udit product installeert eerst de veiligheidsvoorschriften.

Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.

Avant d’installer ce produit, lisez les consignes de sécurité.

Vor der Installation dieses Produkts die Sicherheitshinweise lesen.

Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.

Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.

Antes de instalar este produto, leia as Informações sobre Segurança.

©Copyright IBM Corp. 2006 v

Antes de instalar este producto, lea la información de seguridad.

Läs säkerhetsinformationen innan du installerar den här produkten.

Important:

All caution and danger statements in this documentation begin with a

number. This number is used to cross reference an English caution or

danger statement with translated versions of the caution or danger

statement in the IBM Safety Information book.

For example, if acaution statement begins with anumber 1,

translations for that caution statement appear in the IBM Safety

Information book under statement 1.

Be sure to read all caution and danger statements in this

documentation before performing the instructions. Read any additional

safety information that comes with the server or optional device before

you install the device.

vi AMD Opteron LS20 Type 8850 for IBM BladeCenter: Installation and User’s Guide

Statement 1:

DANGER

Electrical current from power, telephone, and communication cables is

hazardous.

To avoid ashock hazard:

vDo not connect or disconnect any cables or perform installation,

maintenance, or reconfiguration of this product during an electrical

storm.

vConnect all power cords to aproperly wired and grounded electrical

outlet.

vConnect to properly wired outlets any equipment that will be attached to

this product.

vWhen possible, use one hand only to connect or disconnect signal

cables.

vNever turn on any equipment when there is evidence of fire, water, or

structural damage.

vDisconnect the attached power cords, telecommunications systems,

networks, and modems before you open the device covers, unless

instructed otherwise in the installation and configuration procedures.

vConnect and disconnect cables as described in the following table when

installing, moving, or opening covers on this product or attached

devices.

To Connect: To Disconnect:

1. Turn everything OFF.

2. First, attach all cables to devices.

3. Attach signal cables to connectors.

4. Attach power cords to outlet.

5. Turn device ON.

1. Turn everything OFF.

2. First, remove power cords from outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

Safety vii

Statement 2:

CAUTION:

When replacing the lithium battery, use only IBM Part Number 33F8354 or an

equivalent type battery recommended by the manufacturer. If your system has

amodule containing alithium battery, replace it only with the same module

type made by the same manufacturer. The battery contains lithium and can

explode if not properly used, handled, or disposed of.

Do not:

vThrow or immerse into water

vHeat to more than 100°C (212°F)

vRepair or disassemble

Dispose of the battery as required by local ordinances or regulations.

Statement 3:

CAUTION:

When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or

transmitters) are installed, note the following:

vDo not remove the covers. Removing the covers of the laser product could

result in exposure to hazardous laser radiation. There are no serviceable

parts inside the device.

vUse of controls or adjustments or performance of procedures other than

those specified herein might result in hazardous radiation exposure.

DANGER

Some laser products contain an embedded Class 3A or Class 3B laser

diode. Note the following.

Laser radiation when open. Do not stare into the beam, do not view directly

with optical instruments, and avoid direct exposure to the beam.

Class 1 Laser Product

Laser Klasse 1

Laser Klass 1

Luokan 1 Laserlaite

Appareil A Laser de Classe 1

viii AMD Opteron LS20 Type 8850 for IBM BladeCenter: Installation and User’s Guide

Andere Handbücher für LS20 - BladeCenter - 8850

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere IBM Server Handbücher

IBM

IBM @server x Series Bedienungsanleitung

IBM

IBM Power 720 Express 8202-E4B Bedienungsanleitung

IBM

IBM Power System 9223-42S Bedienungsanleitung

IBM

IBM Redbooks x3850 X5 Bedienungsanleitung

IBM

IBM System x3650 M4 Type 7915 Bedienungsanleitung

IBM

IBM Redbooks x3850 X5 Bedienungsanleitung

IBM

IBM RS/6000 SP Bedienungsanleitung

IBM

IBM System x iDataPlex dx360 M3 Bedienungsanleitung

IBM

IBM System x3950 X5 Bedienungsanleitung

IBM

IBM xSeries 235 Betriebsanleitung

IBM

IBM Redboks System x3550 M4 Bedienungsanleitung

IBM

IBM p 655 series Bedienungsanleitung

IBM

IBM 8500R - Netfinity - 8681 Betriebsanleitung

IBM

IBM Netfinity 5000 Bedienungs- und Sicherheitshinweise

IBM

IBM System x3100 M4 Bedienungsanleitung

IBM

IBM XGS 5200 Bedienungsanleitung

IBM

IBM IntelliStation POWER 285 Bedienungsanleitung

IBM

IBM Power Systems Series Bedienungsanleitung

IBM

IBM S822LC Installationsanleitung

IBM

IBM HS12 - BladeCenter - 8028 Bedienungsanleitung

IBM

IBM Netfinity 4500R Bedienungsanleitung

IBM

IBM Power System E880C Gebrauchs- und Pflegehandbuch

IBM

IBM BladeCenter JS20 Bedienungsanleitung

IBM

IBM i Series Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
