ICP DAS USA ET-2260 Bedienungsanleitung

Technical support: servic[email protected] P1

ET-2260 Quick Start

v1.2, Jun. 2018

What’s in the box?

Related Information

The package includes the following items:

ET-2260 Module x 1

Quick Start x1

(This Document)

ET-2200 Series Product Page:

Documentation & Firmware:

NS-205/MDR-20-24 Product Page (optional):

Technical support: servic[email protected] P2

Connecting the Power and Host PC

1) Make sure your PC has workable network settings.

Disable or well configure your Windows firewall and Anti-Virus firewall first,

else the “Search Servers” on Chapter 5 may not work. (Please contact

with your system Administrator)

2) Connect both the ET-2260 and your PC to the same sub network or the

same Ethernet switch.

3) Supply power (+10~+30 VDC) to the ET-2260.

4) Verify that the “PWR”LED indicator

on the ET-2260 is flashing.

Red, OK

Technical support: servic[email protected] P3

2 Pin Assignments & Wiring Note

Pin Assignments:

Wire Connections:

Readback as 1 Readback as 0

+10 ~ +50 VDC OPEN or <4 VDC

Digital Input/

Counter

Sink

Source

To other channels

10K

DICOM

DIx

To other channels

10K

DICOM

DIx

To other channels

10K

DICOM

DIx

To other channels

10K

DICOM

DIx

Relay Close

Open

Close to GND

Dry

Contact

Relay Open

NOx

COMx

LOAD

AC/DC

Readback as 1

Readback as 0

Power Relay

ON State

OFF State

NOx

COMx

LOAD

AC/DC

To other channels

GND

DIx

+S5 V GND

DIx

+S5 V

Technical support: servic[email protected] P4

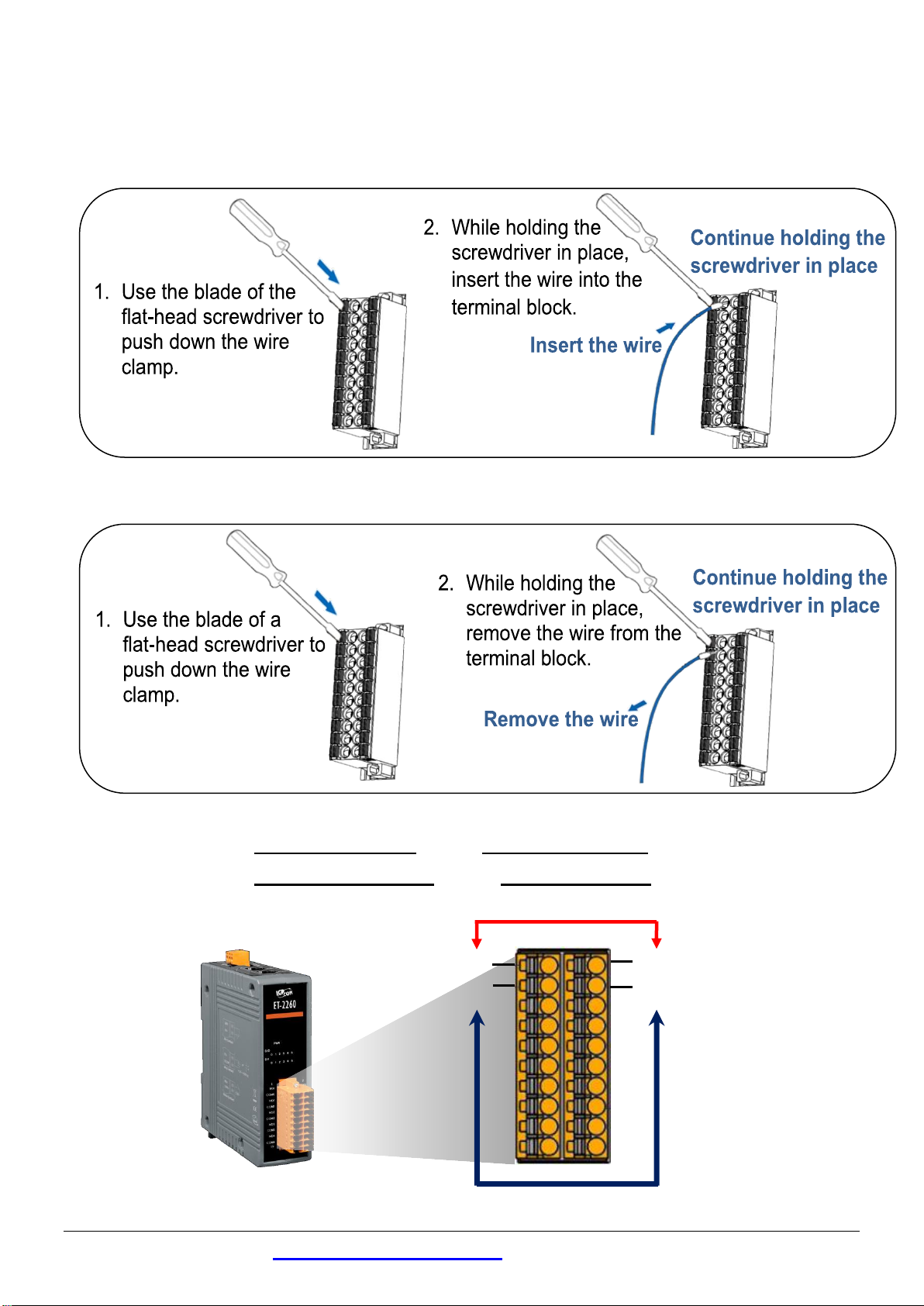

3 Wiring the DI and DO for Self-test

A tip for connecting the wire to the connector

A tip for removing the wire from the connector

1) Connect the NO0 pin (Pin01) to the GND pin (Pin02).

2) Connect the COM0 pin (Pin03) to the DI0 pin (Pin04).

NO0 01

COM0 02

02 GND

04 DI0

Technical support: servic[email protected] P5

4 Modbus Address

(0xxxx) DO address:

Begin

address

Points

Description

Bits

Per

Point

Range

Access

Type

0 (0x0)

1~6

Digital Output Channels

0: OFF, 1: ON

R/W

32 (0x20)

Clears the status of all high

latched DI channels

1: Clear

33 (0x21)

Clears the status of all low

latched DI channels

1: Clear

190

(0xBE)

1~6

Enables frequency

measurement for all DI

Channels

0: Disable

1: Enable

(Default: 0)

R/W/F

235

(0xEB)

1~6

Sets the Power-on value for

all DO Channels

0: OFF, 1: ON

(Default: 0)

R/W/F

267

(0x10B)

1~6

Sets the Safe value for all DO

Channels

0: OFF, 1: ON

(Default: 0)

R/W/F

“R”: Read; “W”: Write; “F”:Settings are recorded in flash memory by default

(1xxxx) DI address:

Begin

address

Points

Description

Bits

Per

Point

Range

Access

Type

(0x0)

1~6

Digital Input

0:Off

1:On

(0x20)

1~6

Digital latched status (high)

0:no

1:latched

(0x40)

1~6

Digital latched status (low)

0:no

1:latched

“R”: Read

Note

For detail “DI/DO Modbus Address”information, refer to Section 6.3 Modbus Register Table

of user’s manual

(http://ftp.icpdas.com/pub/cd/6000cd/napdos/et2200/document/).

Technical support: servic[email protected] P6

5 Configuring Network Settings

1) Run the eSearch Utility.

The eSearch Utility is located at:

http://ftp.icpdas.com/pub/cd/6000cd/napdos/software/esearch/

2) Click the “Search Servers”to search your ET-2260.

3) Double-click your ET-2260 to configure the settings

Factory Default Settings of ET-2260:

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

4) Contact your Network Administrator to obtain a correct network

configuration (such as IP/Mask/Gateway). Enter the network settings

and click “OK”.

Note: The ET-2260 will use the new settings 2 seconds

later.









Technical support: servic[email protected] P7

6 Testing your Ethernet I/O Module

1) Wait 2 seconds and click “Search Servers”button again to ensure the

ET-2260 is working well with new configuration.

2) Click the name of ET-2260 to select it.

3) Click the “Web”button to log in to the web configuration pages.

(Or enter the URL address of the ET-2260 in the address bar of the

browser.)

4) Enter the password (default: Admin)in the “login password”field and

click “Submit”.







Use the default

password: Admin



Technical support: servic[email protected] P8

5) In the “Home”page allows a simple test to be performed to verify the Digital

Input and Output functionality.

6) In the “Digital I/O”section, click the “DO0”button to ON (Red).

7) The corresponding DI becomes green for DI0 is ON.






