ICP DAS USA PET-7261 Bedienungsanleitung

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

P ET-7052/ET-7052 Quick Start Guide

PET/ET-7261

Modbus TCP Based Ethernet I/O Module with 2 Ethernet ports,

with 11-channel Relay Output

Quick Start Guide

Congratulations on purchasing PET/ET-7261 - 11-channel Relay Output. The most popular

automation solution for Ethernet remote monitoring and control application. This Quick Start

Guide will provide information needed to get started with PET/ET-7261. Please also consult

the User Manual for detailed information on the setup and use of PET/ET-7261

In addition to this guide, the package includes the following items:

PET/ET-7261 Module Software Utility CD

Technical Support

-PET/ET-7261 Website

http://www.icpdas-usa.com/et_7261.html

-ICP DAS USA Website

http://www.icpdas-usa.com/

Phone : 1-310-517-9888

Email: sales@icpdas-usa.com

Tech Support: tech@icpdas-usa.com

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

-----------------------------------------------------------

Configuring Boot Mode

Init mode: For configuration. After booting, PET/ET-7261 will not run the

default firmware and cannot surf the internet. Use this mode to

update MiniOS7 image.

Normal mode: For normal working. After booting, PET/ET-7261 will run

the default firmware and can use all PET/ET-7261 functions.

----------------------------------------------------------------------------------

Connecting to Network, PC and Power

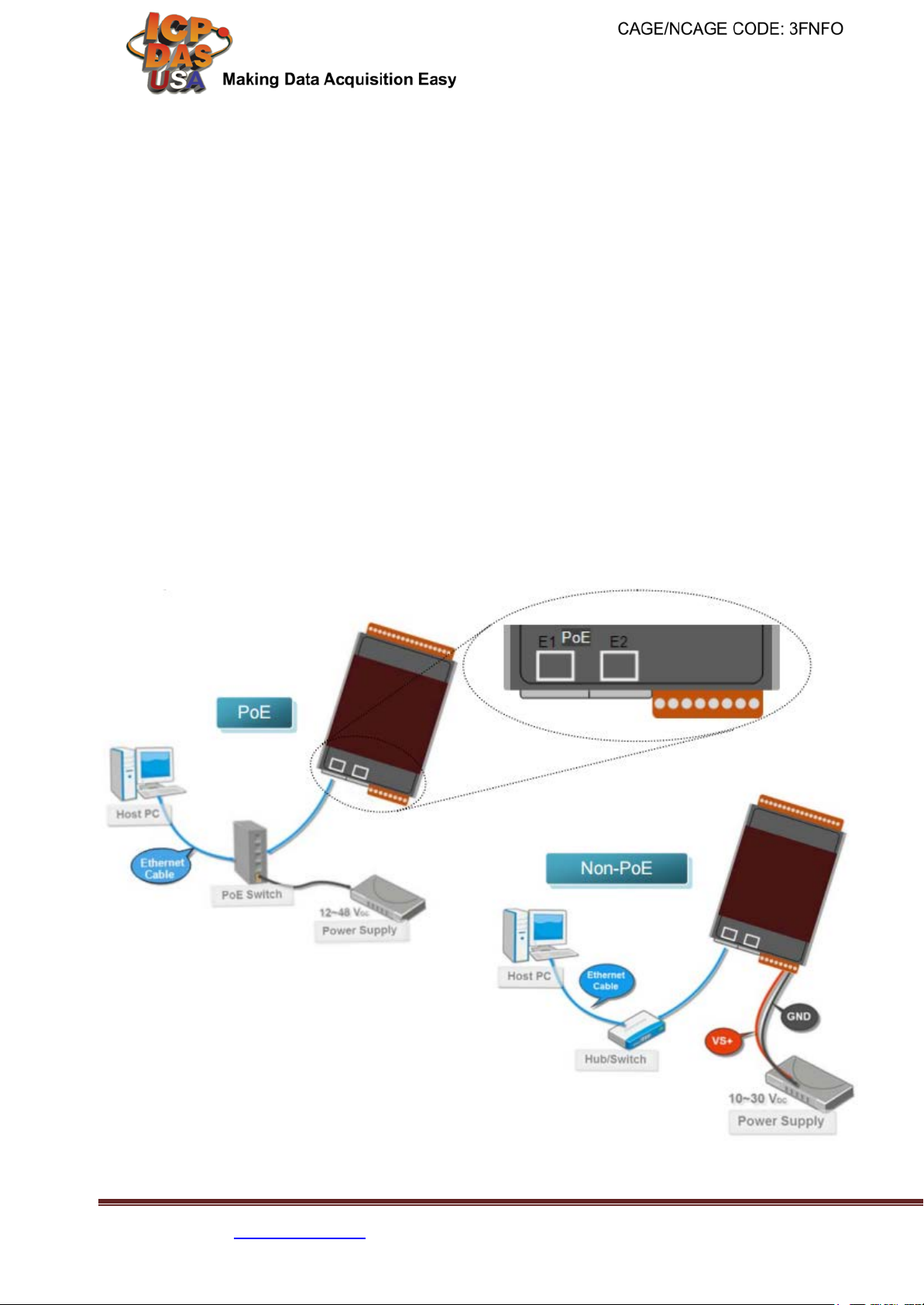

The PET/ET-7261 is equipped with an RJ-45 Ethernet port for connection to an Ethernet

hub/switch and PC.

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

---------------------------------------------------------------------------------

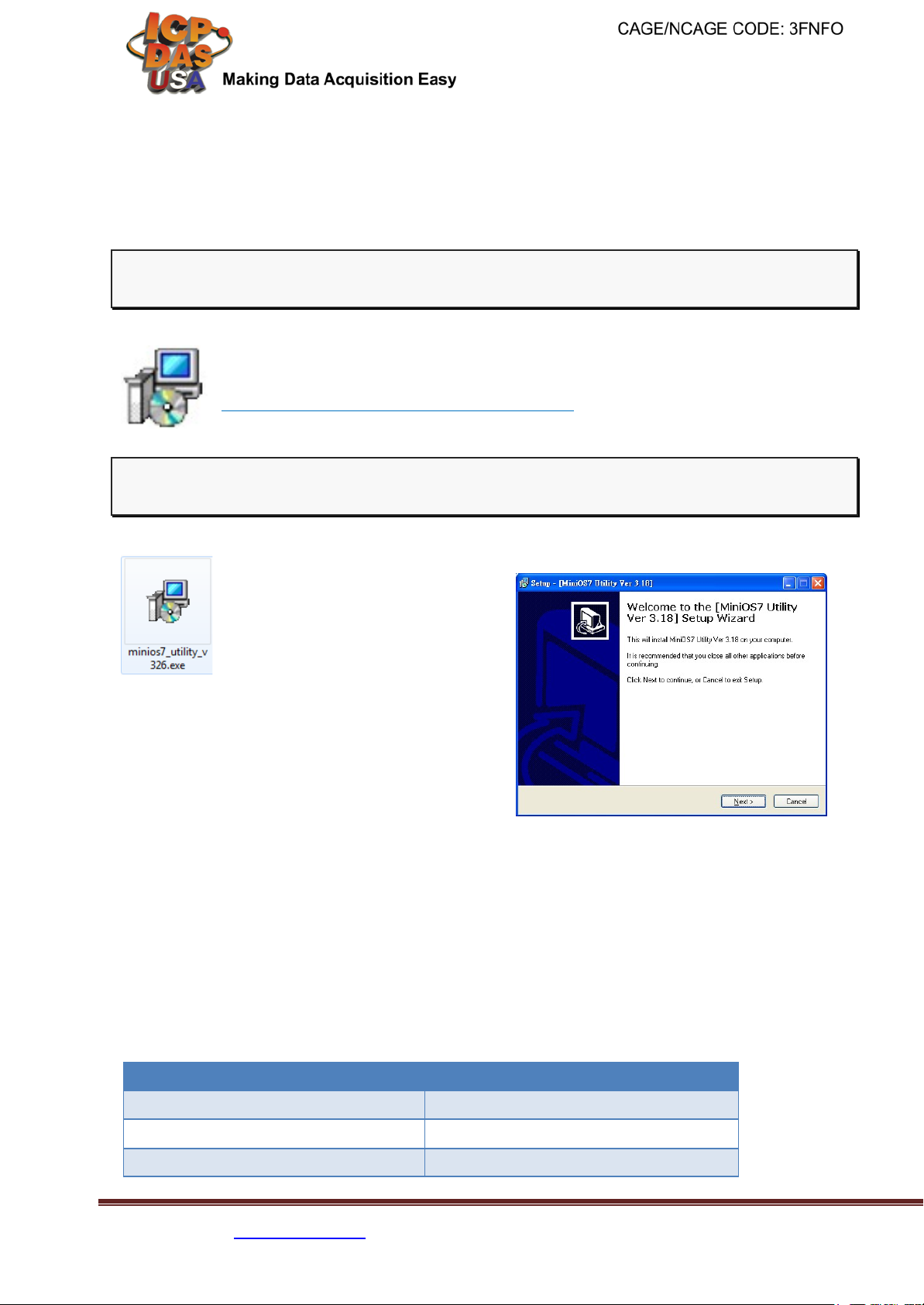

Installing the MiniOS7 Utility

Step 1: Get the MiniOS7 Utility tool

The MiniSO7 Utility can be obtained from companion CD or our site:

CD:\Napdos\minios7\utility\minios7_utility\

http://www.icpdas-usa.com/minios7utility.html

Step 2: Follow the prompts to complete the installation

After the installation has been completed, there will

be a new short-cut for MiniOS7 Utility on the

desktop.

----------------------------------------------------------------------------------

Using MiniOS7 Utility to Assign a New IP

The PET/ET-7261 are Ethernet devices, which comes with a default IP address, therefore, you

must first assign a new IP address to the PET/ET-7261.

The factory default IP settings are as follows:

Item

Default

IPAddress 192.168.255.1

Subnet Mask 255.255.0.0

Gateway 192.168.0.1

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

Step 1: Run the MiniOS7 Utility

Double-click the MiniOS7 Utility

shortcut on your desktop.

Step 2: Press “F12” or choose “Search” from the “Connection” menu

After pressing F12 or choosing Search from Connection menu, the MiniOS7 Scan

dialog will appear, that will display a list of all the MiniOS7 modules on your network.

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Step 3: Choose the module name and then choose “IP setting” from the toolbar

Step 4: Assign a new IP address and then choose “Set” button

Step 5: Choose “Yes” button

After completing the settings, press the Yes

button in the Confirm dialog box to exit the

procedure.

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

----------------------------------------------------------------------------------

Enabling Adobe Flash Player in Your Brower

Your browser must support Adobe Flash Player and have it enabled in order to use the

PET/ET-7261 web site.

If you do not have it installed, please go to the following website and install it.

The Adobe Flash Player Download Center:

http://get.adobe.com/flashplayer/

----------------------------------------------------------------------------------

Go to the PET/ET-7261 Web Site to Check out Functions

The PET/ET-7261 contains an advanced web configuration system that provides users with

access PET/ET-7261 applications through a standard web browser.

Step 1: Start PET/ET-7261

Make sure the switch placed in the

“ Normal” position.

Then reboot PET/ET-7261

Step 2: Open a browser

Please use a standard internet browser to view the PET/ET-7261 webpage, such as Mozilla

Firefox or Internet Explorer…etc.

If you haven’t changed the default IP address of the PET/ET-7261, please refer to “4. Using

MiniOS7 Utility to Assign a New IP” to configure it.

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Step 4: Fill out the User name and Password

After entering the IP address, the login

dialog box will appear and prompt you to

enter your username and password.

The factory default user name and password

are as follows (Case sensitive) :

Item

Default

User name Admin

Password Admin

Step 5: Welcome to PET/ET-7261 web site

After logging into the PET/ET-7261 web site, the welcome page will appear.

ET-7261 Ethernet Remote I/O - QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7000/ET-7000 Quick Start Guide

Under the Main Menu, expand the Web HMI, and

then select the Web HMI option to check the

values of the data acquisition.
