IFM OID20 Series Bedienungsanleitung

Operating instructions

Optical distance sensor

OID20x

UKUK

11474459 / 00 04 / 2019

Contents

1 Preliminary note��3

1�1 Symbols used ��3

2 Safety instructions ��3

3 Functions and features ��4

3�1 Applications ��4

4 Installation��5

4�1 Installation conditions ��5

5 Electrical connection��5

6 Operating and display elements ��6

7 Settings / operation��6

7�1 Switch off the laser ��6

8 IO-Link ��7

8�1 General information ��7

8�2 Device-specific information��7

8�3 Parameter setting tools��7

9 Maintenance, repair, disposal��7

1 Preliminary note

1.1 Symbols used

►Instructions

> Reaction, result

[…] Designation of keys, buttons or indications

→Cross-reference

Important note

Non-compliance may result in malfunction or interference�

Information

Supplementary note

2 Safety instructions

• Read this document prior to set-up of the unit� Ensure that the product is

suitable for your application without any restrictions�

• Improper or non-intended use may lead to malfunctions of the unit or to

unwanted effects in your application� That is why installation, electrical

connection, set-up, operation and maintenance of the unit must be carried out

by qualified personnel authorised by the machine operator�

• In case of malfunction of the unit please contact the manufacturer� If the unit is

tampered with and/or modified, any liability and warranty is excluded�

• The unit complies with the standard EN 61000-6-4� The unit may cause radio

interference in domestic areas� If interference occurs, the user must take

appropriate remedial actions�

WARNING

Visible laser light; laser protection class 2�

Use of controls or adjustments other than those specified herein may result in hazardous

radiation exposure� Damage to the retina is possible�

►Do not stare into the laser beam!

►Apply the enclosed labels (laser warning) in the immediate vicinity of the unit�

►Adhere to the caution and warning notes on the product label�

►Use the enclosed label for the power supply cable�

►EN/IEC 60825-1 : 2007 and EN/IEC 60825-1 : 2014 complies with 21 CFR 1040

except for deviations pursuant to Laser Notice No� 50, dated June 2007

Label for supply cable

D-45128 Essen

Product label

3 Functions and features

The unit is used as an optical distance sensor�

3.1 Applications

• The optical distance sensor measures distances between 0�03 and 2 m�

• It has a background suppression of up to 20 m�

• The switching outputs are complementary�

The distance between the sensor and the background must be limited

to max� 20 m by the customer� Otherwise measured values can be

ambiguous → 4.1 Installation conditions.

4 Installation

4.1 Installation conditions

►Install the unit so that the object to be detected is within a measuring range of

0�03��2 m�

Any object between the set switch point and a distance of 20 m from the sensor is

suppressed�

Reflecting surfaces in the direct beam path of the sensor – also in

the range > 20 m – are to be avoided by the customer� Otherwise the

measured values can be ambiguous�

5 Electrical connection

The unit must be connected by a qualified electrician�

►The national and international regulations for the installation of electrical

equipment must be adhered to�

►Ensure voltage supply to EN 50178, SELV, PELV�

►Disconnect power�

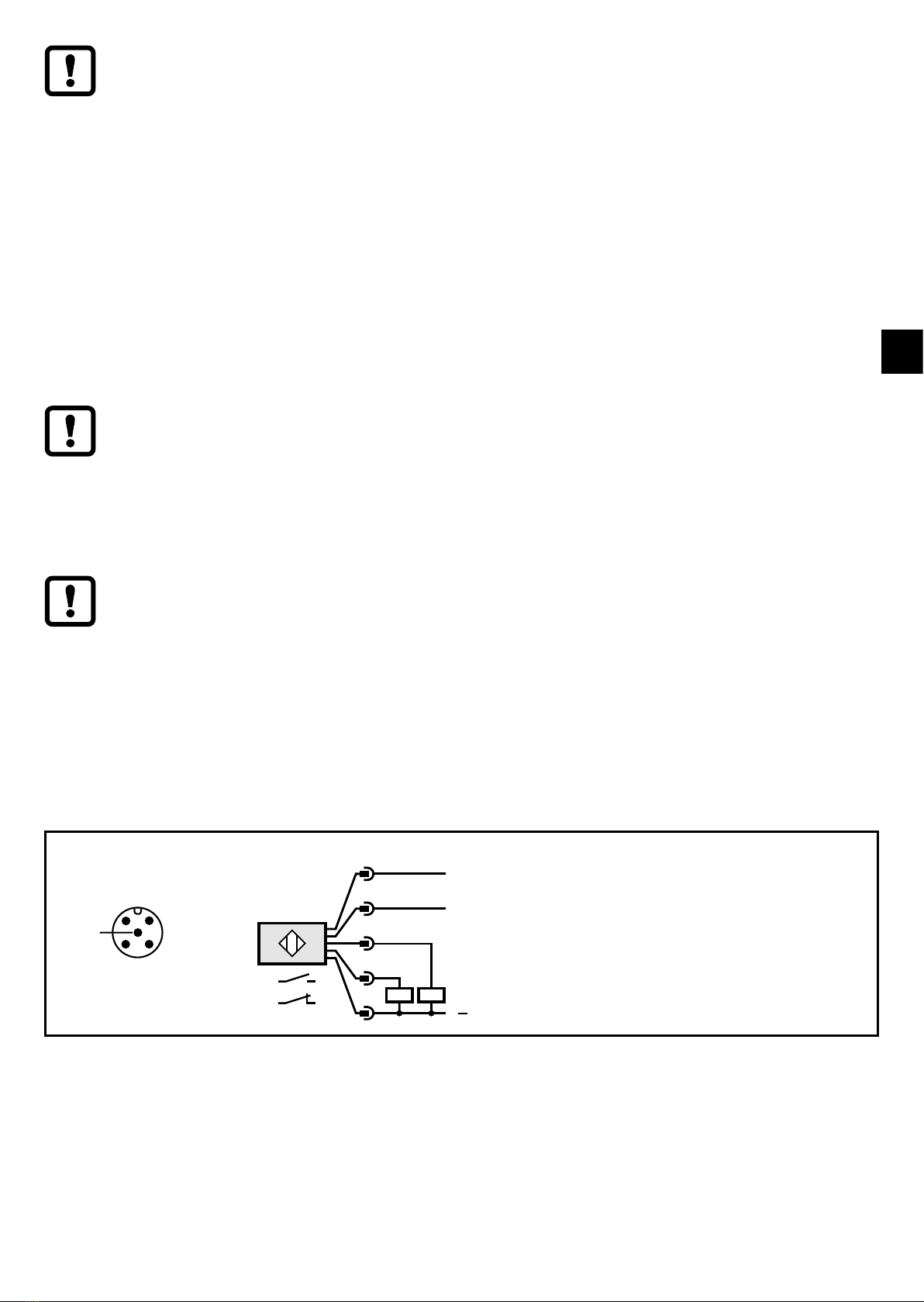

►Connect the unit as follows:

DC PNP

2 1

L+

5: IN = Laser on / off

4: OUT1 = normally open / IO-Link

2: OUT2 = normally closed

Core colours of ifm sockets:

1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black), 5 = GR (grey)

6 Operating and display elements

1: LED yellow: Set value reached, output OUT1 = High (if OUT1 is congured as NO)

7 Settings / operation

The unit is set via the IO-Link interface. (→ 8 IO-Link)

On delivery the unit can also be used without IO-Link� Preset switch point: 2 m

►After installation, electrical connection and programming, check whether the

unit operates correctly�

Lifetime of a laser diode: 50,000 hours

7.1 Switch off the laser

For safety and maintenance purposes the laser of the unit can be temporarily

switched off via the input on pin 5�

Input signal at pin 5 Laser

Low / not connected On

High Off

8 IO-Link

8.1 General information

This unit has an IO-Link communication interface which requires an IO-Link-

capable module (IO-Link master) for operation�

The IO-Link interface enables direct access to the sensor values and parameters

and provides the possibility to set the parameters of the unit during operation�

In addition communication is possible via a point-to-point connection with a USB

adapter cable�

You will find more detailed information about IO-Link at www�ifm�com�

8.2 Device-specific information

You will find the IODDs necessary for the configuration of the IO-Link device and

detailed information about sensor values, diagnostic information and parameters

in the overview table at www�ifm�com�

8.3 Parameter setting tools

You will find all necessary information about the required IO-Link hardware and

software at www�ifm�com�

9 Maintenance, repair, disposal

Faulty sensors must only be repaired by the manufacturer�

►Keep the front lens of the sensor clean�

►After use dispose of the unit in an environmentally friendly way in accordance

with the applicable national regulations�

►Do not open the module housing� There are no user-serviceable components

inside�

Technical data and further information at www�ifm�com
