Ikan PT2500 Bedienungsanleitung

PT2500

8” Through the Glass Teleprompter

QUICKSTART GUIDE

www.ikancorp.com

3903 Stoney Brook Dr. Houston TX 77063

1.713.272.8822

[email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period has expired.

Free Service will not be Provided in the Following Situations: (*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.

Page 1

POWER

PC / AV

MENU ><

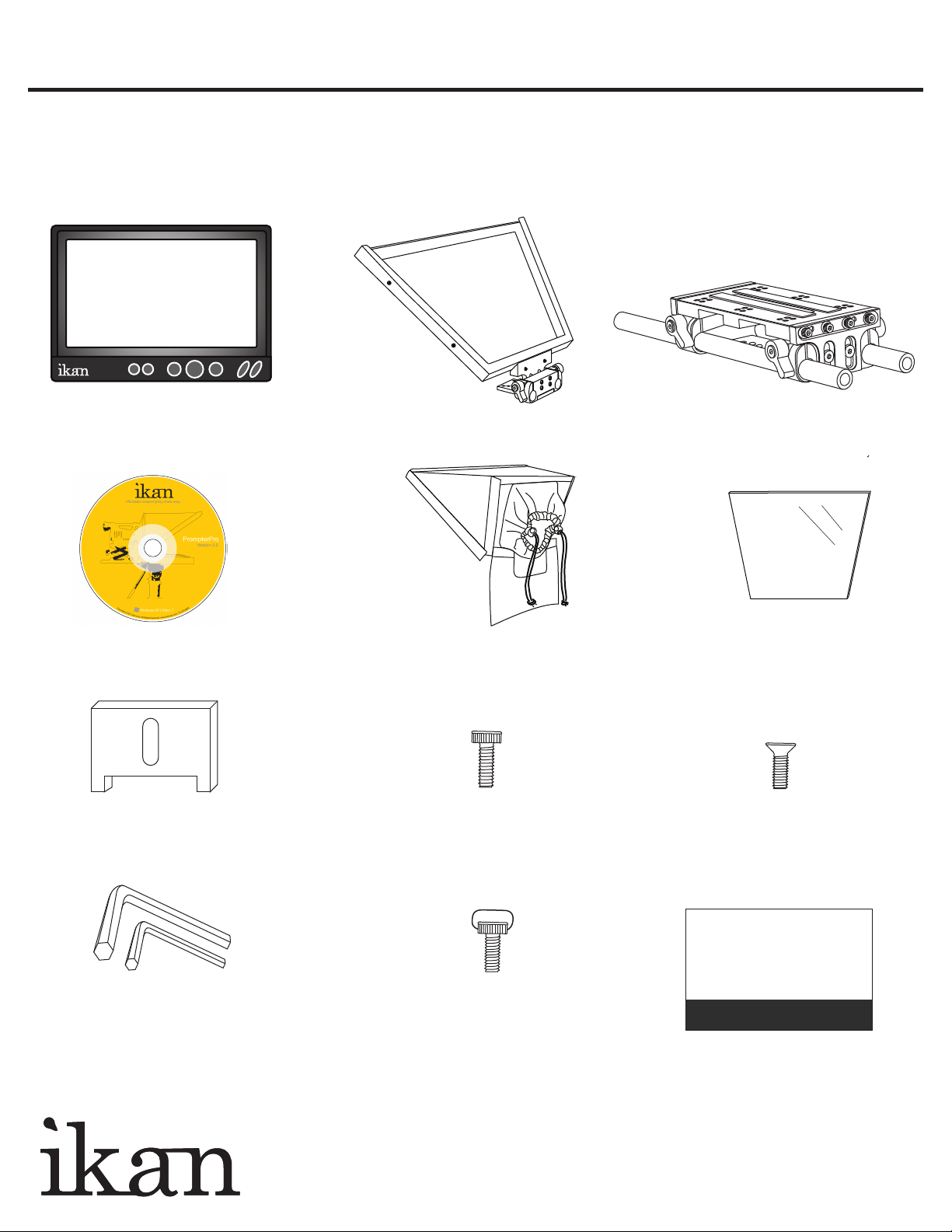

What’s included

Checked by

PT2500

8” Through the Glass Teleprompter QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

 EV2 Adjustable Camcorder

Baseplate (Large)

 Frame V8000 LCD Monitor

 30/70 Prompter Glass Hood PrompterPro Software

 2 x 4mm X 20mm Socket

Head Countersink Screw

 1 x D-Ring

 1 x 1/4-20 Socket

Head screw

 Monitor Mount

 1 x HEX KEY 3mm

1 x HEX KEY 1/8 inch

Page 2

www.ikancorp.com 713-272-8822

PT2500

8” Through the Glass Teleprompter QUICKSTART GUIDE

GETTING STARTED

1. Secure monitor to Monitor Mount with Socket Head Screw.

2. Fit Frame to Monitor Mount. Secure with 2 x Socket Head Countersink Screw.

Bottom view of Monitor with Monitor Mount and Frame.

** Align the 2 holes under the Monitor Mount to the middle

sets of holes on SBP-03.

Bracket

Page 3

Vertical Adjustments to the frame

can be made by loosening the

Hex Screws located on the inside

of the unit.

Front view

www.ikancorp.com 713-272-8822

PT2500

8” Through the Glass Teleprompter QUICKSTART GUIDE

3. Remove 4 x small frame screws and 2 x brackets. Insert prompter glass into frame. Secure

prompter glass by replacing brackets and screws.

NOTE: Each side of a piece of 30/70

teleprompting glass has a a different

amount of reectivity. If the glass is not

installed in the proper orientation then the

user may experience a “double image” or

“ghosting” effect on the image being

reected on the teleprompter. To eliminate

this, the glass must simply be removed

from the frame and ipped.

** Glass with more reectivity side faces out.

Page 4

www.ikancorp.com 713-272-8822

PT2500

8” Through the Glass Teleprompter QUICKSTART GUIDE

ADJUSTMENT POINTS (adjust to ﬁt your camera size)

Numerous Adjustment Points allow for precise positioning modications. Loosen Thumb Screws to

move forward/backwards along 12” Rods. Loosen Hex Screws to make vertical and horizontal

adjustments.

4. Secure Large Baseplate rods to Rod Clamp.

Rod Clamp

5. Apply Velcro to Frame border. Attach Hood.

Page 5

www.ikancorp.com 713-272-8822

PT2500

8” Through the Glass Teleprompter QUICKSTART GUIDE

Page 6

www.ikancorp.com 713-272-8822

PT2500

8” Through the Glass Teleprompter QUICKSTART GUIDE

QUICK RELEASE MOUNTING OPTIONS

The ikan Large Baseplate is compatible with both the Canon TA100 and ikan-WDGL Tripod Adapter

Systems. Simply mount your Quick Release Plate to the bottom of the Large Baseplate component

on the appropriate end, using four (4) Socket Head Countersink Screws.

Canon TA100

ikan ELE-WDGL
