Impex MARCY XJ-5801 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

XJ-5801

Retain This

Manual for

Reference

180709

ASSEMBLY &

OWNER'S

MANUAL

CLUB TRAINER CYCLE

XJ-5801

IMPEX®INC.

2801 S. Towne Ave., Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.marcypro.com

support@impex-fitness.com

TABLE OF CONTENTS

BEFORE YOU BEGIN

Thank you for selecting the MARCY Club Trainer Cycle XJ-5801 by IMPEX®INC.

For your safety and benefit, read this manual carefully before using the bike. As a

manufacturer, we are committed to provide you complete customer satisfaction. If

you have any questions, or find there are missing or damaged parts, we guarantee

you complete satisfaction through direct assistance from our factory. To avoid

unnecessary delays, please call our TOLL-FREE customer service number. Our

Customer Service Agents will provide immediate assistance to you.

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise bike is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire

BEFORE YOU BEGIN

IMPORTANT SAFETY NOTICES

WARNING LABEL PLACEMENT

HARDWARE PACK

IMPORTANT ASSEMBLY INFORMATION

EXPLODED DIAGRAM

PARTS LIST

CARE, MAINTENANCE, AND STORAGE

OPERATING NOTES

EXERCISE GUIDELINES

WARRANTY

ORDERING PARTS

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.marcypro.com

[email protected]

manual before you assemble or operate your bike. In particular, note the following

safety precautions:

1. Keep children and pets away from the exercise bike at all times. DO NOT leave

children unattended in the same room with the bike.

2. Only one person at a time should use the bike.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the bike on a clear, leveled surface. DO NOT use the bike near water or

outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or

other clothing that could become caught in the bike. Running or aerobic shoes are

also required when using the bike.

7. Use the bike only for its intended use as described in this manual. DO NOT use

attachments not recommended by the manufacturer.

8. Do not place any sharp object around the bike.

9. Disabled person should not use the bike without a qualified person or physician in

attendance.

10. Before using the bike to exercise, always do stretching exercises to properly warm

up.

11. Never operate the bike if it is not functioning properly.

12. Read all warnings posted on the exercise bike.

13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace

any loose or wore components prior to use.

14. Care should be taken in mounting or dismounting the exercise bike.

15. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

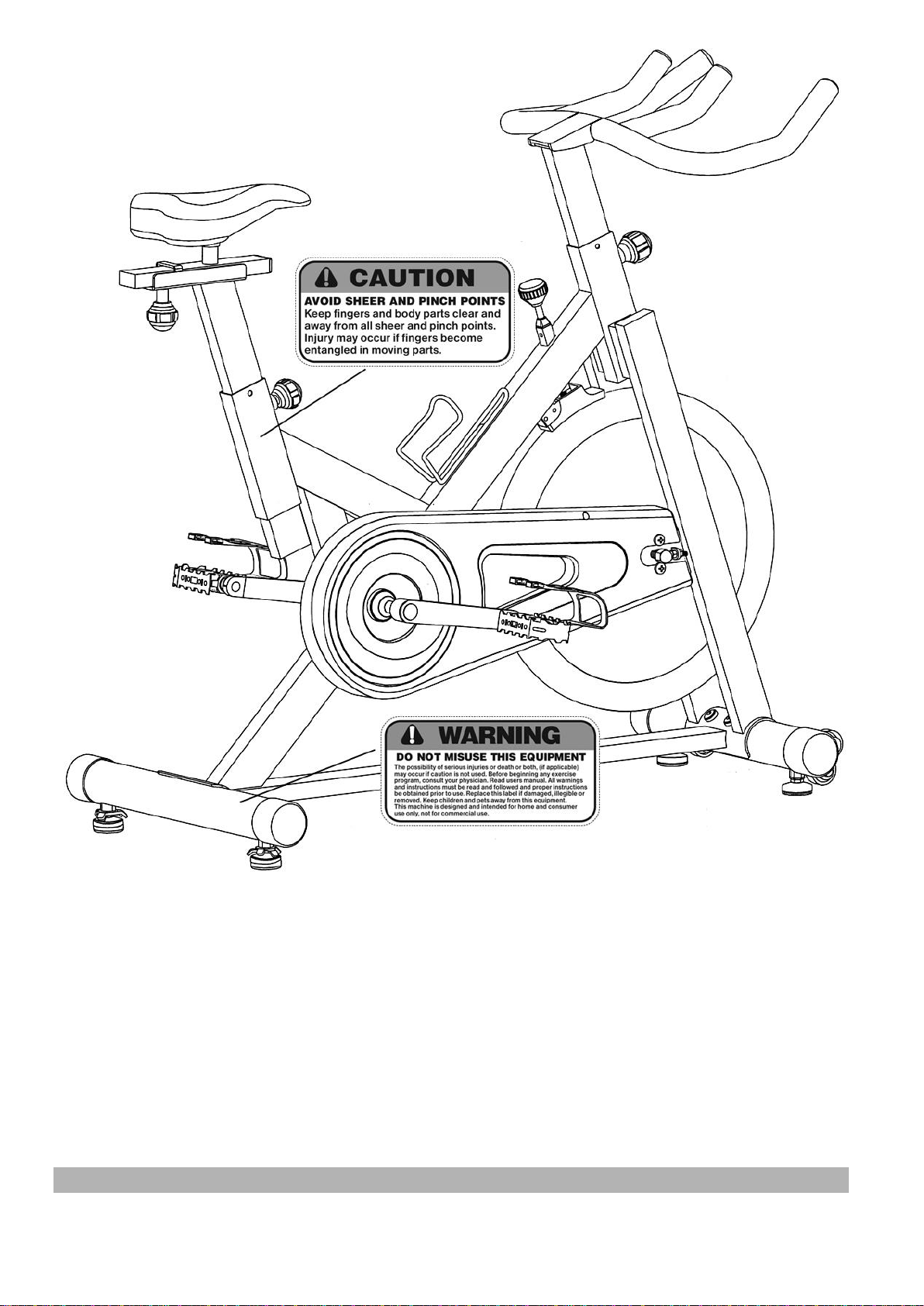

WARNING LABEL PLACEMENT

The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer and Main

Frame.

If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply

the labels in location shown.

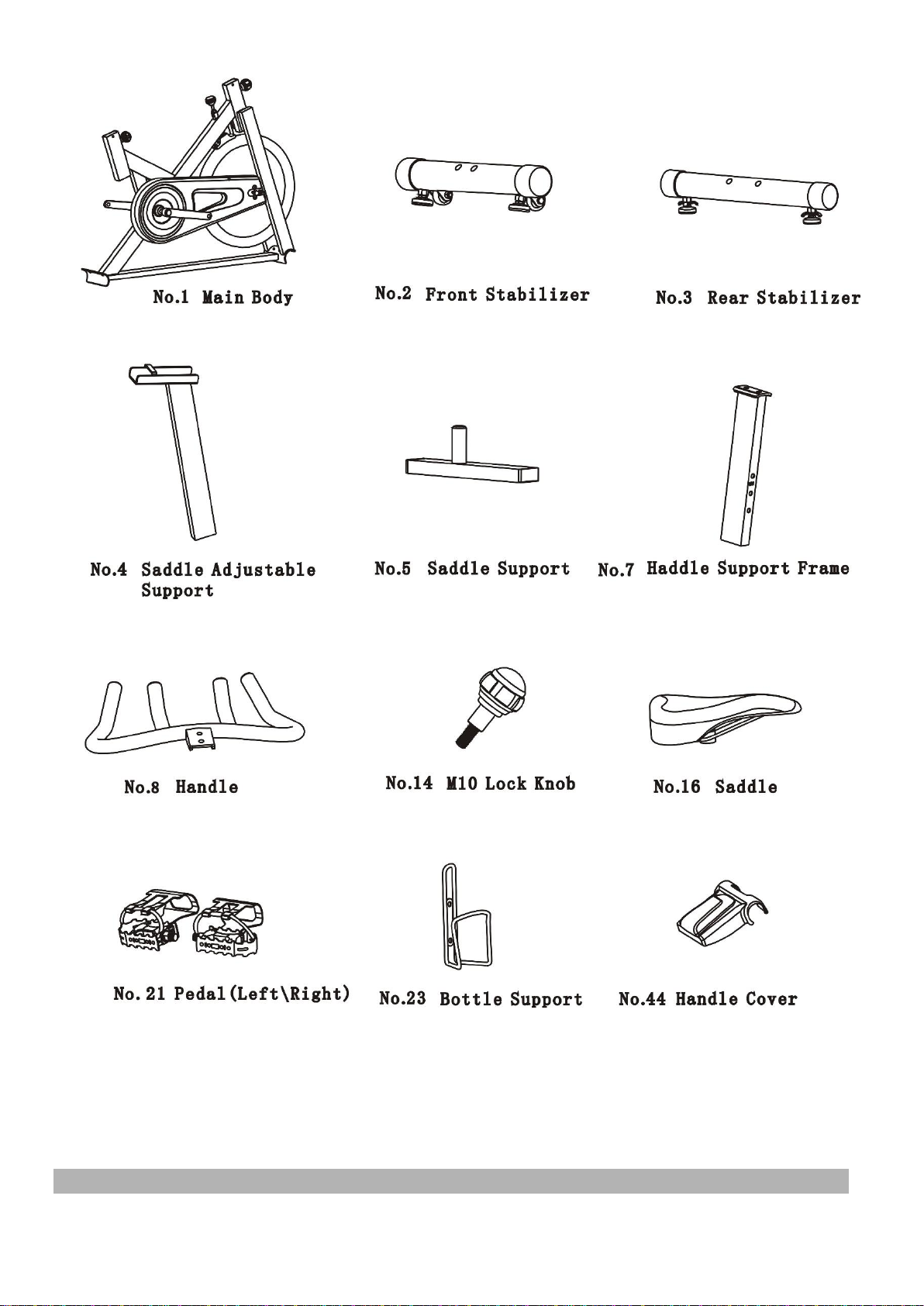

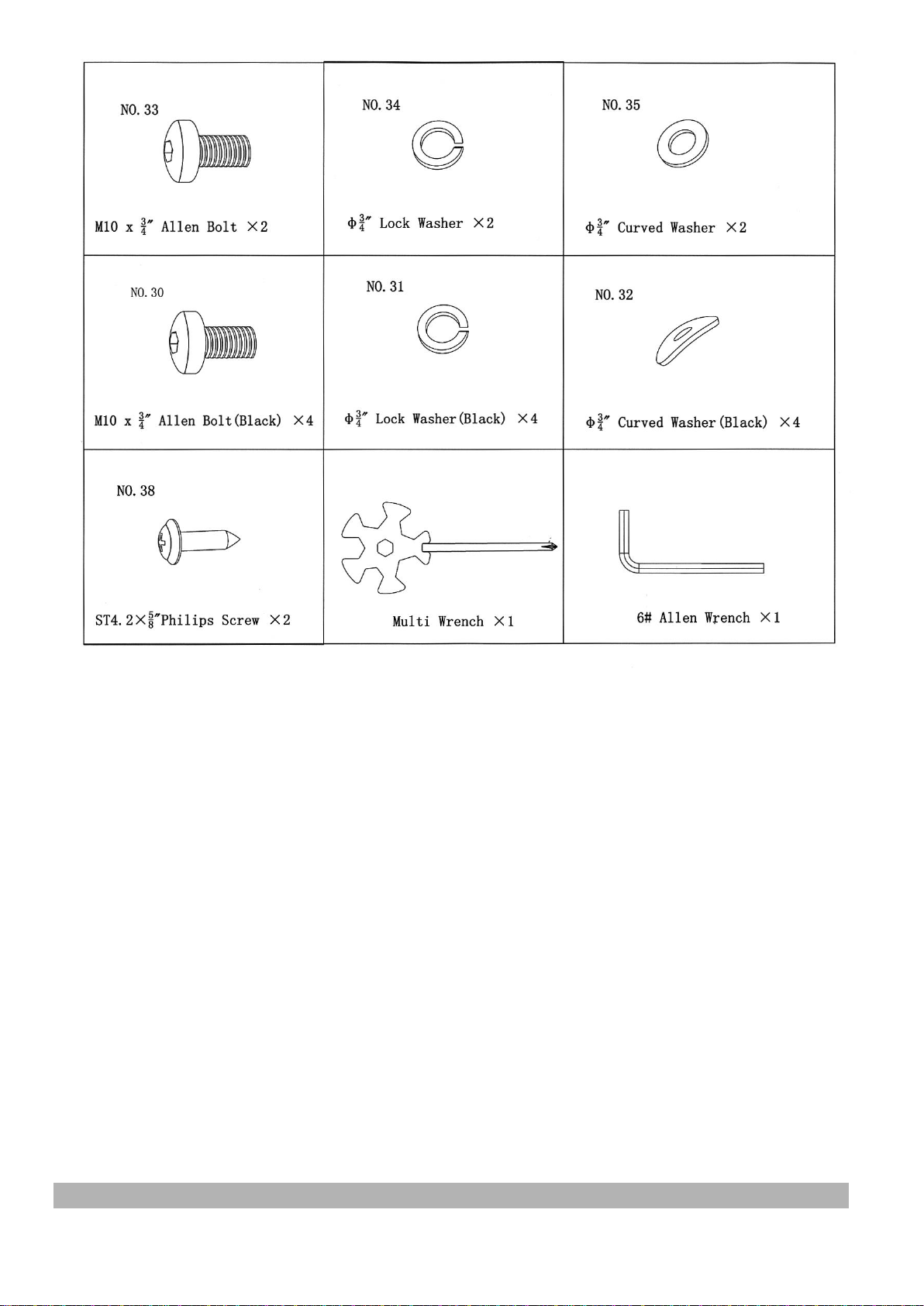

HARDWARE PACK

COMPONENTS FOR ASSEMBLY

ASSEMBLY INSTRUCTION

•Tools Required For Assembling the Bike: One Crossing Wrench and Allen Wrench,

provided by manufacturer.

•NOTE: It is strongly recommended that two or more people assemble this bike to

avoid possible injury.

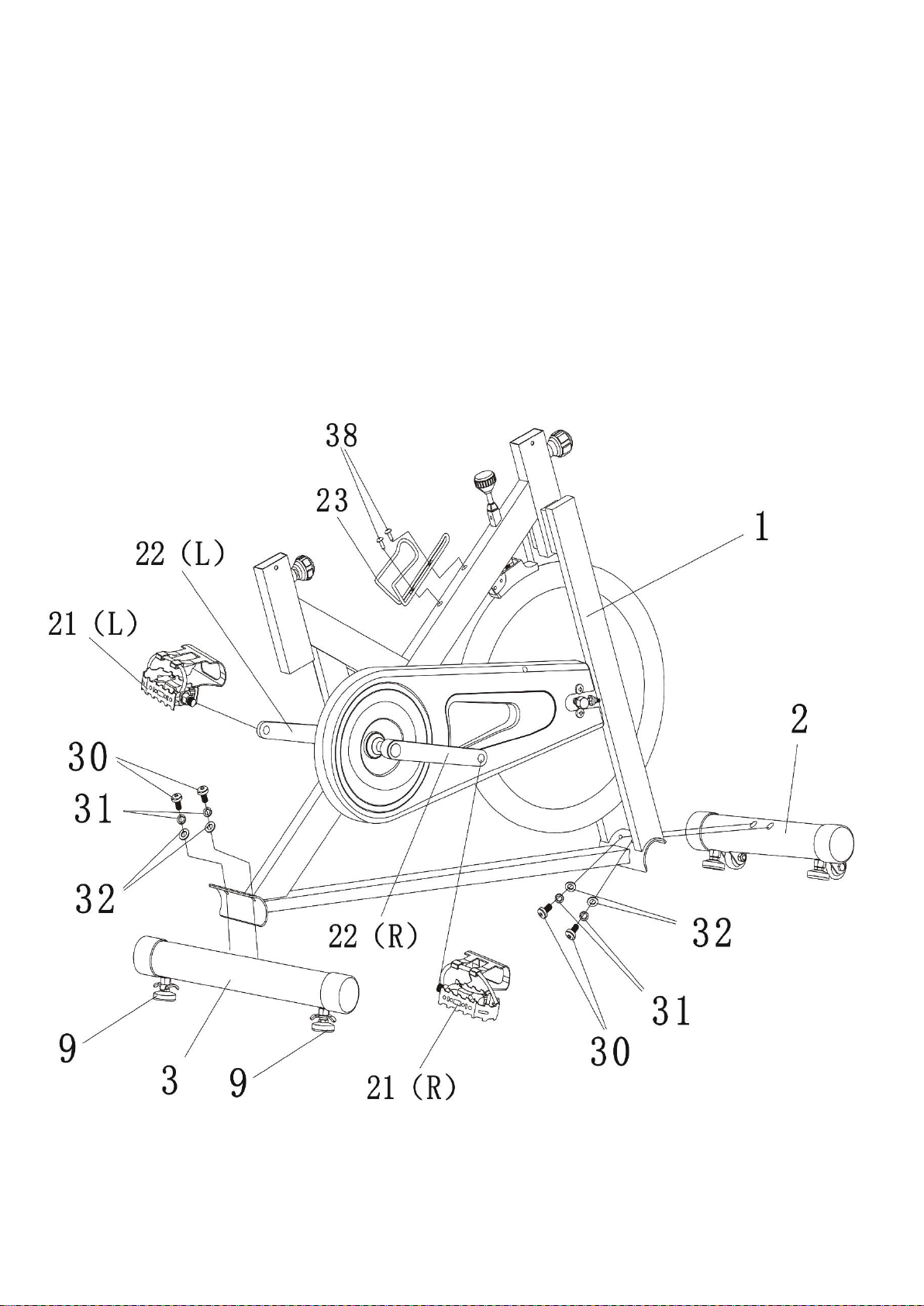

STEP-1

A.) Attach the Front Stabilizer (#2) to the Main Frame (#1). Secure it with two M10 x ¾” Allen Bolts

(#30), two Ø ¾” Lock Washers (#31), and two Ø ¾” Curved Washers (#32).

B.) Attach the Rear Stabilizer (#3) to the Main Frame (#1). Secure it with two M10 x ¾” Allen Bolts

(#30), two Ø ¾” Lock Washers (#31), and two Ø ¾” Curved Washers (#32).

C.) Thread the Pedal (#21R) clockwise onto the right Crank (#22R).

D.) Thread the Pedal (#21L) counterclockwise onto the left Crank (#22L)

E.) Attach Water Bottle Rack (#23) to the Main Frame (#1), Secure with two ST4.2 x 5/8” Self Tapping

Philips Screws (#38).

F.) Use the two Level adjustment knobs (#9) to stabilize the Bike on floor.

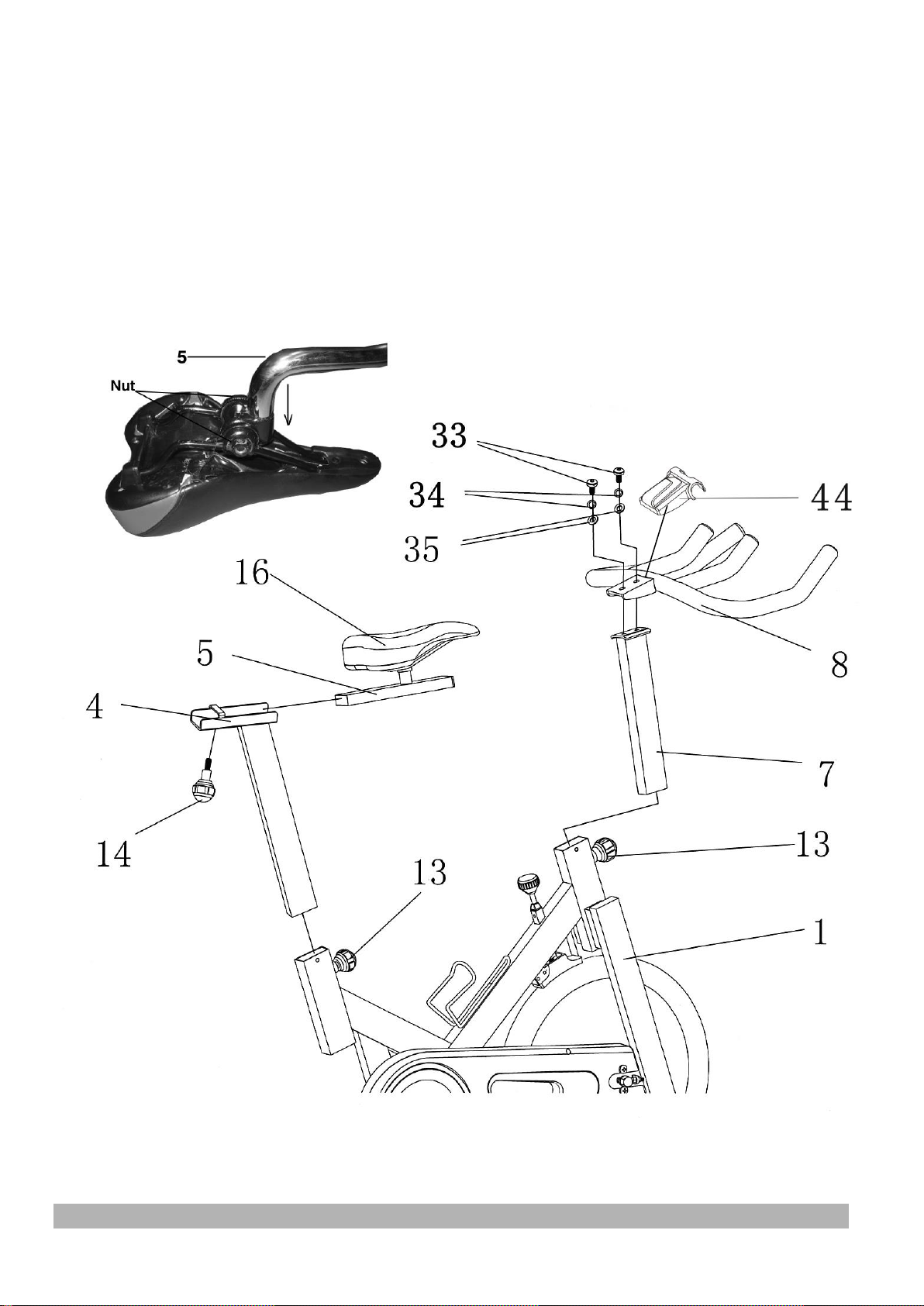

STEP 2

A.) Insert the Handle Post (#7) into the front opening on Main Frame (#1). Use the Lock Knob (#13)

to hold the Handle Post at selected height.

B.) Attach the Handle (#8) to the Handle Post (#7). Secure them together with two M10 x ¾” Allen

Bolts (#33), two Ø ¾” Lock Washers (#34), and two Ø ¾” Curved Washers (#35). Cover the

Bolts and bracket with Handle Cover (#44).

C.) Insert the Vertical Seat Post (#4) into the opening on Main Frame. Use the Lock Knob (#13) to

hold the Seat Post at selected height.

D.) Flip over the Seat Pad (#16). Insert the tube on the Seat Support (#5) into the open slot and

securely fasten the two Nuts to secure the Seat Pad to the tube.

E.) Insert the Seat Support (#5) through the open slot on Seat Post. Use the Seat Lock Knob (#14)

to hold the Seat at selected position.

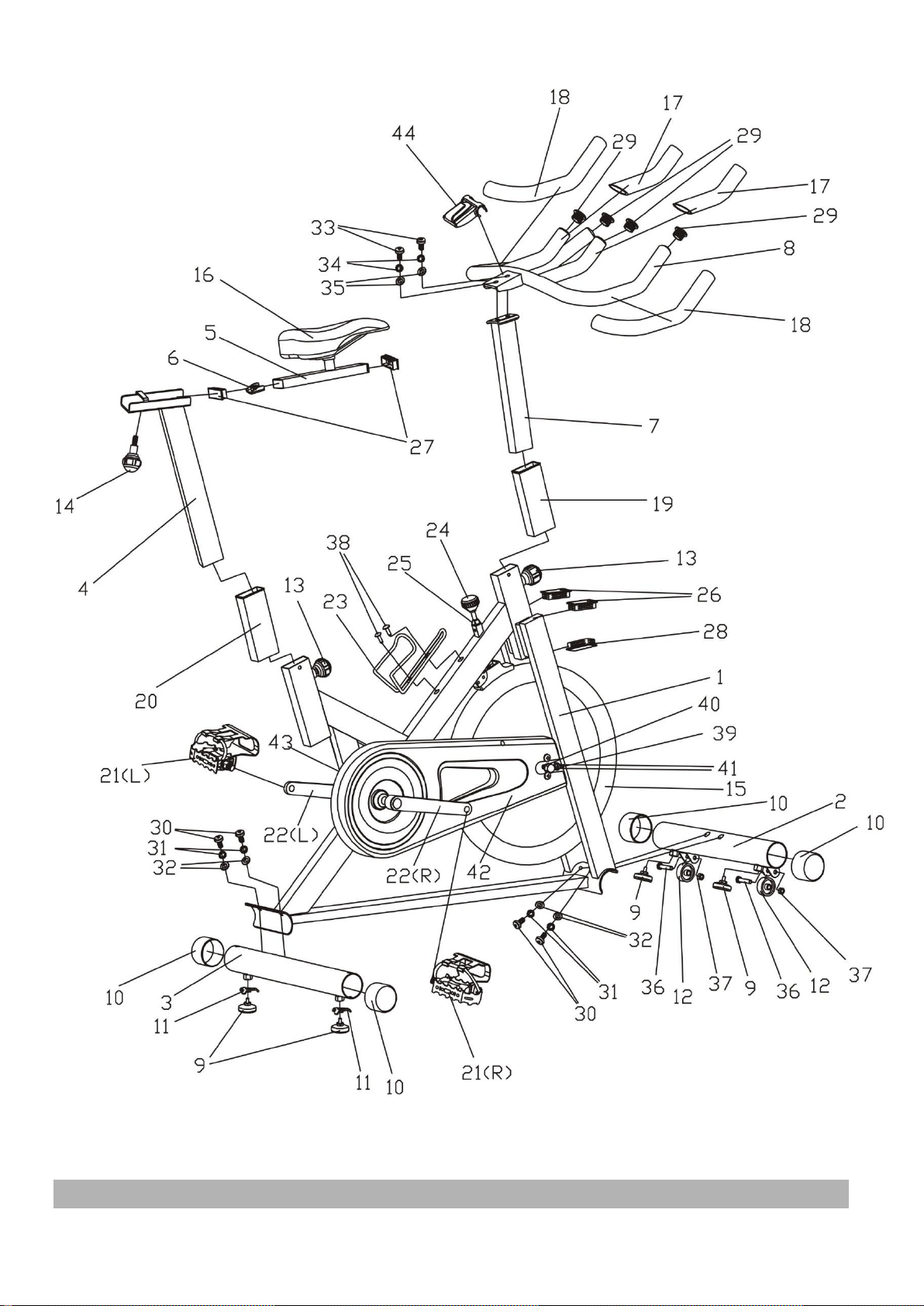

EXPLODED DIAGRAM

XJ-5801 PARTS LIST

PART NO.

DESCRIPTION

SPEC.

QUANTITY

Main Frame

Front Stabilizer

Rear Stabilizer

Seat Post

Seat Support

U-shaped Sliding Bracket

Handle Post

Handle

Level Adjustment Knob

M8 x 5/8”

Stabilizer End Cap

Lever Knob Spacer

Roller Wheel

Lock Knob

M16

Seat Lock Knob

M10

Fly Wheel

Seat Pad

Grip

7 ⅝”

Grip

16 ¾”

Sleeve

1 1/8” x 5 ¾”

Sleeve

1 1/8” x 7 5/8”

Pedal (L/R)

Crank (L/R)

Water Bottle Rack

Tension/Brake Knob

Brake Tube

End Cap

7/8” x 2 1/8”

End Cap

1 5/8” x ¾”

End Cap

1 1/8” x 2 3/8”

End Cap

Ø 1”

Allen Bolt (Black)

M10 x ¾”

Lock Washer (Black)

Ø ¾”

Curved Washer (Black)

Ø ¾”

Allen Bolt (Chromium)

M10 x ¾”

Lock Washer (Chromium)

Ø ¾”

Curved Washer (Chromium)

Ø ¾”

Hex Bolt

M8 x 1 5/8”

Aircraft Nut

Self Tapping Philips Screw

ST4.2 x 5/8”

Lock Bolt

M6 x 2”

Axle

Hex Nut

Right Chain Cover

Left Chain Cover

Handle Cover

CARE, MAINTENANCE AND STORAGE
