Impex MARCY PL 200 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

PL 200

Retain This

Manual for

Reference

04-14-03

OWNER'S

MANUAL

MARCY

Magnetic Upright Bike

PL-200

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

HARDWARE PACK……….....…....................................................................…. 3

ASSEMBLY INSTRUCTIONS........................................................................…. 4

EXPLODED DIAGRAM………………………………………………………………. 10

PARTS LIST...................................................................................................…. 11

COMPUTER................................................................................................…… 12

WARRANTY.................................................................................................…. 14

ORDERING PARTS.......................................................................................… 14

BEFORE YOU BEGIN

Thank you for selecting the MARCY Magnetic Upright Bike PL-200 by

IMPEX FITNESS PRODUCTS. For your safety and benefit, read this

manual carefully before using the machine. As a manufacturer, we are

committed to provide you complete customer satisfaction. If you have any

questions, or find there are missing or damaged parts, we guarantee you

complete satisfaction through direct assistance from our factory. To avoid

unnecessary delays, please call our TOLL-FREE customer service number.

Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave

children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near water

or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or

other clothing that could become caught in the machine. Running or aerobic shoes are

also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT use

attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or physician in

attendance.

10. Before using the machine to exercise, always do stretching exercises to properly warm

up.

11. Never operate the machine if the machine is not functioning properly.

12. The Maximum Weight Capacity is 300 lbs.

13. Read all warnings posted on the exercise bike.

14. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace

any loose or wore components prior to use.

15. Care should be taken in mounting or dismounting the exercise bike.

16. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES

NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE

SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS. 2

HARDWARE PACK

Part# Description Identifier

#5 L-shape Handlebar Adjustment Knob (1)

#6 Ø 5/8” Washer (1)

#16 Seat Post Lock Knob (1)

#17 M8 x 5/8” Allen Bolt (3)

#18 Ø 5/8” Bent Washer (3)

#23 M10 x 2 3/8” Carriage Bolt (4)

#24 M10 Acorn Nut (4)

#25 ∅1” Bent Washer (4)

Tool:

Allen Wrench (1)

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench

NOTE: It is strongly recommended this machine be assembled by two or more

people to avoid possible injury.

STEP 1 (See Diagram1)

A.) Attach the Rear Stabilizer (#26) to the Main Frame (#15). Secure it with two M10 x 2

3/8” Carriage Bolts (#23), ∅1” Bent Washers (#25), and M10 Acorn Nuts (#24).

B.) Attach the Front Stabilizer (#22) to the Main Frame (#15). Secure it with two M10 x 2

3/8” Carriage Bolts (#23), ∅1” Bent Washers (#25), and M10 Acorn Nuts (#24).

C.)Plug the Roller Caps (#29) onto both ends of Front Stabilizer (#22). Plug the Rear

Stabilizer End Caps (#30) onto both ends of Rear Stabilizer (#26). Set the bike firmly

on a flat surface. If the surface is uneven, rotate the Rear Stabilizer End Caps (#30)

to level the bike.

Diagram 1

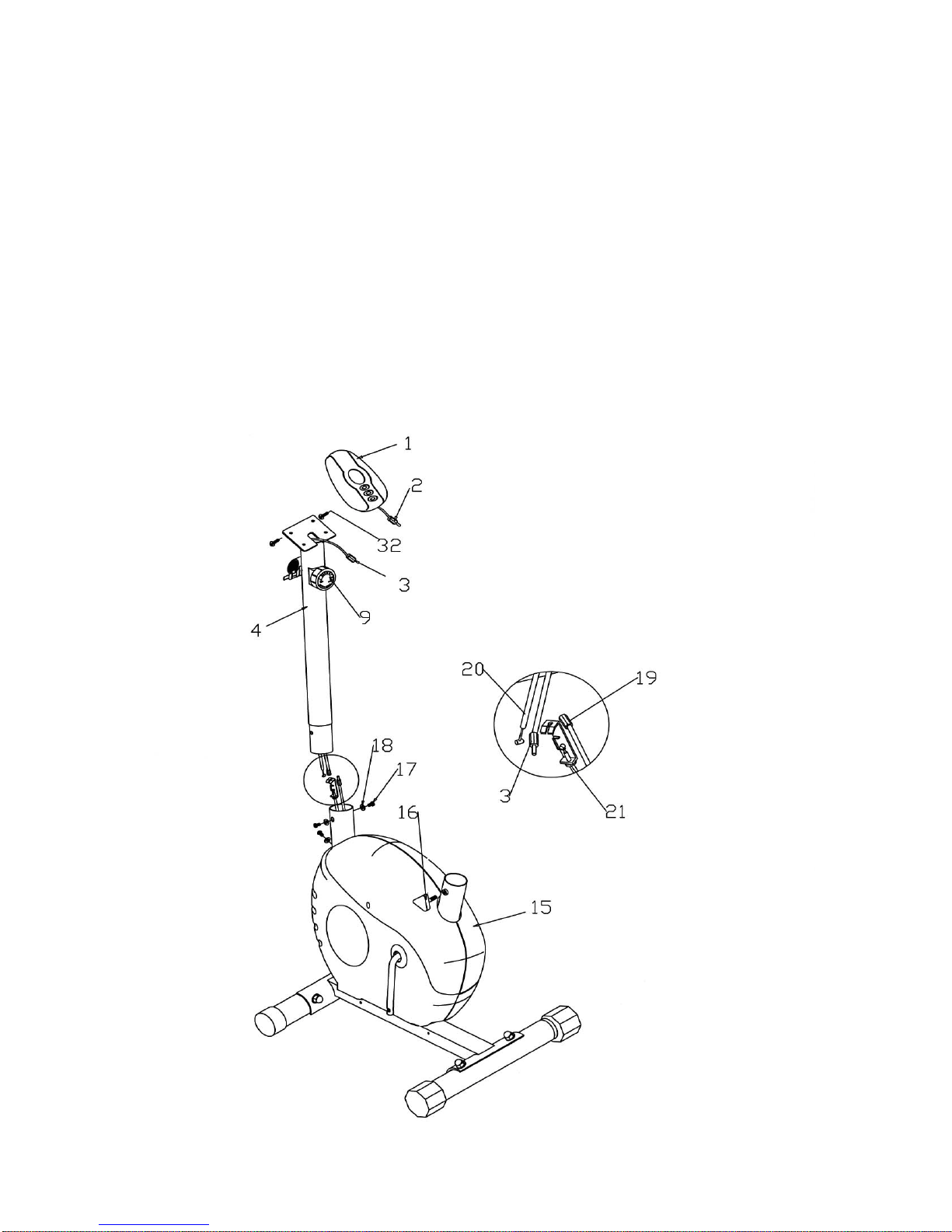

STEP 2 (See Diagram 2)

A.) Attach the Handlebar Post (#4) to the Main Frame (#15). Connect the Middle

Computer Sensor Wire (#3) from the bottom of Handlebar Post to the Lower Computer

Sensor Wire (#19) from the main body of the bike. Connect the Upper Tension

Connector (#20) to the Bracket on the Lower Tension Connector (#21). See HOW TO

CONNECT TENSION CONNECTOR on next page. Adjust exercise tension by using

the Tension Adjustment Knob (#9) on the Handlebar Post (#4).

B.) Secure the Handlebar Post (#4) to the Main Frame (#15) with three M8 x 5/8” Allen

Bolts (#17) and Ø5/8” Bent Washers (#18).

C.)Connect the Middle Computer Sensor Wire (#3) from the top of the Handlebar Post

(#4) to the Upper Computer Sensor Wire (#2) from the Computer (#1). Hide the wires

inside the Post. Attach the Computer (#1) to the top of the Handlebar Post (#4) and

secure it with two M5 x ½” Philips Screws (#32). DIAGRAM 2

HOW TO CONNECT TENSION CONNECTOR

Slide the Cable wire from the

Upper Tension Connector in

between the opening on the

wire holder on the Lower

Tension Connector.

Pull the Upper Tension

Connector backward

and slide the wire

through the slot on the

bracket.

Drop down the Connector

so the fitting sits firmly

on top of the bracket.

NOTE: In able to hold the Computer Post while connecting the cables and wires,

extra help may be needed.

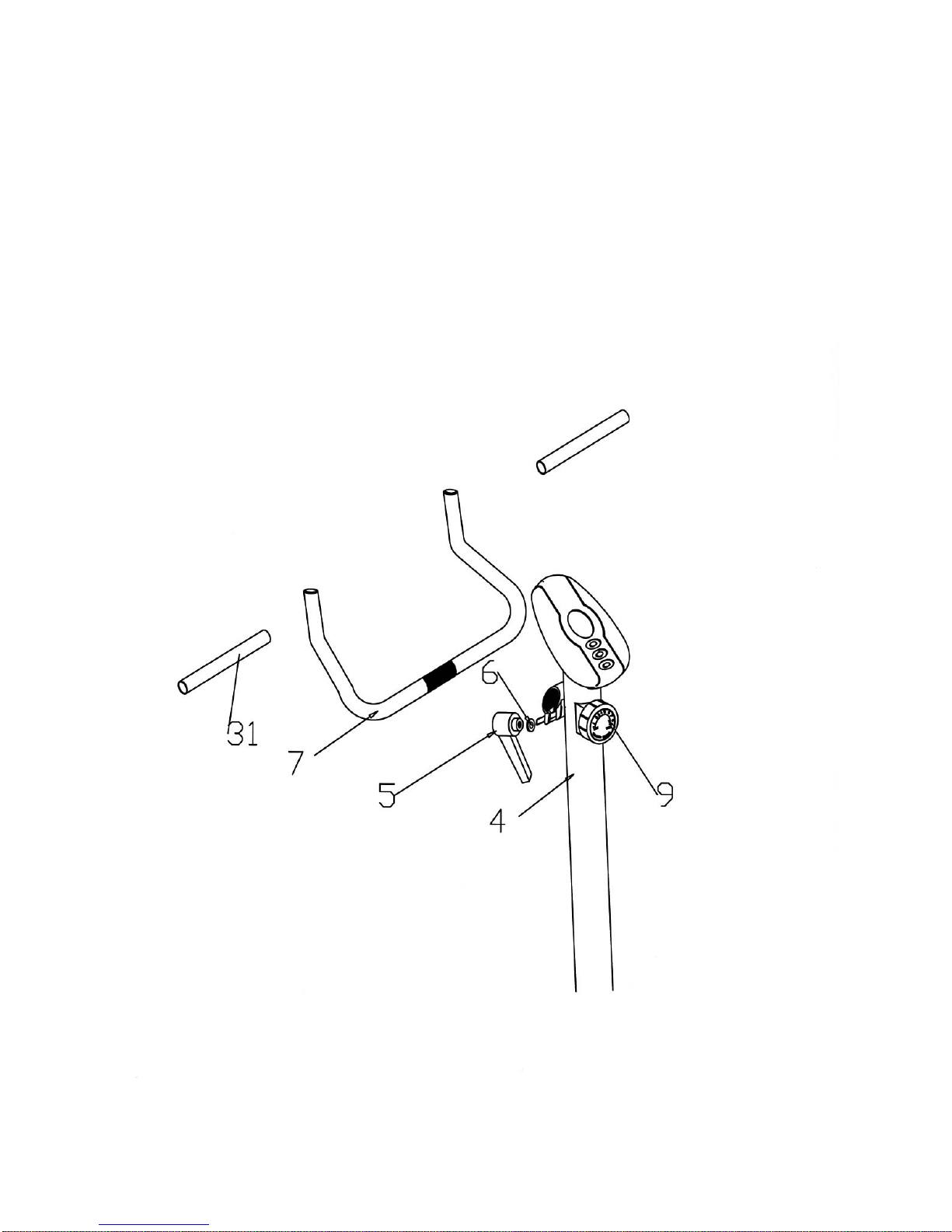

STEP 3 (See Diagram 3)

A.) Insert the Handlebar (#7) halfway through the opening on the back of the Handlebar

Post (#4). Adjust the position of the handlebar. Secure it with a L-shape Handlebar

Adjustment Knob (#5) and Ø 5/8” Washer (#6).

B.) Lubricate the inside of the Handlebar Grips (#31) with water. Slide the Grips onto the

Handlebar.

DIAGRAM 3

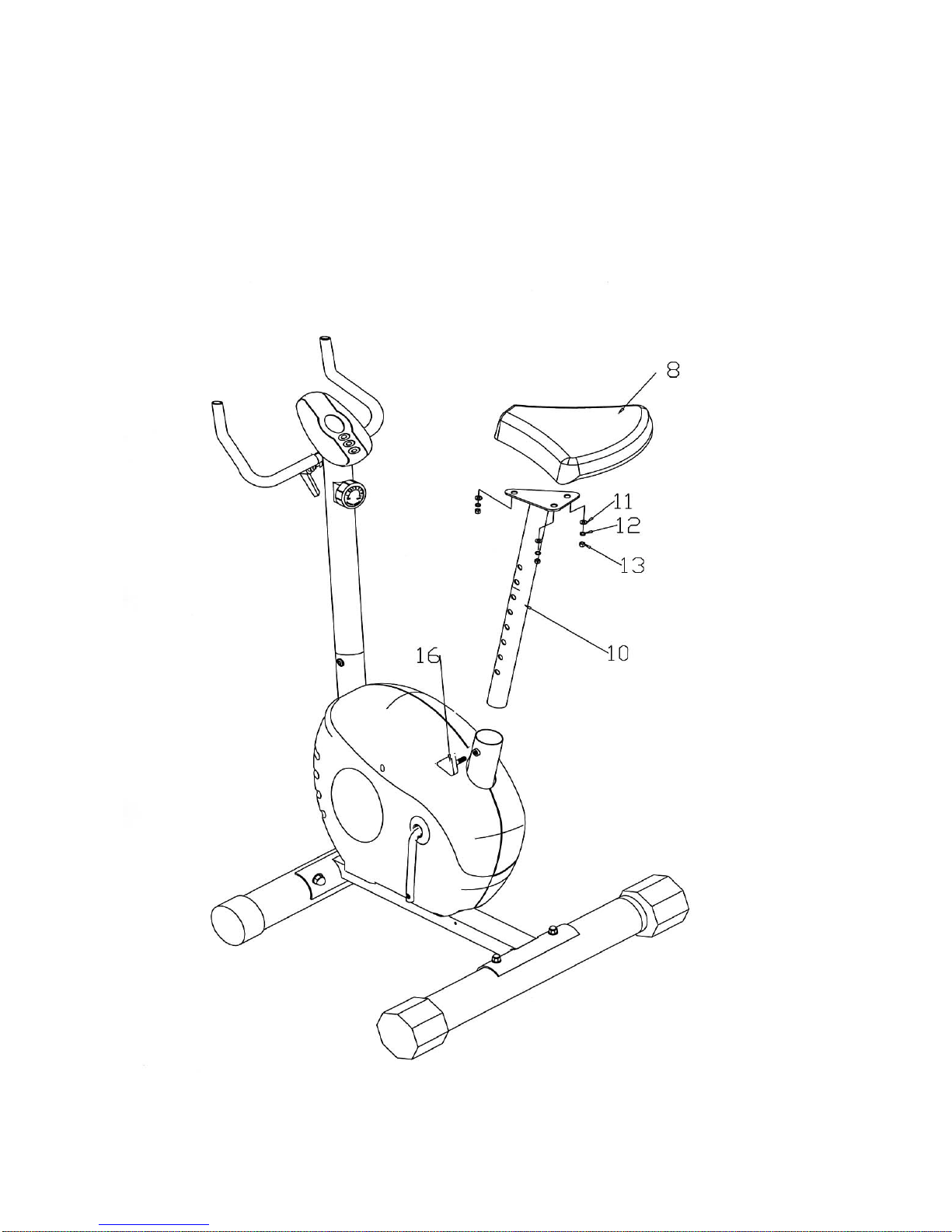

STEP 4 (See Diagram 4)

A.) Attach the Seat (#8) to the top of the Seat Post (#10). Secure it with three Ø 5/16”

Washers (#11), Ø 5/16” Spring Washers (#12), and M8 Nylon Nuts (#13).

B.) Insert the Seat Post into the top opening on Main Frame (#15). Adjust the height of the

Seat. Lock the Seat Post with a Seat Post Lock Knob (#16).

DIAGRAM 4

STEP 5 (See Diagram 5)

A.) Thread the Left Pedal (#27) counterclockwise onto the left Crank (#14).

Thread the Right Pedal (#28) Clockwise onto the Crank on the other side.

DIAGRAM 5
