AXIUM DX8000

User Guide

www.ingenico.com

13-17 rue Pagès, 92150 Suresnes – France

Banks and Acquirers International Holding, SAS / 814 767 216 RCS Nanterre

Table of Contents

1. Introduction

2. Presentation

2.1 Content of the box

2.2 Overview of AXIUM DX8000

2.3 Keypad Functions

2.4 Touch Panel

3. Use of the terminal

3.1 Power on/Power off the terminal

3.2 Reading cards

3.3 Usage of Front Camera

3.4 USB Type-C

4. Installation

4.1 Recommendations

4.2 Screen Protective film

4.3 Installing modules

4.3.1 SAM1/SAM2/SIM1/SIM2

4.3.2 MicroSD Memory Card

Contents

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

4.4 Paper roll

4.4.1 Main characteristics of INGENICO paper roll

4.4.2 Installing paper roll

4.5 Battery

4.5.1 Charging the battery

4.5.2 Installing the battery

4.6 Visual Impaired Accessory

5. Recommendations

5.1 Safety

5.2 Security of your terminal

5.3 Fixed installation

5.4 Cleaning the terminal

5.5 Transport and storage

6. Standard

7. Troubleshooting

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

We hope that you will be fully satisfied with your new AXIUM DX8000

terminal.

Read this guide to understand and make the best use of your terminal. It

presents you the necessary information about use, installation,

maintenance, safety and security recommendations.

1. Introduction

WARRANTY/

SECURITY

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

Use only the power supply included with the product to

ensure best performance and safety. Maintenance should

only be provided by Ingenico authorized technician.

Failure to comply with these instructions will void the

manufacturer’s responsibility.

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

2. Presentation

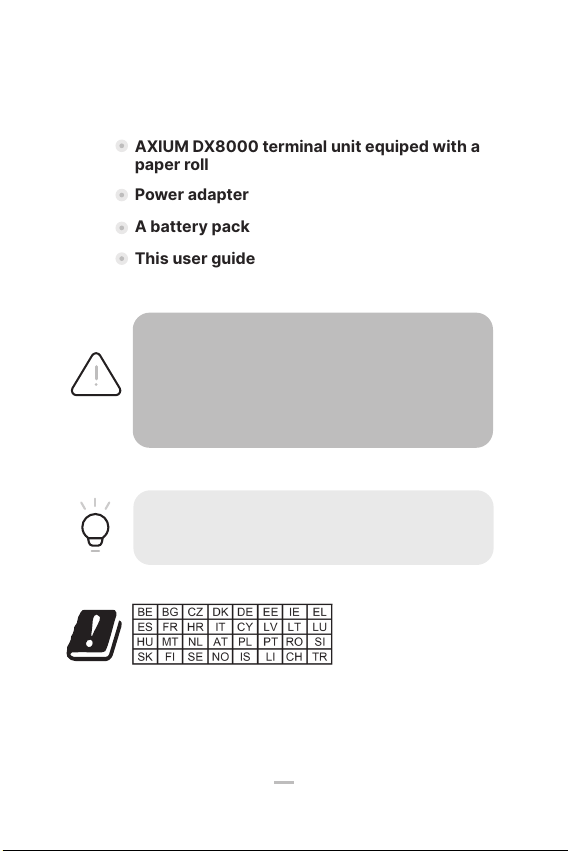

2.1 Contents of the box

Power adapter

A battery pack

This user guide

WARNING

The power supply unit provided with your equipment is

specially designed for INGENICO AXIUM DX8000 terminal.

Do not use any other power supply. The use of a power

supply with apparently similar voltage/current characteristics

may damage your terminal.

ADVICE

Keep the package. It must be re-used whenever the

terminal is shipped.

AXIUM DX8000 terminal unit equiped with a

paper roll

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

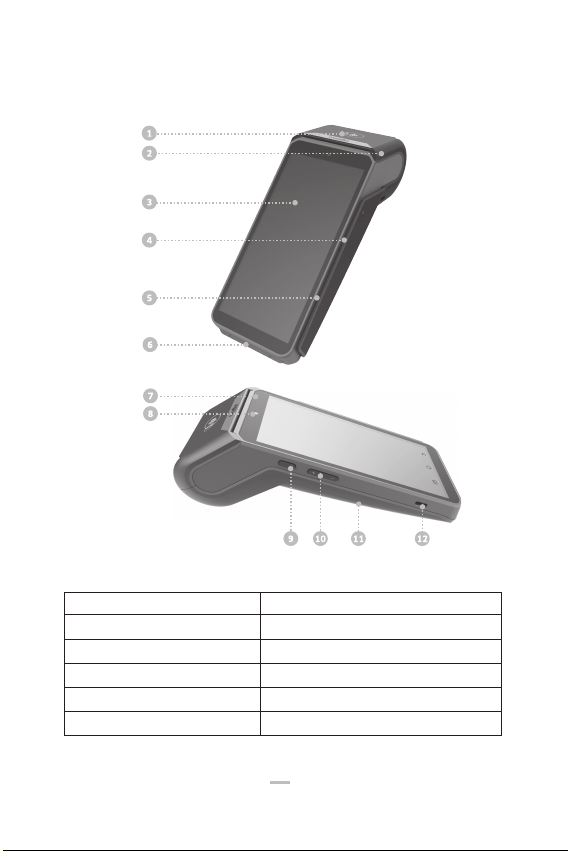

1) Contactless landing zone

3) LCD and touch screen

5) Buzzer

7) LEDs for Contactless Card

9) Power Key

11) Battery cover

2) Easy Loading Printer

4) Magnetic card reader

6) Smart card reader

8) Front scanner

10) Volume Keys

12) USB Type-C connector

2.2 Overview of AXIUM DX8000

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

13) Rear camera

15) Battery socket

17) Micro SD slot

19) Lanyard hole

21) SIM 2 card slot

23) Base Charging interface -

14) Flash

16) Battery compartment

18) Base Charging interface+

20) SAM cards slots

22) SIM 1 card slot

24) Speaker

Weight

Dimension (L x W x H)

Electrical mains network

450g (including battery)

198 X 83X 62.5mm

100-240VAC/50-60Hz Class II

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

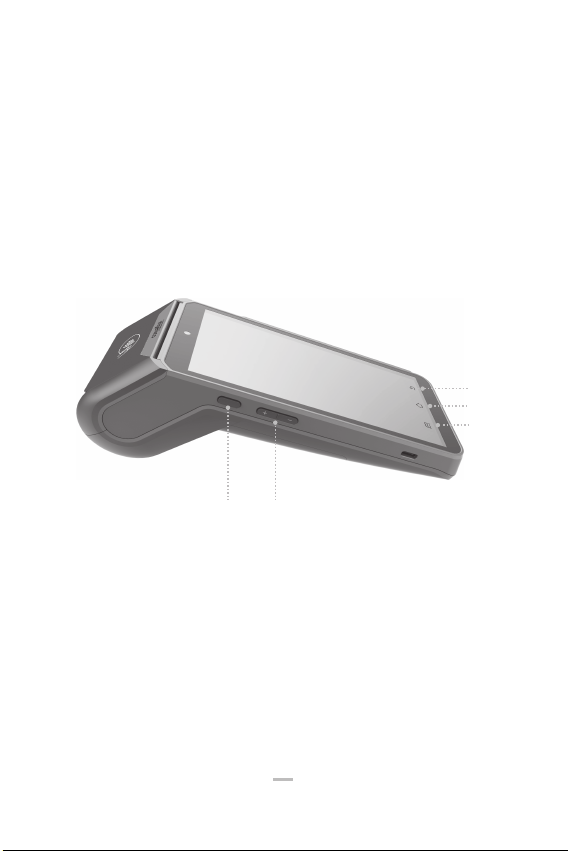

2.3 Keypad Functions

Three physical keys on the left side of the terminal: a power button and two

volume keys.

If the terminal has a 5.99 inch screen,there are three virtual keys at the

bottom of the screen: Menu,Home and Back keys.

If the terminal has a 5.5 inch screen,there are three capacitive keys at the

bottom of the screen: Menu,Home and Back keys.

The AXIUM DX8000 is equipped with touch panel that allows you capture

functions and menus by your finger .

2.4 Touch Panel

Back

Power button Volume Keys

Home

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

ADVICE

Before using the terminal, always check if the roll of

paper is present.

3. Use of the terminal

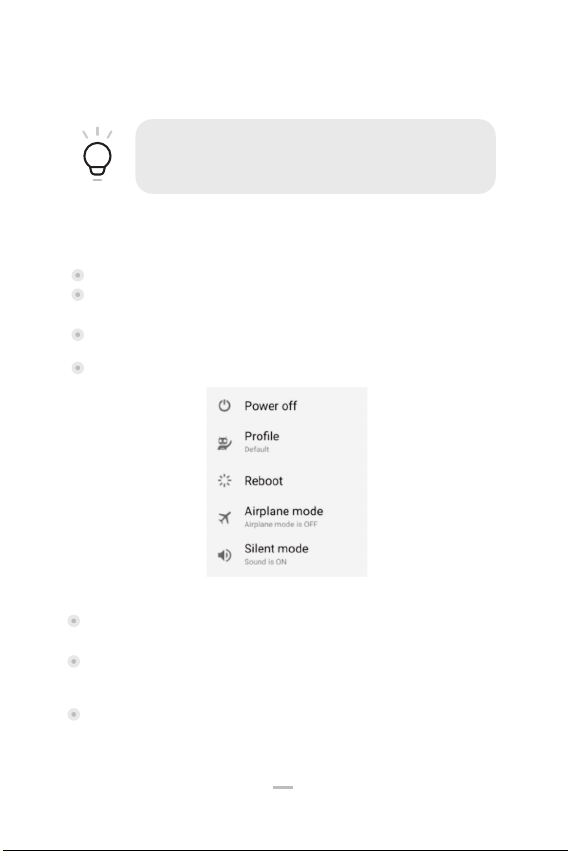

3.1 Power on/Power off the terminal

Make sure the terminal battery is correctly installed.

Press <Power> button for about 1s until the display is turned on.

Press and hold <Power> button for more than 2s until the display shows

the following menu.

Press <Power off>.

Power On Terminal:

Power Off Terminal:

If the battery is empty, the terminal will automatically shut off.

In the event of abnormal behavior of the terminal, press and hold the

power button for 8 seconds to force the terminal to power off.

To conserve battery power, the screen may be turned off with a short

press of the power button. (approximately 0.5 seconds)

Terminal restart:

Screen saver mode:

Battery Low:

AXIUM DX8000

07/11

Banks and Acquirers International Holding SAS

3.2 Reading cards

The card can be read bi-direction-

ally, with the stripe facing the

terminal.

Use a regular movement in order to

ensure a reliable card reading.

Bring the card firmly up to the

active zone.

Keep the card close to the reader

during the transaction.

On the front,LEDs are displayed to

indicate transaction processing.

Magnetic stripe card

Contactless card
