TruVision Stainless Steel

PTZ Camera Installation

Guide

P/N 1073420-EN • REV A • ISS 30JAN18

Interlogix is part of UTC Climate, Controls & Security, a unit of

Trademarks

and patents

Trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

FCC

compliance

Class A: This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the

interference at his own expense.

FCC

conditions

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This Device must accept any interference received, including

interference that may cause undesired operation.

ACMA

compliance

Notice! This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may

be required to take adequate measures.

Canada

This Class A digital apparatus complies with CAN ICES-003

(A)/NMB-3 (A). Cet appareil numérique de la classe A est

conforme à la norme CAN ICES-003 (A)/NMB-3 (A).

European

Union

directives

This product and - if applicable - the supplied accessories too are

marked with "CE" and comply therefore with the applicable

harmonized European standards listed under the EMC Directive

2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the

European Union. For proper recycling, return this product to your

local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information

see: www.recyclethis.info.

Product

warnings

and

disclaimers

THESE PRODUCTS ARE INTENDED FOR SALE TO, AND

INSTALLATION BY, AN EXPERIENCED SECURITY

PROFESSIONAL. UTC FIRE & SECURITY CANNOT PROVIDE

ANY ASSURANCE THAT ANY PERSON OR ENTITY BUYING

ITS PRODUCTS, INCLUDING ANY “AUTHORIZED DEALER”, IS

PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY

INSTALL SECURITY RELATED PRODUCTS.

For more information on warranty disclaimers and product safety

information, please check

www.firesecurityproducts.com/policy/product-warning/ or scan the

following code:

Contact

information

and manuals

For contact information go to: www.interlogix.com or

www.firesecurityproducts.com

To get translations for this and other product manuals go to:

www.firesecurityproducts.com

Content

Introduction 6

Product overview 6

Installation 6

Installation environment 6

Package contents 7

Camera description 10

Alarm input and output connections 11

SD memory card installation 11

Mounting the PTZ dome camera 12

Mounting the junction box 13

Using the camera with an Interlogix NVR or Hybrid DVR or

another system 15

Using the camera with TruVision Navigator 16

Access the camera over the internet 16

Specifications 19

PTZ camera 19

PTZ camera junction box 19

Pin definitions 20

Installation Guide 5

Introduction

Product overview

This is the installation guide for the TruVision Stainless Steel

PTZ dome camera model:

•TVP-5201 (2MPX wall-mount PTZ dome camera, 23X)

Installation

This section provides information on how to install the

cameras.

Installation environment

When installing your product, consider these factors:

•Electrical: Install electrical wiring carefully. It should be

done by qualified service personnel. Always use a proper

PoE switch or a 24 VDC UL listed Class 2 or CE certified

power supply to power the camera. Do not overload the

power cord or adapter.

•Ventilation: Ensure that the location planned for the

installation of the camera is well ventilated.

•Temperature: Do not operate the camera beyond the

specified temperature, humidity, or power source ratings.

The operating temperature of the camera is between -40

to 60°C (-40 to140°F). Humidity is below 90%.

•Moisture: Do not expose the camera to rain or moisture

or try to operate it in wet areas. Turn the power off

immediately if the camera is wet and ask a qualified

6Installation Guide

service person for servicing. Moisture can damage the

camera and also create the danger of electric shock.

•Servicing: Do not attempt to service this camera

yourself. Any attempt to dismantle or remove the covers

from this product will invalidate the warranty and may

also result in serious injury. Refer all servicing to qualified

service personnel.

•Cleaning: Do not touch the sensor modules with fingers.

If cleaning is necessary, use a clean cloth with some

ethanol and wipe the camera gently. If the camera will not

be used for an extended period of time, put on the lens

cap to protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any

components are damaged or missing, do not attempt to use

the unit; contact the supplier immediately. If the unit is

returned, it must be shipped back in its original packaging.

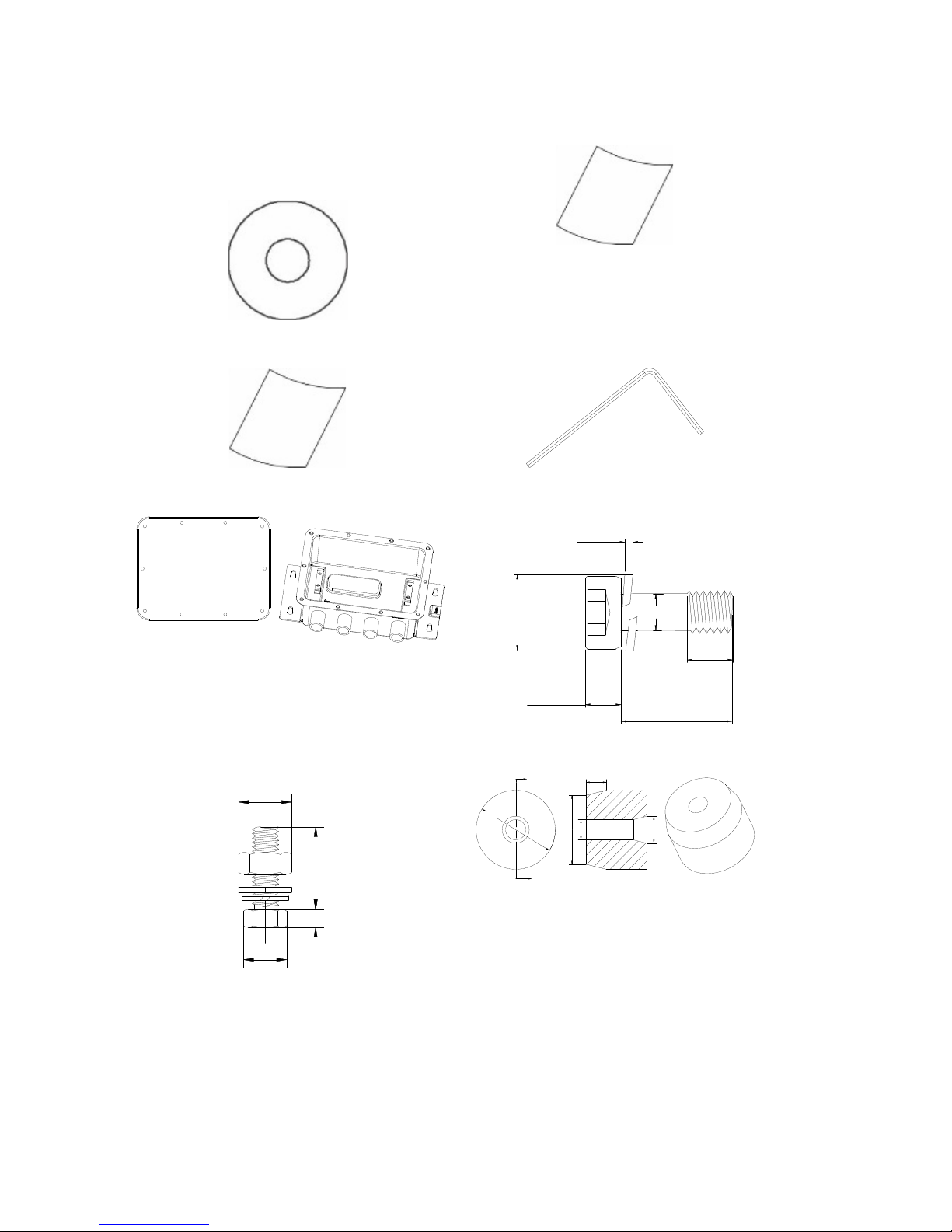

Package contents include the following:

Camera

Installation manual

Installation Guide 7

CD with configuration manual

and TruVision Device

Manager

Equipment disposal sheet

Battery disposal sheet

Hex wrench

Junction box

Screw A (10 pcs.)

13.6 mm

(0.54 in.)

1.6 mm

(0.06 in.)

5.85 mm

(0.23 in.)

5.5 mm

(0.22 in.)

5.0 mm

(0.20 in.)

10.7 mm (0.42 in.)

Screw B (4 pcs.)

25 mm

(0.98 in.)

5.4 mm

(0.21 in.)

13 mm

(0.51 in.)

16 mm (0.63 in.)

Blue sealing plug (3 pcs.)

6 mm (0.24 in.)

23.5 mm

(0.93 in.)

20.5 mm (0.81 in.)

A-A

6 mm (0.24 in.)

8 mm (0.31 in.)

8 Installation Guide

White sealing plug (3 pcs)

A-A

23.5 mm

(0.93 in.)

6 mm (0.24 in.)

20.5 mm (0.81 in.)

8 mm (0.31 in.)

10 mm (0.39 in.)

Black sealing plug (3 pcs)

A-A

23.5 mm

(0.93 in.)

20.5 mm (0.81 in.)

6 mm (0.24 in.)

11 mm (0.43 in.)

13 mm (0.51 in.)

Drill template – junction box

328 mm (12.91 in.)

113 mm (4.45 in.)

CAUTION: Use direct plug-in UL listed power supplies

marked Class 2/CE certified or LPS (limited power source) of

the required output rating as listed on the unit.

Installation Guide 9

Camera description

Figure 1: PTZ camera description and connectors

VIEOD

1200 mm (47.24 in.)

250 mm (9.84 in.)

①

②

③

④

⑤

⑥

⑦

1. 24V power supply (red 24 VAC,

yellow_green ground, black 24

VAC)

2. RS-485 (Orange RS-485+,

Yellow RS-485-)

3. Audio in (red_white) / Audio

output (blue_white)

4. Alarm inputs (green, blue,

purple, gray, white,

black_white, brown_white) /

two alarm outputs (red, pink)

5. 960H analog output

6. RJ45 network cable

7. Safety lanyard

10 Installation Guide
