TruVision TVC-7120-1

Camera User Manual

P/N 1072793A • REV 1.0 • ISS 12MAY14

Interlogix is part of UTC Building & Industrial Systems, a unit of

Trademarks and

patents

Trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacture

United Technologies Corporation

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

FCC compliance Class A: This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

Canada This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme

NMB-003 du Canada.

ACMA compliance Notice! This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

European Union

directives

12004/108/EC (EMC directive): Hereby, UTC Fire & Security

declares that this device is in compliance or with the essential

requirements and other relevant provisions of Directive 2004/108/EC

2002/96/EC (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info.

Contact information For contact information, see www.utcfireandsecurity.com or

www.utcfssecurityproducts.eu.

TruVision TVC-7120-1 Camera User Manual 1

Content

Product overview 2

Package contents 2

Features 2

User guidelines 2

Product description 3

Installation 4

Attach the lens 4

Connect the cables 4

Programming 6

OSD control button 6

Access the Setup Menu 6

Save changes 7

Select the lens type 7

Set the shutter/AGC 8

Set white balance 9

Set backlight compensation (BLC) 10

Adjust the picture characteristics 11

Set the ATR level 11

Set the motion detection 11

Set the privacy mask area 12

Set the Day/Night mode 13

Set image noise reduction 14

Set the camera ID 14

Set the sync mode 15

Select the language 15

Reset camera settings 15

Specifications 16

Dimensions 16

Menu Tree 17

2 TruVision TVC-7120-1 Camera User Manual

Product overview

The TVC-7110-1-N(-P) / TVC-7120-1-N(-P) camera uses a digital signal

processor (DSP) to process video signals. The camera includes a microcontroller

to provide high-quality images with high-color reproduction and sharp pictures.

Package contents

The package contains the following:

• Box camera

• C-mount lens adapter

• Quick Start Guide

• User Manual (on CD)

Features

The camera includes the following features:

• 960H Super HAD II (hole accumulated diode) technology

• High horizontal resolution 700 TVL

• Smart digital control automatic BLC (backlight compensation)

• Digital WDR (wide dynamic range)

• Advanced auto exposure system for both fixed iris and auto iris lenses to

optimize the amount of light

• Internal synchronization

• Eight privacy mask areas to protect privacy concerns

• Signal-to-noise ratio better than 62 dB

• Long life and high reliability

User guidelines

• Program the camera settings as much as possible before mounting the

camera. Take appropriate safety precautions while completing programming

after installation.

• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the

camera.

• Do not use the camera over the temperature range specifications: -10°C to

+60°C (14°F to 140°F)

• If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

TruVision TVC-7120-1 Camera User Manual 3

WARNING: To reduce the risk of fire or electronic shock, do not expose the

camera to rain or moisture and do not remove the cover or back.

Product description

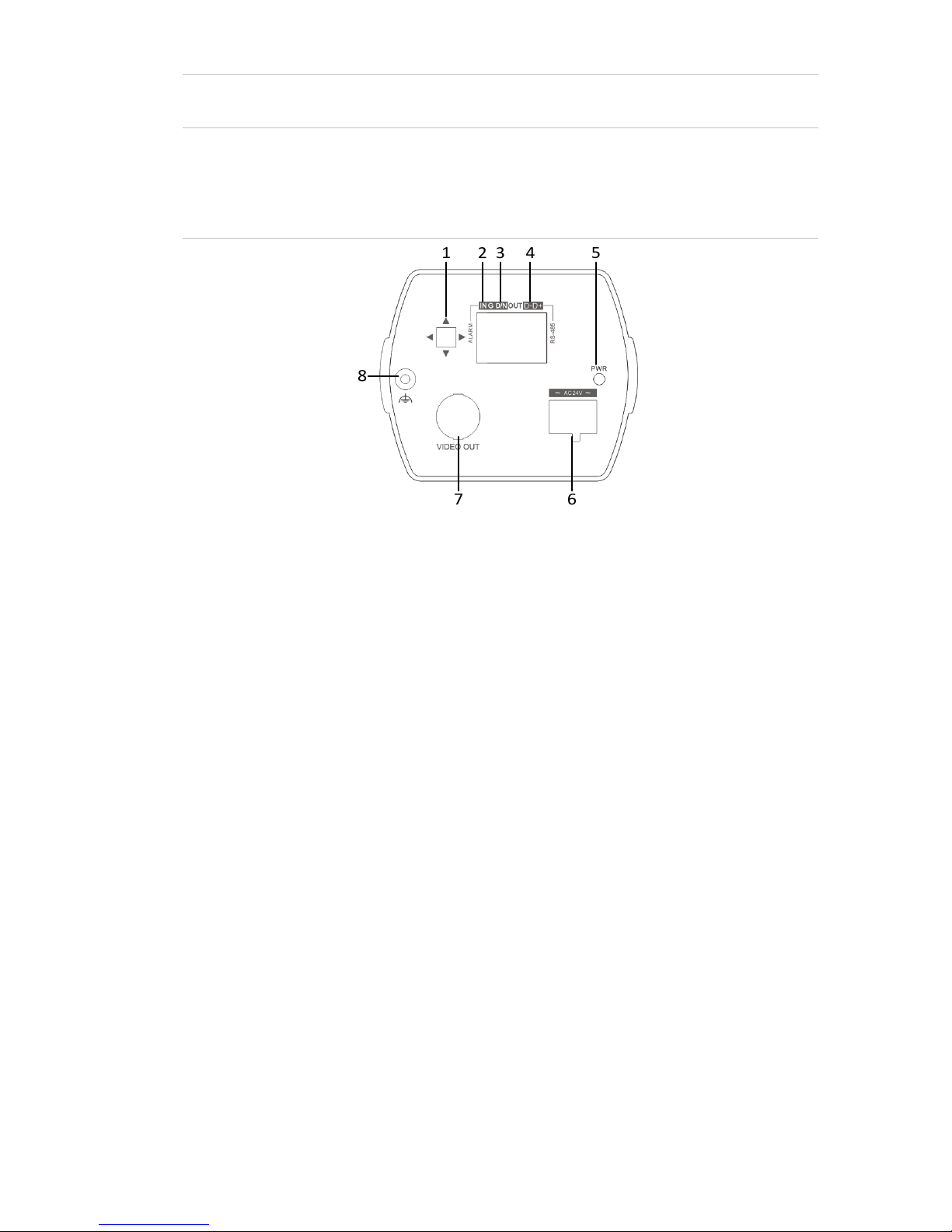

Figure 1: Product description - TVC-7120-1-N(-P)

1. OSD control button

2. Alarm output/Ground

3. D/N switch (3.3 V)

4. RS-485 ports (D+, D-)

5. Power LED

6. 12 VDC/24 VAC dual power

7. Video output

8. Ground

4 TruVision TVC-7120-1 Camera User Manual

Installation

Please check the package contents and make sure that the device in the

package is in good condition and all the assembly parts are included.

To install the camera you will need to prepare the mounting surface, mount the

camera, attach the lens, and make cable connections.

Note: Before installing, please ensure that the mounting surface is strong enough

to withstand three times the weight of the camera. If the mounting surface is not

strong enough, the camera may fall and cause serious damage.

Attach the lens

Refer to the instructions that came with the lens you purchased for complete

installation instructions of that lens.

To attach the lens:

1. Screw the lens clockwise onto the lens mount of the camera.

Note: Please prevent dust from entering between the lens mount and the

lens.

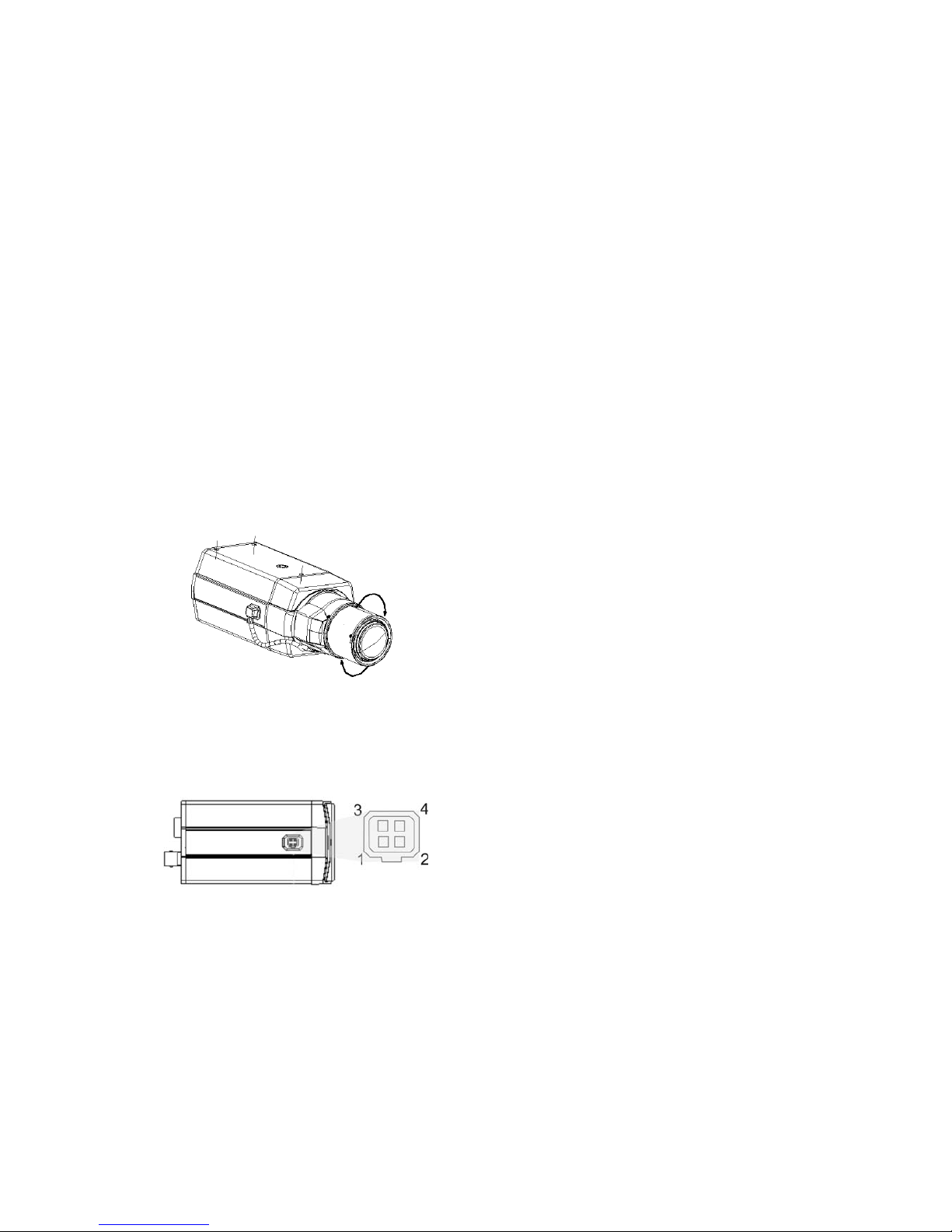

2. For optimal performance, please use an auto iris lens. Plug the auto-iris drive

cable to the 4-pin interface on the side of the camera.

The 4 pins are: 1. Damper -; 2. Damper+; 3. Drive+; 4. Drive-

Connect the cables

To make cable connections:

1. Connect a coaxial cable from the camera’s BNC connector to a CCTV

monitor or video recording device.

2. Connect a 12 VDC or 24 VAC power supply to the power input.

TruVision TVC-7120-1 Camera User Manual 5

Power supply

Monitor

6 TruVision TVC-7120-1 Camera User Manual

Programming

Once the camera hardware has been installed, the camera can then be

configured.

Program the camera by attaching a standard video monitor to the system.

To connect the monitor:

1. Plug the monitor output cable to the video monitor output connector.

2. Connect the BNC cable to the video monitor.

3. Press Enter on the OSD menu button to display the Setup Menu. See Table

1 for instructions on how to move the cursor.

OSD control button

The on-screen display (OSD) control button (see Figure 1) lets you manually

control the camera functions. Table 1 below lists the OSD control button

functions and describes their use.

Table 1: Using the OSD control button

Button direction Description

Up Moves the cursor upward to select an item

Left Moves the cursor left to select or adjust the parameters of the selected

item.

Right Moves the cursor to the right to select or adjust the parameters of the

selected item.

Down Moves the cursor downward to select an item.

Enter Press the center of the menu button to display the Setup Menu. If the

selected item has its own menu, press the button to enter a submenu.

Access the Setup Menu

The Setup Menu provides access to the camera configuration options.

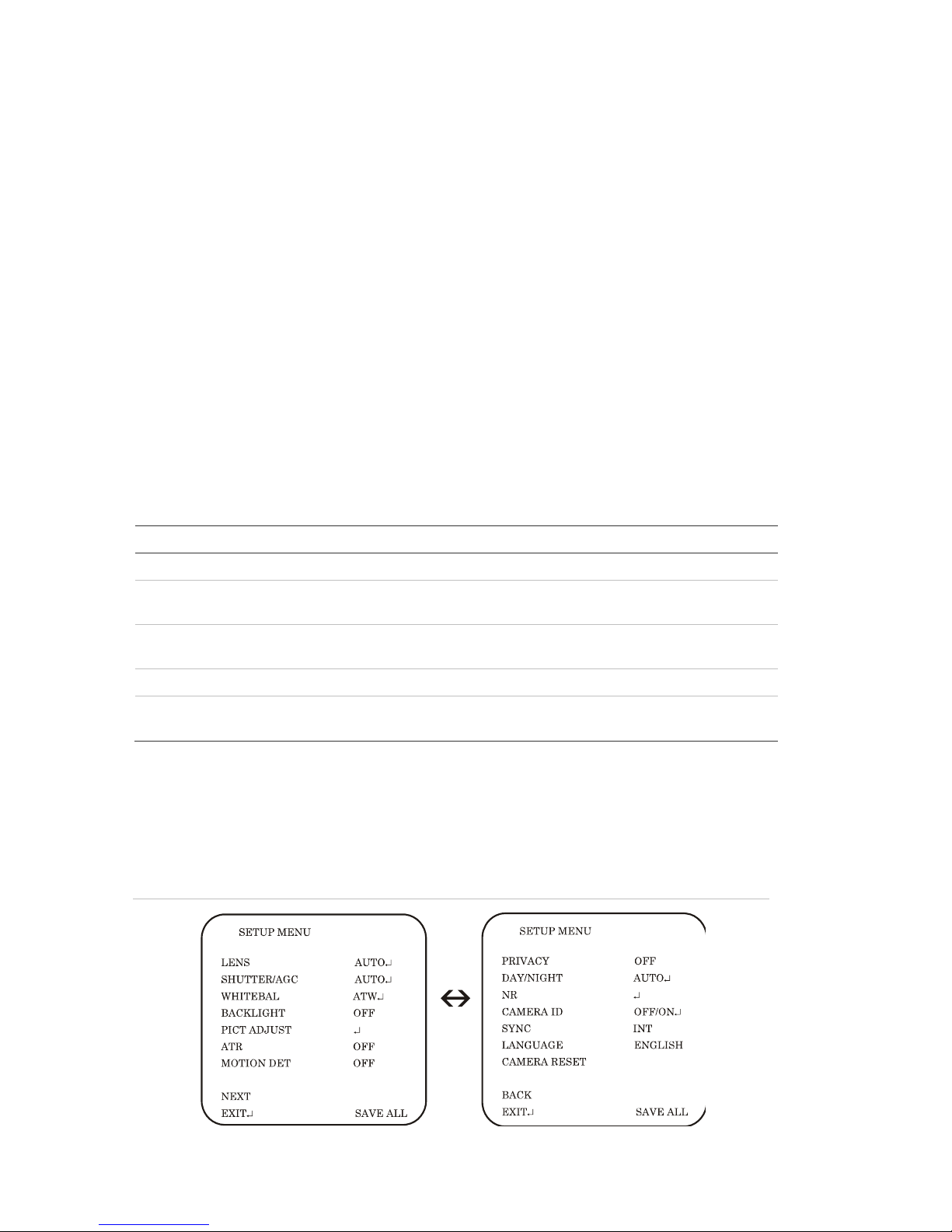

Figure 2: The Setup Menu

TruVision TVC-7120-1 Camera User Manual 7

Table 2: Setup Menu description

Menu item Description

Lens Defines autoiris or manual iris.

Shutter/AGC Define the method of light control.

White Bal Defines the white balance (WB) set up.

Backlight Defines the highlight compensation (HLC) and backlight compensation

(BLC) set up.

Pict Adjust Defines the image quality functions.

ATR Defines the adaptive tone reproduction (ATR) set up.

Motion Det Defines the motion detection set up.

Privacy Defines privacy mask set up.

Day/Night Defines the day/night (D/N) set up.

NR Defines the digital noise reduction level.

Camera ID Defines the camera ID displayed on-screen.

Sync Displays the current synchronization mode.

Language Defines the language of the OSD.

Camera Reset Resets the camera to factory default settings.

Save All Saves configuration changes made.

Exit Exits the menu and returns to live mode.

To access the Setup Menu:

1. Press the OSD control button to access the Setup Menu and its submenus.

2. Push the button up/down to move between menu options.

3. Push the button left/right to select an option.

4. Select Next to move to the next Setup Menu screen and Back to return to the

previous Setup Menu screen.

5. When in a sub menu, select Return to return to the previous menu.

6. To exit the Setup Menu and return to normal camera operation mode, move

the cursor to Exit at the bottom of the screen and press Enter.

Save changes

Changes are not saved automatically. When all setup changes to the camera are

done, move the cursor in the Setup Menu to Save All and press Enter to save all

changes made.

Select the lens type

In the Setup Menu, go to Lens and select the type of lens used with the camera,

Auto or Manual. Select Auto to set the lens type to auto iris or select Manual for

a manual lens. Manual is default. The Auto Iris or Manual menu appears.

8 TruVision TVC-7120-1 Camera User Manual

Manual menu:

Select a higher shutter speed value to see movement and a lower value to see

clearer images. The shutter speed available are 1/50, 1/120, 1/250, 1/500,

1/1000, 1/2000, 1/4000 and 1/10000. The AGC value can be set between 6 and

44.8.

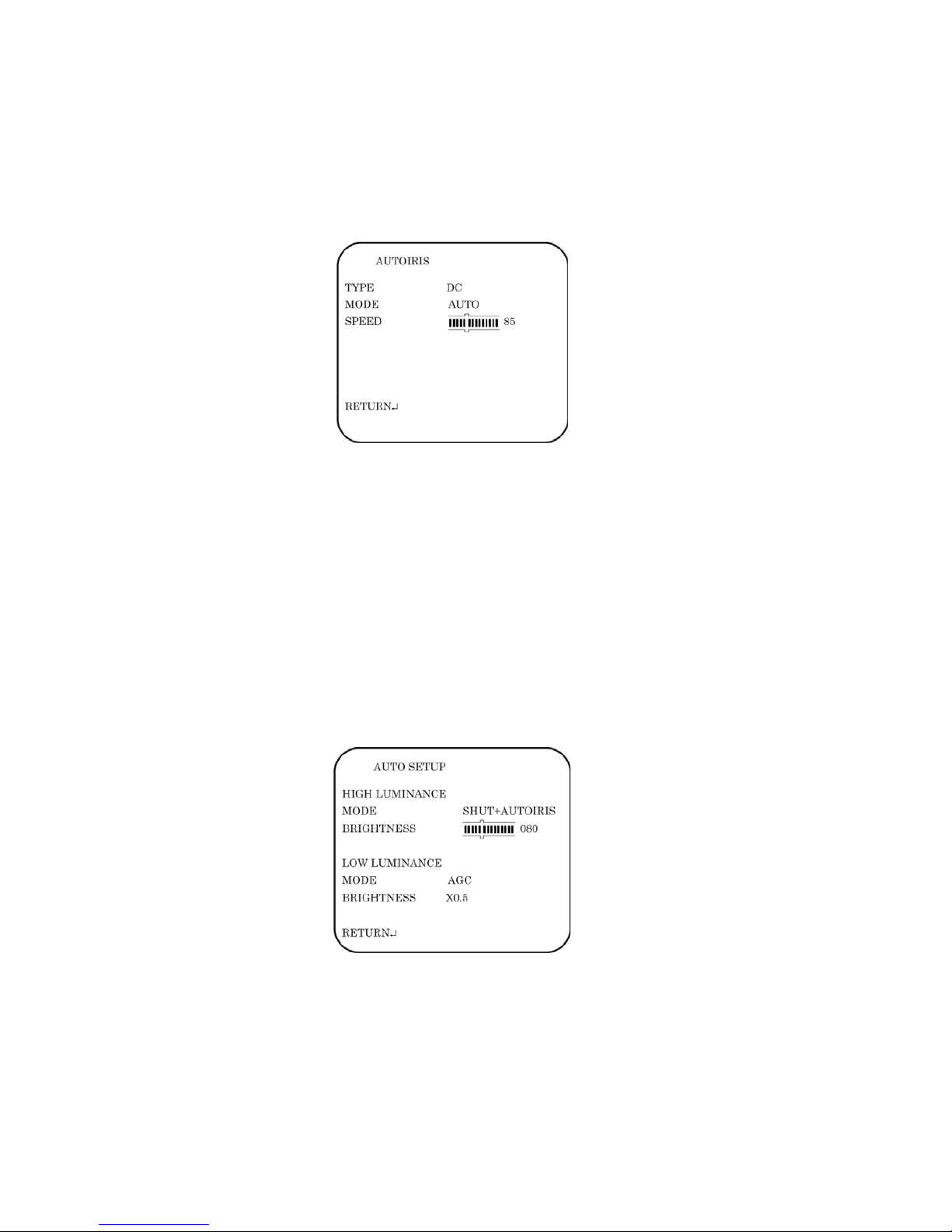

Auto iris menu:

Type: Select the drive mode of the lens, DC or Video.

Mode: Select the iris control mode. Auto (automatically controlled depending

on the light), Open (always open), or Closed (always closed).

Speed: When the mode is set to Auto, select the convergence speed of the

iris between 0 and 255.

Set the shutter/AGC

In the Setup Menu, go to Shutter/AGC and select the required light control

option, Manual or Automatic. Auto is default. The Manual or Auto menu appears:

Automatic shutter menu:

Select the parameters for high and low luminance conditions:

High Luminance: Sets the lux level for bright light conditions such as

daylight.

Mode: When lens type is AUTO IRIS, you can choose SHUT+AUTO IRIS or

AUTO IRIS mode. When the lens type is manual, only SHUT mode is

available.

Andere Handbücher für TruVision TVC-7120-1-N

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Interlogix Sicherheitskamera Handbücher

Interlogix

Interlogix TruVision TVP-5104 Merkblatt

Interlogix

Interlogix TVC-5120-1 Bedienungsanleitung

Interlogix

Interlogix TVB-5301 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TruVision TVD-6120VE-2 Bedienungsanleitung

Interlogix

Interlogix UltraView UVC-6130-1-N Bedienungsanleitung

Interlogix

Interlogix TruVision TVB-2402 Bedienungs- und Wartungsanleitung

Interlogix

Interlogix UltraView IP PTZ 36X Bedienungsanleitung

Interlogix

Interlogix TruVision TVB-2101 Bedienungsanleitung

Interlogix

Interlogix UltraView Bedienungsanleitung

Interlogix

Interlogix TruVision PTZ 36X Bedienungsanleitung

Interlogix

Interlogix UltraView PTZ Bedienungsanleitung

Interlogix

Interlogix TruVision TVC-6110-1 Bedienungs- und Wartungsanleitung

Interlogix

Interlogix TruVision TVD-2401 Bedienungsanleitung

Interlogix

Interlogix TVD-5110-3 Bedienungsanleitung

Interlogix

Interlogix UVC-XP4DN-HR Bedienungsanleitung

Interlogix

Interlogix TVP-6102 Bedienungsanleitung

Interlogix

Interlogix TruVision TVD-2402 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TVB-5501 Bedienungsanleitung

Interlogix

Interlogix TruVision TVA-1101 Bedienungsanleitung

Interlogix

Interlogix Ultra View UVD-6120VE-2 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix UVC-XP4DN-HR Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
