Interlogix TVF-1101 Bedienungsanleitung
TruVision 360°
Camera Installation
Manual
P/N 1072845A-EN • REV 1.0 • ISS 25SEP14
Copyright © 2014 United Technologies Corporation,
Interlogix is part of UTC Building & Industrial Systems, a unit of United
Technologies Corporation. All rights reserved.
Trademarks and
patents
Trade names used in this document may be trademarks or registered trademarks
of the manufacturers or vendors of the respective products.
Manufacturer Interlogix.
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
N4131
FCC compliance Class A: This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
ACMA compliance Notice! This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Canada This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-0330 du
Canada.
European Union
directives
12004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this
device is in compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
Contact information For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.
Installation Manual 1
Content
Introduction 2
Product overview 2
Installation 3
Installation environment 3
Package contents 3
Cable requirements 4
Camera description 5
Install the camera 6
IR illuminators 8
Accessing the SD card 8
Mounting accessories 9
Network settings 10
Using the web browser to configure 11
Using the camera with an Interlogix NVR or another system 13
Using the camera with TruVision Navigator 13
Specifications 13
Pin definitions 14
2 Installation Manual
Introduction
Product overview
This is the user manual for TruVision 360° camera models:
SKU Description
TVF-1101 TruVision 360 Degree IP Dome, 3.0 MPX, WDR, 1.19mm
fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &
speaker), SD/SHDC slot, POE (803.af) /12VDC, PAL.
TVF-3101 TruVision 360 Degree IP Dome, 3.0 MPX, WDR, 1.19mm
fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &
speaker), SD/SHDC slot, POE (803.af) /12VDC, NTSC
TVF-1102 TruVision 360 Degree IP Dome, 3.0MP, WDR, 1.19mm fisheye
lens, true D/N, 10m IR, 2 way audio (built-in mic & speaker),
SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10, PAL
TVF-3102 TruVision 360 Degree IP Dome, 3.0MP, WDR, 1.19mm fisheye
lens, true D/N, 10m IR, 2 way audio (built-in mic & speaker),
SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10, NTSC
TVF-1103 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm
fisheye lens, true D/N,10m IR, 2 way audio (built-in mic &
speaker), SD/SHDC slot, POE (803.af) /12VDC, PAL
TVF-3103 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm
fisheye lens, true D/N,10m IR, 2 way audio (built-in mic &
speaker), SD/SHDC slot, POE (803.af) /12VDC, NTSC
TVF-1104 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm
fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &
speaker), SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10,
PAL
TVF-3104 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm
fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &
speaker), SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10,
NTSC
Installation Manual 3
Installation
This chapter provides information on how to install the cameras.
Installation environment
When installing your product, consider these factors:
• Electrical: Install electrical wiring carefully. It should be done by qualified
service personnel. Always use a proper PoE switch or a 12 VDC UL listed
Class 2 or CE certified power supply to power the camera. Do not overload
the power cord or adapter.
• Ventilation: Ensure that the location planned for the installation of the
camera is well ventilated.
• Temperature: Do not operate the camera beyond the specified
temperature, humidity or power source ratings. The operating temperature of
the camera is between -30 to +60°C. Humidity is below 90%.
• Moisture: Do not expose the camera to rain or moisture, or try not to
operate it in wet areas. Turn the power off immediately if the camera is wet
and ask a qualified service person for servicing. Moisture can damage the
camera and also create the danger of electric shock.
• Servicing: Do not attempt to service this camera yourself. Please refer to
the instructions in this manual when removing the camera cover. Refer all
servicing to qualified service personnel.
• Cleaning: Do not touch the bubble with fingers. If cleaning is necessary, use
a clean cloth with some ethanol and wipe the camera bubble gently.
Package contents
Check the package and contents for visible damage. If any components are
damaged or missing, do not attempt to use the unit; contact the supplier
immediately. If the unit is returned, it must be shipped back in its original
packaging.
Indoor camera Outdoor camera
4 Installation Manual

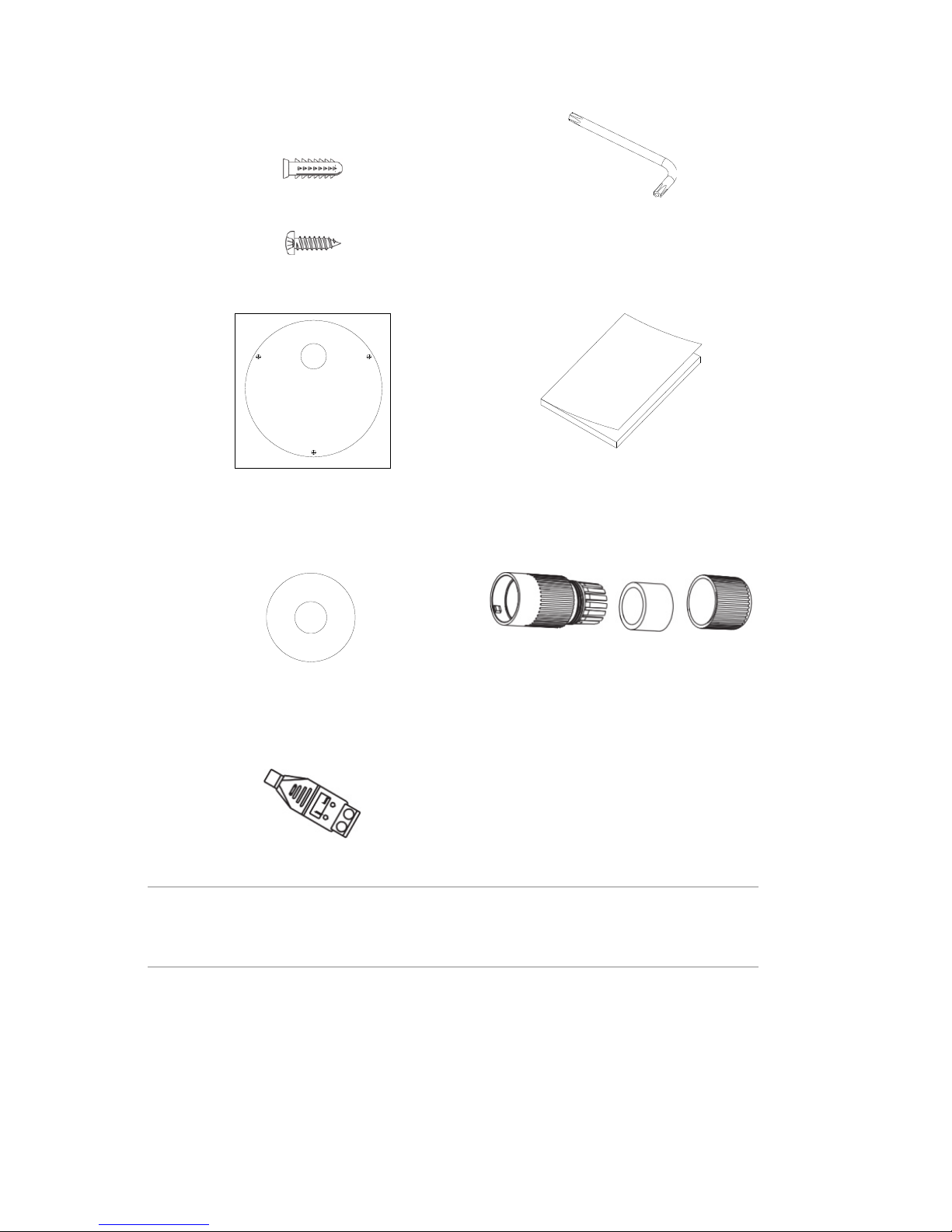

Screws: Hex wrench 95 x 50 mm
Drywall anchor
Φ7.5 x 24.5mm (3 pcs)
Screw M4
16 x 25mm (3 pcs)
Drill template (170 x 170 mm) Installation manual
CD (Includes Configuration Manual,
Installation Manual, TruVision Device
Finder and Adobe Reader
Water joint (Provides water
resistance to network connection)
12 VDC Connector:
DC jack socket to terminal connectors
with positive and negative indicators
CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE
certified or LPS (limited power source) of the required output rating as listed on
the unit.
Cable requirements
For proper operation, adhere to the following cable and power requirements for
the cameras. Category 5 cabling or better is recommended. All network cabling
must be installed according to applicable codes and regulations.
Installation Manual 5
The recommended power cable requirements to use are a 12 VDC power jack or
PoE (802.3af) when connecting the camera.
Camera description
Figure 1: 360° camera
1. Base
2. Micro SD card slot
3. Reset button
4. Speaker
5. IR illuminator
6. Mic in
7. Camera cover ring
8. PoE & network port
9. RS-485 port
10. Power port
6 Installation Manual
Install the camera
Note: If the light source where the camera is installed experiences rapid, wide-
variations in lighting, the camera may not operate as intended.
To install the 360° camera on a ceiling or wall:
1. Prepare the mounting surface.
Use the drill template provided to draw the positions of the screws and
cabling hole.
2. Install the three screws and drywall anchor half-deep in the ceiling or wall,
leaving clearance to slide the camera in to place. See below.
Important: When mounting the camera to a wall, ensure that the ‘UP’
reference on the camera base is pointing upwards.
3. Remove the camera cover ring from the camera.
Using the hex wrench provided, unscrew the hex head screw located under
the small flap on the cover (1).
Using a flathead screwdriver, release the two clips on the base of the
camera (2) to release the cover.
Installation Manual 7
Grasp the opening on the side of the cover, and pull the cover and base
apart to open the camera (3).
Note: For further information on removing the cover ring from the camera,
please refer to the guide, “Instructions to remove the 360° camera cover”.
4. Connect the cables to the camera.
5. Attach the camera to the ceiling/wall.
Align the holes on the base of the camera with the three screws in the
ceiling/wall and rotate the camera to lock it into position.
When mounting the camera to a wall, ensure that the ‘TOP’ reference is
pointing up.
6. Tighten the three screws to securely fix the camera to the ceiling/wall.
7. When re-attaching the camera cover ring, ensure that groove/opening near
the cover screw (1) is not up against a wall or ceiling. You will need to have
access to that area when removing the camera cover
8 Installation Manual
8. Tighten the cover screw (1) in the camera cover ring to securely reattach
cover to the camera.
IR illuminators
The camera’s built-in IR illumination provides high-quality video in low-light
environments, even when there is no other illumination available.
You can configure the IR illumination using a web browser or a client software. If
the function is enabled, the IR light is On when the camera enters night (black
and white) mode. If disabled, the IR light is always Off.
The visible IR range may vary due to multiple factors, such as weather, IR
reflection rate of viewing objects, lens adjustment, and camera settings. Please
refer to the camera datasheet for the standard IR range.
Note: Avoid installing the IR camera closely facing a tree or wall. The reflection
will cause over-exposure and lose visibility of detail in field of view.
Accessing the SD card
Remove the camera cover ring and insert an SD card up to 64GB for local
storage as a backup in case the network fails. An SD card is NOT supplied with
the camera.
