TMSK / TMBK

Table Mat ESD Set

INSTRUCTION MANUAL

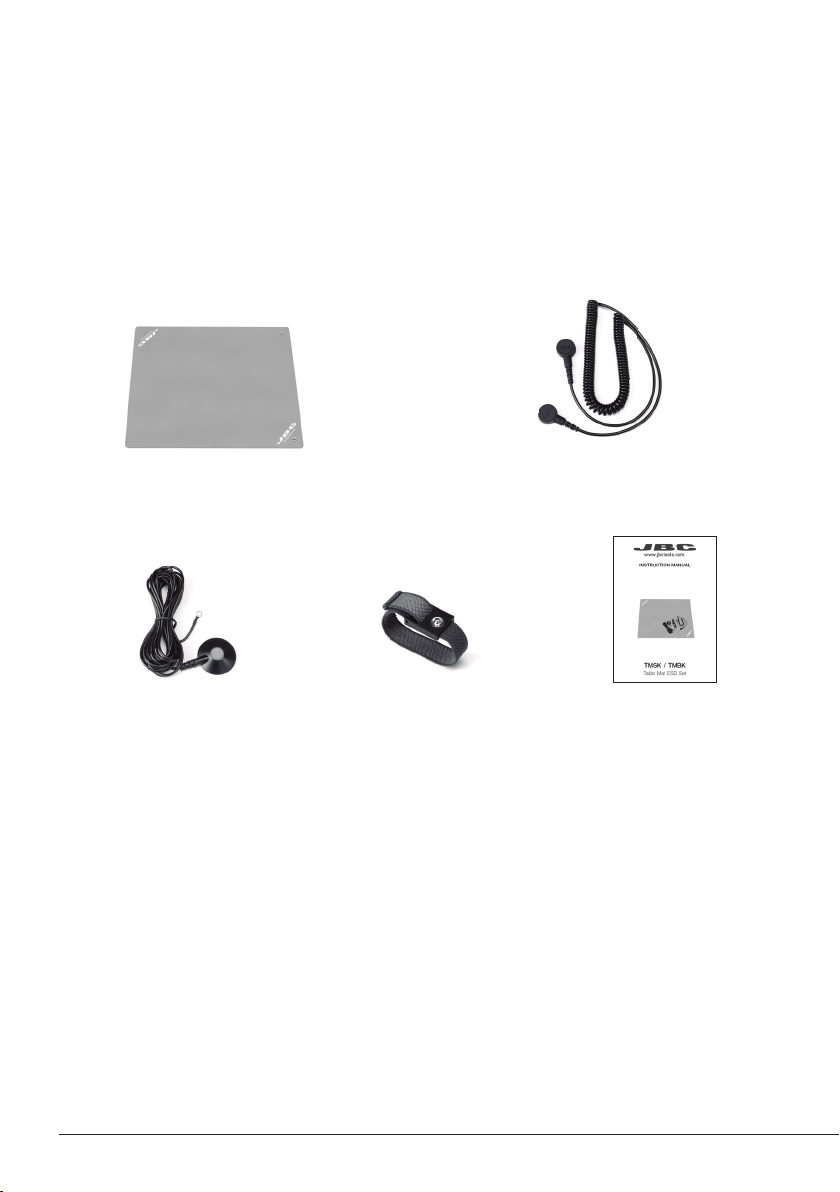

Packing List

The following items are included:

Table Mat .................................................... 1 unit

Ref. TMS-A* (450 x 600 mm / 17.72 x 23.62 in)

Ref. TMB-A* (900 x 600 mm / 35.43 x 23.62 in)

Manual ............................ 1 unit

Ref. 0031826

This manual corresponds to the following references:

TMS-KA (450 x 600 mm / 17.72 x 23.62in)

TMB-KA (900 x 600 mm / 35.43 x 23.62in)

ESD Spiral Earthing Cable ..................... 1 unit

Ref. TM20

ESD

Earthing Cable .............1 unit

Ref. TM21

ESD

Earthing Wristband ..... 1 unit

Ref. TM50

Application

To equip an EPA (Electrostatic Protected Area) workplace, it is necessary to place, among other items,

an ESD table mat on the workplace.

These components help to protect static-sensitive components from electrostatic discharge by

dissipating charge from objects placed on their surface. This prevents sensitive components from being

damaged by electrostatic discharges.

*Only 1 table mat is supplied, according to purchased reference.

* not included, sold separately

TMS or

TMB

Table Mat ESD

TM21

Earthing Cable

TM20

ESD Spiral

Earthing Cable

TM50

ESD Earthing Wristband

ø10mm

Snap Fastener

Connection

ø3mm

Snap Fastener

Connection

Eyelet

Connection

ø10mm

Snap Fastener

Connection

Earth Connection or

Grounded Common

Point

TM10

ESD

Earting Plug

Alternative

Connection

* not included,

sold separately

JBC table mat set is equipped with a high quality ESD table mat and the following matching

accessories: an ESD spiral earthing cable, an ESD earthing cable and an ESD earthing wristband.

Workplace Connection Example

TMS*

Table Mat ESD 450 x 600mm / 17.72 x 23.62in

TMB*

Table Mat ESD 900 x 600mm / 35.43 x 23.62in

Features

The table mat is heat, solder, oil and chemical

resistant.

It comes with an anti-reflective grey surface, a

non-slipping bottom-side and rounded corners.

Each table mat is equipped with two ø10 mm snap

fasteners. One of them should be connected to a

grounded connection or a grounded common point

and the other one to the ESD wrist band of the person

who works at this workplace.

ø10mm Snap Fastener (2x)

*References TM45 and TM90

include only the table mat.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

TM21

ESD Earthing Cable

TM20

ESD Spiral Earthing Cable

The spiral earthing cable has a length of

2.4m /94.49in and is made out of a highly elastic

material that allows the user great freedom of

movement when working.

It comes in black color and with 2 snap fasteners -

one with a ø10mm (female) connector and the other

with ø3mm (female) connector.

The electrical resistance is 1MΩ at each connector.

ø10mm Snap Fastener

ø3mm Snap Fastener

The ESD earthing cable has a length of 4 m/157.48in and is suitable for ESD table mats and floor

coverings.

It comes in black color and is equipped with a protective cap, a ø10mm snap fastener (female) and

a connection eyelet.

Additionally, a pair of ø10mm snap fastener (male) is included.

Connect the ø10mm snap fasteners to the table mat connector and the connection eye to the earth

connection.

Pair ø10mm Snap Fastenerø10mm Snap Fastener

(see bottom side image on the right)

Bottom Side

ø10mm Snap Fastener

Connection

Eyelet

Connect the ø3mm snap fastener to the ESD earthing wristband and the ø10mm snap fastener to

the ESD table mat connector or directly to the grounded common point.

TM50

ESD Earthing Wristband.

Accesories

TM10

ESD Earthing Plug

(For EU socket outlet)

The earthing wristband has a length of

220mm/8.66in and comes with a buckle that allows

to adjust the length of the strap and incorporates a

ø3mm snap fastener.

Snap Fastener

ø3mm

Buckle for Length

Adjustment

The wristband is antiallergic and and is made out of

silver and carbon. Its fabric comes in red color and

can be washed. The earthing wristband is tested

according to BGI 818: 2001.

The plug comes in yellow color and is equipped with

two ø10mm snap fasteners (female) as well as a M5

screw connection.

The electrical resistance is 1 MΩ at each connector.

ø10mm Snap Fastener

M5 Screw Connection

This ESD earthing plug can be used at ESD protection

zones.

When connected accordingly, it discharges static

electricity from people or objects to prevent damage

by electrostatic discharges to electronic devices and

components.

Earthing Plug Connection Example

TM21

Earthing Cable

TM20

Spiral Earting Cable

TM50

Earthing Wristband

Screw Connector to

Bananna Connector

Connection with

Snap Fastener

Screw Connector

to Eyelet

TM10

Earthing Plug

TMS or TMB

ESD Table Mat

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Notes

TMSK / TMBK

Table Mat ESD Set

Ref.: TMS-KA (450x600mm / 17.72 x 23.62in)

Ref.: TMB-KA (900x600mm / 35.43 x 23.62in)

Table Mat

- Electrical resistance: 106- 108 Ω

- Resistant to: Abrasion, heat, solder, chemicals and oil

- Connections: ø10mm snap fastener (2x)

- Material: Permanently elastic

100% PVC-FREE and PHTHALATE-FREE

Two-layered: dissipative and conductive

RoHS compliant

- Surfaces: Top side: grey color, anti-reﬂective

Bottom side: black color, non-slipping

Wristband

- Tested according to: BGI 818: 2001

- Connection: ø3mm snap fastener

- Length: 220 mm / 8.66in

- Strap: Color: red, easily adjustable

- Strap Material: Washable, silver and carbon processed, antiallergic

Earthing Cable

- Length: 4.5 m / 177.17in

- Color: Black

- Electrical resistance: 106Ω

- Connections: ø10mm snap fastener (1x) and connection eyelet (1x)

Spiral Earthing Cable

- Tested according to: BGI 818: 2001

- Connections: ø10mm snap fastener (1x) and ø3mm snap fastener (1x)

- Length: 2.5 m / 98.43in

- Color: Black

- Electrical resistance: 106Ω

TMSK

- Total Net Weight: 0.917 kg / 2.02 lb

- Package Dimensions/Weight: 620 x 136 x 135mm / 1.24 kg

(L x W x H) 24.41 x 5.35 x 5.31in / 2.73 lb

TMBK

- Total Net Weight: 1.709 kg / 3.77 lb

- Package Dimensions/Weight: 620 x 136 x 135mm / 2.040 kg

(L x W x H) 24.41 x 5.35 x 5.31in / 4.5 lb

Complies with CE standards.

ESD Safe.

Specifications

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

0031826-270923
