Jbc JTSE-1A Bedienungsanleitung

INSTRUCTION MANUAL

Hot Air Station

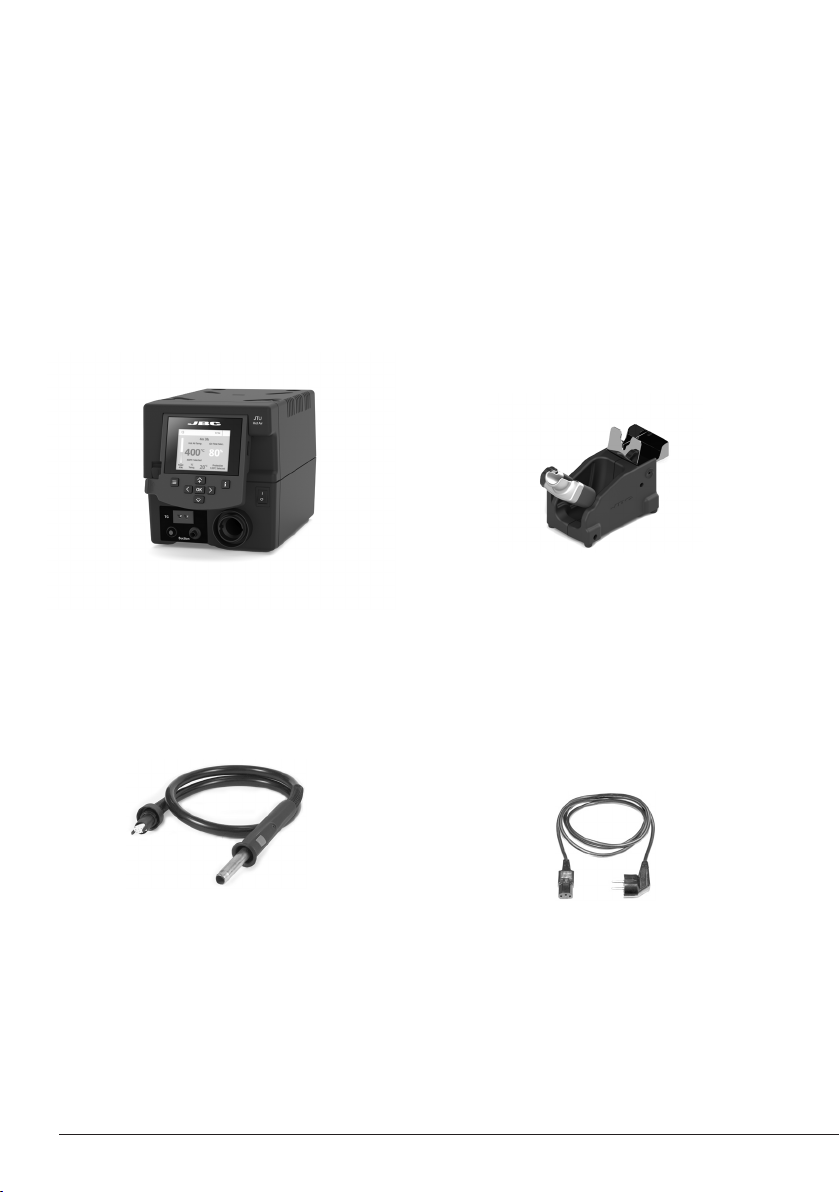

JTT Heater Hose Set .................................1 unit

Ref. JT-T1A (100V / 120V)

JT-T2A (230V)

JTS Stand ....................................................1 unit

Ref. JT-SE

JTU Hot Air Control Unit ..........................1 unit

Packing List

The following items are included:

This manual corresponds to the following references:

JTSE-1A (100V/120V)

JTSE-2A (230V)

Power Cable ................................................1 unit

Ref. 0023715 (100V / 120V)

0023714 (230V)

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

ESHT Extractor Stand * ............................1 unit

Ref. ESHT-A includes:

Thermocouple Type K ...............................1 unit

Ref. PH218

Manual ...........................................................1 unit

Ref. 0027397

Suction Tube: Ref. 0932330

Suction Cup Set: Ref. 0930110 includes:

Extractors: Ref. E2184

E2064

E2052

Nozzle .......................... 1 unit

Ref. JN2015 (Ø 4mm / 0.157in)

Kapton Tape .............................................. 1 unit

Ref. PH217

Potectors: Ref. P2220

P2230

P2235

P4000

P4010

Cup Ref. 0934050 - Ø 10 (x3)

Cup Ref. 0934070 - Ø 4.7 (x3)

* Not supplied with JT-Q stations

Tripods: Ref. T2050

T2250

Nozzle .......................... 1 unit

Ref. JN2020 (Ø 8mm / 0.315in)

Nozzle .......................... 1 unit

Ref. JN2012 (Ø 6mm / 0.236in)

17:14

20ºC

Power

45% 120ºC Selected

Temp.

4m 38s

400ºC 80%

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

Menu Options

Station

Information

Current

Air

Temp.

Selected

Air

Temp.

Instant Power

Supplied to

Heater

Time to

Stop

Selected

Air Flow

Selected

External TC

Temp.

JT / TE Work Screen

Status Bar

JT/TE offers an intuitive user interface which provides quick access to station parameters.

Default PIN: 0105

Current

External

TC Temp.

Station Tools Counters

ResetLanguage

Set the station

parameters

Set the tool

parameters

Display the hours

worked in each cycle

It is possible to

choose the language

from a list.

Allows you to carry

out an overall station

reset restoring all the

parameters to their

default values.

Station troubleshooting available on the product page at www.jbctools.com

Troubleshooting

Extractor 64

(20x26mm)

Ref. E2064

Hot Air Button

(On / Off)

Power Socket

Fuse

USB Connector

Robot RS232 Connector

P005 Pedal Connector

Equipotential Connector

Auxiliar Connector

Heating Element

JTT Heater Hose Set

Ref. JT-T1A (100V/120V)

JT-T2A (230V)

JTS Stand

Ref. JT-SE

Thermocouple Type K

Activates the Suction Pump

USB-A Connector

Features and Connections

Suction Tube

Ref. 0932330

For tripods and extractors

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

17:14

20ºC

Power

45% 120ºC Selected

Temp.

4m 38s

400ºC 80%

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

Menu Options

Station

Information

Current

Air

Temp.

Selected

Air

Temp.

Instant Power

Supplied to

Heater

Time to

Stop

Selected

Air Flow

Selected

External TC

Temp.

JT / TE Work Screen

Status Bar

JT/TE offers an intuitive user interface which provides quick access to station parameters.

Default PIN: 0105

Current

External

TC Temp.

Station Tools Counters

ResetLanguage

Set the station

parameters

Set the tool

parameters

Display the hours

worked in each cycle

It is possible to

choose the language

from a list.

Allows you to carry

out an overall station

reset restoring all the

parameters to their

default values.

Station troubleshooting available on the product page at www.jbctools.com

Troubleshooting

450

400

350

300

250

150

100

200

Power Temp

17:14

JBC Net

USB ﬂash drive is connected.

Station is controlled by a PC.

Station is controlled by a robot.

System Notifications

Station software update.

Press INFO to start the process.

Warning.

Press INFO for failure description.

Error.

Press INFO for failure description,

the type of error and how to proceed.

The following icons will be displayed on the screen’s status bar.

JT-A

Suction

17:14

ºC

Power

45%

120ºC Selected

Temp.

4m 38s

400

ºC

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

Suction

17:14

ºC

Power

45%

120ºC Selected

Temp.

4m 38s

400

ºC

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

By pressing Graphics in the main MENU, temperature and power ﬁgures in real time

are displayed. This helps you decide which nozzle to use to obtain the best quality

solder joints.

Graphics

Temperature

Power (%) External

Temp.

Ext. temp

Export Graphics

Insert a USB flash drive into the USB-A

connector to save your soldering process

in csv format.

The ﬁrst system to optimize traceability in soldering

- Get greater quality and control in your production

- Manage your whole soldering process remotely in real time

Station Update

Download the JBC Update File from

www.jbctools.com/software.html

Insert the USB flash drive with the file down-

loadedto the station.

Files

Update

Point

2/5

Temp

250

ºC

Flow

Time

2m 30s

3m 18s

Hot Air Temp

240

ºC ºC %

Ext. TC Temp

Air Flow

3m 18s

· Add point

· Delete point

· Load profile

· Save profile

· Exit

Current

Air

Temp.

Data for

These Points

Profile

Name

Current

Air flow

Current

External

TC Temp.

In this mode you can set up or edit as many as 25 profiles of temperature and air flow.

Edit Mode

Options

Profiles

Advanced Functionalities

To work with profiles it is essential to use RWB / RWS / RWT rework arms. The

Rework Arms supports the Hot Air Heater maintaining the distance and position to

the component.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

450

400

350

300

250

150

100

200

Power Temp

17:14

JBC Net

USB ﬂash drive is connected.

Station is controlled by a PC.

Station is controlled by a robot.

System Notifications

Station software update.

Press INFO to start the process.

Warning.

Press INFO for failure description.

Error.

Press INFO for failure description,

the type of error and how to proceed.

The following icons will be displayed on the screen’s status bar.

JT-A

Suction

17:14

ºC

Power

45%

120ºC Selected

Temp.

4m 38s

400

ºC

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

Suction

17:14

ºC

Power

45%

120ºC Selected

Temp.

4m 38s

400

ºC

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

By pressing Graphics in the main MENU, temperature and power ﬁgures in real time

are displayed. This helps you decide which nozzle to use to obtain the best quality

solder joints.

Graphics

Temperature

Power (%) External

Temp.

Ext. temp

Export Graphics

Insert a USB flash drive into the USB-A

connector to save your soldering process

in csv format.

The ﬁrst system to optimize traceability in soldering

- Get greater quality and control in your production

- Manage your whole soldering process remotely in real time

Station Update

Download the JBC Update File from

www.jbctools.com/software.html

Insert the USB flash drive with the file down-

loadedto the station.

Files

Update

Suction

17:14

ºC

Power

45%

120ºC Selected

Temp.

4m 38s

400

ºC

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

Suction

17:14

ºC

Power

45%

120ºC Selected

Temp.

4m 38s

400

ºC

400ºC Selected

Protection

Hot Air Temp. Air Flow Selec.

JTT

TET

Use only with a 250V fuse

Employer uniquement avec
