Jbc TM10 Bedienungsanleitung

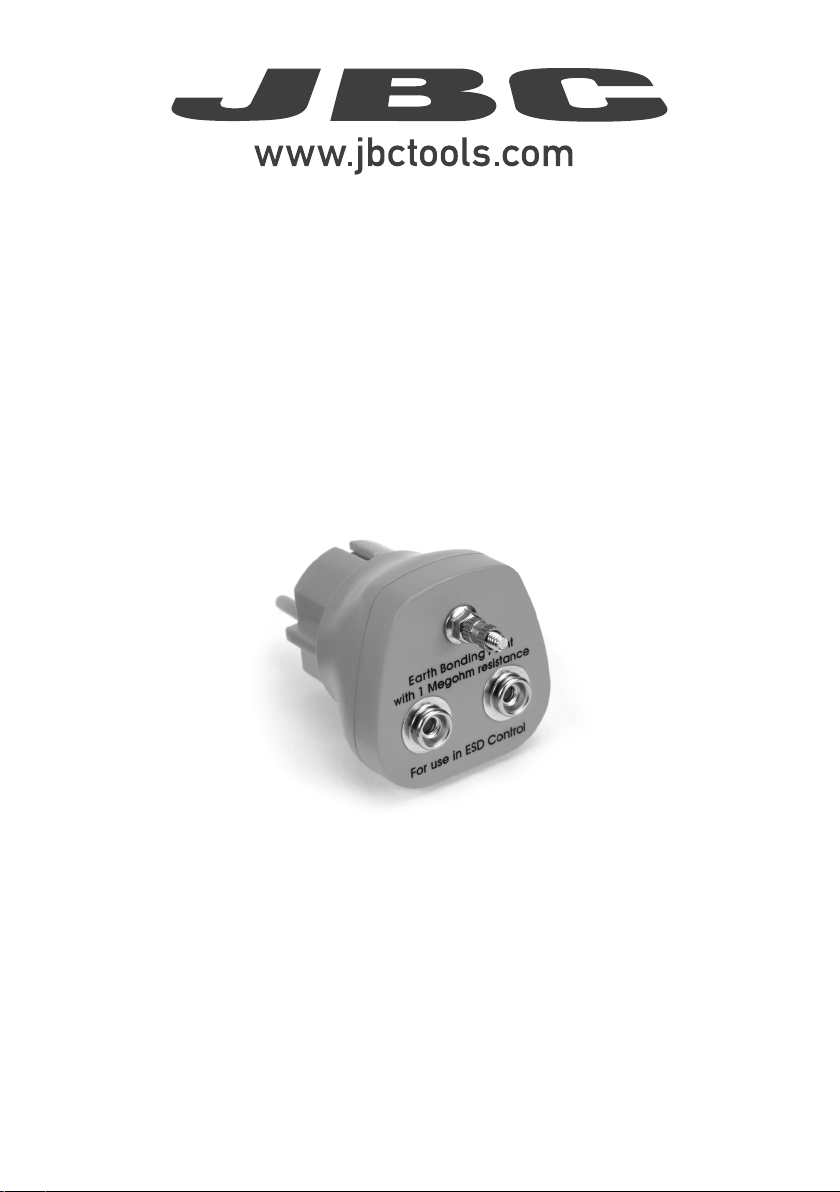

TM10

ESD Earthing Plug

for EU Sockets

INSTRUCTION MANUAL

Packing List

The following items are included:

Manual ................................................. 1 unit

Ref. 0031820

This manual corresponds to the following reference:

TM10

Application

To equip an EPA (Electrostatic Protected Area) workplace, it can be used, among other items, an ESD

earthing plug.

These components help to protect static-sensitive components from electrostatic discharge by

dissipating charge from objects placed on their surface. This prevents sensitive components from being

damaged by electrostatic discharges.

ESD Earthing Plug ................................... 1 unit

For EU sockets

Features

The plug comes in yellow color and is equipped with

two ø10mm snap fasteners (female) as well as an M5

screw connection.

The electrical resistance is 106Ω at each connector. ø10mm Snap Fastener

M5 Screw Connection

This ESD earthing plug can be used at ESD protection

zones.

When connected accordingly, it discharges static

electricity from people or objects to prevent damage

by electrostatic discharges to electronic devices and

components.

* not included, sold separately

TMS or

TMB

Table Mat ESD

TM21

Earthing Cable

TM20

ESD Spiral

Earthing Cable

TM50

ESD Earthing Wristband

ø10mm

Snap Fastener

Connection

ø3mm

Snap Fastener

Connection

Eyelet

Connection

ø10mm

Snap Fastener

Connection

Earth Connection or

Grounded Common

Point

TM10

ESD

Earting Plug

Alternative

Connection

For proper function, plug the ESD grounding plug into an EU socket and connect the connectors

-using an ESD grounding cable- to the ESD table mat of the workplace to be protected.

The following matching accessories are sold separately: an ESD table mat, an ESD spriral earthing

cable, an ESD earthing wristband, and an ESD earthing cable.

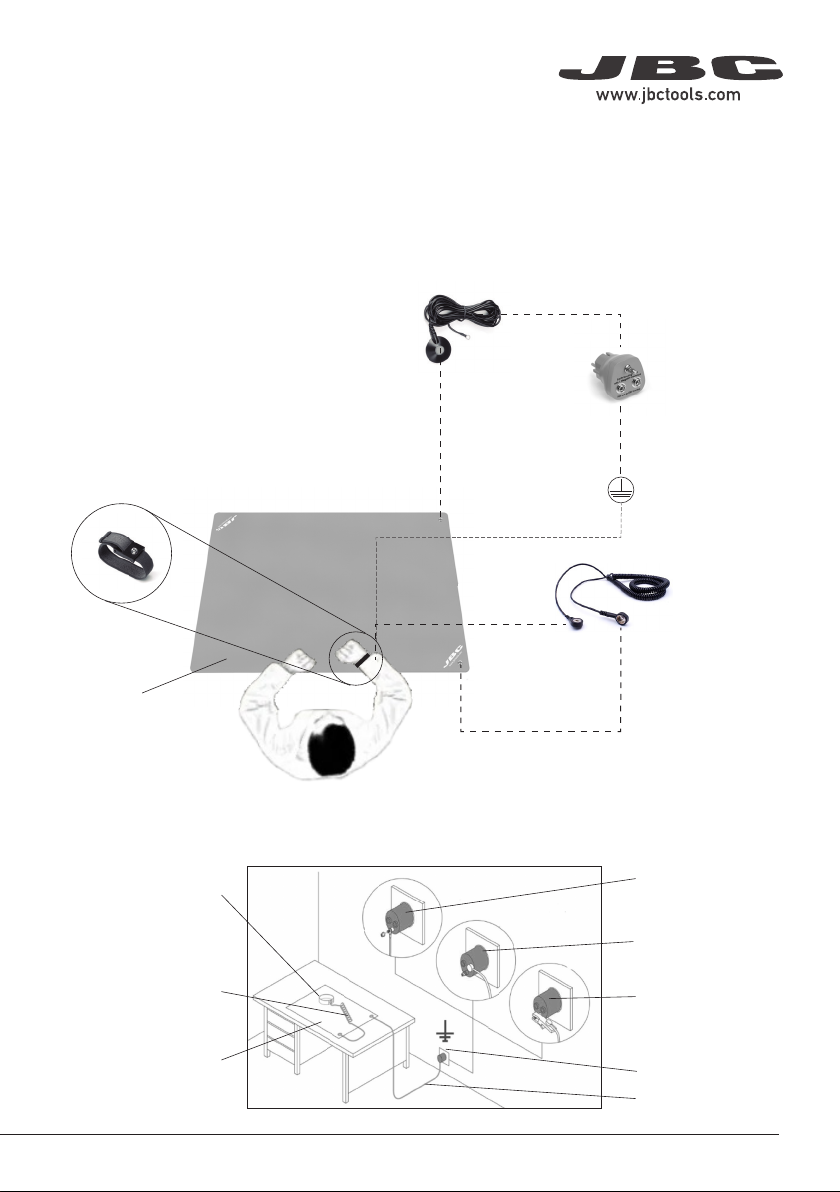

Workplace Connection Example

* not included, sold separately

Earthing Plug Connection Example

Screw Connector to

Bananna Connector

Connection with

Snap Fastener

Screw Connector

to Eyelet

TM21*

Earthing Cable

TM20*

Spiral Earting Cable

TM50*

Earthing Wristband

TM10

Earthing Plug

TMS* or TMB*

ESD Table Mat

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

0031820-270923

TM10

ESD Earthing Plug

Ref.: TM10

- Socket: For EU socket

- Connections: ø10mm snap fasteners (2x) and M5 screw connector (1x)

- Color: Yellow

- Electrical resistance: 106Ω for each connector

- Total Net Weight: 35 g / 0.08 lb

- Package Dimensions/Weight: 86 x 57 x 158mm / 64 g

(L x W x H) 3.39 x 2.24 x 6.22in / 0.14 lb

Complies with CE standards.

ESD Safe.

Specifications
