Johnson 40-6618 Bedienungsanleitung
©2013 Johnson Level & Tool 1
Heavy Du y Flooring Laser
Model Nos. 40-6618 & 40-6622
Instruction Manual
Congrat lations on yo r choice of this Heavy D ty Flooring Laser. We
s ggest yo read this instr ction man al thoro ghly before sing the
instr ment. Save this instr ction man al for f t re se.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
7162H-All_Manuals 7/15/13 12:30 PM Page 1
2©2013 Johnson Level & Tool
Table of Contents
1. it Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content
of Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Technical Specifications
9. Care and Handling
10. Product Warranty
11. Warranty Registration
12. Accessories
1. Kit Contents
Description for Model 40-6618 & 40-6622 Qty.
Heavy Duty Flooring Laser 1
“AA” Alkaline Batteries 3
Floor Target 1
Instruction Manual with Warranty Card 1
Soft-Sided Pouch 1
2. Features and Functions
This simple-to-use tool allows you to generate two lines on the
floor at 90º angles for surface layout including tile, stone, brick,
carpet and hardwood flooring. Unlike lines drawn from chalk, the
40-6618 & 40-6622 can project two laser beams over wet mastic
or concrete.
7162H-All_Manuals 7/15/13 12:30 PM Page 2
©2013 Johnson Level & Tool 3
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may void the warranty.
DANGER!
Class IIIa Laser Product
Max. Power Output: ≤5mW
Wavelength: 625-645nm (40-6618) 522-542nm (40-6622)
THIS T L EMITS LASER RADIATI N.
D N T STARE INT BEAM.
AV ID DIRECT EYE EXP SURE.
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• eep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, warranty will be void.
• Use only original Johnson®parts and accessories purchased from your Johnson®
authorized dealer. Use of non-Johnson®parts and accessories will void warranty.
7162H-All_Manuals 7/15/13 12:30 PM Page 3
4©2013 Johnson Level & Tool
4. Location/Content of Warning Labels
40-6618
40-6622
7162H-All_Manuals 7/15/13 12:30 PM Page 4
©2013 Johnson Level & Tool 5

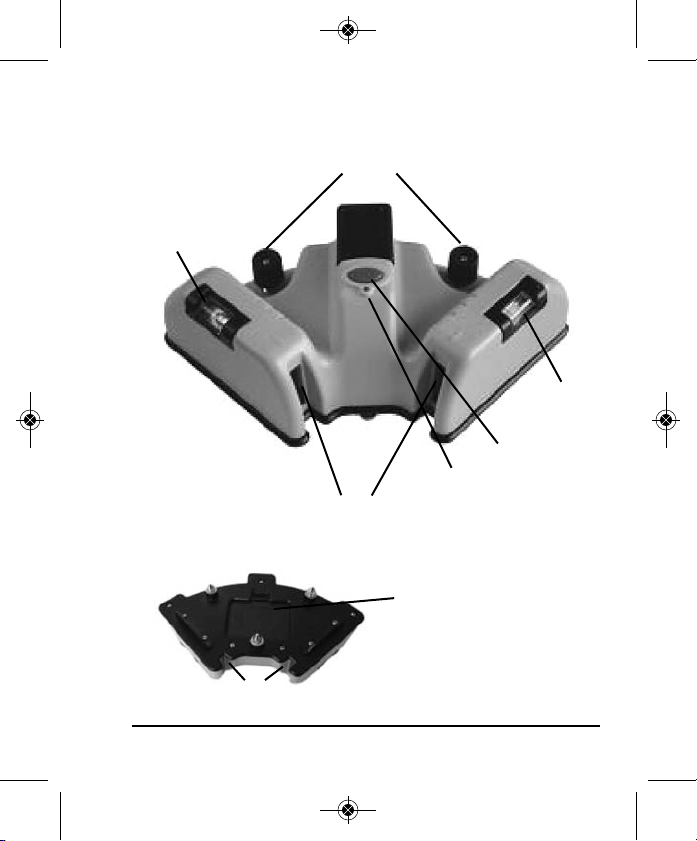

5. Location of Part/Components
Bubble Vial
Leveling Screws
Power Button
Power LED
Battery Cover
Laser Output
Windows
Bubble Vial
Floor Plates
7162H-All_Manuals 7/15/13 12:30 PM Page 5
6©2013 Johnson Level & Tool
6. perating Instructions

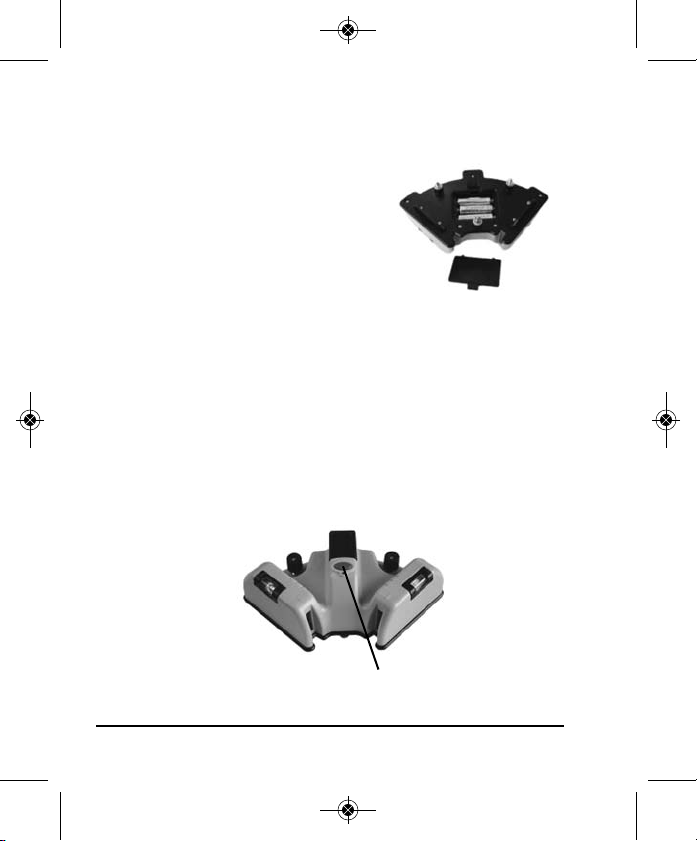

Battery Installation
As shown in figure, remove the battery
door and put three “AA” alkaline batteries
into the battery compartment according to
the polarity indicated. Snap the battery
cover back into place.
Note: Used (discharged) batteries are
hazardous waste and should be
disposed of properly.
7. Using the Product
Press the power button. Position the laser so that it’s appropriate for
your application needs. If necessary, align the laser beam(s) with a
reference point(s). The freestanding target increases the beams’
visibility. Use the laser beams as line references. Use the leveling
screws to center the bubble vials.
Power Button
7162H-All_Manuals 7/15/13 12:30 PM Page 6
©2013 Johnson Level & Tool 7
Increasing the Beams’ Visibility
The laser beams’ visibility can be increased when working in bright
conditions, such as working near window openings or outside walls.
1. Work toward the laser.
2. Use the target.
3. Use laser glasses (not included).
Checking Precision Angles Installing Tile
Squaring Walls
7162H-All_Manuals 7/15/13 12:30 PM Page 7
8©2013 Johnson Level & Tool
8. Technical Specifications
Laser Wavelength 635nm ± 10
Laser Classification Class IIIa
Maximum Power Output ≤5mW
Accuracy ± 1/16"/20 ft. (±2mm/6m)
Interior Range Up to 65 ft. (20m) depending upon
light conditions (40-6618)
Up to 150 ft. (45m) depending upon
light conditions (40-6622)
Power Supply 3 “AA” alkaline batteries (included)
Battery Life Approx. battery life 30 hours
continuous use
Dimensions 6 1/2" x 6 1/2" x 3 9/16"
(165 x 165 x 90mm)
Weight 1.51 lbs. (0.6 g)
Working Temperature 14°F to 113°F (-10°C to +45°C)
7162H-All_Manuals 7/15/13 12:30 PM Page 8
©2013 Johnson Level & Tool 9
9. Care and Handling
•This laser unit is a precision tool that must be handled with care.
•Avoid exposing unit to shock vibrations and extreme temperatures.
•Before moving or transporting the unit, make sure that the unit is turned off.
•Remove the batteries when storing the unit for an extended time (more than
three months) to avoid damage to the unit should the batteries deteriorate.
•Always store the unit in its case when not in use.
•Avoid getting the unit wet.
• eep the laser unit dry and clean, especially the laser output window.
Remove any moisture or dirt with a soft, dry cloth.
•Do not use harsh chemicals, strong detergents or cleaning solvents to clean
the laser unit.
10. Product Warranty
Johnson Level & Tool offers a three year limited warranty on each of its products.
You can obtain a copy of the limited warranty for a Johnson Level & Tool
product by contacting Johnson Level & Tool's Customer Service Department,
as provided below, or by visiting our web site at www.johnsonlevel.com. The
limited warranty for each product contains various limitations and exclusions.
Do not return this product to the store/retailer or place of purchase.
Non-warranty repairs and course calibration must be done by an authorized
Johnson®service center or Johnson Level & Tool's limited warranty, if
applicable, will be void and there will be NO WARRANTY. Contact one of our
service centers for all non-warranty repairs. A list of service centers can be
found on our web site at www.johnsonlevel.com or by calling our Customer
Service Department. Contact our Customer Service Department for Return
Material Authorization (RMA) for warranty repairs (manufacturing defects
only). Proof of purchase is required.
7162H-All_Manuals 7/15/13 12:30 PM Page 9
10 ©2013 Johnson Level & Tool
N TE: The user is responsible for the proper use and care of the product. It is the
responsibility of the user to verify the calibration of the instrument before each use.
For further assistance, or if you experience problems with this product that are not
addressed in this instruction manual, please contact our Customer Service Dept.
In the U.S., contact Johnson Level & Tool’s Customer Service Department at
888-9-LEVELS.
In Canada, contact Johnson Level & Tool’s Customer Service Department at
800-346-6682.
11. Warranty Registration
Enclosed with this instruction manual you will find a warranty
registration card to be completed for your product. You will need to
locate the serial number for your product that is located on the bottom
of the unit. PLEASE N TE THAT IN ADDITI N T ANY THER
LIMITATI NS R C NDITI NS F J HNS N LEVEL & T L'S
LIMITED WARRANTY, J HNS N LEVEL & T L MUST HAVE
RECEIVED Y UR PR PERLY C MPLETED WARRANTY CARD AND
PR F F PURCHASE WITHIN 30 DAYS F Y UR PURCHASE F
THE PR DUCT R ANY LIMITED WARRANTY THAT MAY APPLY
SHALL N T APPLY AND THERE SHALL BE N WARRANTY.
7162H-All_Manuals 7/15/13 12:30 PM Page 10
