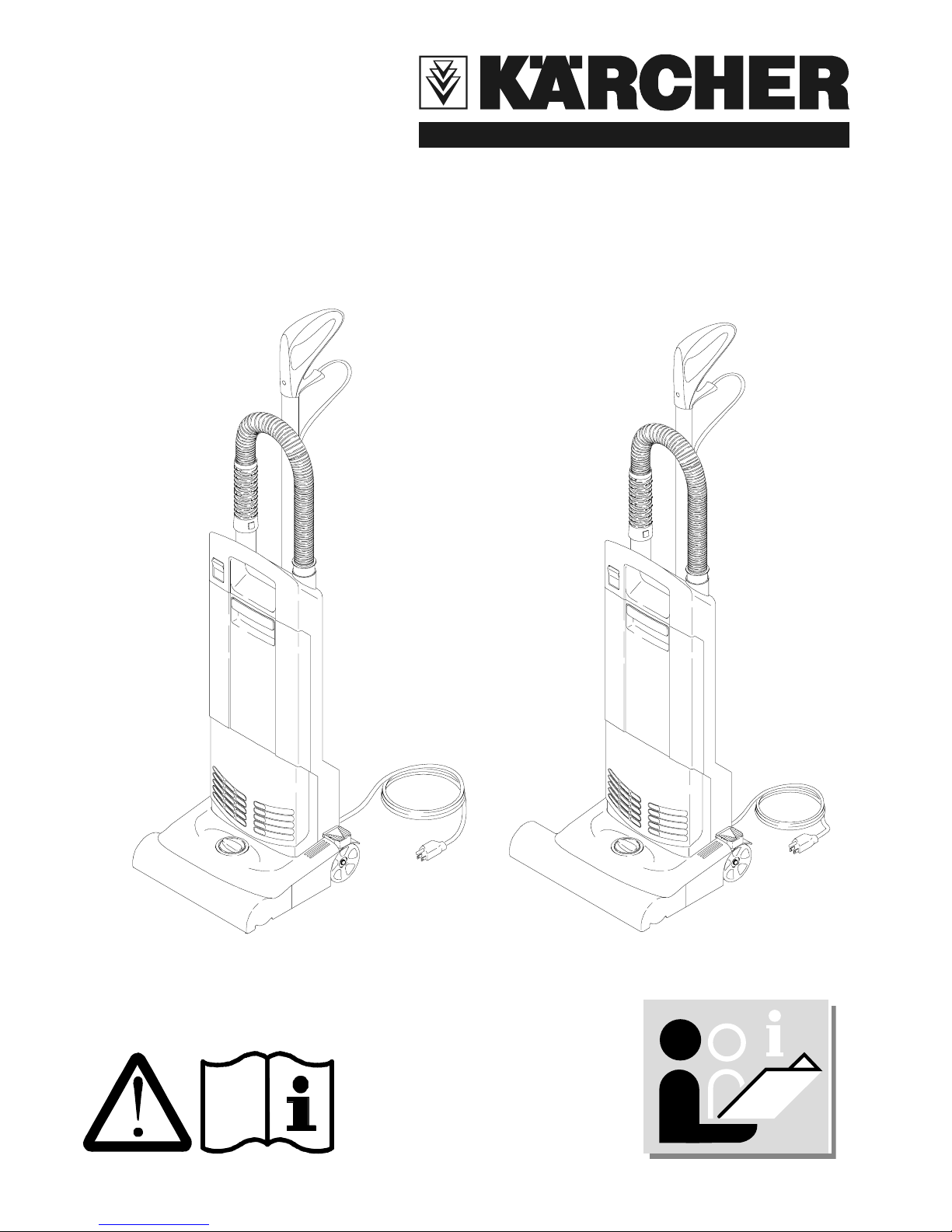

Kärcher CV 30/1 Bedienungsanleitung

5.960-943 A2006855 12/03

www.karcher.com

CV 30/1 CV 38/1

CV 30/1 / CV 38/1

English

SAFETY INSTRUCTIONS 3

Commissioning 16

Operating 17

Maintenance 19

Problems 23

Technical Data 28

Wiring diagram 29

Spare Parts List 30

This machine is suitable for commercial use, for

instance in hotels, schools, hospitals, factories,

shops, offices and on hire.

Français

CONSIGNES DE SÉCURITÉ 7

Mise en service 16

Exploitation 17

Maintenance 19

Pannes 23

Caractéristiques techniques 28

Schéma de circuit 29

Liste des pièces de rechange 30

Cet appareil est adapté à l'usage commercial, p. ex.

dans les hôtels, les écoles, les hôpitaux, les

usines, les magasins, les bureaux et les locations.

Español

INSTRUCCIONES DE SEGURIDAD 11

Puesta en servicio 16

Servicio 17

Entretenimiento 19

Perturbaciones 23

Datos técnicos 28

Esquema de ligações 29

Lista de pecas sobresselentes 30

Este aparato es apropiado para el uso a escala

comercial, p. ej. en hoteles, centros escolares,

hospitales, fábricas, tiendas comerciales, oficinas

y empresas dedicadas al alquiler.

CV 30/1 / CV 38/1 English

IMPORTANT

SAFETY

INSTRUCTIONS

READ ALL

INSTRUCTIONS

BEFORE

USING THIS

MACHINE.

■Inform your dealer immediately if

there is any transport damage.

■Completely remove the

accessories from the carton.

■The suction unit is not suitable for

sucking up hazardous dusts as

asbestos. Please consult your

Kärcher branch or your Kärcher

dealer with regard to such

applications.

■Only operate the suction unit from

a suitable socket outlet with

earthing contact. Refer to the

Technical data for the necessary

main fuse.

■Connect to a properly grounded

outlet only - see Grounding

instructions.

When using an electrical appliance,

basic precautions should always be

followed, including the following:

This vacuum is intended for

commercial use.

1. DISCONNECT VACUUM CLEANER

FROM POWER CIRCUIT before removing

the cover, performing maintenance work,

and when not in use.

2. DO NOT LEAVE appliance when plugged

in.

3. ALWAYS CHECK THE POWER SUPPLY

CORD for damage or signs of any aging

before each use.

4. DO NOT PULL OR CARRY VACUUM

CLEANER BY CORD. Do not close door

on cord or pull cord around sharp edges.

5. KEEP CORD AWAY FROM HEAT AND

OIL. Do not leave cord lying around after

job is complete. It can become a tripping

hazard.

6. DO NOT RUN VACUUM OVER CORD.

7. TURN SWITCH TO OFF before unplugging

power supply cord.

8. DO NOT UNPLUG BY PULLING CORD.

To unplug, grasp plug, not cord.

9. DO NOT GRASP PLUG WITH WET

HANDS.

10. A DAMAGED CORD OR PLUG should

only be replaced by an authorized service

center representative. DO NOT ATTEMPT

TO REPAIR POWER CORD.

11. TO AVOID SHOCK, do not expose to rain.

Store indoors.

12. USE ONLY AS RECOMMENDED BY THIS

MANUAL. Use only with recommended

attachments.

13. KEEP HAIR, CLOTHING, LOOSE

JEWELRY, FINGERS and all parts of the

body away from openings and moving

parts.

English CV 30/1 / CV 38/1

14. DO NOT BLOCK OR OBSTRUCT

OPENINGS. Keep openings free of lint,

hair, dust, and anything that restricts air

flow.

15. DO NOT PICK UP ANYTHING THAT IS

BURNING, smoldering, or smoking such

as matches, cigarettes, or hot ashes.

16. DO NOT USE TO VACUUM

COMBUSTIBLE EXPLOSIVE

MATERIALS, such as coal, grain, and

other finely divided combustible material.

17. DO NOT USE TO VACUUM

COMBUSTIBLE, hazardous, toxic, or

carcinogenic materials, including gasoline,

diesel fuel, acetone, paint thinner, heating

oils, undiluted acids and solvents,

pesticide,and asbestos.

18. USE RECOMMENDED FILTERS when

vacuuming drywall materials.

19. DO NOT USE WITHOUT FILTER and/or

dust bag in proper place.

20. CONNECT VACUUM CLEANER WITH

PROPERLY GROUNDED OUTLET ONLY.

See grounding instructions.

21. DO NOT ALLOW VACUUM CLEANER TO

BE USED AS A TOY. Keep children away

from Vacuum Cleaner.

22. DO NOT LEAVE UNATTENDED while

Vacuum Cleaner is running.

23. DO NOT USE IF CORD, PLUG, FILTER,

OR VACUUM CLEANER IS IN POOR

CONDITION. If the Vacuum Cleaner has

been dropped, damaged, exposed to

weather, or dropped into water; have it

checked by an authorized service .

24. ALWAYS USE EYE PROTECTION when

operating Vacuum Cleaner.

25. USE EXTRA CAUTION when operating on

stairs.

26. STAY ALERT! Do not use Vacuum Cleaner

when you are tired or under the influence of

drugs, alcohol or medication.

SAVE THESE

INSTRUCTIONS

This vacuum

is intended

for commercial

use.

CV 30/1 / CV 38/1 English

SAFETY

INSTRUCTIONS

GROUNDING

INSTRUCTIONS

This appliance must be grounded. If it should

malfunction or break down, grounding provides

a path of least resistance for electric current to

reduce the risk of electric shock.

This appliance is equipped with a cord having

an equipment grounding conductor and ground

plug.

The plug must be inserted into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

WARNING:

Improper connection of the

equipment-grounding conductor can result in a

risk of electric shock.

Check with a qualified electrician or service

person if you are in doubt as to whether the

outlet is properly grounded.

Do not modify the plug provided with the

appliance.

If it will not fit the outlet, have a proper outlet

installed by a qualified electrician.

This appliance is for use on a nominal 120-volt

circuit, and has a grounded plug that looks like

the plug illustrated in Fig.A.

A temporary adapter that looks like the adapter

illustrated in Fig.B, may be used to connect this

plug to a two-pole receptacle as shown in

Fig.B, if a properly grounded outlet is not

available.

The temporary adapter should be used only until

a properly grounded outlet (Fig.A) is installed by

a qualified electrician.

The green colored rigid ear, lug, or the like

extending from the adapter must be connected

to a permanent ground such as a properly

grounded outlet box cover.

Whenever the adapter is used, it must be held in

place by a metal screw.

IN ALL CASES,

MAKE SURE

THE

RECEPTACLE IN

QUESTION IS

PROPERLY

GROUNDED.

NEVER REMOVE

GROUNDING

PRONG FROM

POWER PLUG.

EXTENSION

CORDS

Use only three-wire extension cords that have

three-prong grounding-type plugs and

three-pole receptacle that accepts the

appliance's plug. Replace damaged or worn

cord immediately.

English CV 30/1 / CV 38/1

DO NOT

ATTEMPT TO

REPAIR POWER

CORD.

Figure A

1. Grounded outlet box

2. Current carrying prongs

Grounding prong is longest of the 3 prongs

Figure B

1. Grounded outlet box

2. Grounding means

3. Adapter

Note:

In Canada, the use of a temporary adapter is not

permitted by the Canadian Electrical Code.

Servicing of

double-insulated

appliances

In a double-insulated appliance, two systems of

insulation are provided instead of grounding. No

grounding means is provided on a double-

insulated appliance, nor should a means for

grounding be added to the appliance. Servicing

a double-insulated appliance requires extreme

care and knowledge of the system, and should

be done only by qualified service personnel.

Replacement parts for a double-insulated

appliance must be identical to the parts they

replace.

CV 30/1 / CV 38/1

"Click"

CV 30/1 / CV 38/1

Attention!

When sucking with the vacuum wand, the

brush head with the rotating brush roller

may not be placed on a long pile carpet.

Longer contact with the rotating brush

roller could damage or destroy the carpet.

Attention!

Lors de l’aspiration avec le flexible, la tête

de la brosse avec rouleau rotatif ne doit

pas être mise sur le tapis à poils longs

Le tapis pourrait être endommagé, voire

détruit si le rouleau de brosse rotatif restait

longtemps sur celui-ci.

Atención!

Al aspirar con la manguera evite colocar la

cabeza cepilladora con el cilindro en

rotación sobre moquetas de fibra larga.

La moqueta de fibra larga podría estropear

o destruir al cabo de un rato el cilindro

rotatorio cepillante.

CV 30/1 / CV 38/1
