Please read and comply with

these original instructions prior

totheinitialoperationofyourapplianceand

store them for later use or subsequent own-

ers.

–Before first start-up it is definitely nec-

essaryto readthe safetyindications Nr.

5.956-249!

–The non-compliance of the operating

and safety instructions may lead to

damages of the appliance and to dan-

gers for the operator and other persons.

–Incaseof transport damageinform ven-

dor immediately

–When unpacking the product, make

sure that no accessories are missing

and that none of the package contents

have been damaged. Notes about the ingredients (REACH)

You will find current information about the

ingredients at:

www.kaercher.com/REACH

Danger

Immediate danger that can cause severe

injury or even death.

몇Warning

Possible hazardous situation that could

lead to severe injury or even death.

Caution

Possible hazardous situation that could

lead to mild injury to persons or damage to

property.

몇Warning

Theapplianceisnotsuitableforvacuuming

dust which endangers health.

Caution

This unit is only to be used indoors.

–The vacuum cleaner is meant for dry

cleaning of floors and walls.

–Thisapplianceis suited forthe commer-

cial use, e.g. in hotels, schools, hospi-

tals,factories,shops,offices,andrental

companies.

Contents

Environmental protection . . EN . . .1

Symbols in the operating in-

structions . . . . . . . . . . . . . . EN . . .1

Proper use . . . . . . . . . . . . . EN . . .1

Device elements. . . . . . . . . EN . . .2

Operation . . . . . . . . . . . . . . EN . . .2

Transport . . . . . . . . . . . . . . EN . . .2

Storage. . . . . . . . . . . . . . . . EN . . .2

Maintenance and care . . . . EN . . .2

Troubleshooting . . . . . . . . . EN . . .3

Warranty. . . . . . . . . . . . . . . EN . . .4

Accessories and Spare Parts EN . . .4

EC Declaration of Conformity EN . . .4

Technical specifications . . . EN . . .5

Environmental protection

The packaging material can be

recycled. Please do not throw

the packaging material into

householdwaste;pleasesendit

for recycling.

Oldappliancescontainvaluable

materials that can be recycled;

these should be sent for recy-

cling. Batteries, oil, and similar

substances must not enter the

environment. Please dispose of

your old appliances using ap-

propriate collection systems.

Symbols in the operating

instructions

Proper use

10 EN

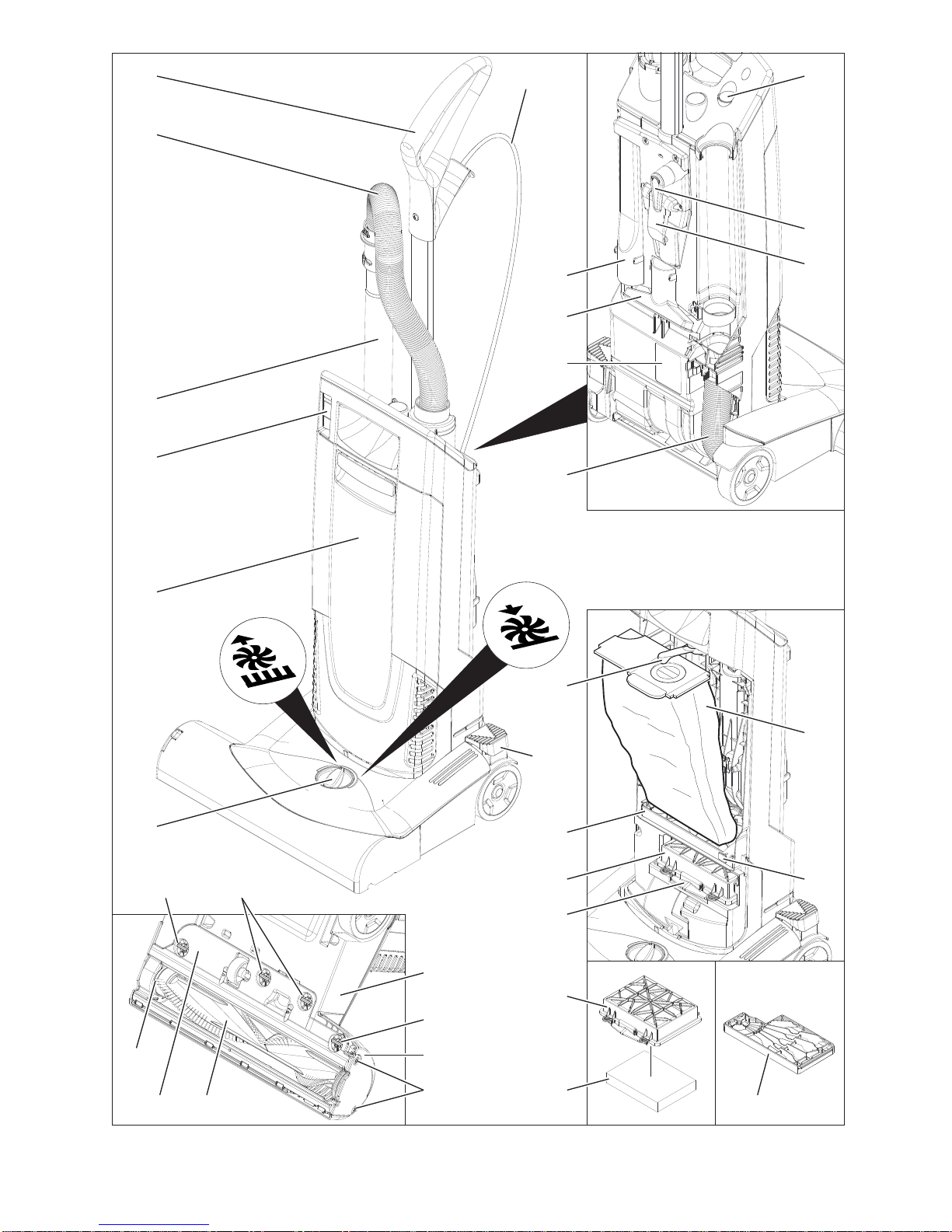

– 2

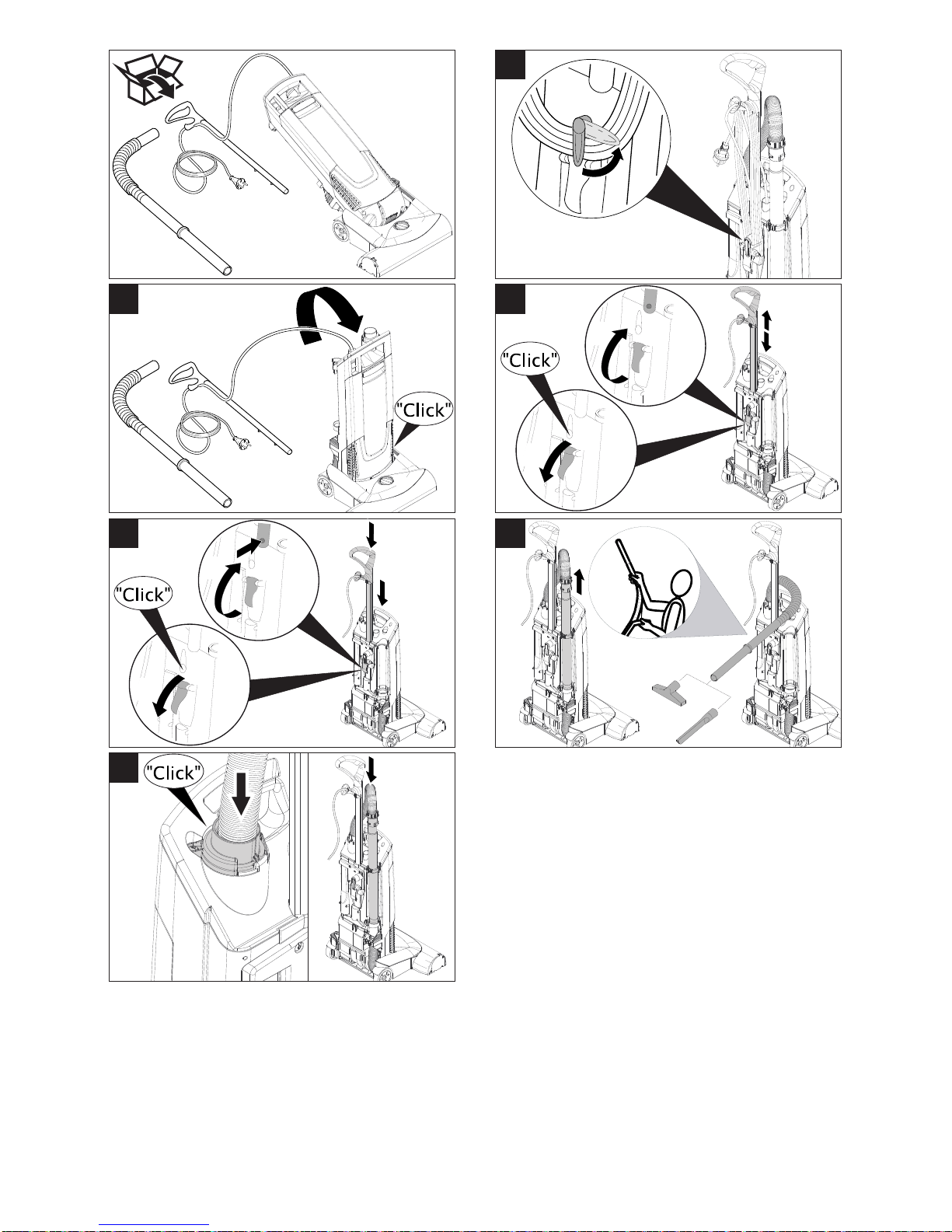

Illustration on Page 2

1 Indicator lamp (red)

2 Cable hook, rotating

3 Handle adjustment

4 Crevice nozzle

5 Upholstery nozzle

6 Nameplate

7 Suction hose on the brush head

8 Locking mechanism of the filter bag

9 Filter bag

10 Unlocking brush head

11 Motor protection filter

12 Filter casing

13 Locking mechanism of the motor pro-

tection filter

14 Locking mechanism of the filter casing

15 Exhaust filter

16 Fastening screw of the side part

17 Side part

18 Turn-lock fastener of the brush cover

19 Brush head

20 Brush roller

21 Brush cover

22 Indicator bundle (red)

23 Pile height adjustment knob

24 Filter cover

25 Main switch

26 Suction tube

27 Suction hose

28 Handle

29 Power cord

Plug in the main plug.

Switch on the appliance at the main

switch.

Set the pile height via the adjustment

knob of the brush head.

Perform the cleaning operation.

Illustration

몇Warning

When sucking with the vacuum wand, the

brush head with the rotating brush roller

may not be placed on a long pile carpet.

Longercontactwiththerotatingbrushroller

could damage or destroy the carpet.

Switch off the appliance at the main

switch.

Pull out the mains plug.

Caution

Risk of injury and damage! Observe the

weightofthe appliancewhenyou transportit.

When transporting in vehicles, secure

the appliance according to the guide-

lines from slipping and tipping over.

Caution

Risk of injury and damage! Note the weight

of the appliance in case of storage.

This appliance must only be stored in inte-

rior rooms.

Danger

Firstpull outthe plugfrom themains before

carrying out any tasks on the machine.

Clean the brush roller.

Check the wear of the brush roller.

Note: The degree of the wear is shown by

a comparison with the indicator bundle of a

differentcolour.Whentheblackbristlesare

atthesame heightasthe redones,replace

the brush roller.

Device elements

Operation

Turning on the Appliance

Cleaning operations

Brush roller operation

Suction pipe operation

Turn off the appliance

Transport

Storage

Maintenance and care

Maintenance intervals

Daily

Weekly

11EN

– 3

Dismount the brush cover if necessary:

Turn the turn-lock fasteners by 90° and

remove the brush cover.

Cut hair and threads that have got

woundonthebrushrollerusingapairof

scissors or just remove them.

Unlock and remove the filter cover.

Illustration

Turn the locking mechanism of the filter

bag towards the right. Close, remove,

and dispose of the filter bag.

Illustration

Insert a new filter bag and turn the lock-

ing mechanism of the filter bag towards

the left.

Insert and lock filter cover.

Unlock and remove the filter cover.

Pushthelockingmechanismofthefilter

casing upwards and remove the filter

casing.

Remove the exhaust filter from the filter

housing.

Insert new exhaust filter into filter hous-

ing.

Insert and click the filter housing into its

place.

Insert and lock filter cover.

Unlock and remove the filter cover.

Pushthelockingmechanismofthemotor

protection filter upwards. Remove and

dispose of the motor protection filter.

Install and lock the new motor protec-

tion filter.

Insert and lock filter cover.

Dismount the side part by means of a

coin.

Pull out the brush roller and dispose of.

Insert a new brush roller.

Reinstall side part.

Danger

Firstpull outthe plugfrom themains before

carrying out any tasks on the machine.

Illustration

Note: If necessary, dismount brush cover

(refer to "Cleaning of the brush roller").

–No electrical voltage.

Check the receptacle and the fuse of

the power supply.

Check the power cable and the power

plug of the device.

–Thermostat switched off the motor be-

cause of overheating

Replace blocked filters or remove

blockages from the suction hose.

The unit is operational again after it has

cooled down.

Note: The brush roller is equipped with a

slip clutch that disengages when oversized

or blocking objects are sucked in.

Note: The clutch is re-engaged after the

unit is switched off. This produces a loud

rattling sound.

Check the brush roller for obstructing

objects and remove them if necessary.

Thenoise cannotbe heardwhentheunitis

switched back on.

Cleaning the brush roller

Replacing the filter bag

Replace exhaust filter

Replace motor protection filter

Replacing the brush roller

Troubleshooting

Remove blockings

Suction pipe/suction hose

Suction hose on the brush head

Brush roller/brush head

Motor does not run

Rattling noise when switched off

12 EN

– 4

Check the brush roller for obstructing

objects and remove them if necessary.

Remove obstructions from brush head,

suction pipe and suction hose.

Replace the filter bag.

Replace exhaust air filter or motor pro-

tection filter.

Check the pile height adjustment knob

for correct adjustment.

Replace the brush roller.

Remove obstructions from brush head,

suction pipe and suction hose.

Replace the filter bag.

The warranty terms published by the rele-

vant sales company are applicable in each

country. We will repair potential failures of

your appliance within the warranty period

free of charge, provided that such failure is

caused by faulty material or defects in man-

ufacturing. In the event of a warranty claim

please contact your dealer or the nearest

authorized Customer Service centre.

Please submit the proof of purchase.

–Only use accessories and spare parts

which have been approved by the man-

ufacturer. The exclusive use of original

accessories and original spare parts

ensures that the appliance can be oper-

ated safely and trouble free.

–At the end of the operating instructions

youwillfindaselectedlistofspareparts

that are often required.

–For additional information about spare

parts, please go to the Service section

at www.kaercher.com.

We hereby declare that the machine de-

scribed below complies with the relevant

basicsafety andhealthrequirements ofthe

EU Directives, both in its basic design and

construction as well as in the version put

into circulation by us. This declaration shall

cease to be valid if the machine is modified

without our prior approval.

5.957-726

The undersigned act on behalf and under

the power of attorney of the company man-

agement.

Authorised Documentation Representative

S. Reiser

Alfred Kärcher GmbH Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Phone: +49 7195 14-0

Fax: +49 7195 14-2212

Winnenden, 2010/07/14

Unsatisfying suction result

The red indicator lamp is ON

Warranty

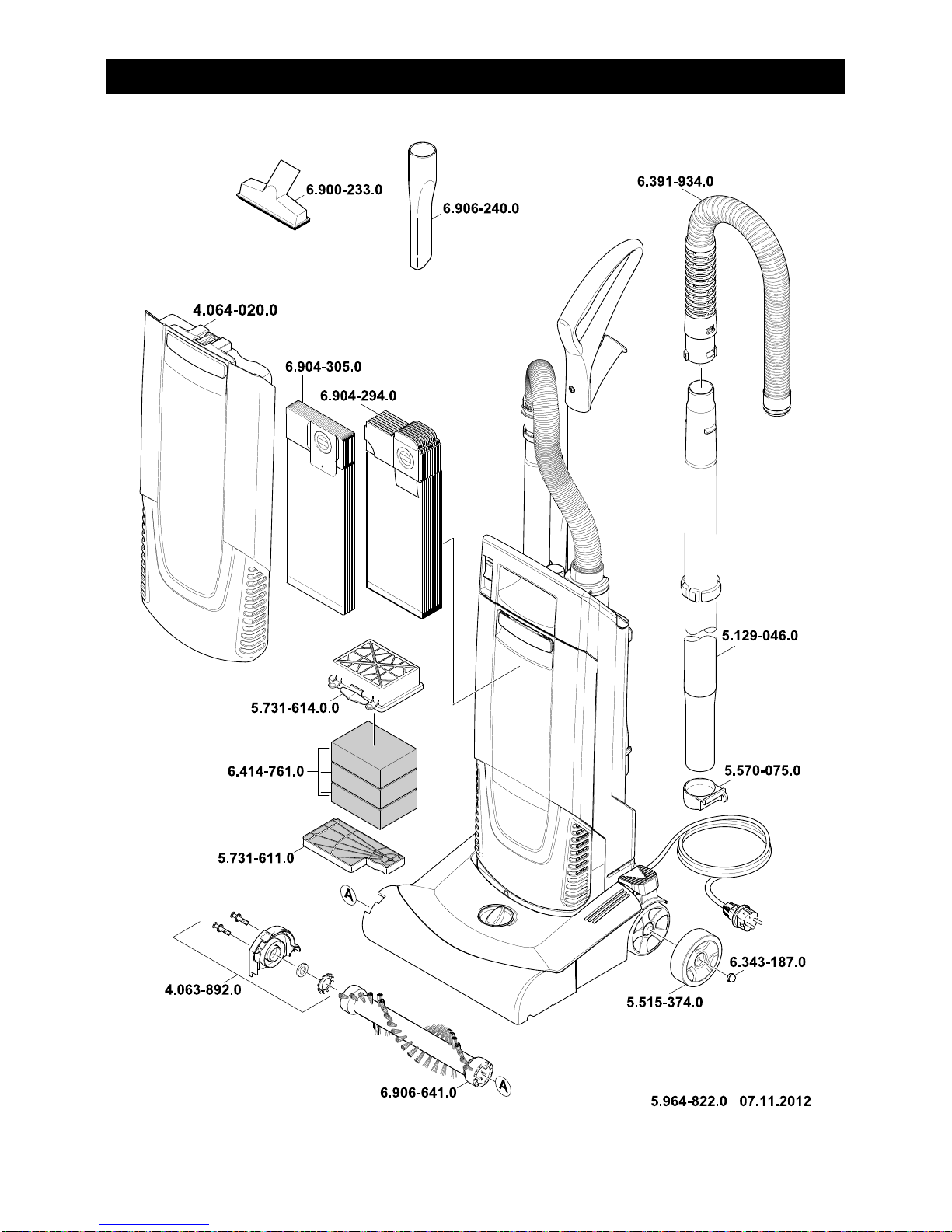

Accessories and Spare Parts

EC Declaration of Conformity

Product: Dry vacuum cleaner

Type: 1.023-xxx

Type: 1.435-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2004/108/EC

Applied harmonized standards

EN 55014–1: 2006+A1: 2009+A2: 2011

EN 55014–2: 1997+A1: 2001+A2: 2008

EN 60335–1

EN 60335–2–69

EN 61000–3–2: 2006+A1: 2009+A2: 2009

EN 61000–3–3: 2008

EN 62233: 2008

Applied national standards

CEO Head of Approbation

13EN

– 5

Technical specifications

CV 30/1 CV 38/1

Mains voltage V 220-240 220-240

Frequency Hz 50/60 50/60

Max. performance W 1150 1150

Air volume (max.) l/s 48 48

Negative pressure (max.) kPa (mbar) 20,7 (207) 20,7 (207)

Protective class II II

Length x width x height mm 985 x 380 x 250 1220 x 390x320

Width of the brush roller mm 300 380

Typical operating weight kg 8,6 9,2

Max. ambient temperature °C +40 +40

Values determined to EN 60335-2-69

Sound pressure level LpA dB(A) 68 68

Uncertainty KpA dB(A) 1 1

Hand-arm vibration value m/s2<2,5 <2,5

Uncertainty K m/s20,2 0,2

Power cord H05VV-F 2x1,0 mm2

Part no.: Cable length

EU 4.649-002.0 12 m

GB 4.649-003.0 12 m

AU 4.649-005.0 12 m

14 EN

CV 30/1

153

Andere Handbücher für CV 30/1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kärcher Staubsauger Handbücher

Kärcher

Kärcher SV 1802 Bedienungsanleitung

Kärcher

Kärcher T 17/1 eco!efficiency Bedienungsanleitung

Kärcher

Kärcher SC 1.020 Bedienungsanleitung

Kärcher

Kärcher NT 40/1 Tact Bedienungsanleitung

Kärcher

Kärcher T 12/1 Bedienungsanleitung

Kärcher

Kärcher NT 55/1 Tact Te M Bedienungsanleitung

Kärcher

Kärcher A 2104 Bedienungsanleitung

Kärcher

Kärcher NT 50/1 Me Classic Bedienungsanleitung

Kärcher

Kärcher Puzzi 30/4 Bedienungsanleitung

Kärcher

Kärcher NT 611 Eco KF Bedienungsanleitung

Kärcher

Kärcher MV 3 Premium Bedienungsanleitung

Kärcher

Kärcher SC 2.500 C Bedienungsanleitung

Kärcher

Kärcher DE 4002 Bedienungsanleitung

Kärcher

Kärcher SE 2001 Bedienungsanleitung

Kärcher

Kärcher VAPORAPID 1501 Bedienungsanleitung

Kärcher

Kärcher MA80 Betriebsanleitung

Kärcher

Kärcher SG 4/4 Bedienungsanleitung

Kärcher

Kärcher NT 48/1 Bedienungsanleitung

Kärcher

Kärcher RC 3000 Bedienungsanleitung

Kärcher

Kärcher ARMADA BRC 40/22 C Bedienungsanleitung

Kärcher

Kärcher ECO TEA NT 361 Bedienungsanleitung

Kärcher

Kärcher Puzzi 8/1 C Bedienungsanleitung

Kärcher

Kärcher NT 72/2 ECO TC Bedienungsanleitung

Kärcher

Kärcher VW 50 Plus Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
