Kenmore CSV Max DS4090 Bedienungsanleitung

Use & Care Guide

Manual de Uso y Cuidado

Manuel d'entretien et d'utilisation

Model/Modelo/Modèle: DS4090

CSV|Max

Cordless Stick Vac

Aspiradora Inalámbrica de Vara

Aspirateur-balai Sans Fil

www.kenmorefloorcare.com

Vacuum Cleaner Help Line:

1-877-531-7321 (US) / 1-844-608-3081 (CA)

8:00am-5:00pm EST, M-F

- 2 -

Before Using Your New Vacuum Cleaner ........................................................................ 2

Packing List ..................................................................................................................... 2

Important Safety Instructions........................................................................................3-4

Vacuum Cleaner Warranty .............................................................................................. 5

Parts and Features........................................................................................................6-8

Assembly Instructions................................................................................................. 9-10

Operating Instructions ................................................................................................11-12

Vacuum Maintenance and Care................................................................................. 13-16

Troubleshooting ......................................................................................................... 17-18

Requesting Assistance Or Service.....................................................................Back Cover

TABLE OF CONTENTS

PACKING LIST

Your KENMORE ELITE CORDLESS VACUUM CLEANER is packaged with the following

parts and components assembled separately in the carton:

1 Hand Vacuum

1 Motorized Nozzle

1 Wand

1 Combination Tool

Read this Use & Care Guide. It will help you assemble and operate your new Kenmore

vacuum cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call the Vacuum Cleaner

Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model

and serial numbers when requesting information.

Your vacuum cleaner’s model and serial numbers are located on the Model and Serial

Number Plate. Use the space below to record the model number and serial number of your

new Kenmore vacuum cleaner.

Model No.____________________________________________

Serial No. ____________________________________________

Date of Purchase ______________________________________

Keep this book and your sales check (receipt) in a safe place for future reference.

BEFORE USING YOUR NEW VACUUM CLEANER

1 Wall Mountable Bracket

2 Screws

1 Charging Adapter

1 Manual

- 3 -

WARNING!

READ ALL INSTRUCTIONS IN THIS GUIDE BEFORE ASSEMBLING OR USING YOUR

VACUUM CLEANER. To reduce the risk of fire, electrical shock, injury to persons or damage

when using your vacuum cleaner, follow all safety precautions listed below.

IMPORTANT SAFETY INSTRUCTIONS

• Use your vacuum only as described in this

Use & Care Guide.

• Do not use or charge outdoors or on wet

surfaces.

• Do not allow to be used as a toy. Close

attention is necessary when used by or

near children, pets or plants.

• Use only manufacturer’s recommended

attachments. Do not use attachments

other than those supplied with this

vacuum.

• Do not handle charger, including charger

plug, and charger terminals with wet

hands.

• Do not put any object into openings. Do

not use with any opening blocked; keep

free of dust, lint, hair, and anything that

may reduce air flow.

• Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or

combustible liquids, such as gasoline, or

use in areas where they may be present.

• Switch off the appliance before

connecting the accessories.

• Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or

hot ashes.

• Do not pick toxic solution such as chlorine

bleach, ammonia or drain cleaner.

• Do not use without dust cup and HEPA

filter in place.

• Do not charge the unit outdoors.

• Prevent unintentional starting. Ensure

the product does not operate before

connecting to hand vacuum, picking up

or carrying the appliance.

• Do not attempt to charge the appliance

with the switch in the on position.

• Do not attempt to use this charging

adapter with any other product nor

attempt to charge this product with

another charging adapter.

• To recharge vacuum, use only Yinli

YLS0241AT256080 or Xdroid XZ2560-

0800EU charger adapter.

• Do not use an appliance that is damaged

or modified. Damaged or modified

appliance may exhibit unpredictable

behavior resulting in fire, explosion or risk

of injury.

• Do not immerse vacuum cleaner, or

charging adapter in water or other

liquids.

• Always turn the vacuum off before

connecting or disconnecting the

motorized nozzle.

• Store the cordless vacuum indoors. Put

the cordless vacuum away after use to

prevent accidents.

• Keep your work area well lit.

• Keep the vacuum moving over the carpet

surface at all times to avoid damaging

the carpet fibers.

• Do not vacuum up any liquids.

• Do not use in an enclosed space where

vapors are present from paint, paint

thinner, moth-proofing substances,

flammable dust or other explosive or

toxic materials.

- 4 -

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

Household use only.

• Do not pick up hard or sharp objects such

as glass, nail, screws or coins that could

damage the vacuum cleaner.

• To avoid excessive heat and damage

to unit or batteries, do not operate the

vacuum while charging.

• Do not use extension cords or outlets with

inadequate current carrying capacity.

• Do not expose an appliance to fire or

excessive temperature. Exposure to fire

or temperature above 265°F (130°C) may

cause explosion.

• Leaks from battery cells can occur

under extreme usage or temperature

conditions. If the liquid gets on skin, wash

quickly with water. If liquid gets into the

eyes, flush them immediately with clean

water for a minimum of 10 minutes. Seek

medical attention.

• While there is no shock hazard from

electrical terminals located on the

vacuum, a burn could result from metal

objects being inserted into the terminal

areas. Vacuum cleaner terminals should

always be kept free of objects.

• Store charger indoors in a cool, dry

area, not exposed to weather to avoid

electrical shock and/or damage to the

vacuum cleaner.

• Changes or modifications to this unit

not expressly approved by the party

responsible for compliance could void the

user’s authority to operate the equipment.

• Charging improperly or at temperatures

outside of the specified range may

damage the battery and increase the risk

of fire.

• You are responsible for making sure

that your vacuum cleaner is not used

by anyone who is unable to operate it

properly.

• Have servicing performed by a qualified

repair person using only identical

replacement parts. This will ensure that

the safety of the product is maintained.

• Do not modify or attempt to repair

the appliance or the battery pack (as

applicable) except as indicated in the

instructions for use and care.

• This appliance is designed for household

use only!

NOTICE

This device complies with part 15 of the

FCC Rules. Operation is subject to the

following two conditions.

1. This device may not cause harmful

interference.

2. This device must accept any interference

received, including interference that may

cause undesired operation.

Product Disposal

This product contains an internal Lithium-

ion battery pack formulated from

environmentally sensitive materials. This

product must be disposed of properly

with due care for the environment. Do

not dispose of product with household

garbage. Consult your local waste

authority for information regarding

available recycling or disposal options.

- 5 -

VACUUM CLEANER WARRANTY

LIMITED WARRANTY

FOR ONE YEAR from the date of sale this product is warranted against defects in

material or workmanship.

WITH PROOF OF SALE a defective product will be replaced free of charge.

The Kenmore brand is used under license. Direct all claims for warranty service to:

1-877-531-7321 (US) / 1-844-608-3081 (CA).

This warranty does not cover filters or belts, which are expendable parts that can wear

out from normal use within the warranty period.

This warranty is void if this product is ever used for other than private household purposes.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Cleva North America, Inc., Greenville SC 29607

- 6 -

PARTS AND FEATURES

It is important to know your vacuum cleaners parts and features to assure its proper and

safe use. Review these before using your vacuum.

REPLACEMENT PARTS

To order a replacement

part, call

1-877-531-7321 (US) /

1-844-608-3081 (CA).

Item Part No.(US) Part No.(CA)

HEPA Media Filter 561051107 561051107

Pre-Filter Basket 561057103 561057103

Brush Roll 571018102 571018102

2-in-1 Combination Tool 561051104 561051104

Wall Mountable Bracket 571018103 571018103

Screw (2) 551001122 551001122

- 7 -

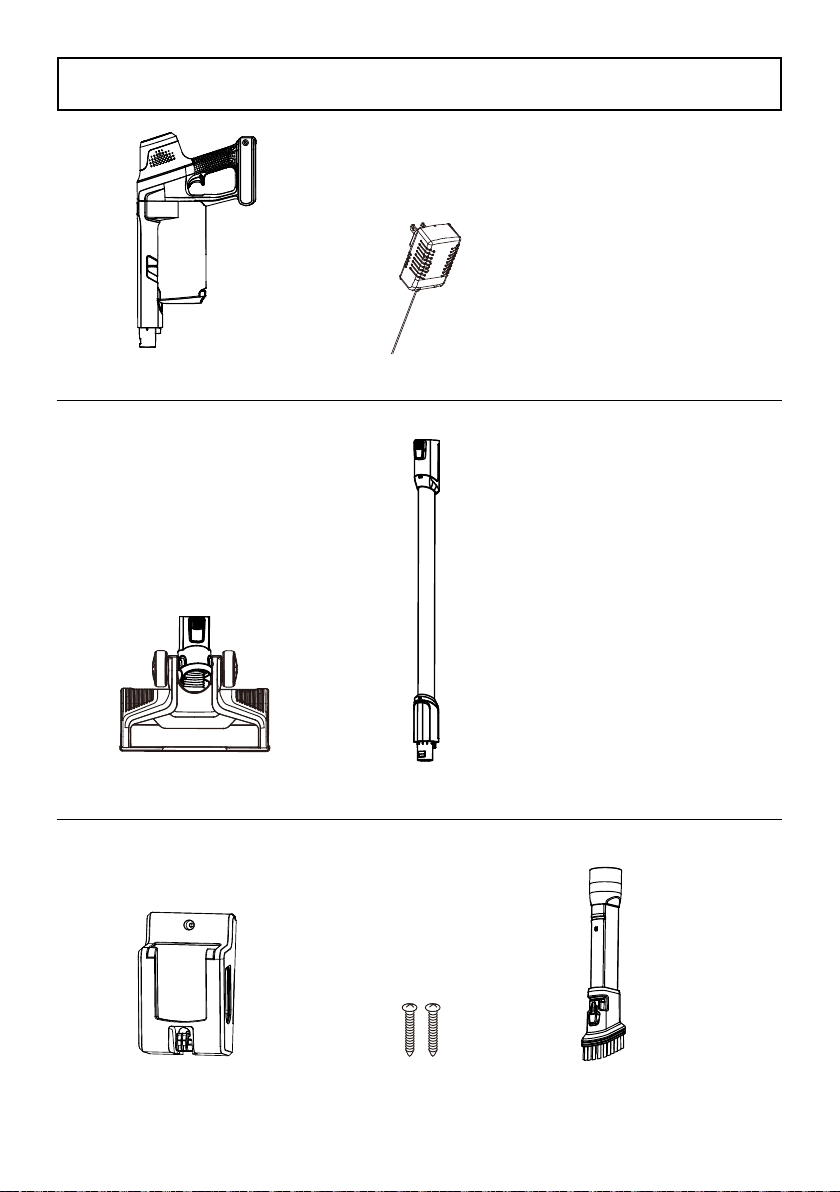

PARTS AND FEATURES

Hand Vacuum

2-in-1 Combination Tool

Screw (2)

Motorized Nozzle

Charging Adapter

Wand

Wall Mountable Bracket

- 8 -

The motorized nozzle and the combination

tool can be inserted into either the hand

vacuum or the wand. You will hear a click

if the motorized nozzle installed correctly.

Combination Tool

The combination brush can be used as a

crevice tool or as a dusting brush. To use

as a dusting brush, simply squeeze the

buttons in the side of the tool and shift

brush forward.

Friction Hold Stoppers

The back of the hand vacuum features

two rubber stoppers. When you lean the

stick vac against a wall, the stoppers help

prevent the unit from slipping down and

possibly being damaged.

NOTE: For proper electrical contact,

always be sure that metal contact surfaces

of the motorized nozzle, the wand and the

hand vacuum are clean before use.

PARTS AND FEATURES

Rubber Stoppers

Crevice Tool Mode Dusting Brush Mode

- 9 -

1. Insert the hand vacuum into the top of

the wand until you hear a click.

Before assembling the vacuum cleaner, check the PACKING LIST (Page 2). Use this list to

verify that you have received all the components of your new Kenmore Elite CSV Max

Cordless Stick Vac.

ASSEMBLY INSTRUCTIONS

2. Insert the bottom of the wand into the

motorized nozzle until you hear a click.

3. Use the 2 screws provided to mount the

bracket on the wall, but not to drywall

only. Secure the screws to a stud. Mount

at a recommended height of 59'' and

no less than 44'' above the floor. Ensure

that no plumbing or electrical cables,

wires or ductwork are located directly

behind the mounting area.

4. Hang the hand vacuum on the wall

mount. Align the base of the hand

vacuum with the wall mount and slide in

as shown in the picture below.

Click

NOTE: To be able to charge vacuum

while it is mounted, attach bracket to wall

no more than 59'' from wall electrical

outlet.

59”

(Recommended)

44”

(Minimum)

- 10 -

1. Insert the charging adapter plug into the

charging port on the side of the hand

vacuum base.

2. Plug the adapter into a wall outlet. The

battery indicator will begin to pulse

blue.

WARNING

Before charging make sure the unit is

turned OFF.

CHARGING

NOTE: The unit can be charged while it is

hung on the wall mountable bracket. Attach

bracket to wall no more than 59'' from a

wall electrical outlet.

NOTE: Before using stick vacuum for the

first time, charge vacuum to full capacity.

NOTE: If the battery indicator does not

illuminate when charging, ensure that the

charging adapter is plugged in properly to

the wall outlet and the charging port on the

hand vacuum.

For better battery performance, it is

recommended to charge the unit when

the battery indicator shows a continuous

yellow light during operation, and remove

the charging adapter from the unit after the

battery is fully charged.

Never charge the batteries in temperatures

above 104°F (40°C) or below 39.2°F (4°C).

It is normal for the charger to become

warm when charging.

Battery Indicator

The battery requires approximately 4 hours

of charging to regain full capacity. While

the unit is charging, the battery indicator

ring will pulse blue. When the battery is

fully charged, the battery indicator will

show a continuous blue light, and turn off

after 15 minutes.

59”

(Maximum)

Andere Handbücher für CSV Max DS4090

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore COIZDMWOOU00 - KC01ZDMWZOUO Bedienungsanleitung

Kenmore

Kenmore 116.31100 Bedienungsanleitung

Kenmore

Kenmore Go CSV DS4020 Bedienungsanleitung

Kenmore

Kenmore 116.31100 Bedienungsanleitung

Kenmore

Kenmore 116.34725 Bedienungsanleitung

Kenmore

Kenmore Aspiradora 116.31195 Bedienungsanleitung

Kenmore

Kenmore 116.30612C Bedienungsanleitung

Kenmore

Kenmore 214.34000 Bedienungsanleitung

Kenmore

Kenmore 116.23637C Bedienungsanleitung

Kenmore

Kenmore ASPIRADORA 116.34722 Bedienungsanleitung

Kenmore

Kenmore BC4027 Bedienungsanleitung

Kenmore

Kenmore 116.30701C Bedienungsanleitung

Kenmore

Kenmore 175.867029 Bedienungsanleitung

Kenmore

Kenmore 116.22612 Bedienungsanleitung

Kenmore

Kenmore 116.35913 Bedienungsanleitung

Kenmore

Kenmore Intuition BU4050 Bedienungsanleitung

Kenmore

Kenmore Kenmore 116.29812 Bedienungsanleitung

Kenmore

Kenmore 27814 - Canister Vacuum, Yellow Bedienungsanleitung

Kenmore

Kenmore 116.31722 Bedienungsanleitung

Kenmore

Kenmore 116.23612 Bedienungsanleitung

Kenmore

Kenmore Sears refrigerator Bedienungsanleitung

Kenmore

Kenmore Complete SSV Bedienungsanleitung

Kenmore

Kenmore 116.31150310 Bedienungsanleitung

Kenmore

Kenmore 116.30405C Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
