Please read this guide. It will help you assemble and operate your new I<enmore vacuum cleaner in the

safest and most effectiveway.

Use the space below to record the model number of your new l<enmore vacuum cleaner.

Model No.

Date of Purchase

I<eep this book and your sales check (receipt) in asafe place for future reference.

Your KENMORE 18V Cordless 2-in-] Stick Vacuum is packaged with the following parts

and components included separately in the carton:

1 Handle 1Motorized Brush 1Charging Adapter

1Main Body 1Charger Base 1Combination Tool

1 Hand Vacuum 1Vacuum Support 1Manual

-2-

KENMORE LiMiTED WARRANTY

FOR ONE YEAR from the date of sale, this product iswarranted against defects in

material or workmanship when it is assembled, operated and maintained according to all

supplied instructions.

WiTH PROOF OF SALE, a defective appliance will be replaced free of charge.

For warranty coverage details to obtain free replacement, visit the web page:

www.kenmore.com/warranty

This warranty does not cover filters or belts, which are expendable parts that can wear

out from normal use within the warranty period.

This warranty is void if this product is ever used for other than private household purposes.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

=3=

When using your Kenmore vacuum, basic precautions should always be followed,

including the following:

READ ALL iNSTRUCTiONS BEFORE USING THiS VACUUM CLEANER.

,WARNI NG:

To reduce the risk of fire, electric shock, or ir

*Do not use or charge outdoors or on

wet surfaces.

*Do not allow to be used as a toy. Close

attention is necessary when used by or

near children, pets or plants.

*Use only as described in this manual.

Use only manufacturer's recommended

attachments.

*Do not use with damaged cord or plug.

if appliance is not working as it should,

has been dropped, damaged, left

outdoors, or dropped into water, return

it to a service center,

*Do not pull or carry by cord, usecord

as a handle, close a door on cord,

or pull cord around sharp edges or

corners. Do not run the vacuum over

the charging adapter cord. Keep cord

away from heated surfaces.

*Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

*Do not handle charger, including

charger plug, and charger terminals

with wet hands.

*Do not put any object into openings. Do

not use with any opening blocked; keep

free of dust, lint, hair, and anything that

may reduce air flow.

*This vacuum cleaner creates suction and

has a revolving brush roll. Keep hair,

loose clothing, fingers, and all parts of

ury:

body away from openings and moving

parts.

Use extra care when cleaning on stairs.

Do not use to pick up flammable or

combustible liquids, such as gasoline, or

use in areas where they may be present.

Switch off the appliance before

connecting the accessories.

Do not pick up anything that is burning

or smoking, such as cigarettes, matches,

or hot ashes.

*Do not pick up toxic liquids such as

chorine bleach, ammonia or drain

cleaner.

Do not use without dust cup and filter in

place.

Do not charge the unit outdoors.

Do not attempt to use the charging

adapter with any other product nor

attempt to charge this product with

another charging adapter.

To recharge vacuum, use only the

charging adapter model 30004 listed

in the Replacement Parts table.

Do not incinerate the appliance even

if it is severely damaged. The batteries

inside this product may explode or leak

in a fire.

*Do not immerse vacuum or charging

-4-

adapter in water or other liquids.

*Always turn the vacuum off before

connecting or disconnecting the

motorized brush.

*Store the cordless vacuum indoors. Put

the cordless vacuum away after use to

prevent accidents.

*Use only manufacturer recommended

cleaning attachments.

*Keep your work area well lit.

*Keep the vacuum moving over the

carpet surface at all times to avoid

damaging the carpet fibers.

*Do not vacuum any liquids.

*Do not use in an enclosed space where

vapors are present from paint, paint

thinner, moth-proofing substances,

flammable dust or other explosive or

toxic materials.

*Do not pick up hard or sharp objects

such as glass, halts, screws or coins that

could damage the vacuum.

*To avoid excessive heat and damage

to unit or batteries, do not operate the

vacuum while charging.

*Do not use extension cords or outlets

with inadequate current carrying

capacity.

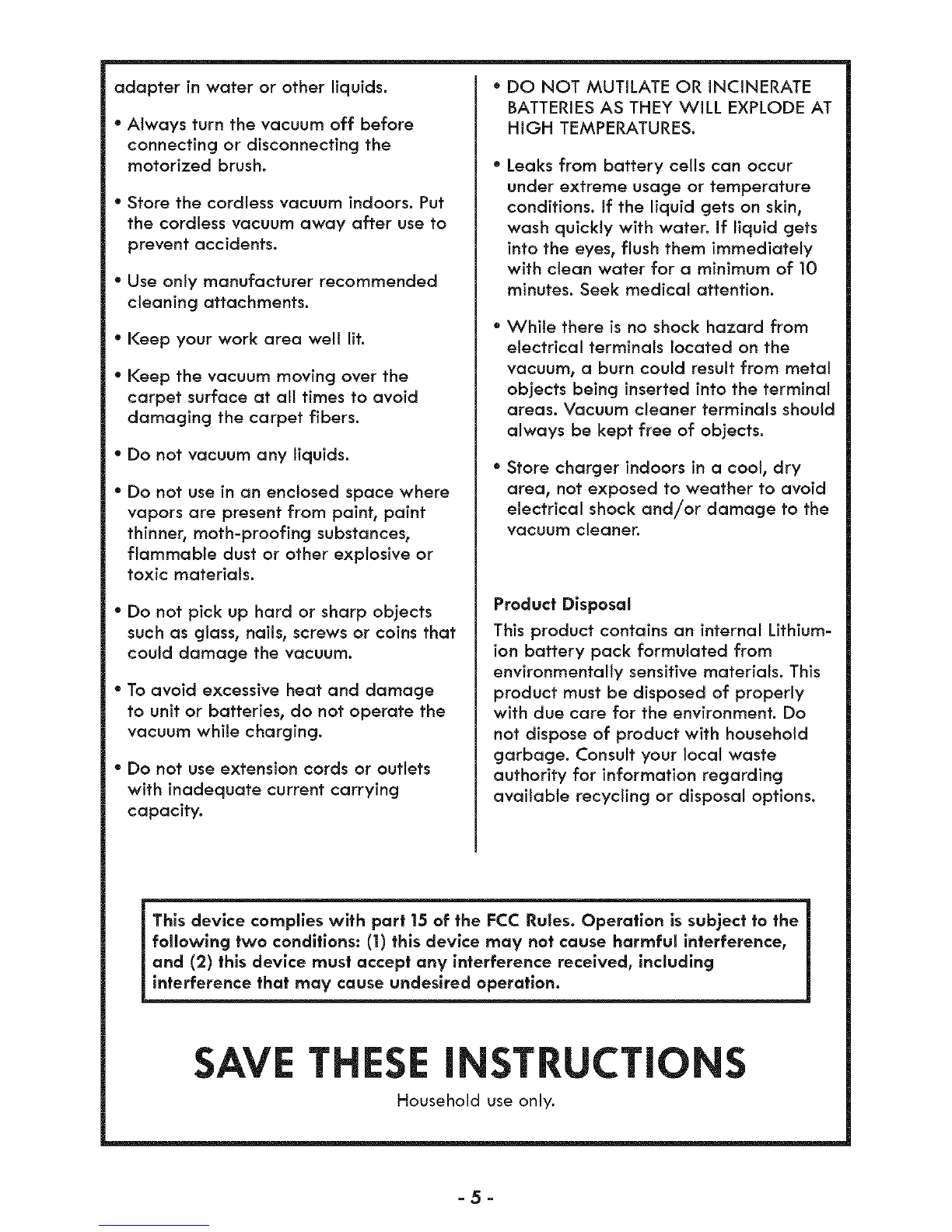

DO NOT MUTILATE OR INCINERATE

BATTERIESAS THEY WILL EXPLODE AT

HIGH TEMPERATURES.

Leaks from battery cells can occur

under extreme usage or temperature

conditions. If the liquid gets on skin,

wash quickly with water. If liquid gets

into the eyes, flush them immediately

with clean water for a minimum of 10

minutes. Seek medical attention.

While there is no shock hazard from

electrical terminals located on the

vacuum, a burn could result from metal

objects being inserted into the terminal

areas. Vacuum cleaner terminals should

always be kept free of objects.

Store charger indoors in a cool, dry

area, not exposed to weather to avoid

electrical shock and/or damage to the

vacuum cleaner.

Product Disposal

This product contains an internal Lithium-

ion battery pack formulated from

environmentally sensitive materials. This

product must be disposed of properly

with due care for the environment. Do

not dispose of product with household

garbage. Consult your local waste

authority for information regarding

available recycling or disposal options.

This device complies with part 15 of the FCC Rules. Operation issubject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

SAVE THESE iNSTRUCTiONS

Household use only.

=5=

It is important to know your 18V Cordless 2-in-1 Stick Vacuum's parts and features to

assure its proper and safe use. Review these before using your vacuum.

REPLACEMENT PARTS

Item Part No.

Filter 57004 _

Filter Basket 30003

Charging Adaptor 30004

Charger Base 30005

Vacuum Support 30006

Available online at

www.searspartsdJrect.com

or call 1-844-553-6667.

_Available online only at

www.sears.com.

JI .I Hand Vacuum

_n Body

J_Release Button

Charger Base

Combination Tool

Vacuurrl

Power Switch

Cup Release

Button

Cup

(Filter inside)

Charging _pter

_ort

-6-

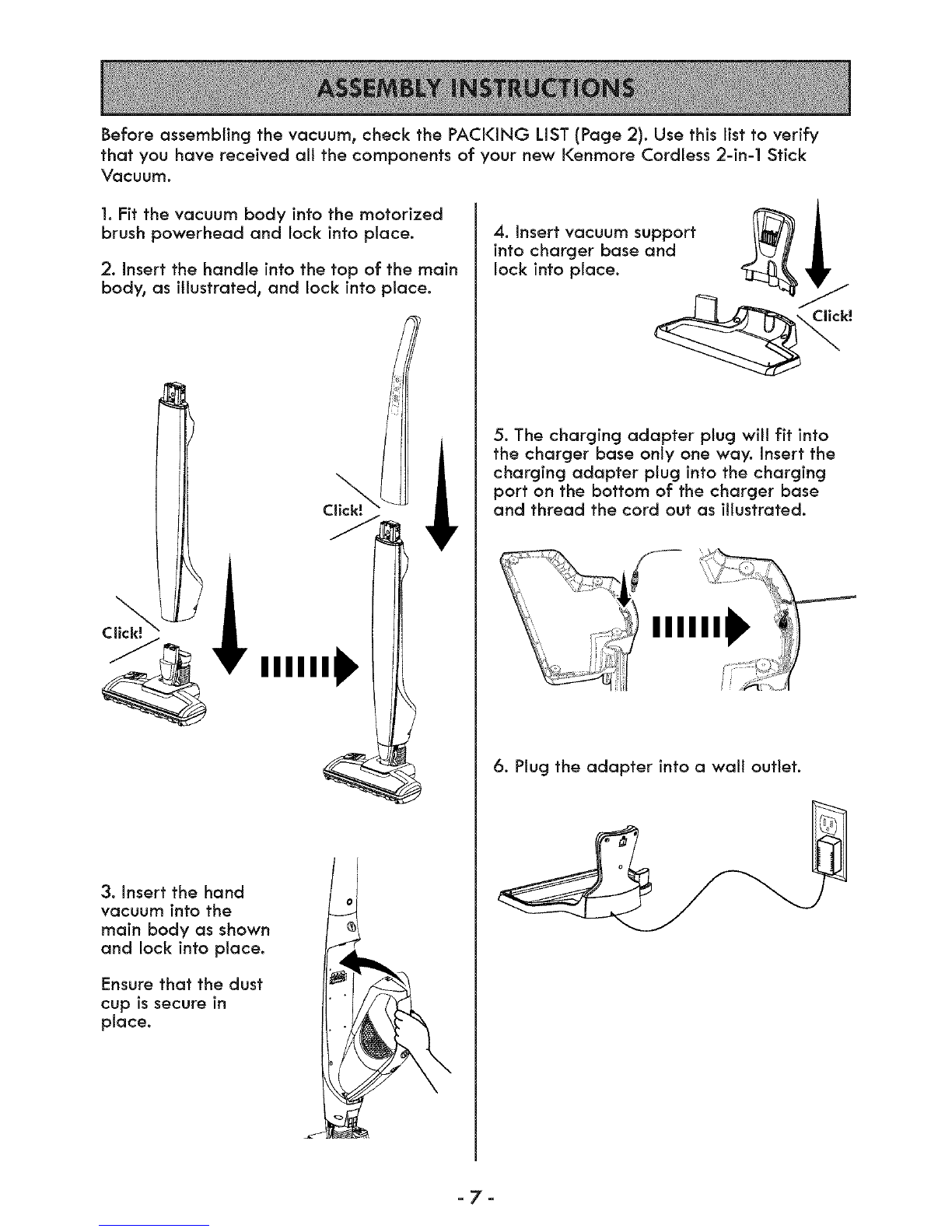

Before assembling the vacuum, check the PACKING LIST (Page 2). Use this list to verify

that you have received all the components of your new Kenmore Cordless 2-in-1 Stick

Vacuum.

1. Fit the vacuum body into the motorized

brush powerhead and lock into place.

2. Insert the handle into the top of the main

body, as illustrated, and lock into place.

IIIII

3. Insert the hand

vacuum into the

main body as shown

and lock into place.

Ensure that the dust

cup is secure in

place.

4. Insert vacuum support 1_1_/))_

into charger base and

lock into place. //

5. The charging adapter plug will fit into

the charger base only one way. Insert the

charging adapter plug into the charging

port on the bottom of the charger base

and thread the cord out as illustrated.

IIII)

6. Plug the adapter into a wall outlet.

-7-

[

Before charging, make sure unit is OFF.

1. Plug the charging ! //! /

adapterintoan / tk\/ l

outlet. Insert the _ I/ _ 1

vacuumc eaneronto /// /1

the charger base as _ _ •

shown. __

2. Make sure the vacuum cleaner is fully

charged before using for the first time. The

vacuum may take up to 5 hours to charge

completely if fully discharged.

3. The battery charge

indicator will flash

continuously until vacuum

is fully charged.

Battery Charge Indicator:

25% 50% 75%

CHARGING

100%

4. When the vacuum has

reached full charge (100%),

the battery charge indicator

will remain lit with four

(4) bars illuminated for 3

seconds then go to dormant

mode with no illuminated

lights showing.

NOTE: if the battery charge indicator does

not illuminate when charging, ensure the

following:

• That the vacuum cleaner is seated

properly onto the charger base.

• That the charging adaptor is plugged into

the outlet properly.

• That the adaptor power plug is connected

properly on the charger base.

NOTE: For improved battery performance,

always keep the vacuum cleaner on the

charger base while not in use.

-8-

CAUTION

Moving parts! To reduce the risk of personal injury,

DO NOT touch the brush roll when vacuum is on.

Contacting the brush roll while it is rotating can cut,

or cause other injuries. Always turn off before servicing.

Use caution when operating near children.

USING YOUR VACUUM CLEANER

CONTROL PANEL

The control panel is located on the top of

the handle, which includes:

O Power Icon=On/Off

I Speed Indicator=Low/High

Battery Indicator

= Electric Capacity

WARNING

Do not operate vacuum cleaner without

filter in place.

Before vacuuming, check that the brush

wheels and brush roll are clear of any

sharp objects to avoid scratching floors.

Use low speed for surface cleaning of bare

floors or low pile rugs and carpets or when

increased runtime is needed.

Use high speed for cleaning of plush rugs

and carpets or when additional cleaning

power is required.

Vacuum Operation:

1. Touch the power icon to illuminate

control panel and initiate power.

IIIIII

NOTE: If no further action istaken in 5

seconds, panel returns to previous state.

2. Start the vacuum cleaner by touching

the power icon once more. The speed bars

will illuminate allowing for speed control.

IIIIII

-9-

3. To change power setting, touch the

speed indicator icon for desired power

setting (Low or High).

IIIII

Low Speed High Speed

NOTE: This vacuum cteaner is equipped

with amemory function that allows the

vacuum to start in the last power setting.

4. After vacuuming, turn the unit off by

touching the power icon for 2 seconds.

NOTE: Holding for lessthan 2 seconds

causes no action.

IIIIII >

NOTE: When the vacuum is low on battery

power, the control panel or the battery icon

will flash. The flashing will continue until

the unit is placed on the charging station

or is completely out of battery power.

CLEANING WiTH THE HAND VACUUM

1. To remove the

hand vacuum, press

the release button

and detach the hand

vacuum from the

main body.

2. To turn on the hand vacuum, press the

power switch located on top of the handle.

NOTE: When battery power is low, the

battery charge indicator around the switch

will flash.

To charge, place the hand vacuum into the

main body and place the whole unit onto

the charger base.

Power

i//_ \\]

/_\ //

3. To clean difficult to reach areas, use

the combination tool by inserting end of

combination tool into the hand vacuum as

shown.

=10 =

Andere Handbücher für 125.10341

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore 116.22412 Bedienungsanleitung

Kenmore

Kenmore Kenmore 721.23082/3 Bedienungsanleitung

Kenmore

Kenmore Pet HandiMate Bedienungsanleitung

Kenmore

Kenmore 592.30414 Bedienungsanleitung

Kenmore

Kenmore 116.22312 Bedienungsanleitung

Kenmore

Kenmore AllergenSeal DU2055 Bedienungsanleitung

Kenmore

Kenmore ASPIRADORA 116.29914 Bedienungsanleitung

Kenmore

Kenmore CSV Max Bedienungsanleitung

Kenmore

Kenmore 116.35922 Bedienungsanleitung

Kenmore

Kenmore 3693 - Progressive Bagless Upright Bedienungsanleitung

Kenmore

Kenmore 116.31100 Bedienungsanleitung

Kenmore

Kenmore POWER-MATE 116.24614 Bedienungsanleitung

Kenmore

Kenmore 116.31810 Bedienungsanleitung

Kenmore

Kenmore 116.23155C Bedienungsanleitung

Kenmore

Kenmore 116.38412 Bedienungsanleitung

Kenmore

Kenmore AllergenSeal FeatherLite MAX DU4399 Bedienungsanleitung

Kenmore

Kenmore 116.21714 Bedienungsanleitung

Kenmore

Kenmore 116.30405C Bedienungsanleitung

Kenmore

Kenmore CROSSOVER ULTRA Bedienungsanleitung

Kenmore

Kenmore 2029319 - Canister Vacuum Bedienungsanleitung

Kenmore

Kenmore 116.22804C Bedienungsanleitung

Kenmore

Kenmore BC3060 Bedienungsanleitung

Kenmore

Kenmore 116.21514 Bedienungsanleitung

Kenmore

Kenmore 216.31702 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
