Kramer VP-32K Bedienungsanleitung

Kramer Electronics, Ltd.

USER MANUAL







Model:

VP-32K

3x1 PC / Audio Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your VP-32K 3x1 PC / Audio Switcher 4

Connecting theVP-32K 3x1 PC / Audio Switcher 5

5.1

Connecting the Balanced/Unbalanced Stereo Audio Input/Output 7

5.2

Controlling via the REMOTE Connector 8

Technical Specifications 9

Figures

Figure 1: VP-32K 3x1 PC / Audio Switcher 4

Figure 2: Connecting the VP-32K 3x1 PC / Audio Switcher 6

Figure 3: Connecting the Balanced Stereo Audio Input/Output 7

Figure 4: Connecting the Unbalanced Stereo Audio Input 7

Figure 5: Connecting the Unbalanced Stereo Audio Output 7

Figure 6: Connecting the REMOTE Connector 8

Tables

Table 1: Front Panel VP-32K 3x1 PC / Audio Switcher Features 4

Table 2: Technical Specifications of the VP-32K 3x1 PC/ Audio Switcher 9

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 1,000-plus

different models now appear in 11 groups

that are clearly defined by

function.

Congratulations on purchasing your Kramer VP-32K 3x1 PC / Audio Switcher.

The VP-32K is ideal for:

Display and presentation systems that require three way switching to two

displays

Multimedia applications

Computer graphics and balanced stereo audio distribution

The package includes the following items:

VP-32K 3x1 PC / Audio Switcher

Power adapter (5V DC Input)

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories

and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VP-32K routes any input to both outputs, using 15-pin HD female

connectors for the computer graphics video signals and detachable terminal

block connectors for the balanced stereo audio signals.

In particular, the VP-32K:

With its video bandwidth of 420MHz, ensures transparent operation at the

highest resolutions

Features audio-follow-video (AFV) in which all operations relate to both

the video and the audio channels

Includes the Kramer innovative integrated sync processing; KR – ISP™

technology, which lets you achieve a sharp, stable image when the sync

level is too low, by restoring the sync signal waveform

Control the VP-32K using the front panel buttons, or the remote contact

closure for forced operation.

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your VP-32K away from

moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 For example, part number 2535-052002

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-32K 3x1 PC / Audio Switcher

4 Your VP-32K 3x1 PC / Audio Switcher

Figure 1 and Table 1 define the VP-32K 3x1 PC / Audio Switcher:

Figure 1: VP-32K 3x1 PC / Audio Switcher

Table 1: Front Panel VP-32K 3x1 PC / Audio Switcher Features

# Feature Function

1 POWER Switch Illuminated switch supplying power to the unit

2 INPUT SELECTOR Buttons Select the input (from 1 to 3) to switch to the outputs. The

selected button illuminates

3 INPUT Terminal Block Connector Connect to the balanced stereo audio sources (from 1 to 3)

4 INPUT 15-pin HD Connectors Connect to the VGA/UXGA sources (from 1 to 3)

5 OUTPUT Terminal Block Connector

Connect to the balanced stereo audio acceptors (from 1 to 2)

6 OUTPUT 15-pin HD Connectors Connect to the VGA/UXGA acceptors (from 1 to 2)

7 5V DC +5V DC connector for powering the unit

8 REMOTE Terminal Block

Connector

Connect to contact closure switches (see section 5.2)

Connecting theVP-32K 3x1 PC / Audio Switcher

5 Connecting theVP-32K 3x1 PC / Audio Switcher

To connect your VP-32K 3x1 PC / Audio Switcher, as the example in Figure 2

illustrates, do the following

1. Connect up to three

VGA/UXGA sources to the three 15-pin HD input

connectors, and connect up to three balanced

stereo audio sources to the three

AUDIO input terminal block connectors, as follows:

Connect the source 1 (for example, a PC with a balanced stereo audio

card) to the INPUT 1 15-pin HD connector, and to the INPUT 1

terminal block connector

Connect the source 3 (for example, a PC) to the INPUT 3 15-pin HD

connector and connect a balanced stereo audio source to the INPUT 3

terminal block connector

2. Connect the two 15-pin HD output connectors to up to

two VGA/UXGA

acceptors and connect the corresponding AUDIO output terminal block

connectors to the balanced

stereo audio acceptors, as follows:

Connect the OUTPUT 1 15-pin HD connector to the VGA/UXGA

acceptor 1 (for example, a display), and connect the OUTPUT 1

terminal block connector to the balanced stereo audio acceptor 1 (for

example, a power amplifier with speakers)

Connect the OUTPUT 2 15-pin HD connector to the VGA/UXGA

acceptor 2 (for example, a projector), and connect the OUTPUT 2

terminal block connector to the balanced stereo audio acceptor 2 (for

example, a power amplifier with speakers)

3. If required, connect

the REMOTE Connector, see section 5.2.

4. Connect the 5V DC power adapter to the power socket and connect the adapter

to the mains electricity

1 Switch OFF the power on each device before connecting it to your VP-32K. After powering up your VP-32K, switch on the

power on each device

2 When less than 3 inputs are required, connect only those inputs to the VP-32K and leave the other inputs unconnected

3 See section 5.1 for details of how to wire a balanced/unbalanced stereo audio input/output

4 When only one output is required, connect only that output of the VP-32K and leave the other output unconnected

5 Not illustrated in Figure 2

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting theVP-32K 3x1 PC / Audio Switcher

Figure 2: Connecting the VP-32K 3x1 PC / Audio Switcher

Connecting theVP-32K 3x1 PC / Audio Switcher

5.1 Connecting the Balanced/Unbalanced Stereo Audio Input/Output

Figure 3, Figure 4, and Figure 5 illustrate how to wire a balanced/unbalanced

input and/or output connection:

Figure 3: Connecting the Balanced Stereo Audio Input/Output

Figure 4: Connecting the Unbalanced Stereo Audio Input

Figure 5: Connecting the Unbalanced Stereo Audio Output

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting theVP-32K 3x1 PC / Audio Switcher

5.2 Controlling via the REMOTE Connector

The contact closure remote control pins operate in a similar way to the input

selector buttons. Using the contact closure remote control lets you route an

input to the outputs by remote control. To do so, temporarily connect the

required input (from 1 to 3) pin on the REMOTE terminal block connector to

the G (ground) pin, as illustrated in the examples in Figure 6. The appropriate

front panel push button illuminates as the selected input routes to both

outputs.

DO NOT connect more than one PIN to the G PIN at the same time and

DO NOT interconnect PIN 1, PIN 2 or PIN 3

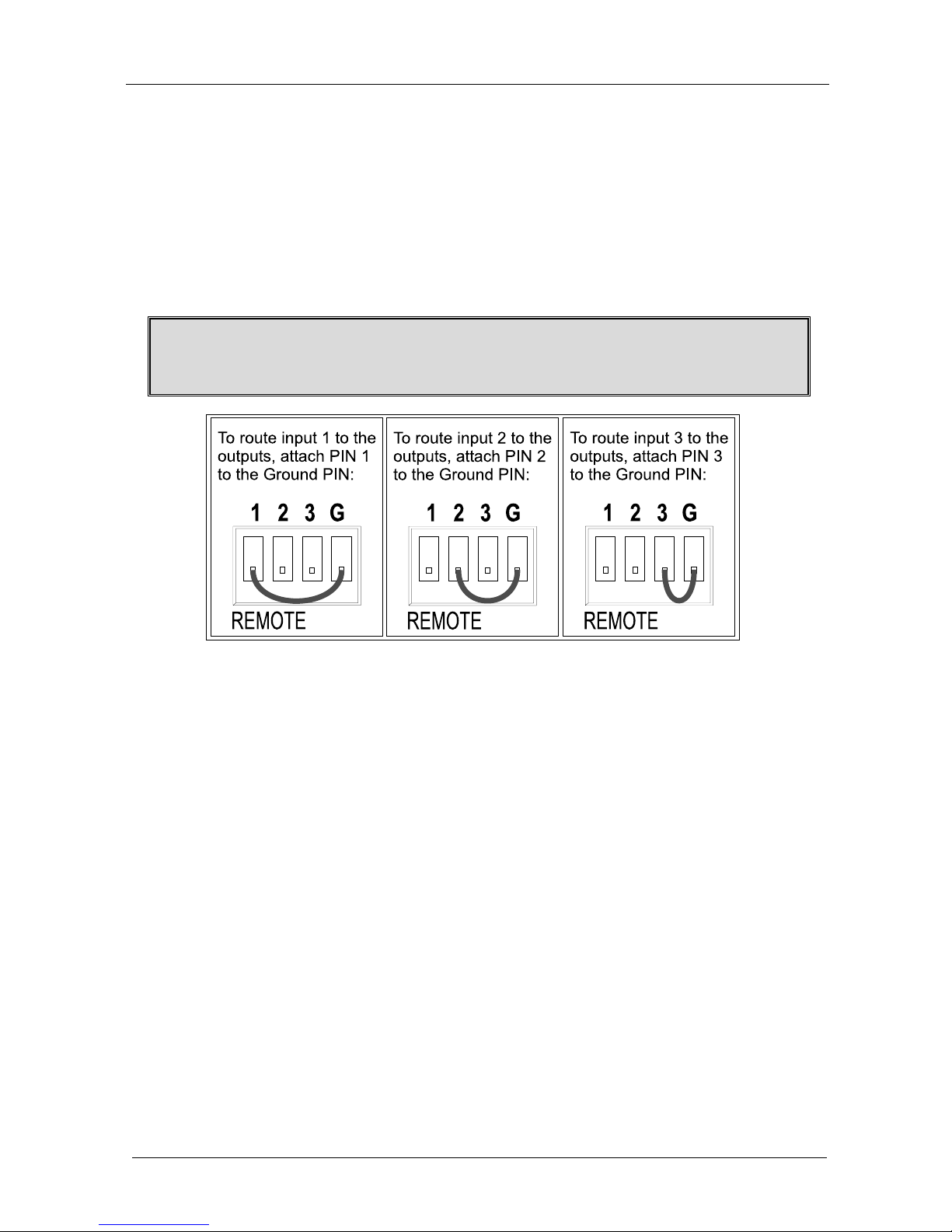

Figure 6: Connecting the REMOTE Connector
