USER MANUAL







Model:

VP-4x4xl

4x4 UXGA / Audio Matrix Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your UXGA / Audio Matrix Switcher 3

4.1

Using the IR Transmitter 6

Installing the VP-4x4xl on a Rack 7

Connecting the VP-4x4xl 4x4 UXGA / Audio Matrix Switcher 8

6.1

Connecting the VP-4x4xl Rear Panel 8

6.2

Connecting the Balanced/Unbalanced Stereo Audio Input/Output 10

6.3

Connecting a PC 11

6.4

Cascading Machines 11

6.5

Dipswitch Settings 13

6.6

Setting the Delay 14

Operating Your Audio Matrix Switcher 15

7.1

Displaying Unit Characteristics 15

7.2

Choosing the Audio-Follow-Video or Breakaway Option 16

7.2.1

Setting the Audio-Follow-Video Option 16

7.2.2

Setting the Breakaway Option 16

7.3

Switching OUT-IN Combinations 17

7.4

Confirming Settings 17

7.4.1

Toggling between the AT ONCE and CONFIRM Modes 18

7.4.2

Confirming a Switching Action 18

7.5

Storing/Recalling Input/Output Configurations 19

7.5.1

Storing an Input/Output Configuration 19

7.5.2

Recalling an Input/Output Configuration 19

7.5.3

Deleting an Input/Output Configuration 20

7.6

Locking the Front Panel 20

Flash Memory Upgrade 21

8.1

Downloading from the Internet 21

8.2

Connecting the PC to the RS-232 Port 21

8.3

Upgrading Firmware 21

Technical Specifications 27

Table of Hex Codes for Serial Communication 28

Kramer Protocol 2000 29

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Figures

Figure 1: VP-4x4xl 4x4 UXGA / Audio Matrix Switcher 4

Figure 2: Connecting the VP-4x4xl 4x4 UXGA / Audio Matrix Switcher 9

Figure 3: Connecting the Balanced Stereo Audio Input/Output 10

Figure 4: Connecting the Unbalanced Stereo Audio Output 10

Figure 5: Connecting an Unbalanced Source to the Balanced Input 10

Figure 6: Connecting a PC without using a Null-modem Adapter 11

Figure 7: Control Configuration via RS-232 and RS-485 12

Figure 8: VP-4x4xl Dipswitches 13

Figure 9: SELECTOR Buttons 19

Figure 10: Splash Screen 22

Figure 11: Atmel – Flip Window 22

Figure 12: Device Selection Window 23

Figure 13: Selecting the Device from the Selection Window 23

Figure 14: Loading the Hex 24

Figure 15: RS-232 Window 24

Figure 16: Atmel – Flip Window (Connected) 25

Figure 17: Atmel – Flip Window (Operation Completed) 26

Tables

Table 1: Front Panel VP-4x4xl 4x4 UXGA / Audio Matrix Switcher Features 5

Table 2: Rear Panel VP-4x4xl 4x4 UXGA / Audio Matrix Switcher Features 6

Table 3: Dipswitch Settings 13

Table 4: Machine # Dipswitch Settings 13

Table 5: DELAY Dipswitch Settings 14

Table 6: STATUS 7-segment Display 15

Table 7: Technical Specifications of the VP-4x4xl 4x4 UXGA / Audio Matrix Switcher 27

Table 8: Hex Codes for Switching via RS-232/RS-485 28

Table 9: Hex Codes for Switching Audio Channels via RS-232/RS-485 28

Table 10: Protocol Definitions 29

Table 11: Instruction Codes for Protocol 2000 30

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.



Congratulations on purchasing your Kramer VP-4x4xl 4x4 UXGA / Audio

Matrix Switcher. This product is ideal for the following typical applications:

Professional display systems requiring true 4x4 matrix operation

Multimedia and presentation source and acceptor selection

Remote monitoring of computer activity in schools and businesses

Rental/staging applications

The package includes the following items:

VP-4x4xl 4x4 UXGA / Audio Matrix Switcher

Windows®-based Kramer control software

Power cord

and Null-modem adapter

Infra-red remote control transmitter (including the required batteries and a

separate user manual

) and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.



1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download the latest software from our Web site at http://www.kramerelectronics.com

3 We recommend that you use only the power cord that is supplied with this machine

4 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VP-4x4xl is a true 4x4 matrix switcher for computer graphics (up to UXGA)

signals and balanced stereo audio signals. The VP-4x4xl enables the user to

simultaneously route any or all of the four inputs to any or all of the four outputs.

In addition, the VP-4x4xl includes:

A video bandwidth of 300MHz that ensures transparent UXGA performance

Easy-to-connect detachable terminal block connectors on which the audio

signals reside

DC coupled inputs and outputs

A delayed switching mode (ranging from 0 to 3.5sec

) for clean

transitions (seamless switching) when switching between non-genlocked

sources

Audio-follow-video and breakaway options

Storing and recalling setup options

A TAKE button for precise switch control that lets you execute multiple

switches all at once

A LOCK button to prevent tampering with the front panel

The ability to automatically detect connected input signals (respective button

illuminates in green)

Control the VP-4x4xl using the front panel buttons, or remotely via:

RS-485 or RS-232 serial commands transmitted by a touch screen system,

PC, or other serial controller

The Kramer RC-IR2 Infra-Red Remote Control Transmitter

An external remote IR receiver (optional), see section 4.1

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VP-4x4xl

away from moisture, excessive sunlight and dust

4 Your UXGA / Audio Matrix Switcher

Figure 1 illustrates the front and rear panels of the VP-4x4xl. Table 1 and

Table 2 define the front and rear panels of the VP-4x4xl, respectively.



1 In increments of 0.5sec

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your UXGA / Audio Matrix Switcher

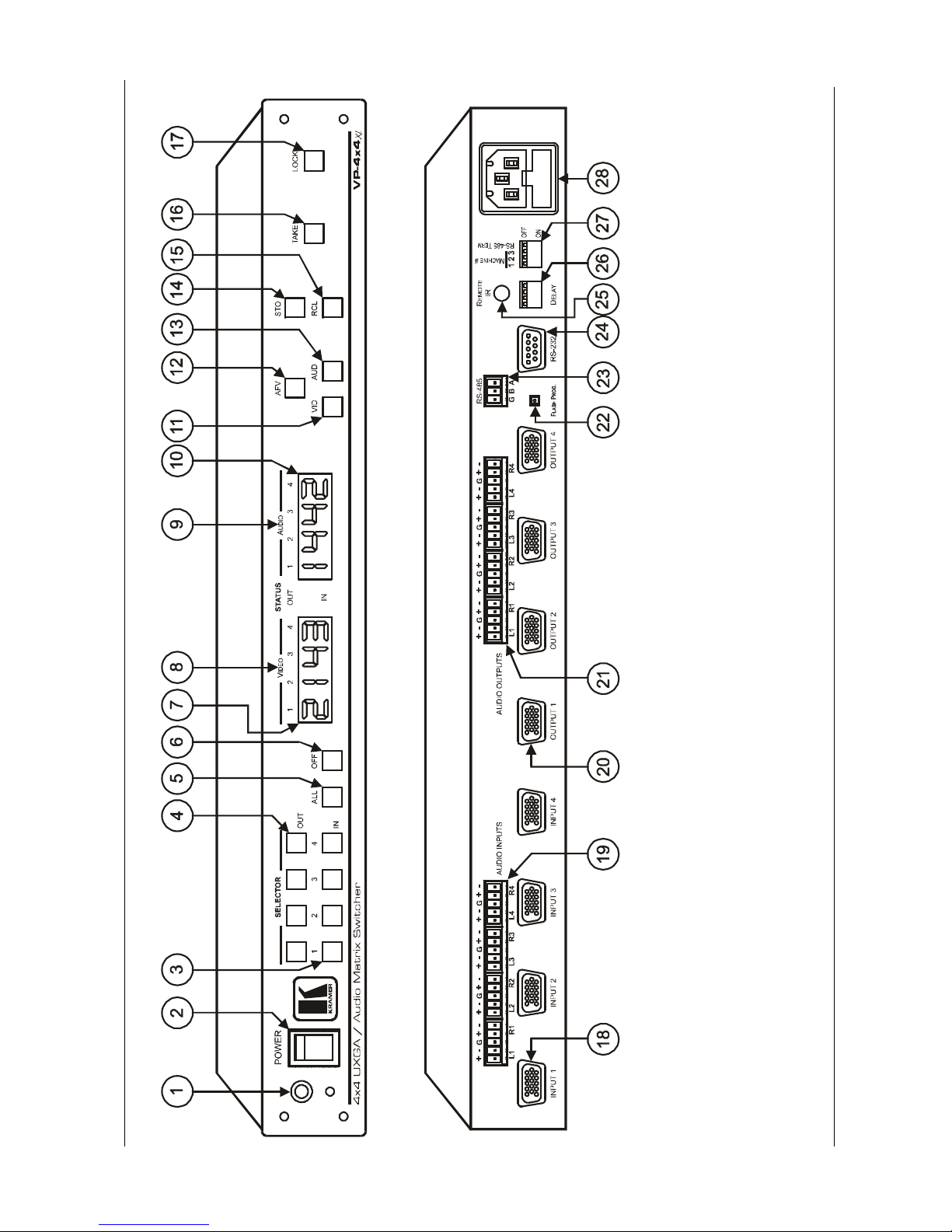

Figure 1: VP-4x4xl 4x4 UXGA / Audio Matrix Switcher

Your UXGA / Audio Matrix Switcher

Table 1: Front Panel VP-4x4xl 4x4 UXGA / Audio Matrix Switcher Features

# Feature Function

1 IR (Infra-Red) Receiver Signals from the remote control transmitter illuminate the LED

2 POWER Switch Illuminated switch for turning the unit ON or OFF

3 SELECTOR IN Buttons Select the input to switch to the output

When a signal is detected, the input button illuminates in green

4 SELECTOR OUT

Buttons Select the output to which the input is switched

5 ALL Button Pressing ALL before pressing an input button connects that input to all

outputs

6 OFF Button

Pressing OFF after pressing an output button disconnects that output from the

inputs. To disconnect all the outputs, press the ALL button and then the OFF

button

7 STATUS IN

7-segment

Display

Displays the selected video input switched to the output (marked above each

input). Also displays the number of IN and OUT ports

VIDEO

STATUS OUT

Labels Identifies a cross point between each video output to which the video input

displayed below it is connected

9 STATUS OUT

Labels Identifies a cross point between each audio output to which the audio input

displayed below it is connected

STATUS

AUDIO

STATUS IN

7-segment

Display

Displays the selected audio input switched to the output (marked above each

input). Also displays the firmware version number and the MACHINE #

11 VID Button When illuminated

actions relate to video

12 AFV Button When illuminated, the audio channels follow the video channels. The button is

illuminated when the AFV mode is selected

13 AUD Button When illuminated

actions relate to audio

14 STO Button Pressing STO (STORE) followed by an output button stores the current

setting

15 RCL Button Pressing RCL (RECALL) followed by an output button displays a stored

setup. Pressing the RCL button again implements the new status

16 TAKE Button Pressing TAKE toggles the mode between the CONFIRM mode

and the AT

ONCE mode (user confirmation per action is unnecessary). When in

CONFIRM mode, actions are confirmed by pressing the TAKE key

17 LOCK Button Disengages the front panel switches



1 The SELECTOR IN and OUT buttons also store/recall the input/output configurations (see section 7.5)

2 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

3 Refer to section 7.1

4 The VID button is illuminated when in breakaway mode and actions relate to video

5 The AUD button is illuminated when in breakaway mode and actions relate to audio

6 For example, press STO and then the Output button # 3 to store in Setup # 3

7 When in the CONFIRM mode, the TAKE button illuminates

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your UXGA / Audio Matrix Switcher

Table 2: Rear Panel VP-4x4xl 4x4 UXGA / Audio Matrix Switcher Features

# Feature Function

18 INPUT HD15F Connectors Connects to the VGA/XGA video sources (from 1 to 4)

19 AUDIO INPUTS Terminal

Block Connectors Connects to the balanced stereo audio sources (from 1 to 4)

20 OUTPUT HD15F Connectors Connects to the VGA/XGA video acceptors (from 1 to 4)

21 AUDIO OUTPUTS Terminal

Block Connectors Connects to the balanced stereo audio acceptors (from 1 to 4)

22 FLASH PROG. Button Push in for “Program” to upgrade to the latest Kramer firmware (see

section 8), or release for Normal (the factory default)

23 RS-485 Terminal Block Port Pins B (-) and A (+) are for RS-485; Pin G (Ground) may be connected to

the shield of the cable if desired (see the PINOUT in Figure 7)

24 RS-232 DB 9F Port Connects to the PC or the Remote Controller

25 REMOTE IR opening

Connects to an external IR receiver unit for controlling the machine via

an IR remote controller (instead of using the front panel IR receiver)

26 DELAY Dipswitches Dipswitches for setting the delay time

27 Setup Dipswitches Dipswitches for setup of the unit (DIP1, DIP 2 and DIP 3 are for setting

the machine #; DIP 4 is for RS-485 Termination)

28 Power Connector with Fuse AC connector enabling power supply to the unit

4.1 Using the IR Transmitter

You can use the RC-IR2 IR transmitter to control the machine via the built-in

IR receiver on the front panel or, instead, via an optional external IR receiver

The external IR receiver can be located 15 meters away from the machine.

This distance can be extended to up to 60 meters when used with three

extension cables

Before using the external IR receiver, be sure to arrange for your Kramer

dealer to insert the internal IR connection cable

with the 3.5mm connector

that fits into the REMOTE IR opening on the rear panel.

Connect the external IRreceiver to the REMOTE IR 3.5mm connector.



1 Covered by a cap. The 3.5mm connector at the end of the internal IR connection cable fits through this opening

2 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal

IR connection cable has been installed)

3 Model: C-A35M/IRR-50

4 Model: C-A35M/A35F-50

5 P/N: 505-70434010-S

Installing the VP-4x4xl on a Rack

5 Installing the VP-4x4xl on a Rack

This section describes what to do before installing on a rack and how to rack

mount.

Before installing on a rack, be sure that the environment is

within the recommended range:

Operating temperature range +5 to +45 Deg. Centigrade

5 to 65% RHL, non-condensing

-20 to +70 Deg. Centigrade

5 to 95% RHL, non-condensing

Operating humidity range

Storage temperature range

Storage humidity range

When installing on a 19" rack, avoid hazards by taking

care that:

It is located within the recommended environmental

conditions, as the operating ambient temperature of a

closed or multi unit rack assembly may exceed the

room ambient temperature.

Attach both ear brackets to the

machine. To do so, remove the

screws from each side of the machine

(3 on each side), and replace those

screws through the ear brackets.

Place the ears of the machine

against the rack rails, and insert the

proper screws (not provided) through

each of the four holes in the rack

ears.

Note that:

Detachable rack ears can be removed

for desktop use

Always mount the machine in the rack

before you attach any cables or

connect the machine to the power

If you are using a Kramer rack adapter

kit (for a machine that is not 19"), see

the Rack Adapters user manual for

installation instructions (you can

download it at:

http://www.kramerelectronics.com)



In some models, the front panel

may feature built-in rack ears

Once rack mounted, enough air will still flow around the

machine.

The machine is placed straight in the correct horizontal

position.

You do not overload the circuit(s). When connecting

the machine to the supply circuit, overloading the

circuits might have a detrimental effect on overcurrent

protection and supply wiring. Refer to the appropriate

nameplate ratings for information. For example, for

fuse replacement, see the value printed on the product

label.

The machine is earthed (grounded) in a reliable way

and is connected only to an electricity socket with

grounding. Pay particular attention

and that you use only the power cord that is

supplied with the machine.

to situations where

electricity is supplied indirectly (when the power cord is

not plugged directly into the socket in the wall), for

example, when using an extension cable or a power

strip,



CAUTION!!

Before Installing on a Rack

How to Rack Mount

To rack-mount a machine:

Inhaltsverzeichnis

Andere Kramer Matrix-Umschalter Handbücher

Kramer

Kramer Sierra Pro XL 1208V3 Bedienungsanleitung

Kramer

Kramer Sierra Viddeo 84V3S Bedienungsanleitung

Kramer

Kramer Sierra Video 1208V3S Bedienungsanleitung

Kramer

Kramer VP-8x8 Bedienungsanleitung

Kramer

Kramer VSM-4x4HFS Bedienungsanleitung

Kramer

Kramer VS-48HDCPxI Bedienungsanleitung

Kramer

Kramer VS-84HDCPxl Bedienungsanleitung

Kramer

Kramer VP-885 Bedienungsanleitung

Kramer

Kramer VP-4x4K Bedienungsanleitung

Kramer

Kramer XL 1204V2S Bedienungsanleitung

Kramer

Kramer AFM-20DSP-AEC Bedienungsanleitung

Kramer

Kramer VS-88HC Bedienungsanleitung

Kramer

Kramer Sierra Video 3216V3 Bedienungsanleitung

Kramer

Kramer 88V5S Bedienungsanleitung

Kramer

Kramer VS-84H Bedienungsanleitung

Kramer

Kramer VP-719DS Bedienungsanleitung

Kramer

Kramer VP-16X18AK/110V Bedienungsanleitung

Kramer

Kramer VP-4x4K Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1208V3S Bedienungsanleitung

Kramer

Kramer VP-8x8TP Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1608V3S Bedienungsanleitung

Kramer

Kramer VS-88A Bedienungsanleitung

Kramer

Kramer VP-32K Bedienungsanleitung

Kramer

Kramer MTX3-16-M Bedienungsanleitung

Beliebte Matrix-Umschalter Handbücher anderer Marken

Broadcast Tools

Broadcast Tools SS 8.2 Bedienungsanleitung

Altimium

Altimium MATF32 Bedienungsanleitung

ALFAtron

ALFAtron ALF-MUK44N Bedienungsanleitung

Monoprice

Monoprice Blackbird 15377 Bedienungsanleitung

PTN

PTN FMX12 Bedienungsanleitung

CYP

CYP nT15GX01 Bedienungsanleitung

TESmart

TESmart HMA0402A40 Bedienungsanleitung

Octava

Octava HD4XSTPMX Bedienungsanleitung

Intelix

Intelix FLX-88 Betriebsanleitung

Roland

Roland XS-1HD Bedienungsanleitung

Atlona

Atlona AT-HDMI-22M Bedienungsanleitung

Link

Link HD8X8 Bedienungsanleitung

AMX

AMX AVS-OP-2020-117 Anleitungen und Rezepte

Lindy

Lindy 38042 Bedienungsanleitung

Extron electronics

Extron electronics MTPX Plus Series Bedienungsanleitung

Key Digital

Key Digital Champion KD-16x16CS Bedienungsanleitung

Shinybow USA

Shinybow USA SB-8811 Bedienungsanleitung

Optimus

Optimus Compact Bedienungsanleitung
