Kramer FC-340 Bedienungsanleitung

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

FC-340

SDI Scaler/Embedder/Scan

Converter

P/N: 2900-000768 Rev 5

FC-340 –Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

4Defining the FC-340 5

5Installing the FC-340 in a Rack 7

6Connecting the FC-340 8

6.1 Connecting a Serial Controller to the FC-340 9

6.2 Connecting to the FC-340 via Ethernet 9

6.3 Connecting the Balanced/Unbalanced Stereo Audio Output 12

7Operating the FC-340 13

7.1 Changing the Output Resolution 13

7.2 Using the Menu 14

7.3 Resetting the Device to Factory Default Configuration 16

7.4 Locking and Unlocking the Front Panel 17

7.5 Updating the Firmware Using the K-Upload Software 17

8Technical Specifications 18

9Default Parameters 19

9.1 Default Communication Parameters 19

10 Kramer Protocol 20

10.1 Protocol 3000 Syntax 20

10.2 Command Part Details 21

10.3 Kramer Protocol 3000 Commands 22

Figures

Figure 1: FC-340 SDI Scaler/Embedder/Scan Converter Front Panel 5

Figure 2: FC-340 SDI Scaler/Embedder/Scan Converter Rear Panel 6

Figure 3: Connecting the FC-340 SDI Scaler/Embedder/Scan Converter 8

Figure 4: Local Area Connection Properties Window 10

Figure 5: Internet Protocol (TCP/IP) Properties Window 11

Figure 6: Balanced Stereo Audio Connection 12

Figure 7: Unbalanced Stereo Audio Connection 12

FC-340 - Getting Started

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your FC-340 SDI Scaler/Embedder/Scan

Converter which is ideal for broadcast and production studios as well as digital

and analog AV authoring.

FC-340 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer FC-340 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall

before installing

FC-340 - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

FC-340 - Overview

3 Overview

The FC-340 SDI Scaler/Embedder/Scan Converter is ideal as a broadcast-quality

video scaler and audio embedder/de-embedder for digital signals up to 3G

HD-SDI.

All mentions of SDI in this manual include signals up to and including 3G HD-SDI.

The FC-340 features:

A maximum data rate of 3Gpbs

1 SDI video input and 2 SDI video outputs

1 re-clocked, looping video output

1 composite video output

2 balanced audio outputs

2 AES/3id audio inputs and 2 AES/3id audio outputs

Note: Some machines may have AES/EBU printed instead of

AES-3id.

The option to select either the embedded audio or to embed two

independent audio groups

Kramer reKlocking™ & Equalization Technology that rebuilds the digital

signal to travel longer distances

An LCD text display for easy configuration and operation

4 Defining the FC-340

Figure 1 defines the front panel of the FC-340.

Figure 1: FC-340 SDI Scaler/Embedder/Scan Converter Front Panel

Feature

Function

LCD Readout

Displays either the input/output resolution currently selected or the menu during

configuration

Menu Navigation Buttons

Press the Enter, up (▲), down (▼), left (◄) and right (►) buttons to navigate the

menu, and modify parameters or values (see Section 7.2)

PANEL LOCK Button

Press and hold to lock the front panel buttons. Press and hold again to unlock the

buttons (see Section 7.4)

ESC Button

Press to move back one level through the menu (see Section 7.2)

Figure 2 defines the rear panel of the FC-340.

FC-340 –Overview

Figure 2: FC-340 SDI Scaler/Embedder/Scan Converter Rear Panel

Feature

Function

ANALOG OUTPUT

CV BNC Video Connector

Connect to a composite video acceptor (see the Note in Section 7.1)

Audio 15-pin Terminal Block

Connect to a balanced audio acceptor (see Section 6)

Audio 25-pin Terminal Block

Connect to a balanced audio acceptor

RS-232 3-pin Serial Port Terminal Block

Connect to a serial controller (see Section 6.1)

ETHERNET RJ-45 Connector

Connect to a PC controller via a LAN (see Section 6.2)

IN SDI BNC Connector

Connect to an SDI signal source

LOOP BNC Connector

Connect to an SDI acceptor

OUT 1 BNC Connector

Connect to an SDI acceptor

OUT 2 BNC Connector

Connect to an SDI acceptor

RESET Button

Press and hold while switching on the device to reset to factory default

parameters (see Section 9)

AES/3id

(AES/EBU in

some machines)

IN 1 BNC Connector

Connect to an AES/3id audio source

IN 2 BNC Connector

Connect to an AES/3id audio source

OUT 1 BNC Connector

Connect to an AES/3id audio acceptor

OUT 2 BNC Connector

Connect to an AES/3id audio acceptor

AC Mains

Power Socket

Connect the mains power cord

Fuse

AC mains supply protection fuse

Power Switch

Turns the device on and off

FC-340 –Defining theFC-340

FC-340 - Installing the FC-340 in a Rack

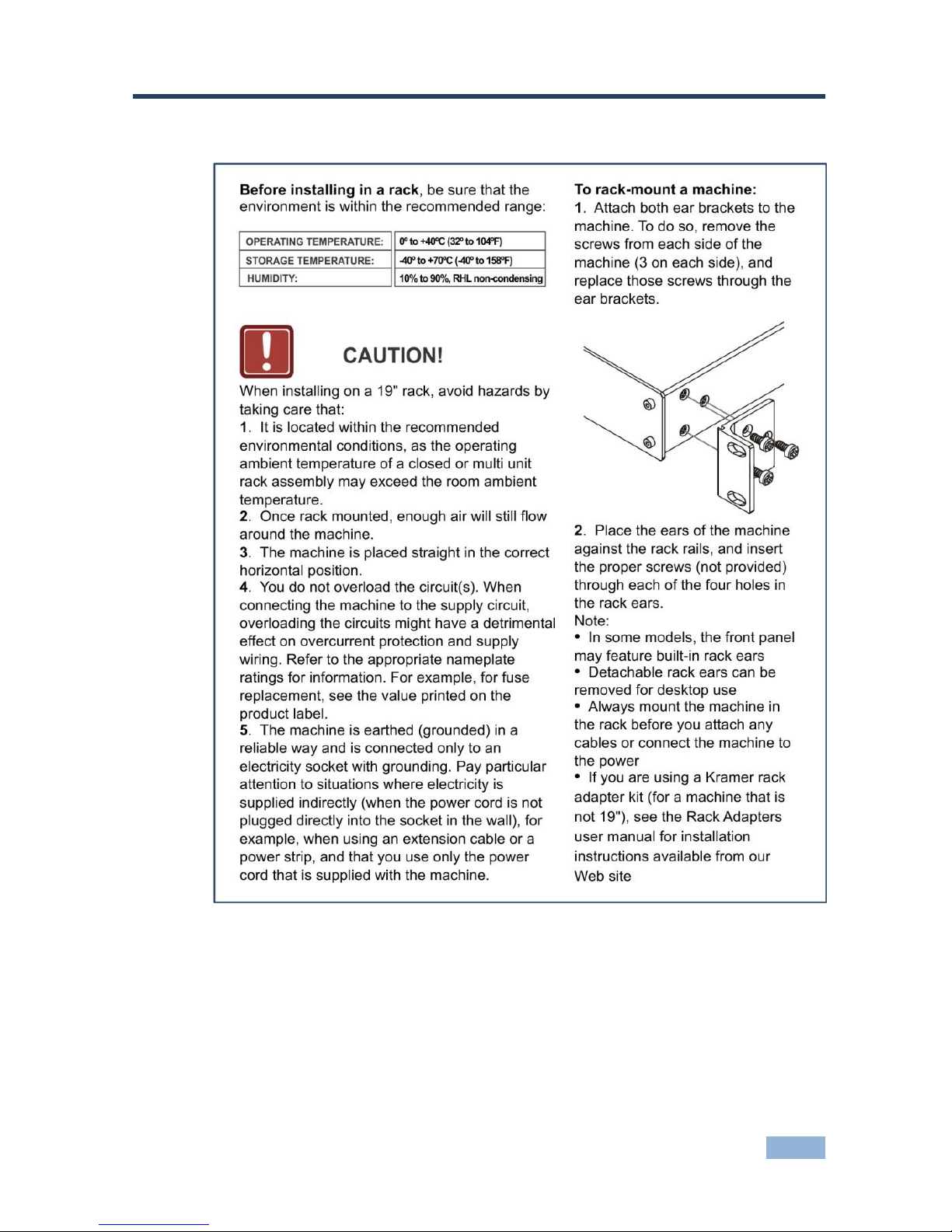

5 Installing the FC-340 in a Rack
