Kramer Electronics, Ltd.

Preliminary

USER MANUAL

Models:

VP-501xl, UXGA Scan Converter

VP-502xl, UXGA/HD Scan Converter

Contents

1Introduction 1

2Getting Started 1

3Overview 2

4Your VP-501xl 3

5Your VP-502xl 4

6Connecting the VP-501xl 5

7Connecting the VP-502xl 6

8Operating the VP-501xl/VP-502xl 7

8.1 Using the Quick-Set Buttons 8

8.1.1 Using the AUTO IMAGE Button 8

8.1.2 Using the FREEZE Button 8

8.1.3 Using the OS/US Button 8

8.2 Adjusting the Display via the Menu Buttons 9

8.3 Using the Menu 9

8.4 Using Test Patterns 10

8.5 Saving and Recalling 10

8.5.1 Saving When Exiting the Menu 11

8.5.2 Recalling a Setup 11

8.6 Setting the DIP-Switches 12

9Technical Specifications 13

Figures

Figure 1: VP-501xl UXGA Scan Converter 3

Figure 2: VP-502xl UXGA/HD Scan Converter 4

Figure 3: Connecting the VP-501xl 5

Figure 4: Connecting the VP-502xl 6

Figure 5: VP-502xl Alternate Connection 7

Figure 6: Over-scanned and Under-scanned images 8

Figure 7: Test Pattern Number 1 10

Figure 8: VP-501xl DIP-Switches 12

Figure 9: VP-502xl DIP-Switches 12

Tables

Table 1: VP-501xl Features 3

Table 2: VP-502xl Features 4

Table 3: VP-501xl/VP-502xl Menu Items 9

Table 4: VP-501xl DIP-Switch Settings 12

Table 5: VP-502xl DIP-Switch Settings 12

Table 6: Technical Specifications of the VP-501xl/VP-502xl 13

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups1

Thank you for purchasing the Kramer VP-501xl UXGA Scan

Converter/VP-502xl UXGA/HD Scan Converter. This product is ideal for:

that are clearly

defined by function.

•Multimedia, board rooms, and video conferencing

•Any application where high quality conversion of graphical data

signals to video signals is required

•Set-top box and HD conversion to SD video (VP-502xl)

The package includes the following items:

•VP-501xl UXGA Scan Converter or VP-502xl UXGA/HD Scan

Converter

•Power adapter (12V DC Input)

•This user manual2

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high performance high-resolution cables3

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

The Kramer VP-501xl is a high-quality scan converter for down-scaling

computer graphics (VGA up to UXGA) to PAL or NTSC video.

The Kramer VP-502xl is a high-quality scan converter for down-scaling

computer graphics and HD to PAL or NTSC video. It supports VGA up to

UXGA, as well as the HD resolutions: 480p, 576p, 720p and 1080i. The

input color space (RGB or YUV) is selected via a DIP-switch1

The high quality VP-501xl/VP-502xl features:

•User-friendly front panel buttons for easy control of ProcAmp

functions, flicker-reduction, image optimization, one-touch

freezing, over-scanning and under-scanning

•Memory locations to save and recall up to four setups, including

picture setup2

•Simultaneous high-quality composite video and s-Video (Y/C)

, input setup and output setup, zoom and advanced

features

•Selectable the video standard (PAL or NTSC)

•An external 12V DC source

To achieve the best performance:

•Connect only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching,

and elevated noise- levels (often associated with low quality

cables)

•Avoid interference from neighboring electrical appliances and

position your Kramer VP-501xl/VP-502xl away from moisture,

excessive sunlight and dust

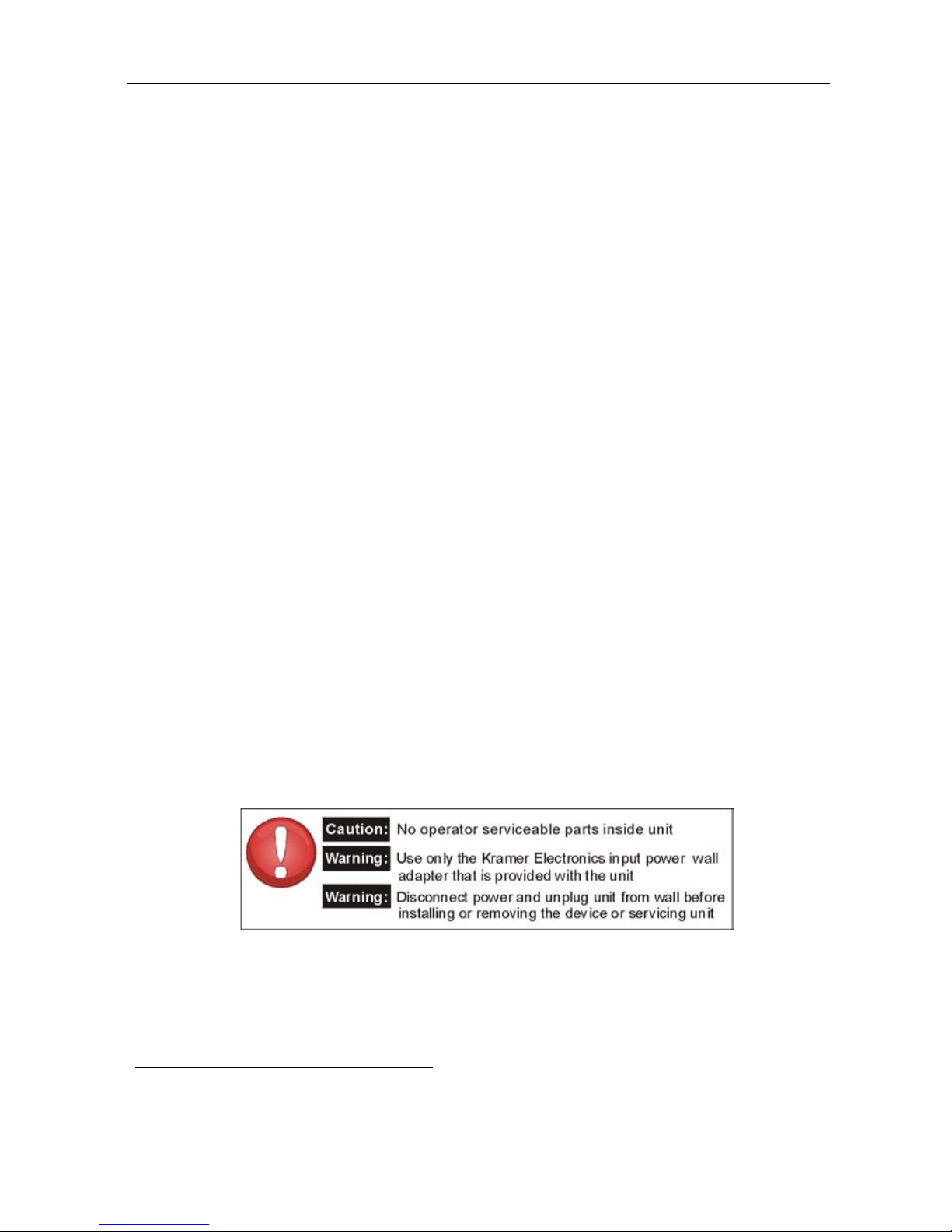

1 See section 8.6

2 Brightness, contrast, saturation and flicker filter

Your VP-501xl

4 Your VP-501xl

Figure 1and Table 1describe the VP-501xl.

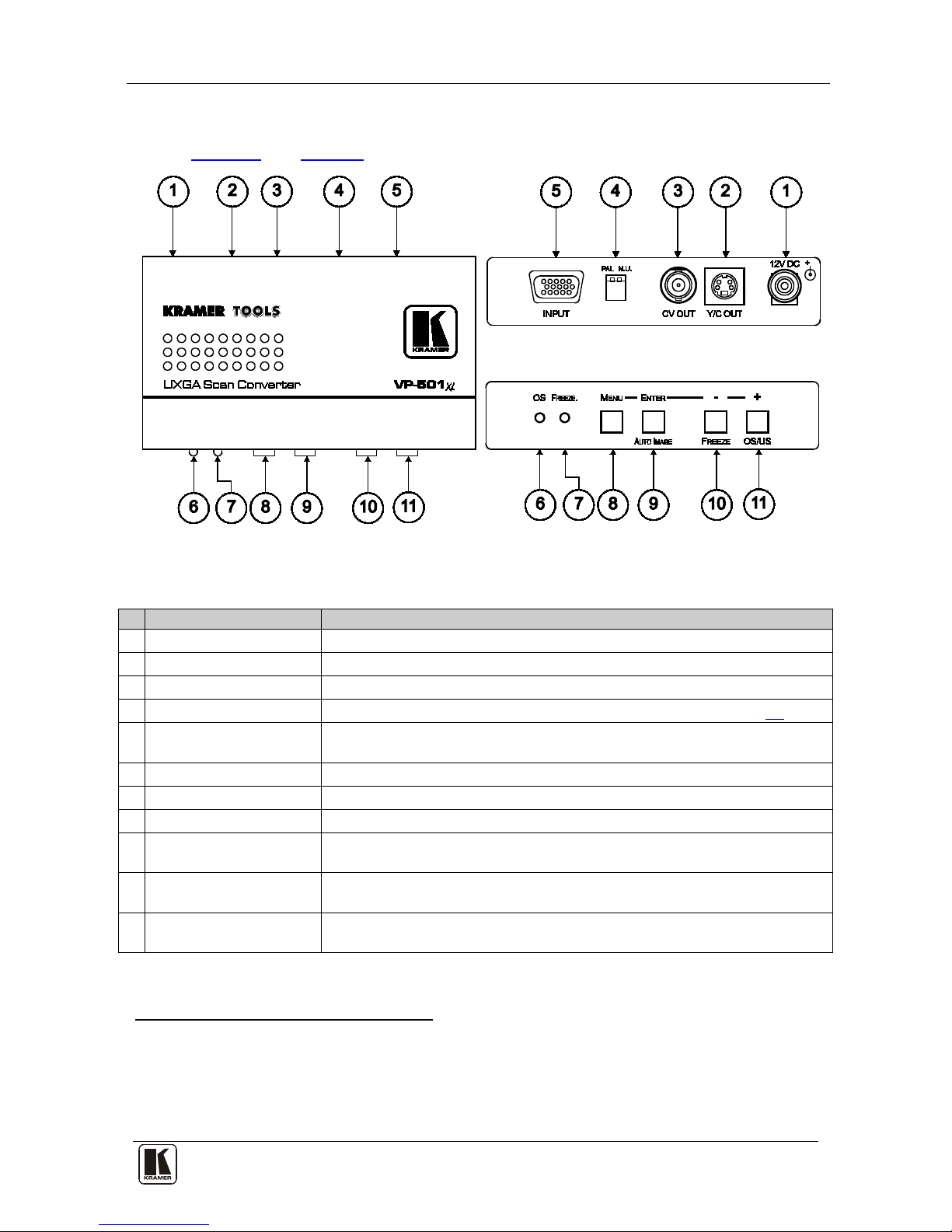

Figure 1: VP-501xl UXGA Scan Converter

Table 1: VP-501xl Features

Feature

Function

1 12V DC +12V DC connector for powering the unit

2 Y/C OUT 4-pin Connector Connect to the s-Video acceptor

3 CV OUT BNC Connector Connect to the composite video acceptor

4 PAL DIP-switch Select the video standard (ON for PAL, OFF for NTSC) (see section 8.6)

5 INPUT 15-pin HD

Connector Connect to the computer graphics source

6 OS LED Lights when the image is over-scanned1

FREEZE. LED Lights when the FREEZE button is pressed

8 MENU Button Press to enter the menu and adjust the Scan Converter features

9 ENTER / AUTO IMAGE

Button2Press ENTER to accept the settings; press AUTO IMAGE to acquire optimal

screen display

10 - / FREEZE Button2Press - to scroll down the menu; press FREEZE to freeze the video image

and features. Press again to disable

11 + / OS/US Button2Press + to scroll up the menu; press OS/US to toggle between over-scan1and

under-scan3

1 The displayed image, when set correctly, is larger than the screen

2 This button has dual functionality. When in the MENU mode, it functions according to the labeling above the button. When

not in the MENU mode, the labeling below the button takes precedence

3 The image is smaller than the screen, leaving a border around the image

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-502xl

5 Your VP-502xl

Figure 2and Table 2describe the VP-502xl.

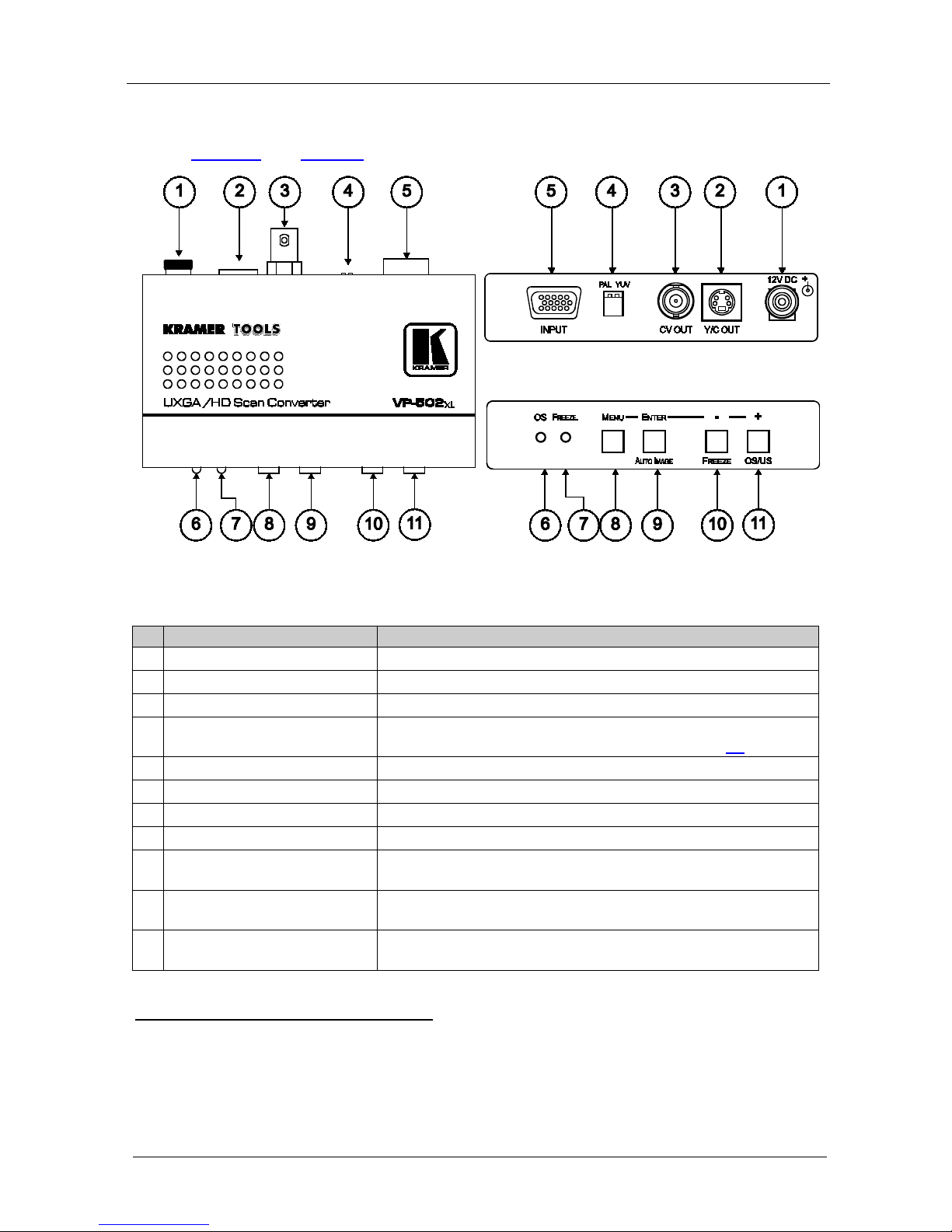

Figure 2: VP-502xl UXGA/HD Scan Converter

Table 2: VP-502xl Features

Feature

Function

1 12V DC +12V DC connector for powering the unit

2 Y/C OUT 4-pin Connector Connect to the s-Video acceptor

3 CV OUT BNC Connector Connect to the composite video acceptor

4 YUV, PAL DIP-switches Select the video standard (ON for PAL, OFF for NTSC) and the

color space (ON for YUV, OFF for RGB) (see section 8.6)

5 INPUT 15-pin HD Connector Connect to the computer graphics or HD source

6 OS LED Lights when the image is over-scanned1

FREEZE. LED Lights When the FREEZE button is pressed

8 MENU Button Press to enter the menu and adjust the Scan Converter features

9 ENTER / AUTO IMAGE

Button2Press ENTER to accept settings; press AUTO IMAGE to acquire

optimal screen display

10 - / FREEZE Button Press - to scroll down the menu; press FREEZE to freeze video

image and features. Press again to disable

11 + / OS/US Button Press + to scroll up the menu; press OS/US to toggle between

over-scan3 and under-scan3

1 The displayed image, when set correctly, is larger than the screen

2 This button has dual functionality. When in the MENU mode, it functions according to the labeling above the button. When

not in the MENU mode, the labeling below the button takes precedence

3 The image is smaller than the screen, leaving a border around the image

Connecting the VP-501xl

6 Connecting the VP-501xl

To connect your VP-501xl as the example in Figure 3illustrates, do the

following1

1. Connect a computer graphics source to the 15-pin HD INPUT connector.

2. Connect the Y/C OUT 4-pin connector to the Y/C acceptor (for example, an

s-Video recorder) and/or the CV OUT BNC connector to the CV acceptor

(for example, a composite video recorder).

3. Set the DIP-switches (see section 8.6).

4. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

Adjust the scan converter features if required (see section 8.3).

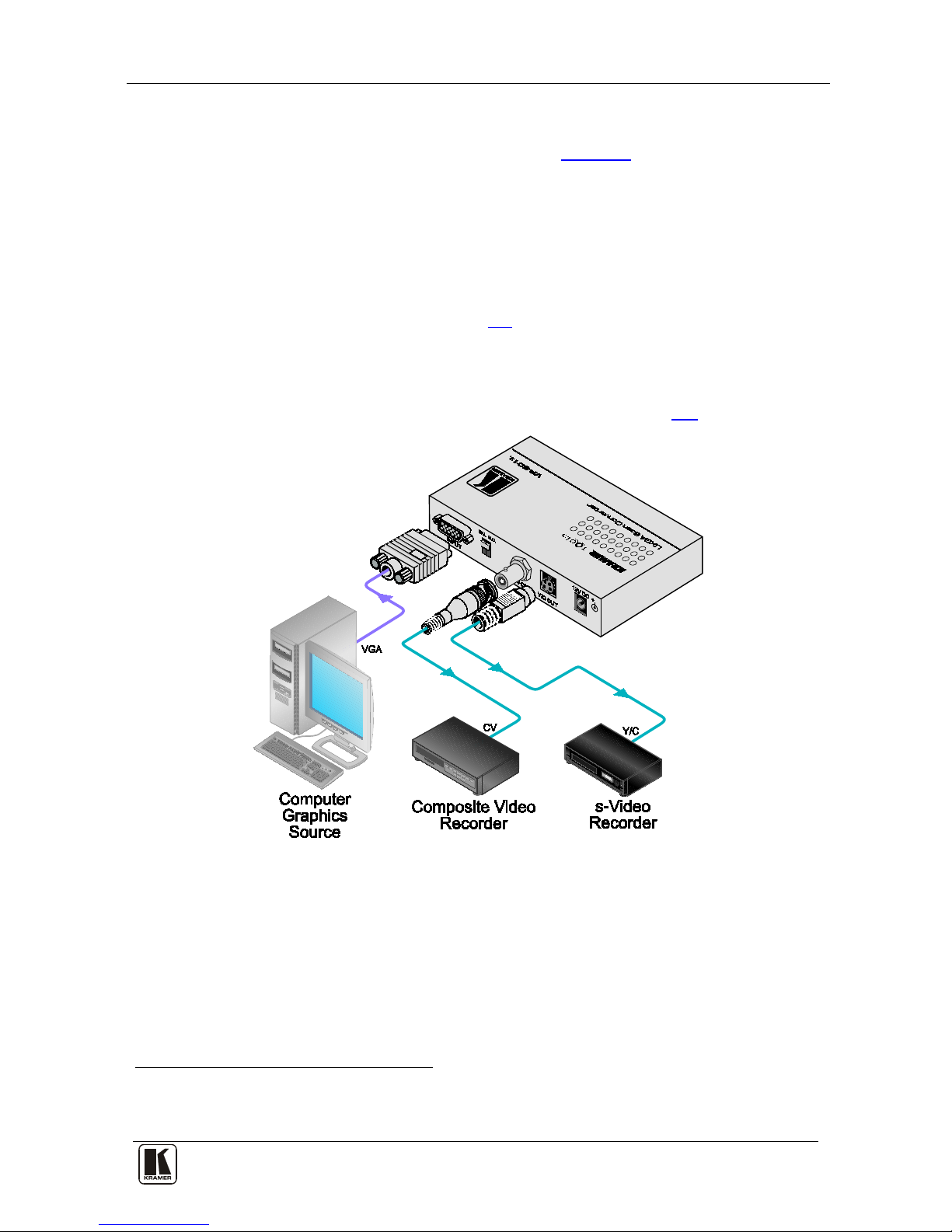

Figure 3: Connecting the VP-501xl

1 Switch OFF the power on each device before connecting it to your VP-501xl. After powering up your VP-501xl, switch on

the power on each device.

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the VP-502xl

7 Connecting the VP-502xl

To connect your VP-502xl as the example in Figure 4illustrates, do the

following1

1. Connect a computer graphics source to the 15-pin HD INPUT connector

(for example, a PC as shown in

Figure 4), or alternatively,

connect a high definition source2to the 15-pin HD INPUT connector (for

example, a set top box as shown in Figure 5).

2. Connect the Y/C OUT 4-pin connector to the Y/C acceptor (for example, an

s-Video recorder) and/or the CV OUT BNC connector to the CV acceptor

(for example, a composite video recorder).

3. Set the DIP-switches (see section 8.6).

4. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

Adjust the scan converter features if required (see section 8.3).

Figure 4: Connecting the VP-502xl

1 Switch OFF the power on each device before connecting it to your VP-502xl. After powering up your VP-502xl, switch on

the power on each device

2 To connect a high definition source, use a breakout cable such as the Kramer C-GM/3RVF. If you have a VGA to a 5BNC

cable, use the RGB wires only

Operating the VP-501xl/VP-502xl

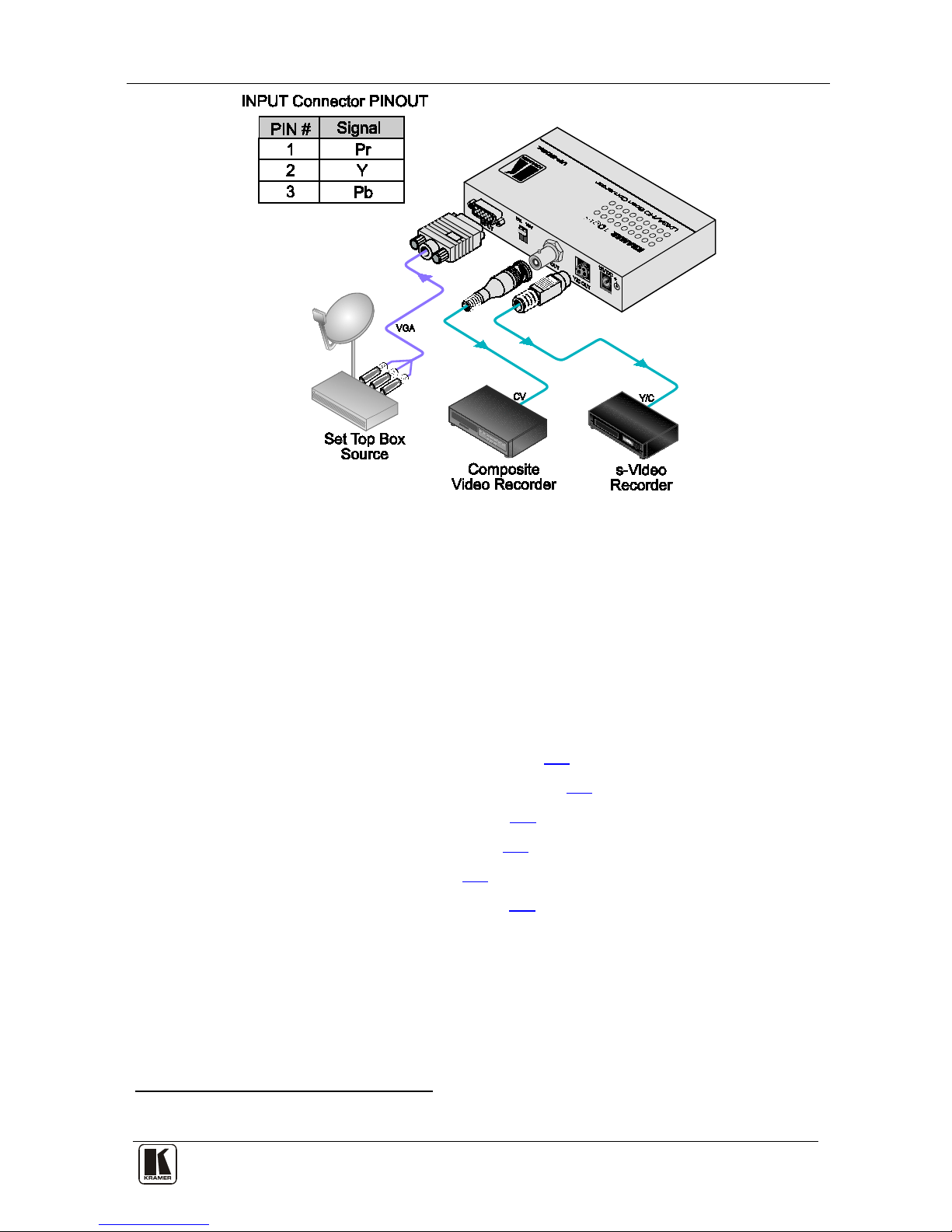

Figure 5: VP-502xl Alternate Connection

8 Operating the VP-501xl/VP-502xl

You can operate your VP-501xl/VP-502xl via the front panel buttons,

which are dual-purpose buttons1

•Quick-set buttons: AUTO IMAGE, FREEZE and OS/US; or

that function as:

•Menu buttons: MENU, ENTER, – and +

This section describes how to:

•Use the quick set buttons (see section 8.1)

•Use the set of menu buttons (see section 8.2)

•Use the Menu screen (see section 8.3)

•Use the test patterns (see section 8.4)

•Save and recall (see section 8.5)

•Set the DIP-switches (see section 8.6)

1 Except for the MENU button

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Operating the VP-501xl/VP-502xl

8.1 Using the Quick-Set Buttons

The following sub-sections describe the VP-501xl and VP-502xl quick set

buttons.

8.1.1 Using the AUTO IMAGE Button

The VP-501xl/VP-502xl assesses the image and improves the quality, by

automatically adjusting the phase, frequency and position, when the AUTO

IMAGE button is pressed.

For example, if your computer application switches resolutions (and frequency),

press the AUTO IMAGE button to automatically improve the picture quality.

8.1.2 Using the FREEZE Button

Press the FREEZE button to freeze the picture on the screen. The frozen picture

is displayed regardless of the signal on the input to the unit. This allows you, for

example, to change the programs on the PC, and set up the next image.

By pressing the FREEZE button again, the frozen image will be replaced by

the most current image on the input to the unit.

8.1.3 Using the OS/US Button

Press the OS/US button to toggle between over-scan and under-scan:

•Over-scan omits the border. The displayed image, when set

correctly, is larger than the screen1

•Under-scan (sometimes know as the Compress mode) leaves a

border around the image

Over-scan Under-scan

Figure 6: Over-scanned and Under-scanned images

1 Making the data bigger and easier to read but running the risk of having some of it run off the edge of the screen

2 The image appears reduced in size with a margin around it so that none of the data gets lost

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kramer Medienkonverter Handbücher

Kramer

Kramer VCO-1 Bedienungsanleitung

Kramer

Kramer FC-69 Bedienungsanleitung

Kramer

Kramer OC-1N Bedienungsanleitung

Kramer

Kramer VM-100CB Bedienungsanleitung

Kramer

Kramer DigiTOOLS 6410N Bedienungsanleitung

Kramer

Kramer VP-482 Bedienungsanleitung

Kramer

Kramer VP-413XL Bedienungsanleitung

Kramer

Kramer VW-16 Bedienungsanleitung

Kramer

Kramer FC-340 Bedienungsanleitung

Kramer

Kramer VM-24HC Bedienungsanleitung

Kramer

Kramer DigiTOOLS VM-2HDMI Bedienungsanleitung

Kramer

Kramer VP-429H2 Bedienungsanleitung

Kramer

Kramer VP-481 Bedienungsanleitung

Kramer

Kramer VP-773AMP Bedienungsanleitung

Kramer

Kramer VP-409 Bedienungsanleitung

Kramer

Kramer VM-127 Bedienungsanleitung

Kramer

Kramer VP-427H2 Bedienungsanleitung

Kramer

Kramer VP-475UX Bedienungsanleitung

Kramer

Kramer FC-5000 Bedienungsanleitung

Kramer

Kramer VM-3A Bedienungsanleitung

Kramer

Kramer VP-483 Bedienungsanleitung

Kramer

Kramer VM-1610 Bedienungsanleitung

Kramer

Kramer VP-791 Bedienungsanleitung

Kramer

Kramer VP1 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
