KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

KDS-EN1

HD Video Encoder/Streamer

P/N: 2900-300150 Rev 3

KDS-EN1 – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Recycling Kramer Products 3

3Overview 4

4Defining the KDS-EN1 HD Video Encoder/Streamer 5

5Installing the KDS-EN1 in a Rack 7

6Connecting the KDS-EN1 8

6.1 Connecting to the KDS-EN1 via Ethernet 9

6.2 Connecting the Balanced/Unbalanced Stereo Audio Input 11

7Operating the KDS-EN1 Using the Front Panel Buttons 13

7.1 Unlocking the Front Panel Buttons 13

7.2 Using the Menu 13

7.3 Changing the Video Input Selection 17

7.4 To Reset the Device to Factory Default Configuration 17

8Operating the KDS-EN1 Using the Web Pages 19

8.1 Accessing the KDS-EN1 Web Pages 19

9Technical Specifications 26

10 Default Communication Parameters 27

11 Default EDID 28

Figures

Figure 1: KDS-EN1 HD Video Encoder/Streamer Front Panel 5

Figure 2: KDS-EN1 HD Video Encoder/Streamer Rear Panel 6

Figure 3: Connecting the KDS-EN1 HD Video Encoder/Streamer 8

Figure 4: Local Area Connection Properties Window 10

Figure 5: Internet Protocol (TCP/IP) Properties Window 11

Figure 6: Balanced Stereo Audio Connection 12

Figure 7: Unbalanced Stereo Audio Connection 12

Figure 8: Web Browser Address Bar 19

Figure 9: Home Page 20

Figure 10: Video Parameters Page 20

Figure 11: Audio Parameters Page 21

Figure 12: System Parameters Page 22

Figure 13: TS IP Parameters Page 23

Figure 14: Host IP Parameters Page 23

Figure 15: System Information Page 24

Figure 16: Save Default Confirmation Message 24

Figure 17: Load Default Confirmation Message 25

Figure 18: Restore Initial Settings Confirmation Message 25

Figure 19: Software Upgrade Page 25

KDS-EN1 - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your KDS-EN1 HD Video Encoder/Streamer which

is ideal for broadcast and production studios as well as digital/analog AV

authoring.

2 KDS-EN1 - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Use Kramer high performance, high resolution cables

•Use only the power cord supplied with the device

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs and to check whether firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer KDS-EN1 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

KDS-EN1 - Getting Started 3

2.2 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 KDS-EN1 - Overview

3 Overview

The KDS-EN1 HD Video Encoder/Streamer is ideal as a broadcast quality video

scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI,

composite and component video signals, HDMI and balanced audio signals, which

are output as an IP stream and as a DVB-ASI signal.

All mentions of SDI in this manual include signals up to and including 3G HD-SDI.

Note: If the content is protected by HDCP, the stream is not encoded.

The KDS-EN1 features:

•A maximum data rate of 3Gpbs

•One SDI video, one HDMI, one composite and one component video input

•One balanced, stereo audio input

•One TCP/IP output

•Two ASI outputs

•The option to select either the embedded audio or to embed two

independent audio groups

•An LCD text display for easy configuration and operation

4 Defining the KDS-EN1 HD Video Encoder/Streamer

Figure 1defines the front panel of the KDS-EN1.

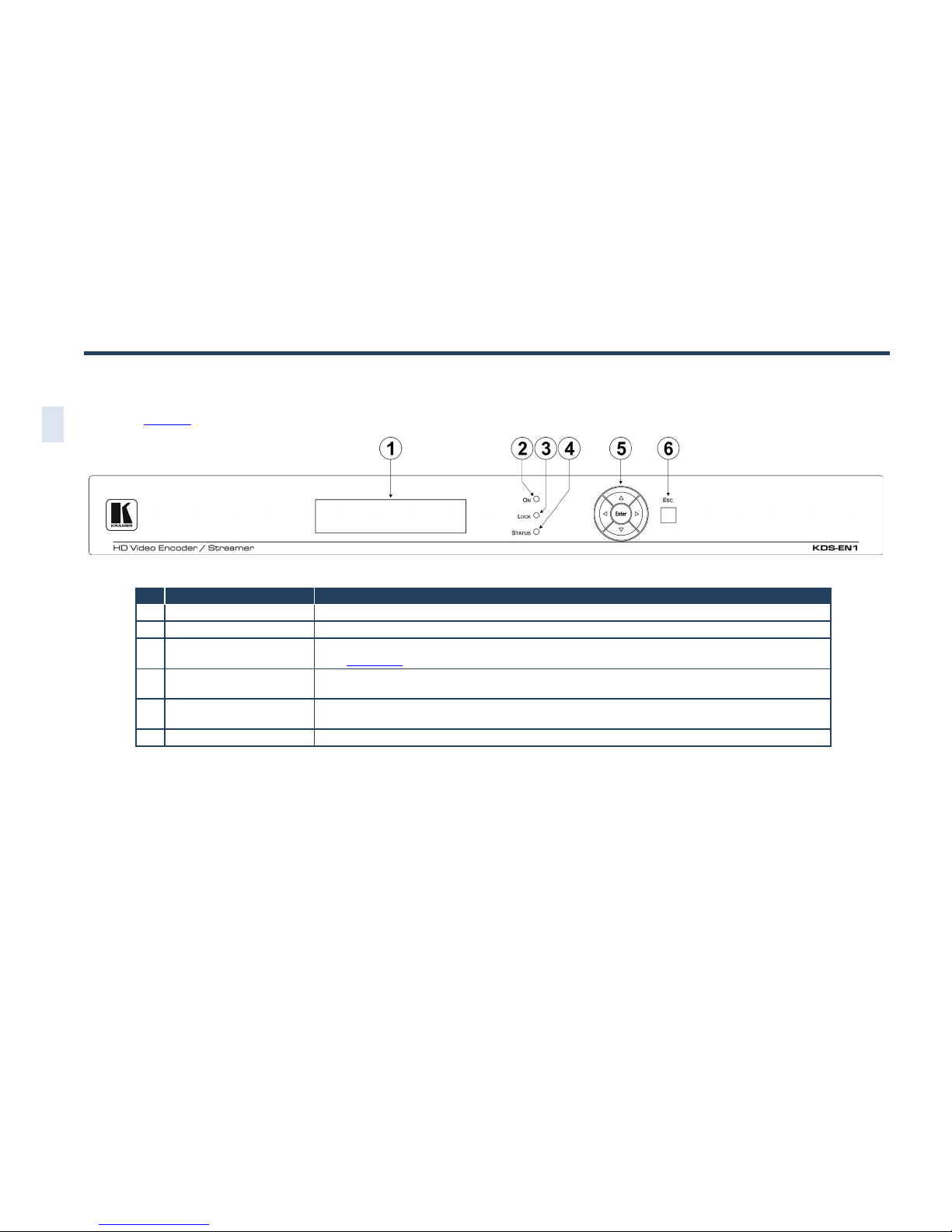

Figure 1: KDS-EN1 HD Video Encoder/Streamer Front Panel

# Feature Function

1 LCD Readout Displays either the input/output resolution currently selected or the menu during configuration

2 ON LED Lights green when the device is powered on

3 LOCK LED Lights orange when the front panel buttons are locked. Lights green when the buttons are unlocked

(see Section 7.1)

4 STATUS LED Lights green to indicate that the device is working correctly and that there is a valid input signal.

Lights red to indicate a device fault or if there is no valid input signal

5 Menu Navigation Buttons Press the Enter, up (▲), down (▼), left (◄) and right (►) buttons to navigate the menu, and modify

parameters or values

6 ESC Button Press to move back one level through the menu

5KDS-EN1 – Defining the KDS-EN1 HD Video Encoder/Streamer

Figure 2defines the rear panel of the KDS-EN1.

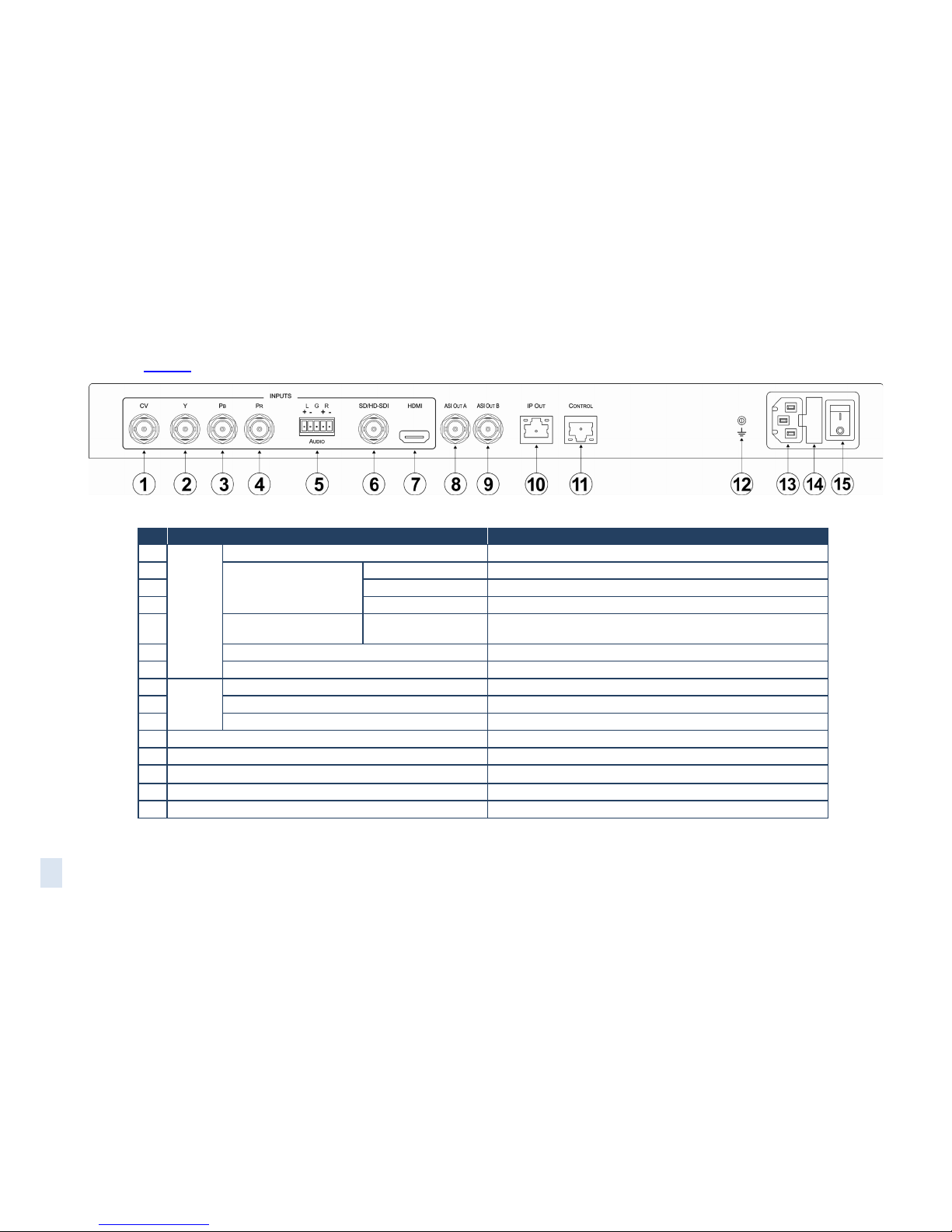

Figure 2: KDS-EN1 HD Video Encoder/Streamer Rear Panel

# Feature Function

INPUTS

CV BNC Connector Connect to a composite video source

Component Video

YBNC Connector Connect to the Y component of the component video source

3 PB BNC Connector Connect to the Pb component of the component video source

4 PR BNC Connector Connect to the Pr component of the component video source

5 AUDIO Balanced Stereo

Audio Connector

5-Pin Terminal Block Connect to the balanced, stereo audio source

6 SDI/HD-SDI BNC Connector Connect to the SDI source

7 HDMI Connector Connect to the HDMI source

Outputs

ASI OUT A BNC Connector Connect to the first ASI acceptor

9 ASI OUT B BNC Connector Connect to the second ASI acceptor

10 IP OUT RJ-45 Connector Connect to the IP acceptor

11 CONTROL RJ-45 Connector Connect to the PC controller via a LAN

12 Grounding Terminal Connect to the common system ground

13 Power Socket Connect the mains power cord

14 Fuse AC mains supply protection fuse

15 Power Switch Turn the device on and off

KDS-EN1 – Defining the KDS-EN1 HD Video Encoder/Streamer 6

KDS-EN1 - Installing the KDS-EN1 in a Rack 7

5 Installing the KDS-EN1 in a Rack

This section provides instructions on rack mounting the KDS-EN1.
