Levenhuk DTX 90 Bedienungsanleitung

Levenhuk DTX 90

MEGA

PIXELS

USB 2.0

300x

Digital Microscope

User Guide

EN CZ PL RU

Levenhuk DTX

www.levenhuk.com

DTX 30

DTX 50

DTX 90

DTX 500 Mobi

DTX 500 LCD

Software

Photo/video capturing

and micromeasuring software

for Levenhuk Digital Microscopes

+ user manuals

Windows/Mac

Цифровой микроскоп

Levenhuk DTX 90

Инструкция по эксплуатации

MEGA

PIXELS

USB 2.0

300x

Levenhuk DTX 90

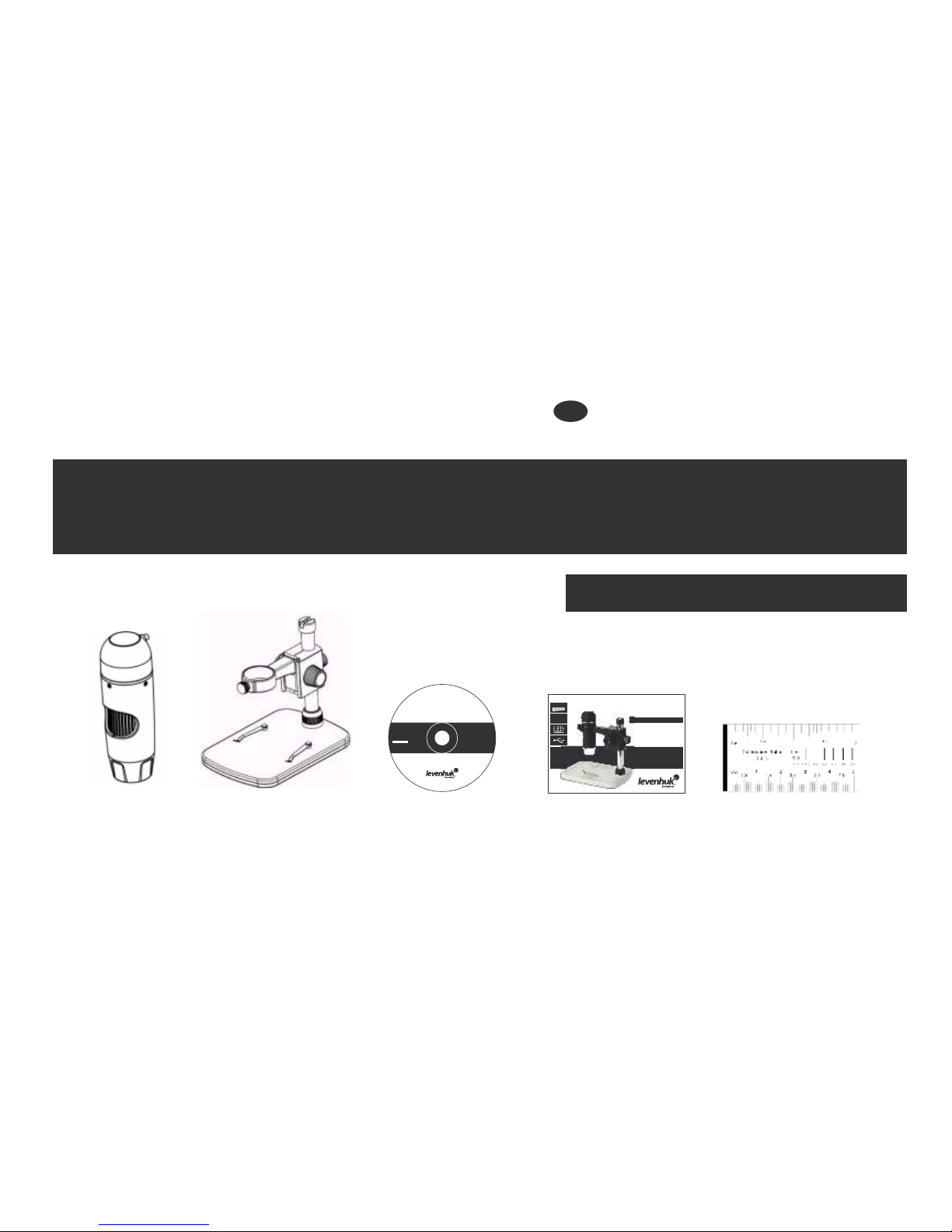

The kit includes

Digital microscope

Never, under any circumstances, look directly at the Sun, another bright source of light

or at a laser through this device, as this may cause PERMANENT RETINAL DAMAGE

and may lead to BLINDNESS.

Microscope Mount Levenhuk DTX

installation CD

User Guide Calibration scale

Microscope parts

6. Mount locking ring

7. Shutter button (works in MS Windows only)

8. B rightness adjustment wheel

9. USB cable

10. Stage

1. Coarse focus knob

2. Focus lock knob

3. Fine focus knob

4. Mount arm locking knob

5. Locking screw

Microscope assembly

Take the microscope and all accessories out of the package. Place the stage on a stable surface.

Attach the mount locking ring (6) to the metal tube of the mount. Insert the metal tube into

the opening on the stage and lock it in place with the ring (6).

Insert the microscope into the clamp on the mount arm and tighten the locking screw (5).

Tighten the locking knob (4) to lock the mount arm in place.

Focusing

Place a specimen on the stage and use the coarse focus knob (1) to focus your view.

Use the fine focus knob (3) for maximum precision and sharpness.

Upon focusing your view, tighten the focus lock knob (2) to lock the results.

PortableCapture Pro software

Software installation

Insert the installation CD into your CD drive. The Main Menu window will be displayed. Select

PortableCapture software to install the PortableCapture Pro application. Keep in mind that a system

restart will be required during installation.The installation CD contains a copy of this User Guide,

which you can read by clicking the corresponding entry in the Main Menu.

First steps

Connect the microscope to your PC with a USB cable and run the PortableCapture Pro application.

A pop-up message will warn you if the microscope is not connected to the PC.

Toolbar icons

Capture an image Start and stop

video recording Sequence capture (you can set

the time to begin capturing

images or videos, interval

between them, video duration

and the number of images

or videos to be captured)

Full screen mode.

To exit full screen mode,

press Escape your keyboard

or double-click anywhere

on the screen

File

Photos Directory: set a directory for captured images.

Videos Directory: set a directory for recorded videos.

Options

Resolution: set image resolution.

Date/Time: hide or display date and time of capture during preview.

Language: change the language of the user interface.

X (Grid): hide or display a grid on images.

Full screen mode: go full screen.

Capture

Photo: capture an image.

Video: record a video.

Preview window toolbar

Save as Copy to clipboard Copy file

Previous image Next image Undo the last action Repeat the last action

Draw Text Measurement Calibration

Capturing an image

Click the corresponding icon on the toolbar or select

Photo from the Capture menu.

Recording a video

Click the corresponding icon on the toolbar or select

Video from the Capture menu.

Using the application

Sequence capture

Click the corresponding icon on the toolbar. A dialog window

will appear where you can set a number of parameters

for sequence capture.

Click the Photo radio button to set the time to begin

capturing images, interval between them and the total

number of images.

Click the Video radio button to set the time to begin

recording videos, their duration, interval between them

and the total number of clips.
