MOTORIZED TREADMILL

OWNER'S MANUAL

MODEL# 97288HP

The specifications of this product may vary from this photo and are subject to

changewithoutnotice. 2008, April

WALKEASE

PAGE OF CONTENTS

WARRANTY 1

SAFETYINSTRUCTIONS 2

OVERVIEWDRAWING 5

PARTSLIST 6

HARDWAREPACKINGLIST 7

ASSEMBLY INSTRUCTIONS 8

FOLDING UPAND SETTING DOWN 10

COMPUTEROPERATION 11

TROUBLE SHOOTING GUIDE 15

RUNNING BELTADJUSTMENT & LUBRICATION 16

WARM UP AND COOL DOWN ROUTINE 18

ONE YEAR LIMTED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from

defects in material and workmanship when used for the purpose intended,

under the conditions that it has been installed and operated in accordance with

LifeGear's Owner's Manual. LifeGear's obligation under this warranty is

limited to replacing or repairing, free of charge, any parts which may prove to

be defective under normal home use. This warranty does not include any

damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1

(one) year. This warranty is extended only to the original owner and is not

transferable. When ordering replacement parts please have the following

information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following

safety instructions when using this treadmill: Read all instructions

before using this treadmill.

DANGER:To reduce the risk of electric shock, please read the

following:

zAlways unplug the treadmill from the electrical outlet immediately after

using and before cleaning, assembling, or servicing.

NOTE: Failure to follow these instructions may lead to personal injury

and cause damage to the treadmill.

WARNING:To reduce the risk of burns, fire, electric shock or injury

to any persons, please read the following:

zNever leave the treadmill unattended when plugged in. Disconnect by

turning off the master power switch, and unplugging from outlet when not

in use and before putting on or taking off parts.

zUse this appliance only for its intended use as described in this manual.

Do not use attachments not recommended by the manufacturer.

zNever operate this treadmill if it has a damaged cord or plug, or if it is not

working properly. If it has been dropped or damaged, or been exposed

to water, return the appliance to a service center for examination and

repair.

zDo not attempt any maintenance or adjustments other than those

described in this manual. Should any problems arise, discontinue use

and consult an Authorized Service Representative.

zNever operate the appliance with the air openings blocked. Keep the air

openings free of lint, hair, and the like.

zDo not use the treadmill outdoors.

zDo not pull the treadmill by its power cord or use the cord as a handle.

zKeep children and pets away from the equipment while in use. This

machine is designed for adults only. Close supervision is necessary

when this treadmill is used by invalids or disabled persons.

zDo not operate where aerosol (spray) products are being used or where

oxygen is being administered.

zKeep Dry - do not operate in a wet or moist condition. Save these

instructions.

zDo not operate the treadmill near a blanket. Excessive heating can

occur and cause fire, electrical shock, or injury to user.

zKeep electrical cord away from heated surfaces.

zNever insert any object into any opening.

zKeep the treadmill on a solid, level surface with the minimum safety area

clearance of 2000mm x 1000mm of the treadmill. Be sure the area

around the treadmill remains clear during use and has adequate

clearance.

zThis treadmill is for household use only.

zOnly one person should be on the treadmill while in use.

zWear comfortable and suitable clothing when using the treadmill. Do not

use the treadmill barefoot, in only socks or in sandals, always wear

athletic shoes. Never wear loose clothing because it could run the risk of

getting caught in the treadmill.

zAlways hold on to the handrails while using the treadmill.

zAlways make sure the storage latch is in place when folding and moving

the treadmill.

zDo not leave children who are under 12 year-old unsupervised near or on

the treadmill.

zThis appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

zPull up the Safety Tether Key for emergency stop. Reinstall the Safety

Tether Key onto the Computer Console. Press the START button first

and then press the SPEED + button to begin exercise again.

Note: It is the obligation of the owner to review and explain these safety

precautions to all users of this treadmill.

WARNING: Connect the treadmill to a properly grounded outlet

only.

SAVE THESE INSTRUCTIONS

zThis product must be grounded. If it should malfunction or break down,

grounding provides a path of least resistance for electric current reducing

the risk of electric shock. * This treadmill is equipped with a cord

having equipment grounding connector and a grounding plug. The

plug must be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes and

ordinances.

DANGER:Improper connection of the treadmill grounding

connector can result in the risk of electric shock. Check with a qualified

electrician, if you are in doubt as to whether the product is properly grounded.

Do not modify the plug provided with the treadmill. If it will not fit your outlet,

have a properly grounded outlet installed by a qualified electrician.

This product is for use on a nominal 220-volt circuit and has a grounding plug.

Make sure that the product is connected to an outlet having the same

configuration as the plug.

zThis unit must be plugged into a nominal 220 volt 50/60 hz, which has a

grounding.

zKeep hands clear of all moving parts. Never place hands, feet under the

treadmill.

zDo not use the treadmill on a carpet that is greater than 1/2 inch in height.

zBefore using the treadmill, check that the running belt is aligned and

centered on the treadmill bed and all visible fasteners on the treadmill are

sufficiently tightened and secure.

WARNING:Before beginning any exercise program consult your

physician. This is especially important for the persons who are over 35 years

old or who have pre-existing health problems. Read all instructions before

using any fitness equipment. We assume no responsibility for personal injury

or property damage sustained by or through the use of this product. Do not

operate this exercise equipment without properly fitted guards, as the moving

parts can present a risk of serious injury to young children.

CAUTION:Read all instructions carefully before operating this

product. Retain this Owner’s Manual for future reference.

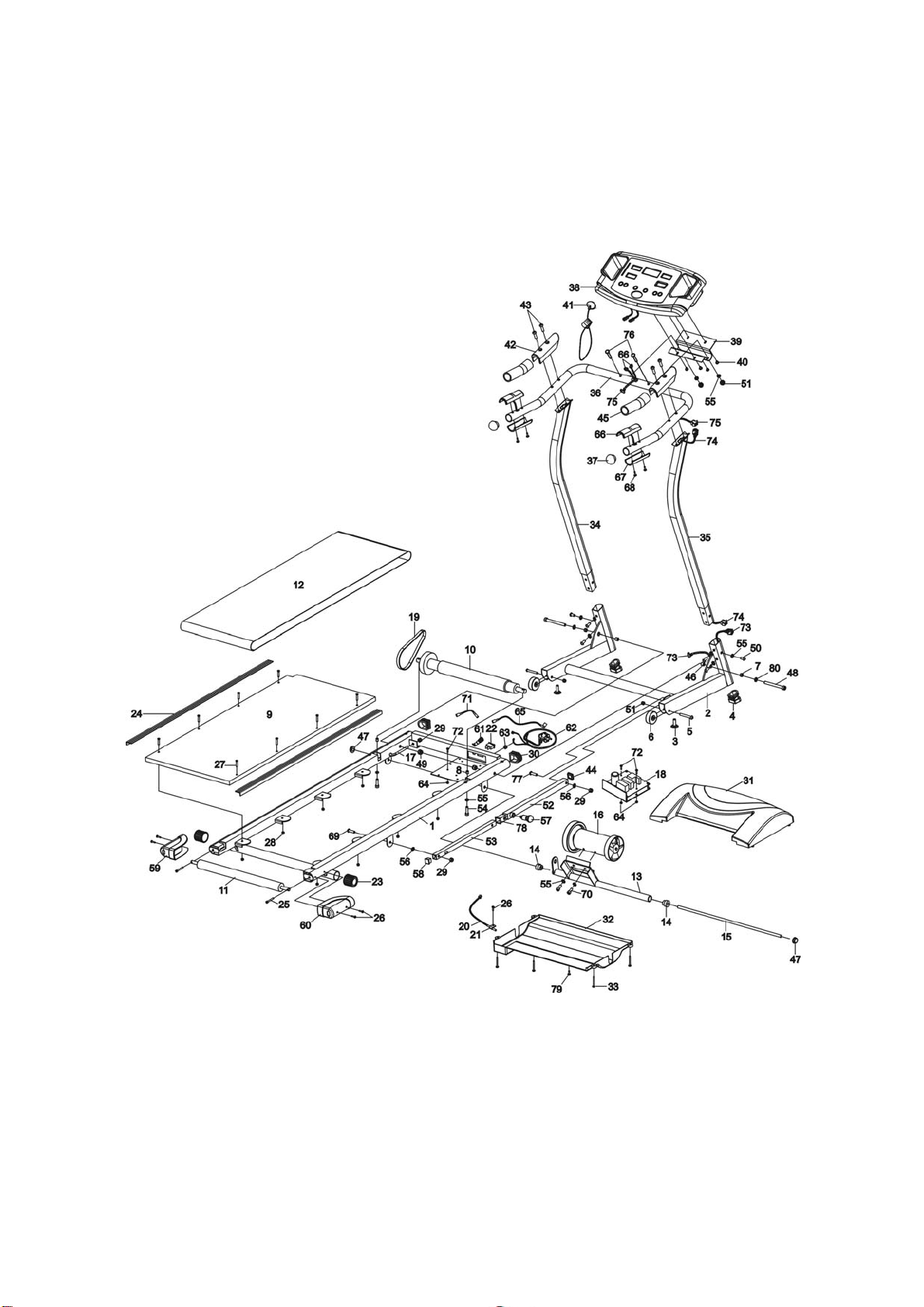

OVERVIEW DRAWING

PARTS LIST

Part # Description Quantity Part # Description Quantity

001 Main Frame 1 028 Nylon Nut (M6) 8

002 Stabilizer 1 029 Nylon Nut (M8) 3

003 Adjustable Pad (M8) 2 030 End Cap (40x50) 2

004 End Cap for Stabilizer 2 031 Upper Dust Cover 1

005 Bolt (M8x40) 2 032 Lower Dust Cover 1

006 Transportation Wheel

Ø53xØ8x23mm 2 033 Bolt (M4x30) 4

007 Bushing Ø42xØ10.5x5.5mm 2 034 Left Handlebar Support 1

008 Spacer 2 035 Right Handlebar Support 1

009 Running Deck 1 036 Handlebar 1

010 Front Roller 1 037 End Cap for Handlebar 2

011 Rear Roller 1 038 Computer 1

012 Running Belt 2220x367x1.6t 1 039 Computer Bracket 1

013 Motor Bracket 1 040 Bolt (M5x10) 4

014 Bushing 2 041 Safety Tether Key 1

015 Axis 1 042 Plastic Cover for Handlebar 2

016 Motor 1 043 Hex Socket Button Head Cap

Bolt (M8x45mm) 4

017 Bracket for Drive Motor 1 044 Square End Cap (□25) 1

018 Power Control Board 1 045 Foam Grip Ø30x3.5tx150mm 2

019 Belt 5PJ508 1 046 Spacer Ø16xØ10.5x19mm 2

020 Sensor 1 047 Cap Nut 2

021 Bracket for Sensor 1 048 Bolt (M10x85) 2

022 Switch, AC Power 1 049 Nylon Nut (M10) 2

023 Cover Ø38 2 050 Hex Socket Button Head Cap

Bolt (M8x16mm) 6

024 Side Rail 2 051 Cup Nut M8 4

025 Hex Socket Head Cap Bolt

(M6x60mm) 2 052 Safety Tube B 1

026 Tapping Screw (M4x16mm) 5 053 Safety Tube A 1

027 Bolt (M6x35) 8 054 Hex Socket Head Cap Bolt

(M8x40mm) 2

PARTS LIST

Part # Description Quantity Part # Description Quantity

055 Spring Washer (M8) 12 068 Tapping Screw (M3x20) 4

056 Nylon Washer (M8) 2 069 Bolt (M8x35) 1

057 Spring Knob 1 070 Bolt (M8x12) 2

058 Square End Cap (□20) 1 071 Wire for Fuse Box 1

059 Left Rear Cap for Main Frame 1 072 Bolt (M4x12) 3

060 Right Rear Cap for Main Frame 1 073 Sensor Cable I (650 mm.) 1

061 Fuse Box 1 074 Sensor Cable II (1100 mm.) 1

062 Power Cord 1 075 Sensor Cable III (550 mm.) 1

063 Wire Cap 1 076 Carriage Bolt M8x45 2

064 Nylon Nut (M4) 3 077 Hex Socket Button Head Cap

Bolt (M8x40mm) 1

065 Cable Switch/PCB 1 078 Bushing 1

066 Upper Hand Pulse Sensor

Cover w/Wire 2 079 Tapping Screw (M4x23mm) 1

067 Lower Hand Pulse Cap 2 080 Washer Ø20xØ10.5x1.0t 2

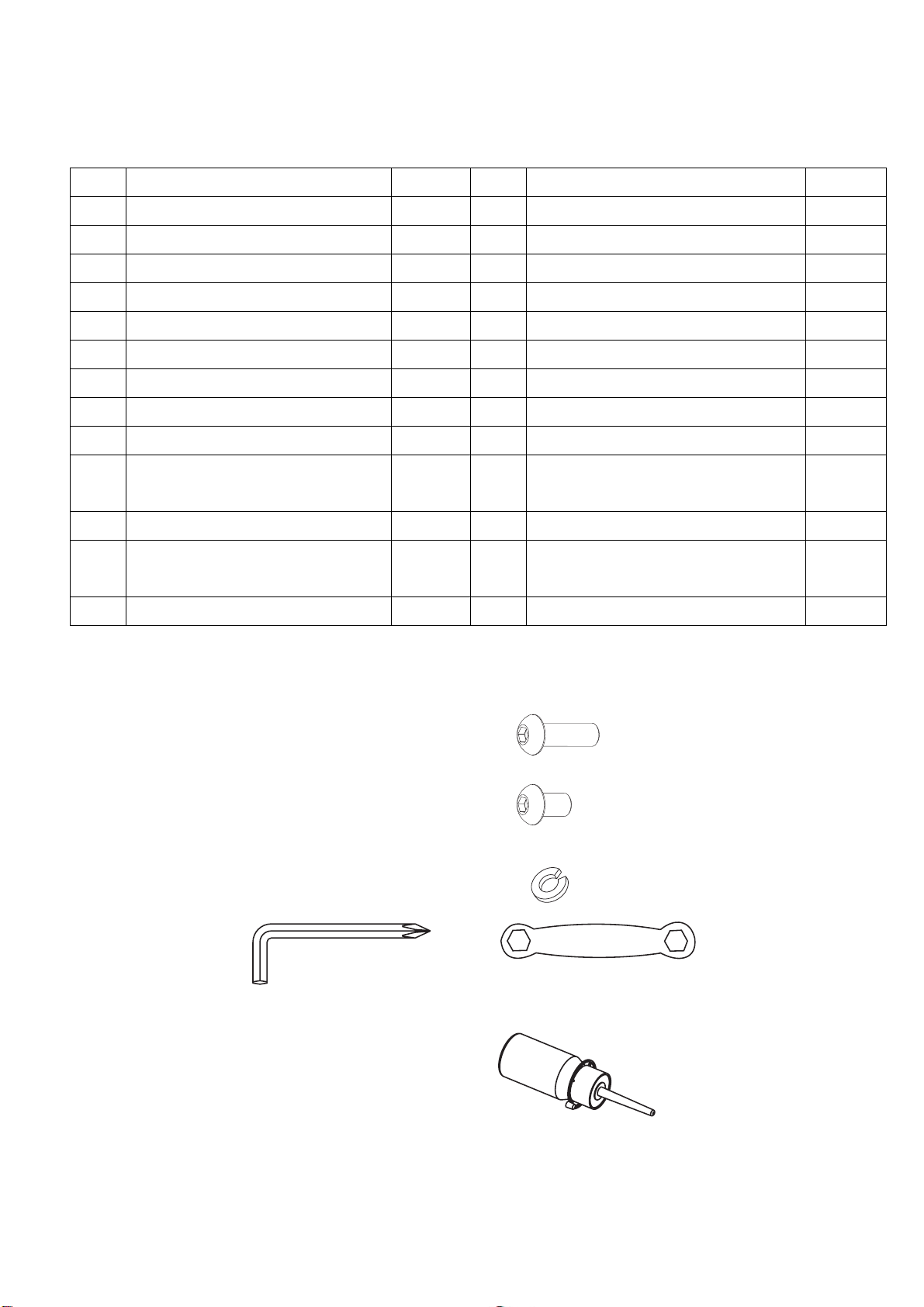

HARDWARE PACKING LIST

Part # Description Quantity

43 Hex Socket Button Head Cap Bolt

(M8x45mm)

50 Hex Socket Button Head Cap Bolt

(M8x16mm)

55 Spring Washer (M8)

Allen Wrench/Screwdriver

1 PC Wrench

1 PC

Silicone Oil

1 PC

ASSEMBLY INSTRUCTIONS

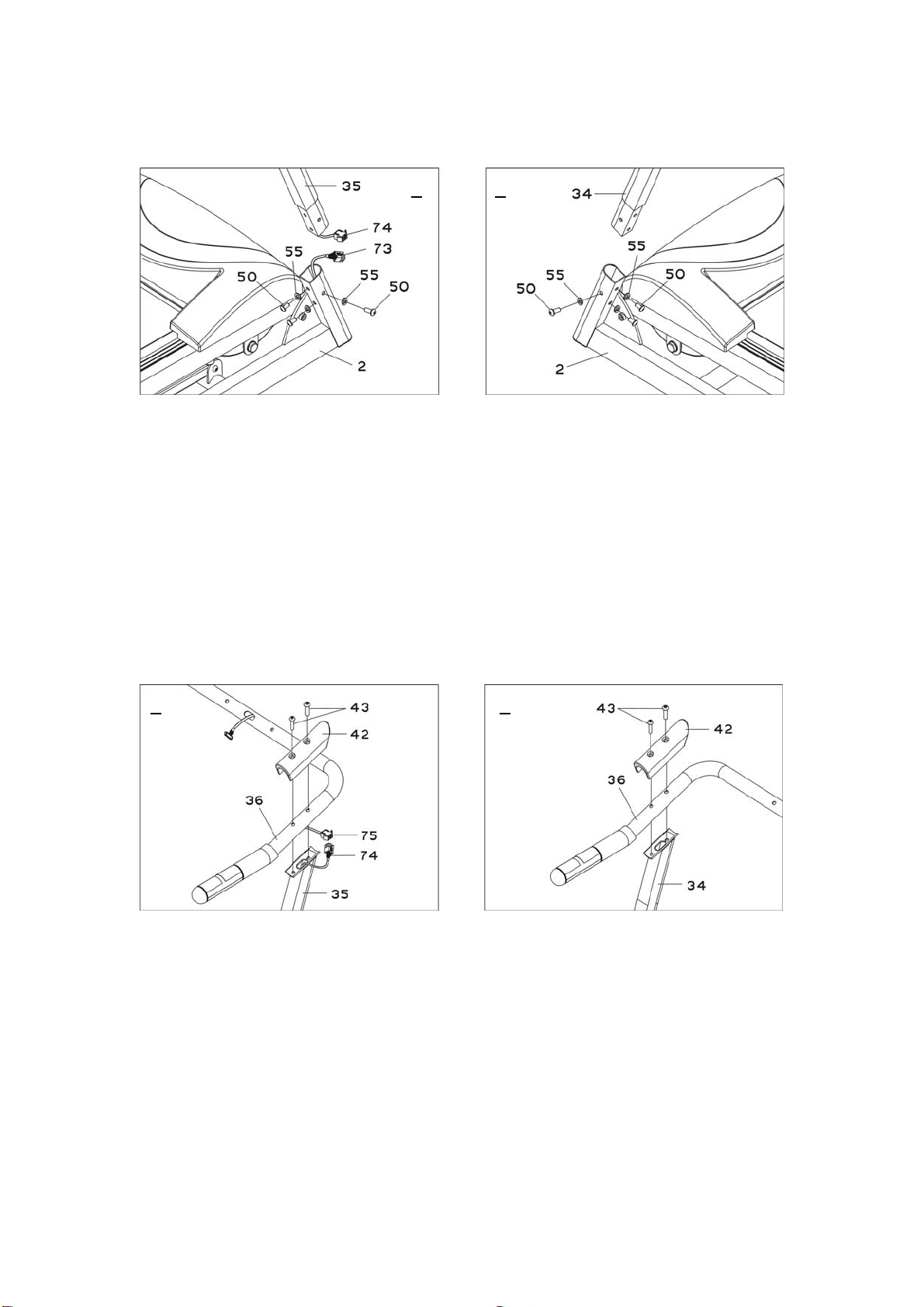

Step 1

Connect the Sensor Cable I (73) from the Stabilizer (2) to the Sensor Cable II

(74) from the Right Handlebar Support (35) and then attach the Right

Handlebar Support (35) to the Stabilizer (2) with three M8 Spring Washers (55)

and M8x16mm Hex Socket Button Head Cap Bolts (50).

Step 2

Attach the Left Handlebar Support (34) to the Stabilizer (2) with three M8

Spring Washers (55) and M8x16mm Hex Socket Button Head Cap Bolts (50).

Step 3 and 4

Connect the Sensor Cable II (74) from the Right Handlebar Support (35) to the

Sensor Cable III (75) from the Handlebar (36) and the attach the Handlebar

(36) onto the Right and Left Handlebar Supports (35, 34) with two Plastic

Covers for Handlebar (42) and M8x45 Hex Socket Button Head Cap Bolts

(43).

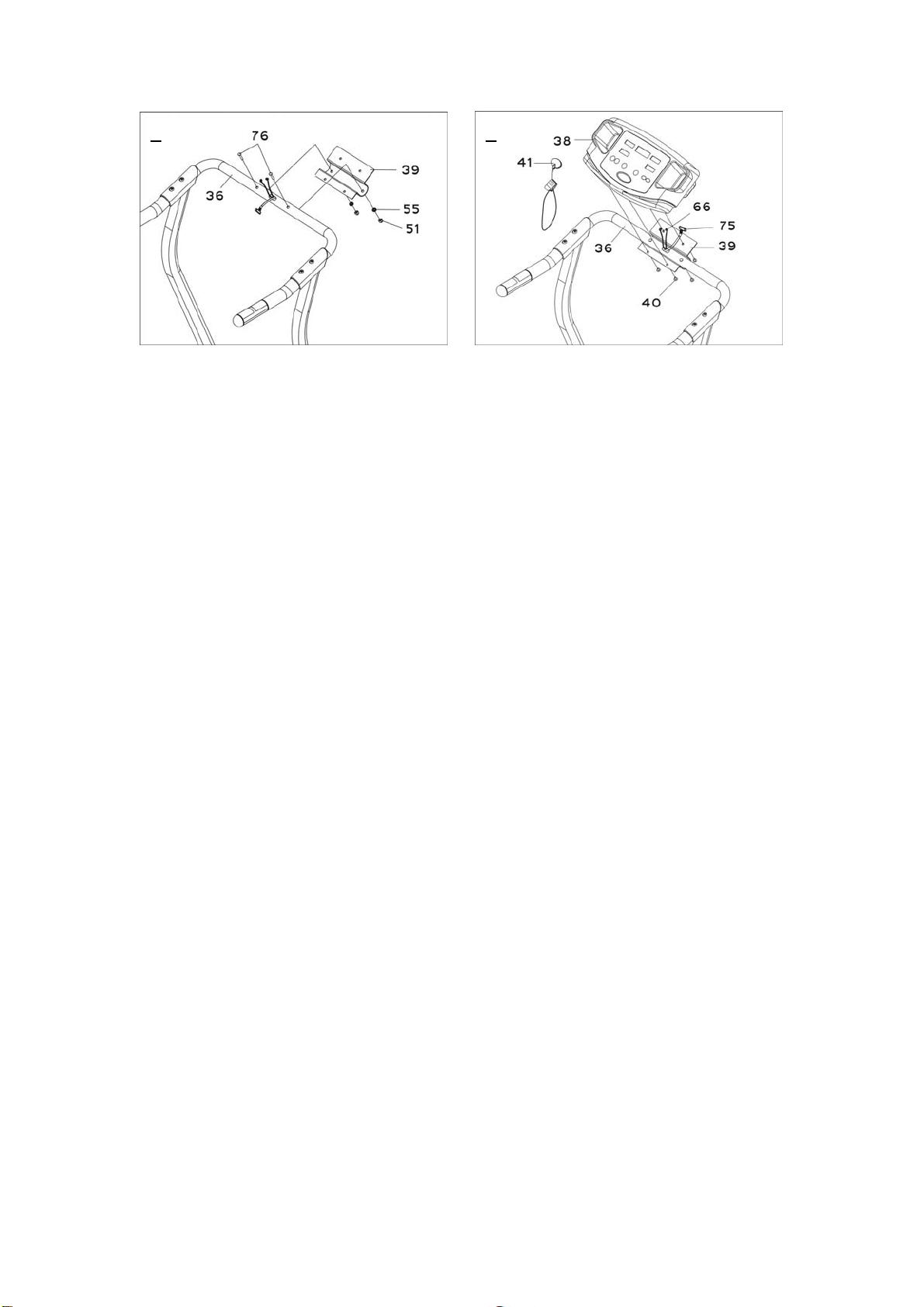

Step 5

Remove two M8x45 Carriage Bolts (76), M8 Spring Washers (55), and M8 Cup

Nuts (51) from the Computer Bracket (39). Then attach the Computer

Bracket (39) to the Handlebar (36) with two M8x45 Carriage Bolts (76), M8

Spring Washers (55), and M8 Cup Nuts (51) that were removed.

Step 6

Remove four M5x10 Bolts (40) from the Computer (38). Connect the Sensor

Cable III (75) and Upper Hand Pulse Sensor Wires (66) from the Handlebar

(36) to the socket and wire that come from the Computer (38) and then attach

the Computer (38) onto the Computer Bracket (39) with four M5x10 Bolts (40)

that were removed. Finally, install the Safety Tether Key (41) onto the

Computer (38).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Life Gear Tretmühle Handbücher

Life Gear

Life Gear 98105 Bedienungsanleitung

Life Gear

Life Gear FLIP TRACK II 97270 Bedienungsanleitung

Life Gear

Life Gear 98850 Bedienungsanleitung

Life Gear

Life Gear 97988T Bedienungsanleitung

Life Gear

Life Gear 97010 Bedienungsanleitung

Life Gear

Life Gear MARK X 97582H Bedienungsanleitung

Life Gear

Life Gear Energetic Pro Bedienungsanleitung

Life Gear

Life Gear 97640 Bedienungsanleitung

Life Gear

Life Gear 97450 Bedienungsanleitung

Life Gear

Life Gear 97295 Bedienungsanleitung

Life Gear

Life Gear 97415 Bedienungsanleitung

Life Gear

Life Gear Sprint-1 97710 Bedienungsanleitung

Life Gear

Life Gear 97960 Bedienungsanleitung

Life Gear

Life Gear CAMINADORA 97001 Bedienungsanleitung

Life Gear

Life Gear STEP MAKER PRO 97340 Bedienungsanleitung

Life Gear

Life Gear 97015 Bedienungsanleitung

Life Gear

Life Gear 97017 Bedienungsanleitung

Life Gear

Life Gear 97355 Bedienungsanleitung

Life Gear

Life Gear POWER TRACK PRO 97370 Bedienungsanleitung

Life Gear

Life Gear 40120 Bedienungsanleitung

Life Gear

Life Gear 97910 Bedienungsanleitung

Life Gear

Life Gear 97114 Bedienungsanleitung

Life Gear

Life Gear 97018 Bedienungsanleitung

Life Gear

Life Gear Motion capture plus 97920 Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung
