WALKEASE, MOTORIZED TREADMILL
OWNER’S MANUAL
MODEL# 97295
2011, June
1
TABLE OF CONTENTS
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose
intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under
this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. This warranty
does not include any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year. All parts and workmanship, including electronics and its
console cases, upholstery, foam, ball bearings, pulleys, cables, shocks, all tension mechanisms, wheels, pedals and hardware are to be free from
defects for 90 days. This warranty is extended only to the original owner and is not transferable.
When ordering replacement parts please have the following information ready:
WARRANTY 1
SAFETY INSTRUCTIONS 2
OVERVIEWDRAWING 4
PARTS LIST 5
HARDWARE PACKING LIST 7
ASSEMBLY INSTRUCTIONS 8
FOLDINGUP& INCLINEADJUSTMENT 10
COMPUTER OPERATION 11
TROUBLE SHOOTINGGUIDE 14
RUNNINGBELTADJUSTMENT
ANDLUBRICATION 15
WARM UP AND COOLDOWN ROUTINE 16
1. Owner's Manual
2. Model Number
3.Description of Parts
4.Part Number
5.Date of Purchase
2
Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read all
instructions before using this treadmill.
DANGER: To reduce the risk of electric shock, please read the following:
zAlways unplug the treadmill from the electrical outlet immediately after using and befor cleaning, assembling, or servicing.
NOTE: Failure to follow these instructions may lead to personal injury and cause damage to the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons, please read the following:
zNever leave the treadmill unattended when plugged in. Disconnect by turning off the master power switch, and unplugging from
outlet when not in use and before putting on or taking off parts.
zUse this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the
manufacturer.
zNever operate this treadmill if it has a damaged cord or plug, or if it is not working properly. If it has been dropped or damaged, or
been exposed to water, return the appliance to a service center for examination and repair.
zDo not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue
use and consult an Authorized Service Representative.
zNever operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
zDo not use the treadmill outdoors.
zDo not pull the treadmill by its power cord or use the cord as a handle.
zKeep children and pets away from the equipment while in use. This machine is designed for adults only.
zDo not operate where aerosol (spray) products are being used or where oxygen is being administered.
zKeep Dry - do not operate in a wet or moist condition. Save these instructions.
zDo not operate the treadmill near a blanket. Excessive heating can occur and cause fire, electrical shock, or injury to user.
zKeep electrical cord away from heated surfaces.
zNever insert any object into any opening.
zKeep the treadmill on a solid, level surface with the minimum safety area clearance of 2000mm x 1000mm of the treadmill. Be sure
the area around the treadmill remains clear during use and has adequate clearance.
zThis treadmill is for household use only.
zWear comfortable and suitable clothing when using the treadmill. Do not use the treadmill barefoot, in only socks or in sandals,
always wear athletic shoes. Never wear loose clothing because it could run the risk of getting caught in the treadmill.
SAFETY INSTRUCTIONS
3
zOnly one person should be on the treadmill while in use.
zAlways hold on to the handrails while using the treadmill.
zAlways make sure the storage latch is in place when folding and moving the treadmill.
zDo not leave children who are under 12 year-old unsupervised near or on the treadmill.
zPull up the Safety Tether Key for emergency stop. Reinstall the Safety Tether Key onto the Computer Console. Press the START button first
and then press the SPEED+ button to begin exercise again.
Note: It is the obligation of the owner to review and explain these safety precautions to all users of this treadmill.
WARNING: Connect the treadmill to a properly grounded outlet only.
SAVE THESE INSTRUCTIONS
This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current
reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding connector and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
DANGER: Improper connection of the treadmill grounding connector can result in the risk of electric shock. Check with a qualified
electrician, if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the treadmill. If it will
not fit your outlet, have a properly grounded outlet installed by a qualified electrician.
This product is for use on a nominal 220 volt circuit and has a grounding plug. Make sure that the product is connected to an outlet
having the same configuration as the plug.
zThis unit must be plugged into a nominal 220 volt 50/60 hz, which has a grounding.
zKeep hands clear of all moving parts. Never place hands, feet under the treadmill.
zDo not use the treadmill on a carpet that is greater than 1/2 inch in height.
zBefore using the treadmill, check that the running belt is aligned and centered on the treadmill bed and all visible fasteners on the
treadmill are sufficiently tightened and secure.
WARNING: Before beginning any exercise program consult your physician. This is especially important for the
persons who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment.
We assume no responsibility for personal injury or property damage sustained by or through the use of this product. Do not operate this
exercise equipment without properly fitted guards, as the moving parts can present a risk of serious injury to young children.
CAUTION: Read all instructions carefully before operating this product. Retain this Owner's Manual for future reference.
4
OVERVIEWDRAWING
5
Part # Description Quantity Part # Description Quantity
1 Main Frame 1
2 Base Frame 1
3 Adjustable Pad 2
4 End Cap for Base Frame 2
5 Moving Wheel 2
6 Computer 1
7 Computer Bracket 1
8 Bolt (M5x10) 4
9 Running Deck 1
10 Front Drive Roller 1
11 Rear Tension Roller 1
12 Running Belt 1
13 Motor Base 1
14 Bushing 2
15 Axis Ø10x539mm 1
16 Drive Motor 1
17 Bracket for Drive Motor 1
18 PCB Motor Controller 1
19 Drive Belt (190J5) 1
20 Sensor 1
21 Bracket for Sensor 1
22 Switch, AC Power 1
23 Rubber Bumper 10
24 Side Rail 2
25 Bolt (M8x60) 2
26 Screw (M4x16) 14
27 Bolt (M6x35) 10
28 Nylon Nut (M6) 10
29 Nylon Nut (M8) 3
30 End Cap (25x50) 2
31 Upper Dust Cover 1
32 Lower Dust Cover 1
33 Screw (M4x60) 4
34 Left Handrail 1
35 Right Handrail 1
36 Handlebar 1
37 End Cap for Handlebar 2
38 Sensor Cable I (850mm) 1
39 Sensor Cable II (1100mm) 1
40 Sensor Cable III (600mm) 1
41 Safety Tether Key 1
42 Handlebar Adorner 2
43 Bolt (M8x45) 4
44 M8 Cap Nut 4
45 Foam Grip Ø34xØ30x260mm 2
46 Spacer Ø14.2xØ10.5x19mm 2
47 Cap Nut 2
48 Bolt (M10x85) 2
49 Nylon Nut (M10) 4
50 Bolt (M8x16) 6
51 Cable Switch/PCB 1
52 Safety Tube A 1
53 Safety Tube B 1
54 Bolt (M8x40) 1
55 Spring Washer (M8) 12
56 Nylon Washer Ø16.5xØ8.5x2.0mm 2
57 Spring Knob 1
58 Foot Pad 2
PARTS LIST
6
59 Left Rear Cap 1
60 Right Rear Cap 1
61 Incline Beam 1
62 End Cap for Incline Beam 2
63 Bolt (M10x40) 2
64 Bushing Ø 16xØ 10.5x15.5mm 2
65 Tapping Screw (ST4x10) 4
66 Wire for Fuse Box 1
67 Fuse Box 1
68 Wire Cap 1
69 Bolt (M8x35) 1
70 Bolt (M8x12) 2
71 Bolt (M8x45) 2
72 Bolt (M4x12) 3
73 Carriage Bolt (M8x45) 2
74 Spacer Ø 14xØ 10x5.5mm 2
75 Round Head Bolt (M8x45) 2
76 Nylon Nut (M4) 3
77 End Cap ( 25) 1
78 End Cap ( 20) 1
79 Cable, Power Plug 1
Part # Description Quantity Part # Description Quantity
PARTS LIST
7
43 Bolt (M8x45)-------------------------------------------------------------------------------------------------4
50 Bolt (M8x16)-------------------------------------------------------------------------------------------------6
55 Spring Washer (M8)---------------------------------------------------------------------------------------6
Part # Description Quantity
HARDWARE PACKING LIST
Allen Wrench/Screwdriver
1 PC Wrench
1 PC
Allen Wrench
1PC Silicone Oil (6 ml)
1 PC
8
Step 1
Connect the Sensor Cable I (38) from the Base Frame (2) to the Sensor Cable II (39) from the Right
Handrail (35) and then attach the Right and Left Handrails (35, 34) to the Base Frame (2) with six M8x16
Bolts (50) and M8 Spring Washers (55).
Step 2
Connect the Sensor Cable II (39) from the Right Handrail (35) to the Sensor Cable III (40) from the
Handlebar (36) and the attach the Handlebar (36) onto the Right and Left Handrails (35, 34) with two
Handlebar Adorners (42) and four M8x45 Bolts (43).
Step 3
Remove two M8x45 Carriage Bolts (73), M8 Spring Washers (55), and M8 Cap Nuts (44) from the
Computer Bracket (7). Then attach the Computer Bracket (7) to the Handlebar (36) with two M8x45
Carriage Bolts (73), M8 Spring Washers (55), and M8 Cap Nuts (44) that were removed.
ASSEMBLY INSTRUCTIONS
1
2
3
9
ASSEMBLY INSTRUCTIONS

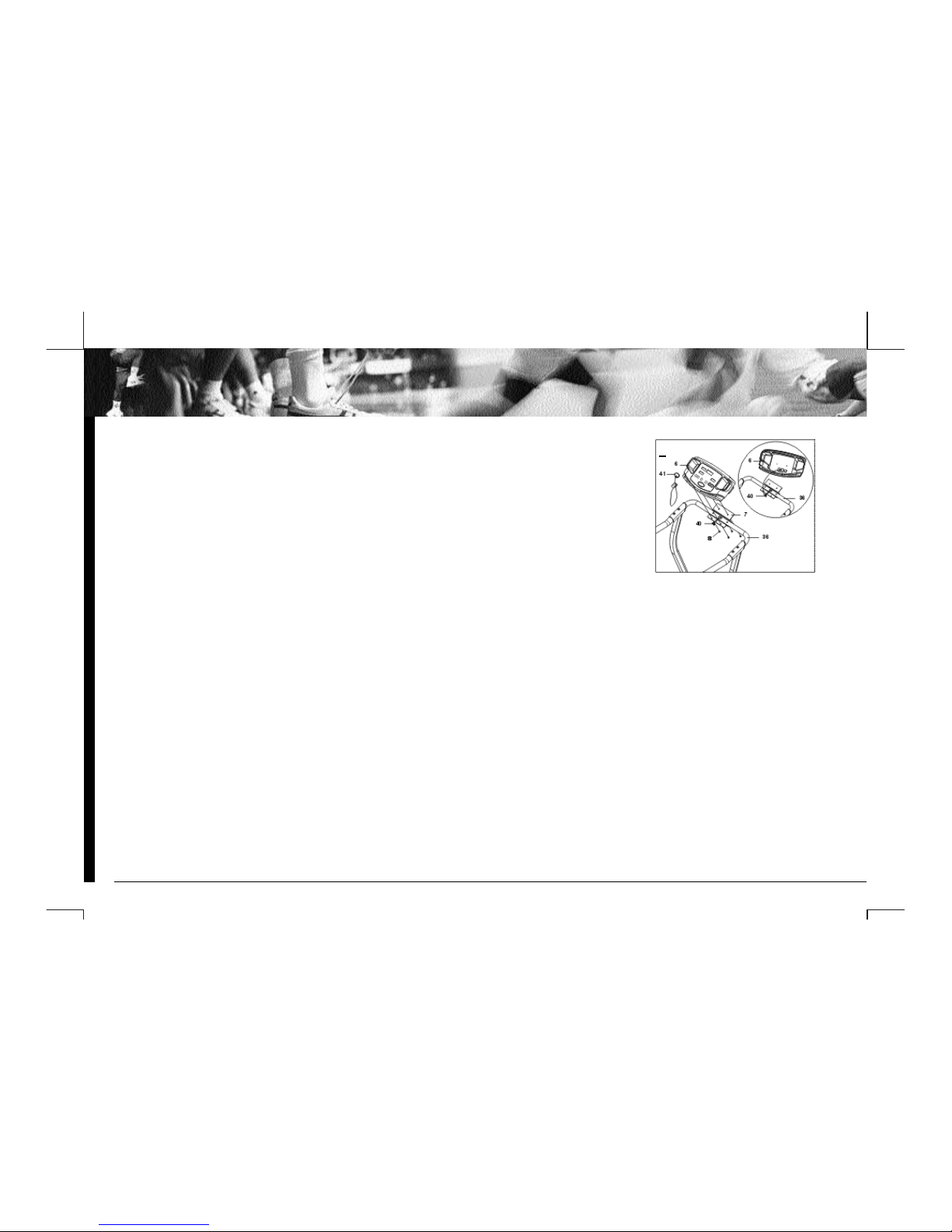

Step 4
Remove four M5x10 Bolts (8) from the back of the Computer (6).
Connect the Sensor Cable III (40) from the Handlebar (36) to the socket that comes from the Computer (6)
and then attach the Computer (6) onto the Computer Bracket (7) with four M5x10 Bolts (8) that were
removed. Finally, install the Safety Tether Key (41) onto the Computer (6).
4
