Life Span EXER-11 Bedienungsanleitung

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for future

reference.

EXER-11 OWNER’S MANUAL

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. CARE INSTRUCTIONS 4

3. EXPLODED DIAGRAM 5

4. PARTS LIST 7

5. ASSEMBLY INSTRUCTIONS 9

6. COMPUTER OPERATION 12

7. EXERCISE GUIDE 13

8. WARRANTY 15

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to

regularly maintain your machine may void your warranty.

Please keep this manual with you at all times

a. It is important to read this entire manual before assembling and using the equipment. Safe and

effective use can only be achieved if the equipment is assembled, maintained and used properly.

Please note: It is your responsibility to ensure that all users of the equipment are informed of all

warnings and precautions.

b. Before starting any exercise program you should consult your doctor to determine if you have any

medical or physical conditions that could put your health and safety at risk, or prevent you from using

the equipment properly. Your doctor’s advice is essential if you are taking medication that affects your

heart rate, blood pressure or cholesterol level.

c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop

exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular

heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do

experience any of these symptoms, you should consult your doctor before continuing with your

exercise program.

d. Keep children and pets away from the equipment. This equipment is designed for adult use only.

e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To

ensure safety, the equipment should have at least 2 meters of free space around it.

f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any

unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the

equipment until the problem has been rectified.

g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in

the equipment or that may restrict or prevent movement.

h. This equipment is designed for indoor and family use only

i. Care must be taken when lifting or moving the equipment so as not to injure your back.

j. Always keep this instruction manual and assembly tools at hand for reference.

k. The equipment is not suitable for therapeutic use.

l. The pulse or heart rate sensors are not medical devices. Various factors, including the user’s

movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as

exercise aids in determining heart rate trends in general.

2. CARE INSTRUCTIONS

a. Lubricate moving joints after periods of usage

b. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects

c. The machine can be kept clean by wiping it down using dry cloth

d. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and

other moving parts. Failure to do so may cause damage to your thread and void your warranty.

Battery Usage

a. Batteries are to be installed or replaced by adult only

b. Do not use rechargeable batteries. Do not mix different battery types. Do not mix old and new

batteries. Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries

c. Remove batteries when product is not in use

d. Remove exhausted batteries from product and dispose of in accordance with the manufacturer’s

recommendation

e. Do not attempt to recharge non-rechargeable batteries

f. Batteries are to be inserted with correct polarity

g. The supply terminals are not to be short-circuited

h. Do not dispose of batteries in fire, batteries may explode or leak

3. EXPLODED DIAGRAM

Inner Exploded Drawing:

4. PARTS LIST

No Parts name Qty NO Specifications Qty

1 Main frame 1 25 Wire hole plug 4

2 Rear support tube 1 26 Tension control 1

Front bottom tube

Screw M5x20

4 Rear bottom tube 1 28 Washer D5 1

5 Seat tube 1 29 Screw M8×15 2

6 Handlebar 1 30 Washer D8 6

7 Cushion 1 31 Axis sleeve 4

8 Back seat frame 1 32 Revolving shaft 1

9 Rear handlebar 1 33 Nylon nut M8 2

10 Seat tube sleeve 1 34 Bolt M8×50 2

11 Knob 1 35 Tube cap 4

12 Curved washer D8 8 36 Screw M8x75 1

13 Nut M8 5 37 Tube cap 1

14L/R

Transport wheel cap

Screw M8x45

15 Screw T4.2×18 2 39 Washer D8 4

16 Rear bottom tube cap 2 40 Backseat 1

17 Absorber 1 41 Sensor 1

18 Foam handlebar 2 42L/R L&R crank 2

19 Tube cap 4 43L/R L&R pedals 2

20 Handle pulse 2 44L/R L&R nylon nut 2

21 Monitor 1 45 Spring pin 1

22 Seat 1 46 Revolving shaft sleeve 2

23 Washer D8 3 47 Foam handlebar 2

24 Nylon nut M8 3 48 Screw M8x40 4

NO SPE QTY NO SPE QTY

71 Belt 1 89 Spring 1

72 Belt 1 90 Nut M10×1.0 3

73 Screw M6×10 7 91 Washer D10 1

74 Axis support 2 92 Idler axis 1

75 Axis 6003 4 93 Axis6202 1

76 Washer D17 6 94 Washer D15 1

77 Curved washer D17 1 95 Nut M10×1.0 1

78 Flywheel 1 96 Idler wheel 1

79 Belt disk 1 97 Idler axis 1

80 Frank nut 2 98 Bolt 2

81 Crank cap 2 99 U shape piece 2

82 Sensor 1 100 Nylon nut M6 2

83 Screw M4×10 1 101 Washer D10 1

Magnetic

102

Washer D10

85 Magnetic board 1

103L/

L&R chain cover 2

86 Washer D8 1 104 Chain up cover 1

87 Screw M6×12 1 105 Screw ST4.2×18 3

88 Tube plug 1 106 Screw ST4.2×16 4

5. ASSEMBLY INSTRUCTIONS

NOTE: Before assembly ensure there is enough space around the item. Some nuts and bolts may be already

attached to the machine

STEP 1

STEP 2

1. Pull out the spring pin (45) from front support tube (1), unfold the frame and fix the spring pin

according to the hole (45) as below.

1. Secure the rear bottom tube (4) and front

bottom tube (3) to front support frame (1)

and main frame (2) using nut (13) curved

washer (12), as shown in diagram.

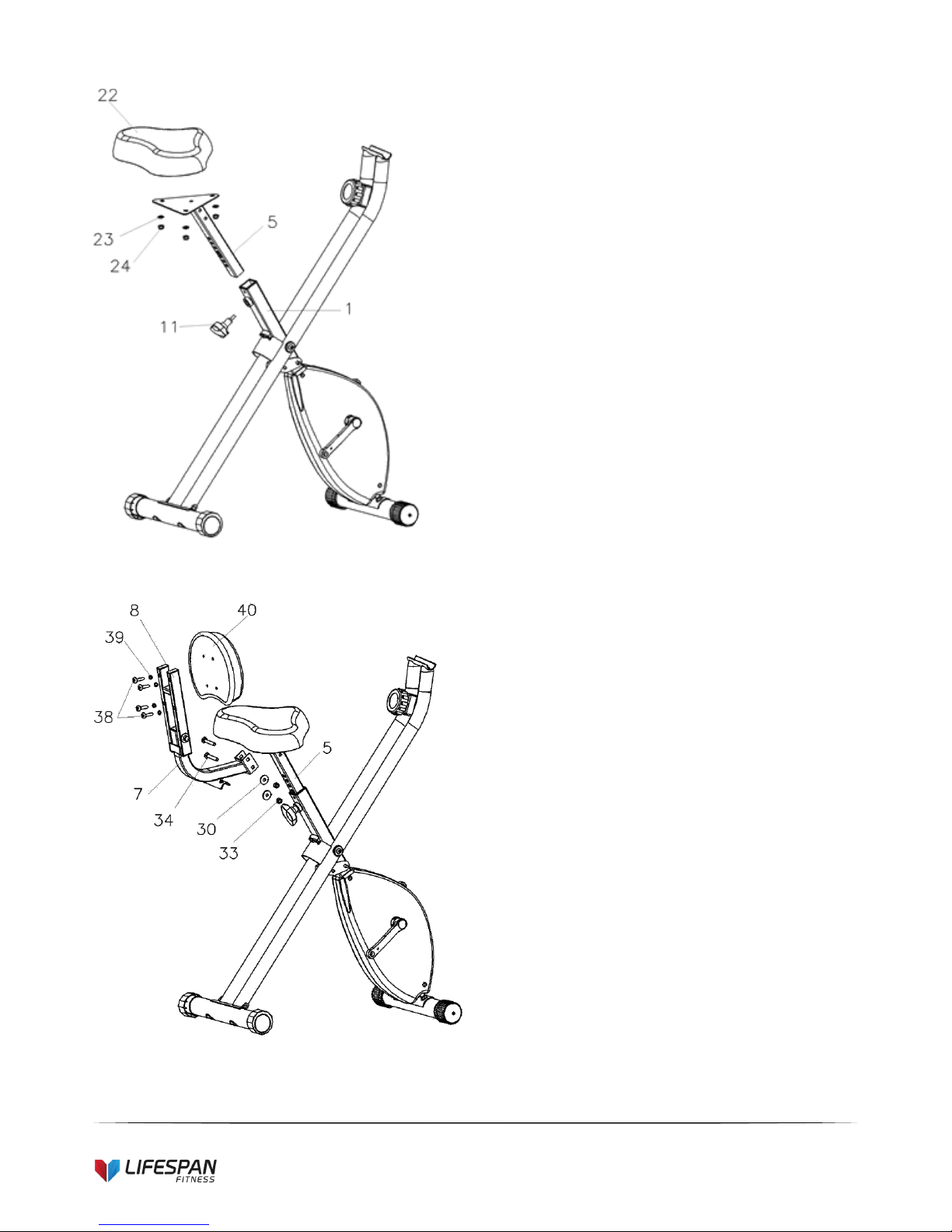

STEP 3

STEP 4

1. Secure seat (22) to seat tube (5) with

washer (23), nylon nut (24).

2. Lock the knob (11) to seat tube (5) to

main frame (1)

1. Secure the seat (7) to seat tube (5) with

bolt (34), washer (30) and nylon nut (33)

2. Then lock the backseat (40) to backseat

frame (8) with bolt (34), washer (30),

nylon nut (33).
