Life Span SP700 Bedienungsanleitung

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

SP700 OWNER’S MANUAL

SP700

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. EXPLODED DIAGRAM 5

3. PARTS LIST 7

4. ASSEMBLY INSTRUCTIONS 9

5. ADJUSTMENT 12

6. EXERCISE GUIDE 13

7. WARRANTY REGISTRATION 15

SP700

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this spinning bike.

It is important your spinning bike receives regular maintenance to prolong its useful life. Failing to

regularly maintain your spinning bike may void your warranty.

1. Keep children and pets away from the Spinning Bike at all times. DO NOT leave

unattended children in the same room with the machine.

2. Handicapped or disabled persons should not use the Spinning Bike without the

presence of a qualified health professional or physician.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,

STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Before beginning training, remove all within a radius of 2 meters from the machine. DO

NOT place any sharp objects around the Spinning Bike.

5. Position the Spinning Bike on a clear, level surface away from water and moisture.

Place mat under the unit to help keep the machine stable and to protect the floor.

6. Use the Spinning Bike only for its intended use as described in this manual. DO NOT

use any other accessories not recommended by the manufacturer.

7. Assemble the machine exactly as the descriptions in the instruction manual.

8. Check all bolts and other connections before using the machine for the first time and

ensure that the trainer is in the safe condition.

9. Hold a routine inspection of the equipment. Pay special attention to components which

are the most susceptible to wear off, i.e. connecting points and wheels. The defective

components should be replaced immediately. The safety level of this equipment can

SP700

only be maintained by doing so. Please don't use the Spinning Bike until it is repaired

well.

10.NEVER operate the Spinning Bike if it is not functioning properly.

11.This machine can be used for only one person’s training at a time.

12.Do not use abrasive cleaning articles to clean the machine. Remove drops of sweat

from the machine immediately after finishing training.

13.Always wear appropriate workout clothing when exercising. Running or aerobic shoes

are also required.

14.Before exercising, always do stretching first.

15.The power of the machine increases with increasing the speed, and the reverse. The

machine is equipped with adjustable knob, which can adjust the resistance.

WARNING: BEFORE BEGINNING THIS OR ANY EXERCISE PROGRAM,

CONSULT YOUR PHYSICIAN F I R S T. THIS IS ESPECIALLY IMPORTANT

FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-

EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE

USING THE SPINNING BIKE. THANE ASSUMES NO RESPONSIBILITY FOR

PERSONAL INJURY OR PROPERTY DAMAGE SUSTA I N E D BY OR

THROUGH THE USE OF THIS PRODUCT

SP700

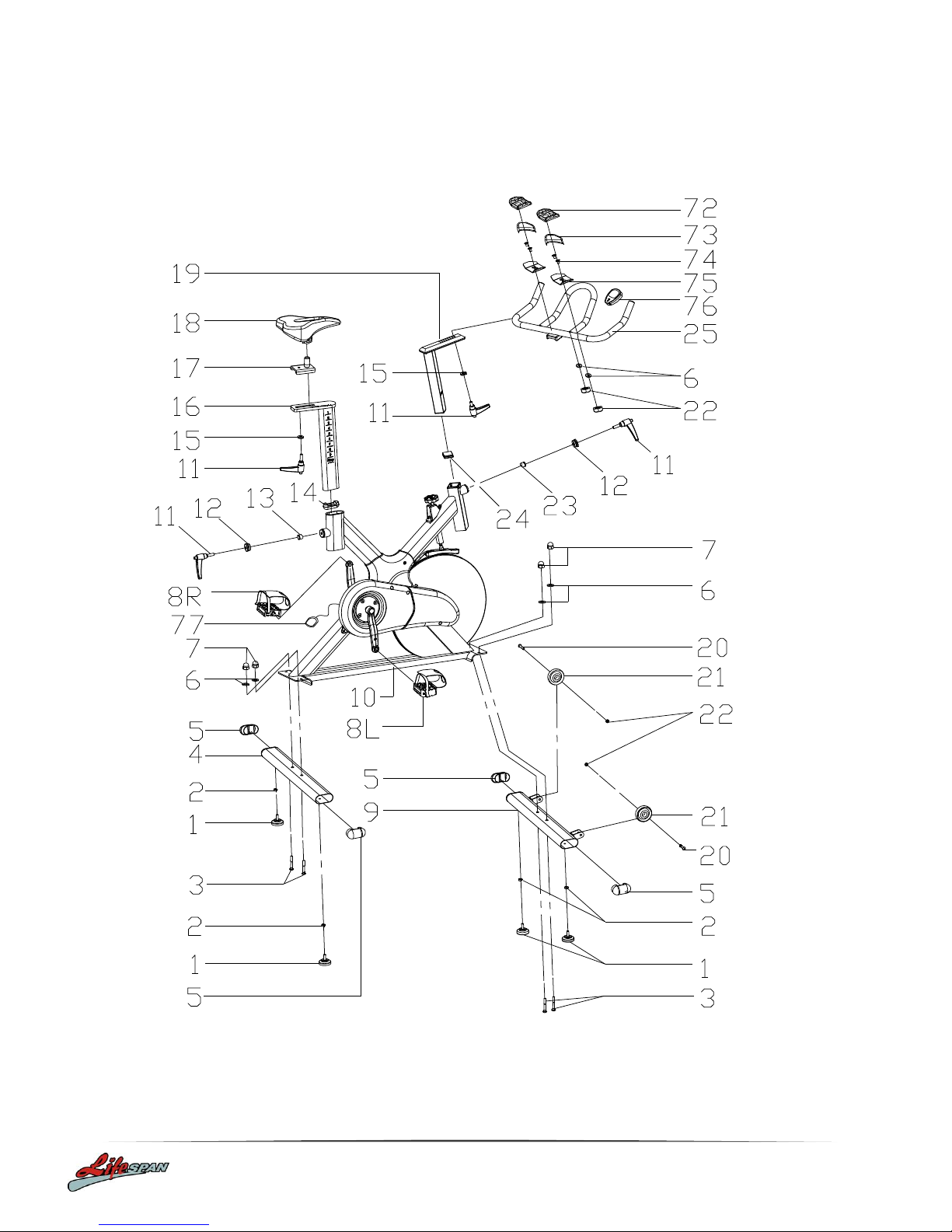

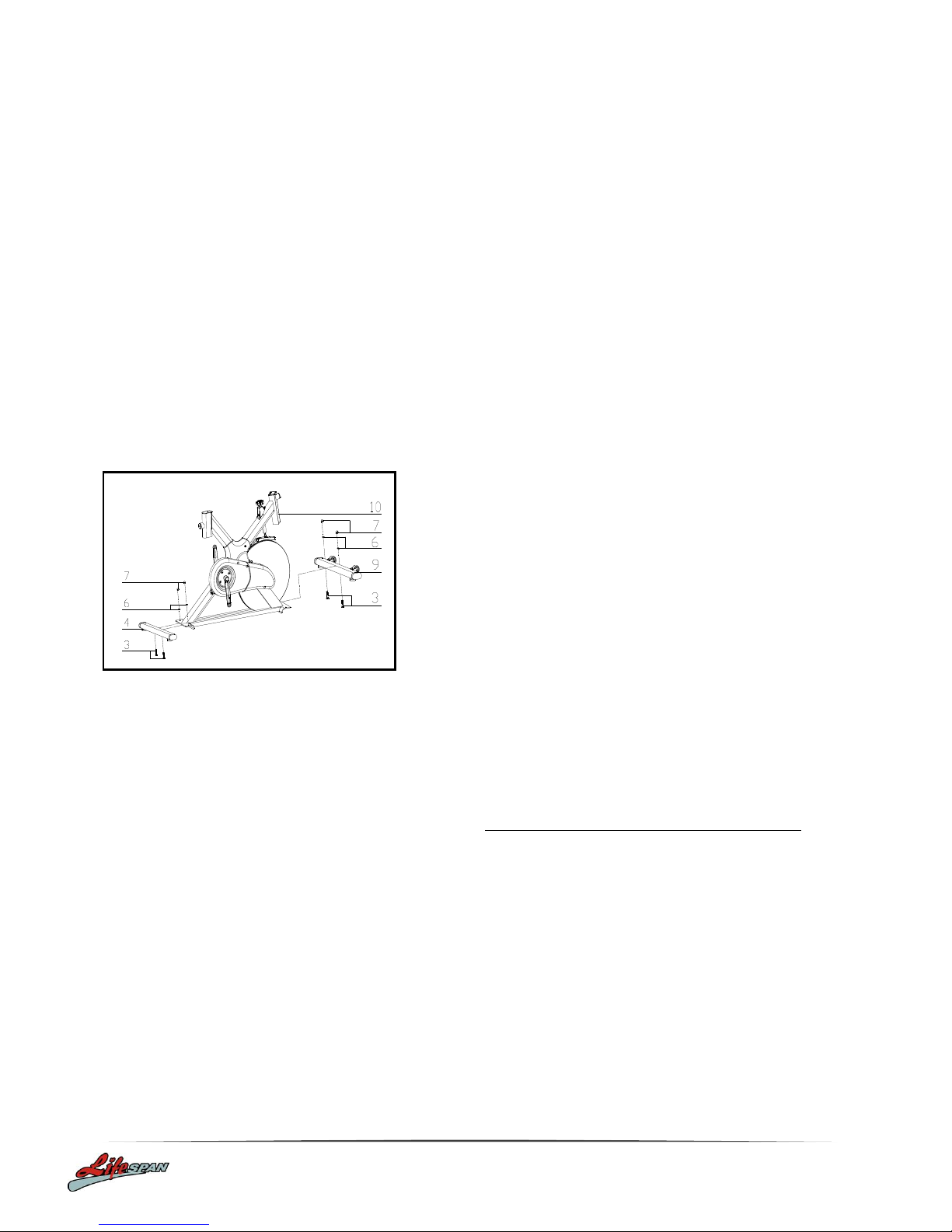

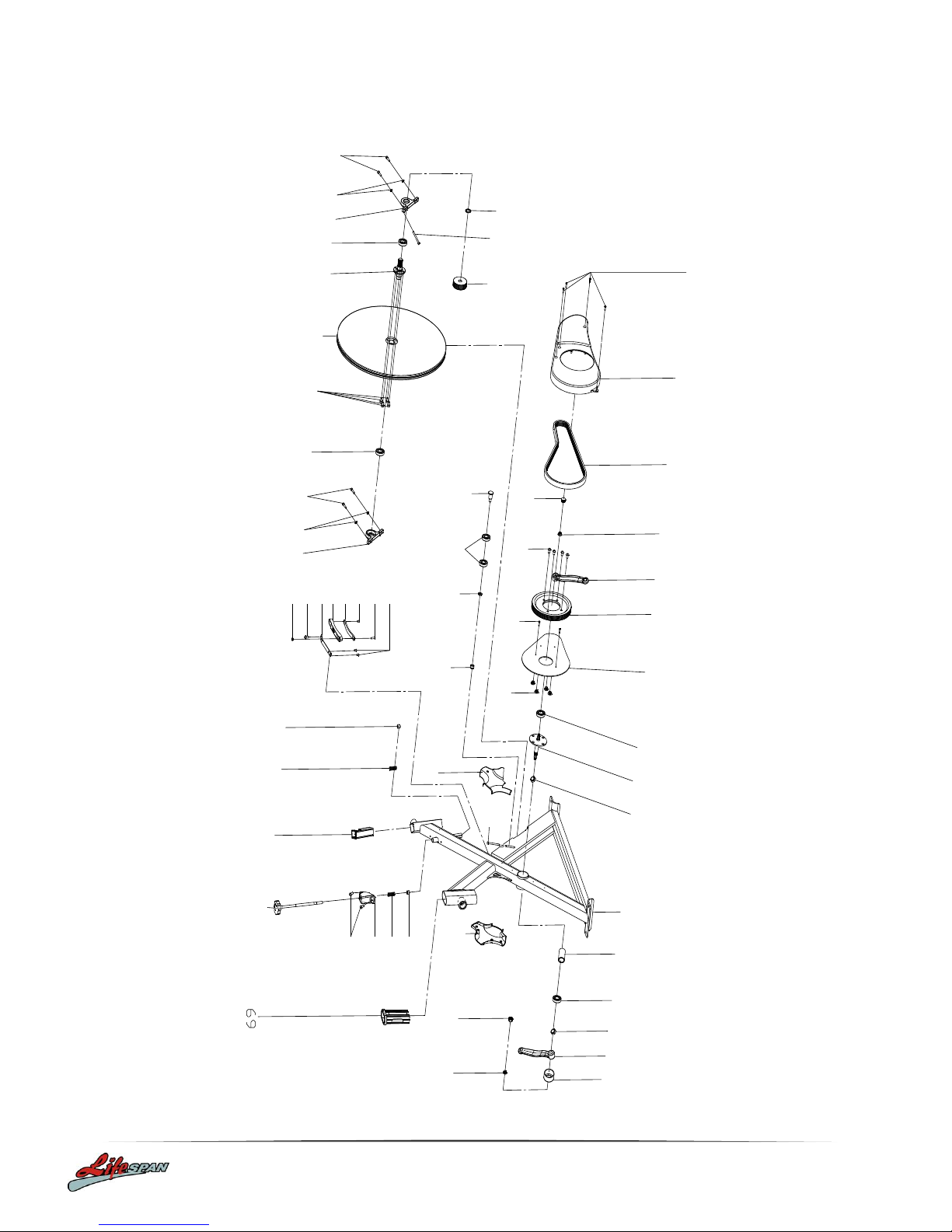

2. EXPLODED DIAGRAM

SP700

38 37 33

SP700

3. PARTS LIST

NO NAME QUANTITY SPEC

1 STOPPER 4 φ40*35/(M8X25)

2NUT 4

GB/T 41-2000 M8

3 CARRIAGE BOLT 4 GB/T 12-1988 M8*55

4 REAR STABILIZER 1 WELDING

5 END CAP 1 4 配80*40*1.5管

6 FLAT WASHER 4

GB/T 95-2002 8

7 DOMED NUT 4 GB/T 802-1988 M8

(H=16mm)

8 PEDAL 1 YH－21X（9/16"）

9 FRONT STABILIZER 1 WELDING

10 MAIN FRAME 1 WELDING

11 L SHAPE KNOB 4 M10*23

12 FIXING NUT 2 Q235/32*12

13 FIXING SHAFT 1 φ22*19

14 END CAP 2 1 70*30*1.5

15 FLAT WASHER 1 2 φ45*φ10.5*5

16 VERTICAL SEAT POST 1 WELDING

17 SEAT POST 1 WELDING

18 SEAT 1 DD-2681

19 HANDLEBAR POST 1 WELDING

20 BOLT 1 2

GB/T 5780-2000 M8*40

21 WHEEL 2 φ69X26

22 LOCK NUT 6 GB/T 889.1-2000 M8

23 FIXING SHAFT1 1 φ22*21

24 END CAP 1 38*38*1.5

25 HANDLE BAR 1 WELDING

26 SCREW 8 GB/T 15856.1-2002 ST4.2X16

27 OUTER CHAIN COVER 1 572*249*52

28 BELT 1 5PK1180MM

29 FIXING NUT 1 2

GB/T 6177.2-2000 M10*1.25

30 RIGHT CRANK 1 170*27

31 CHAIN WHEEL 1 φ200*24

32 INNER CHAIN COVER 1 336*242*3

33 BEARING 4 6004ZZ

34 AXIS 1 φ20*156

35 SHORT FIXING TUBE 1 φ25*2.5*9

36 LONG FIXING TUBE 1 φ25*φ20.5*41

SP700

NO NAME QUANTITY SPEC

37 FIXING NUT 1 φ28*M20*1

38 LEFT CRANK 1 170*27

39 CRANK END CAP 2 φ23*7.5

40 BOLT 2 4 GB/T 70.3-2000 M8*15

41 SCREW 1 4

GB/845-85 ST4.2X9.5

42 BOLT 3 5 GB/T 70.1-2000 M6*35

43 LEFT LITTLE COVER 1 249*237*23.5

44 RIGHT LITTLE COVER 1 249*230*26

45 SHAFT 1 φ25*42

46 BEARING 2 6203ZZ

47 FLAT WASHER 1 1 GB/T 95-2002 10

48 SHAFT NUT 1 φ18*11

49 SHAFT SLEEV 1 φ28*φ19*5

50 LITTLE CHAIN WHEEL 1 φ64*23

51 FLYWHEEL HOLDER 2 129*56.5*15

52 FLYWHEEL SHAFT 1 φ49*77.5

53 FLAT WASHER 2 8

GB/T 95-2002 6

54 CNC FLYWHEEL 1 φ460*15(20KG)

55 BOLT 4 4 GB/T 70.1-2000 M6*12

56 NUT 1 2

GB/T 41-2000 M6

57 BOLT 5 4 GB/T 70.1-2000 M6*12

58 ADJUSTING METAL 1 156*14.5*δ1.5

59 BLOCK 1 161*21*19

60 WOOLLY BLOCK 1 155*15.5*6

61 BOLT 6 2 GB/T 5780-2000 M5*10

62 NUT 2 1 φ16*14

63 SPRING 1 1 φ1.0X55

64 PLASTIC SLEEVE 1 45*45*1.5

65 TENSION CONTROL KNOB 1 M10*225

66 BREAK COVER 1 95*70*38.5

67 SPRING 2 1 δ1.8X40

68 FIXING NUT2 1 15.5*15.5*δ5（M10)

69 PLASTIC SLEEVE 1 1 80*40*1.5

70 CRANK COVER 1 φ56*28

71 BOLT 7 1 GB/T 70.1-2000 M6*20

72 HAND SUPPORT 2 120*65

73 STICKER 2 100*55

74 BOLT5 4GB/T 70.3-2000 M6*18

75 SUPPORT SHEET 2δ2

76 COMPUTER 1 JS-204

77 SENSOR 1L＝120

SP700

4. ASSEMBLY INSTRUCTIONS

STEP 1: PREPARATION

A. Before assembling make sure that you will have enough space around the item.

B. Use the present tooling for assembling.

C. Before assembling please check whether all needed parts are available (at the above of this instruction

sheet you will find an explosion drawing with all single parts (marked with numbers) which this item

consists of.

STEP 2:

1. Remove the bolts and nut from the

bottom tube

2. Attach the Front Stabilizer (pt.9) to the

Main Frame (pt.10) using two sets of

Ø8 Flat Washers (pt.6), M8 Domed Nut

(pt.7) and M8*55 Carriage bolt (3).

3. Attach the Rear Stabilizer (pt.4) to the

Main Frame (pt.10) using two sets of

Ø8 Flat Washers (pt.6), M8 Domed Nut

(pt.7) and M8*65 Carriage bolt (3).

SP700

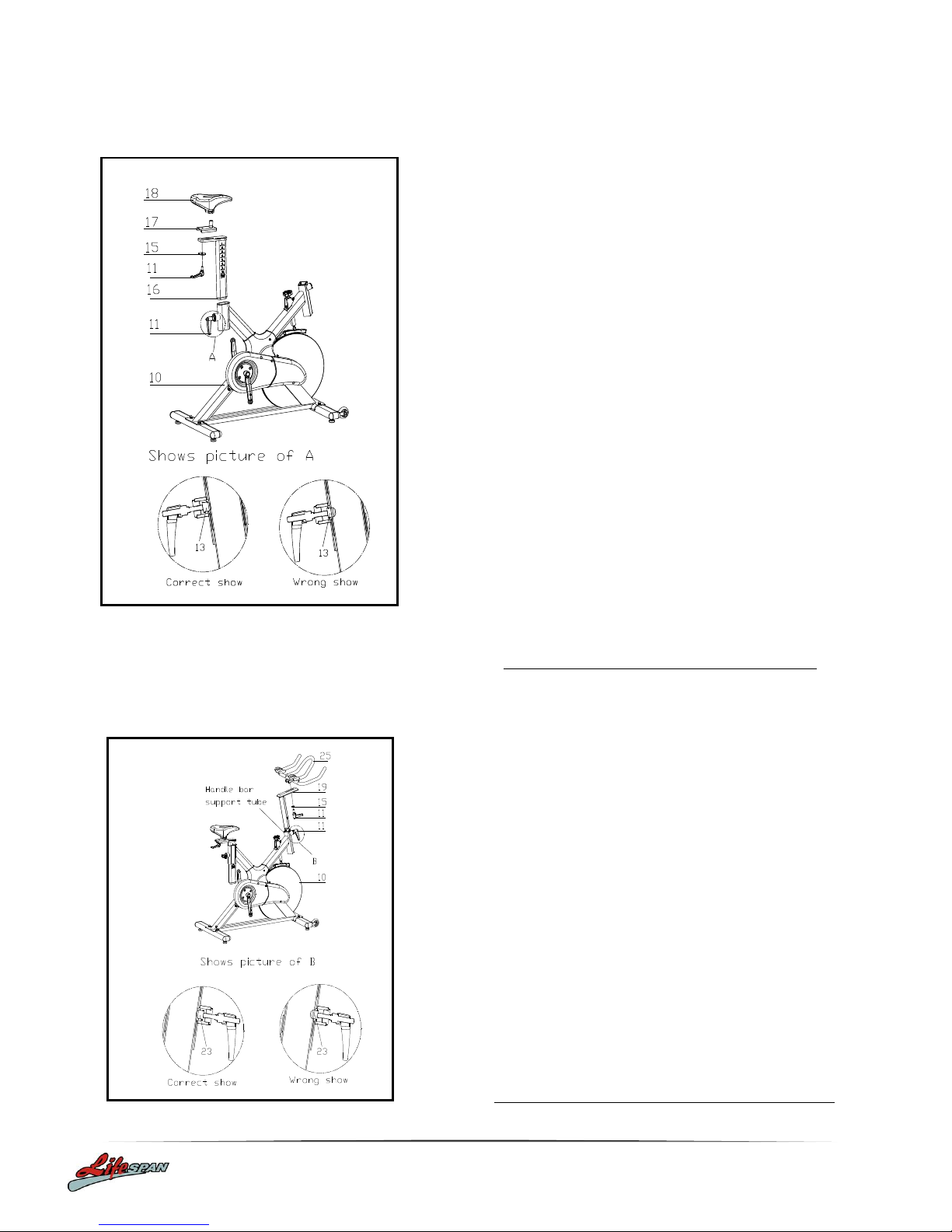

STEP 3:

STEP 4:

1. Slide the Vertical Seat Post (pt.16) into

the seat post housing on the main frame

(pt.10).

2. Slide the Seat Post (pt.17) into the

Vertical Seat Post (pt.16),then Secure

using a flat washer 1 (15) and L Shape

knob (11).You will have to slacken the

knurled section of the L Shape Knob

(pt.11) and pull the knob back and then

select the desired height. Release the

knob and retighten the knurled portion.

3. Now fix the Seat (pt.18) to the Seat

Post (pt.17) as shown, and tighten the

bolts around the screws under the seat.

1. Slide the Handlebar Post (pt.19) into

the handlebar post housing on the main

frame(pt.10). You will have to slacken

the knurled section of the L Shape

Knob (pt.11) and pull the knob back

and then select the desired height.

Release the knob and retighten the

knurled portion.

2. Fix the Handlebar (pt.25) with a flat

washer 1 (15) and L Shape knob (11)

ATTENTION: YOU SHOULD FIX THE

HANDLEBAR TIGHTLY
