Life Span Exer 55 Bedienungsanleitung

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

EXER 55 OWNER’S MANUAL

EXER 55

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. ASSEMBLY INSTRUCTIONS 4

3. EXERCISE GUIDE 13

4. EXPLODED DIAGRAM 15

5. WARRANTY 16

EXER 55

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this machine.

Install the product on a flat level surface

Place your unit on a solid, level surface when in use

Never allow children on or near the machine.

Keep hands away from all moving parts.

Keep the cord away from heated surfaces.

Never drop or insert any object into any openings.

The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on the

machine. Quality athletic shoes are recommended to avoid leg fatigue.

Care must be taken when lifting or moving the equipment so as not to injure your back. Always use

proper lifting techniques and/or seek assistance if necessary

EXER 55

2. ASSEMBLY INSTRUCTIONS

EXER 55

PART LIST

DESCRIPTION

QTY

DESCRIPTION

QTY

BOLT M8*73

TRUNK LINE

CAP NUT

TENSION WIRE

ARC WASHER ID8.5*OD25

HANDLEBAR POST ASSEMBLE

BOLT M8*15

ARC WASHER

ARC WASHER ID8.5*OD19

SCREW M5*45

KNOB M16

COMPUTER

SCREW M5*15

HANDLE PULSE WIRE

KNOB

SCREW

BOLT M8*94

HANDLE

MAIN FRAME

END CAP

FRONT BOTTOM TUBE

SPONGE TUBE

END CAP WITH WHEEL

PULSE COMPUTER

BACK BOTTOM TUBE

R,L

PEDAL (RIGHT &LEFT)

END CAP

IPCS CRANK

SEAT POST BUSH

HAND PULSE WIRE

EXTENT COVER

NYLON LOCK NUT M8

SADDLE POST

WASHER M8

SADDLE

TENSION CABLE

SENSOR WIRE CONNECTOR

POST CONNECT COVER

EXER 55

STEP 1

Attach the Front & Rear Stabilizer (2&4)

onto the Main Frame (1) with Bolt (A), Arc

Washer (C) and Cap Nut (B) then tighten.

EXER 55

STEP 2

1. Attach the Saddle (9) to Saddle Post (8) with Nylon

Lock Nut (28) and Washer (29) and tighten.

2. Insert the Saddle Post (8) through the Extent

Cover (7).

3. Attach the Saddle Post (8) to Main Frame (1) with

Knob (F) then tighten.

EXER 55

STEP 3

1. Connect the Sensor Wire Connector

(11) and Trunk Line (13), Tension

Cable (10) and Tension Wire (14).

2. Insert the Handlebar Post into the

Main Frame (1) with Handlebar Post

(15)

3. Attach the Handlebar Post (15) into

the Main Frame (1) with Bolt (D) and

Arc Washer (E) then tighten.

EXER 55

STEP 4

1. Connect the Trunk Line (13)

and Computer Wire (27)

2. Place the Computer (18)

onto the Handlebar Post

(15)

3. Attach the Computer (18)

to Handlebar Post (15)

EXER 55

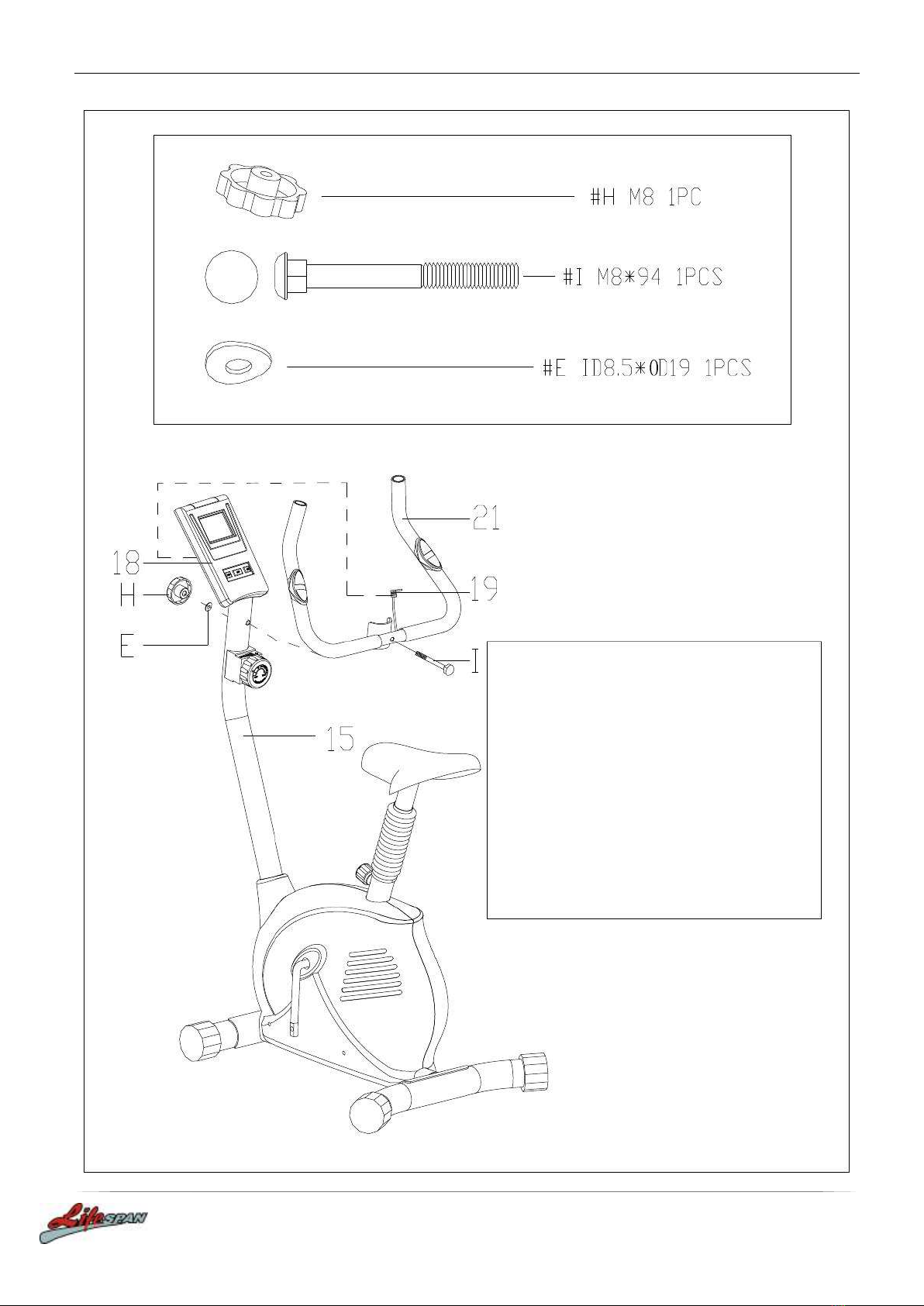

STEP 5

1. Attach the Handle (21) to the

Handlebar Post (15) with Bolt (I), Arc

Washer (E) and Knob (H) and tighten

2. Connect the Handle Pulse Wire’s

circinal pin and Computer hole.
