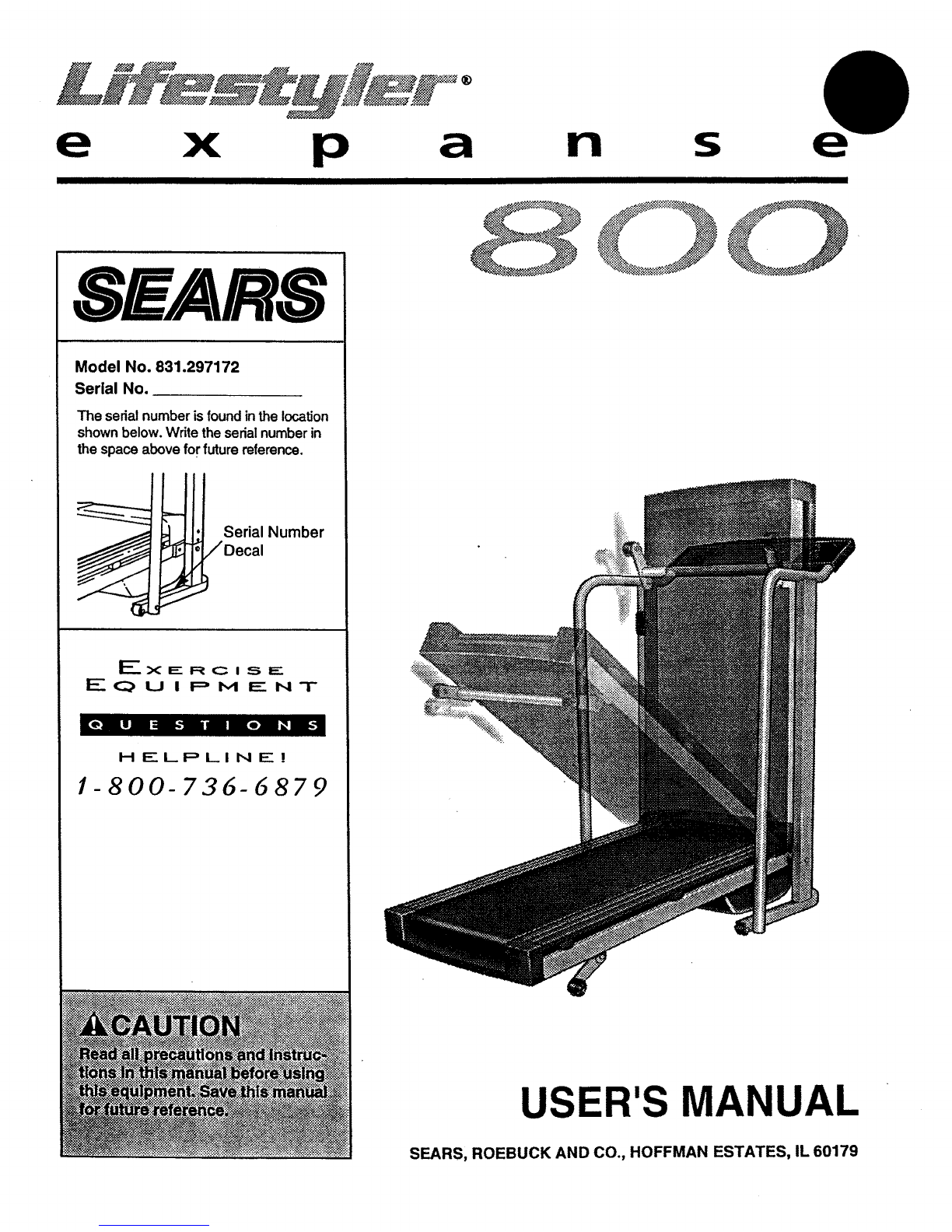

LIFESTYLER Expance 800 Bedienungsanleitung

e x p a n s

IIIIIIIIIII , ,i,,,,,,,,,,,ii

++ +++N N

Model No. 831.297172

Serial No.

The serial number is found in the location

shown below. Write the serial number in

the space above for future reference.

Serial Number

F____xI=-- RCi_ _-

E(_U I PM ENT

II .'_

HF__LPLINE!

1-800-736-6879

USER'S MANUAL

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

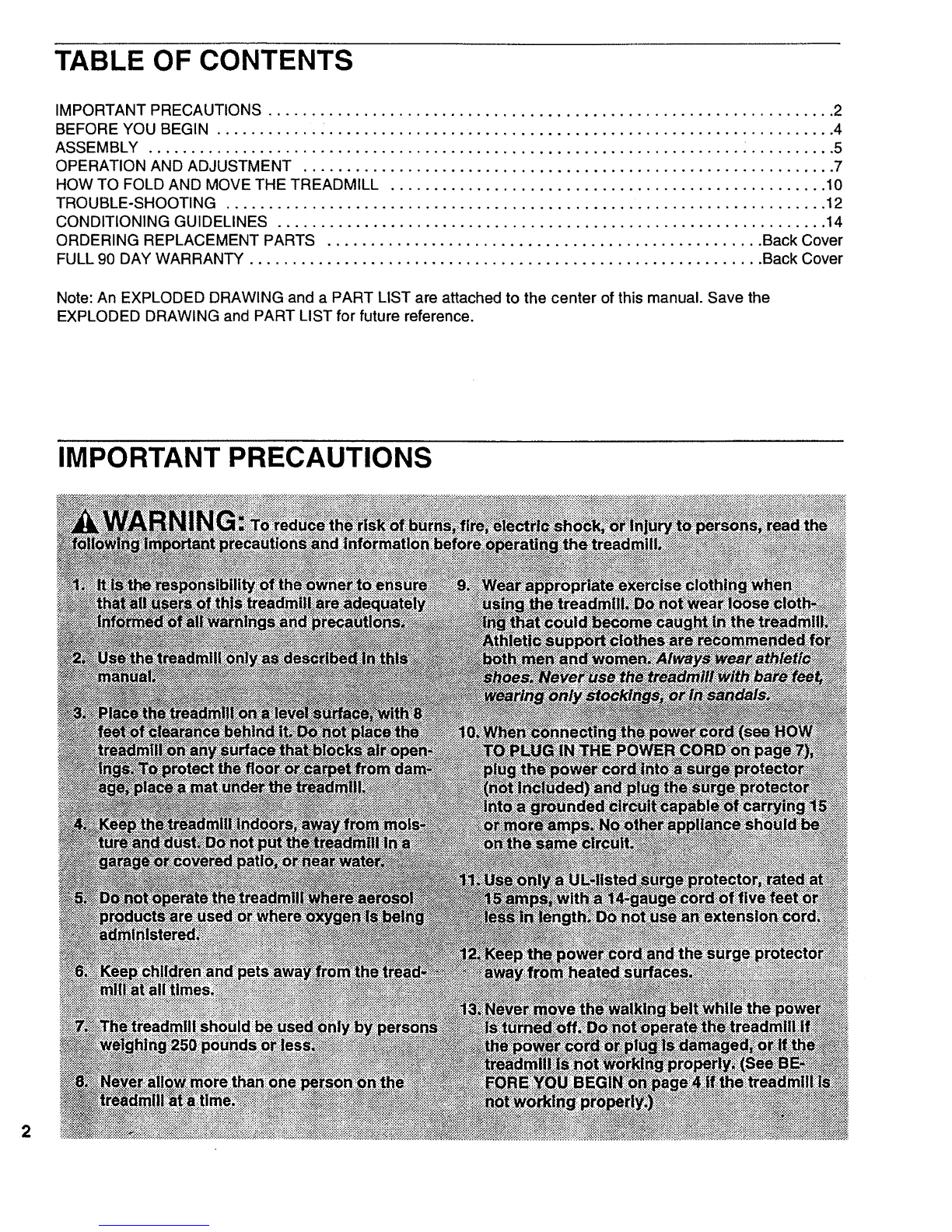

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 2

BEFORE YOU BEGIN ............ _.......................................................... 4

ASSEMBLY .................................................................... : .......... 5

OPERATION AND ADJUSTMENT ............................................................. 7

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10

TROUBLE-SHOOTING ..................................................................... 12

CONDITIONING GUIDELINES ............................................................... 14

ORDERING REPLACEMENT PARTS .................................................. Back Cover

FULL 90 DAY WARRANTY ........................................................... Back Cover

Note: An EXPLODED DRAWING and a PART LIST are attached to the center of this manual. Save the

EXPLODED DRAWING and PART LIST for future reference.

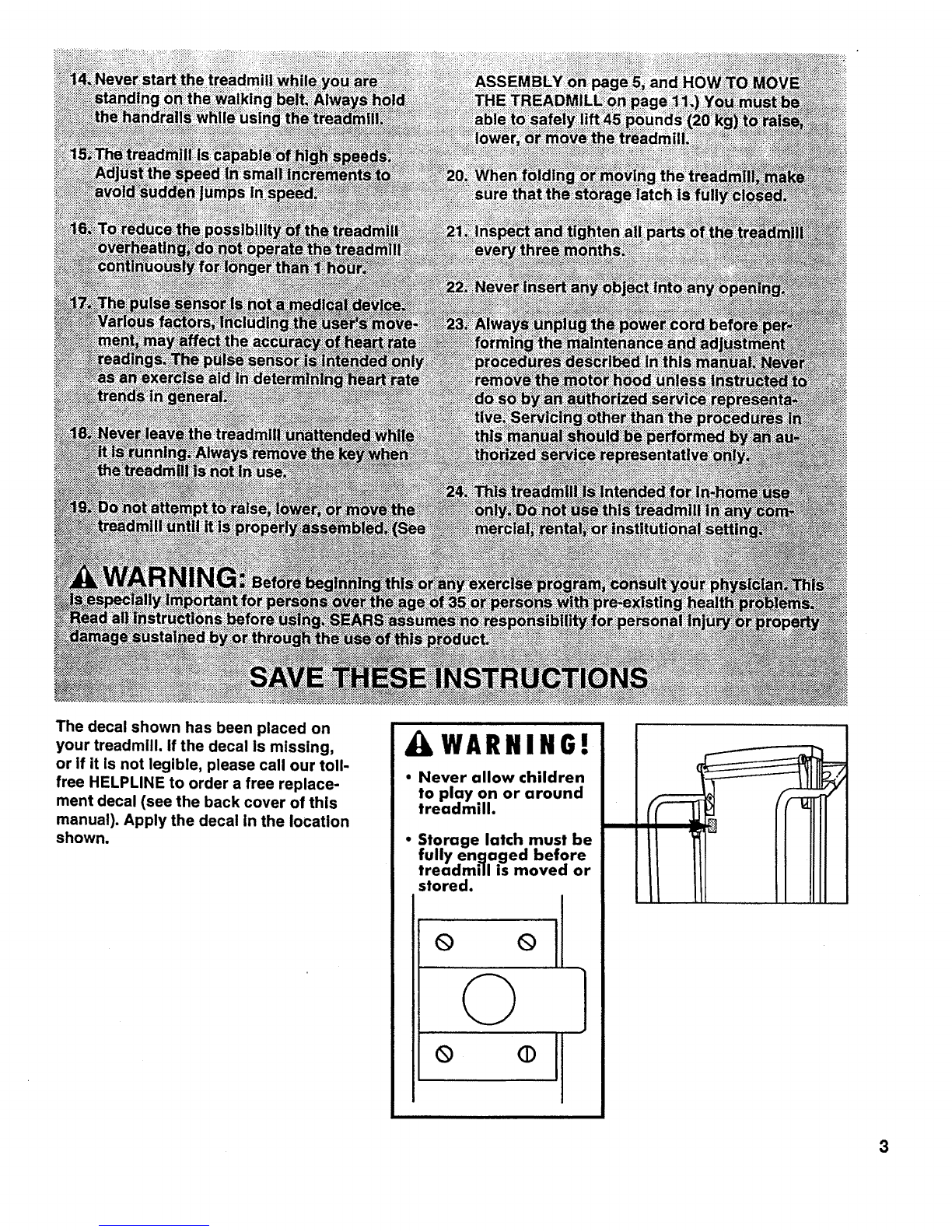

IMPORTANT PRECAUTIONS

The decal shown has been placed on

your treadmill. If the decal is missing,

or if it is not legible, please call our toU-

free HELPLINE to order a free replace-

ment decal (see the back cover of this

manual). Apply the decal in the location

shown.

._LWARNING!

Never allow children

to play on or around

treadmill.

• Storage latch must be

fully engaged before

treadmill is moved or

stored.

Q Q

®(D II

]

iiii

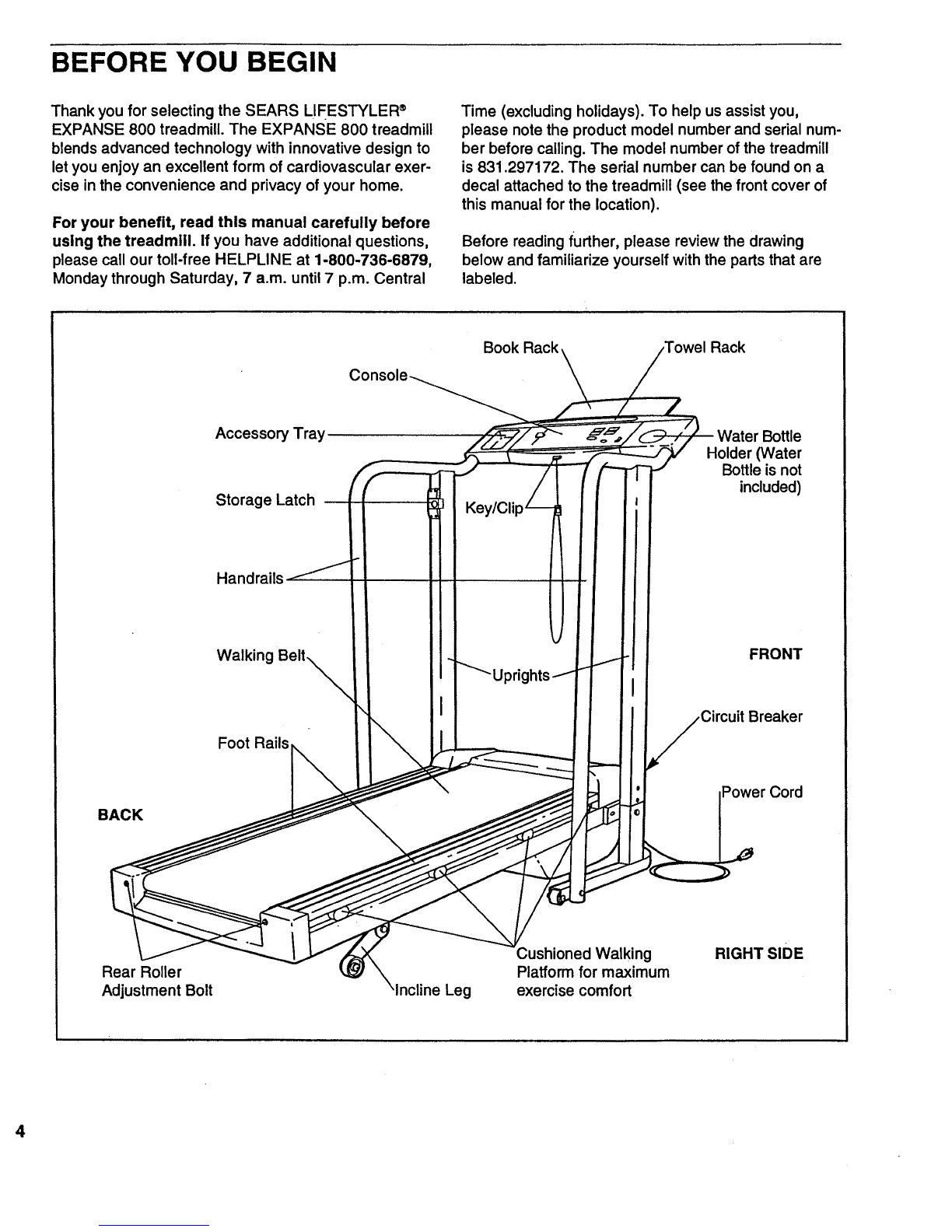

BEFORE YOU BEGIN

Thank you for selecting the SEARS LIFESTYLER ®

EXPANSE 800 treadmill. The EXPANSE 800 treadmill

blends advanced technology with innovative design to

let you enjoy an excellent form of cardiovascular exer-

cise in the convenience and privacy of your home.

For your benefit, read this manual carefully before

using the treadmill, if you have additional questions,

please call our toll-free HELPLINE at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m. Central

Time (excluding holidays). To help us assist you,

please note the product model number and serial num-

ber before calling. The model number of the treadmill

is 831.297172. The serial number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Book Rack

BACK

Accessory Tray

Storage Latch

Handrails

Walking

Foot

-- Water Bottle

Holder (Water

Bottle is not

included)

FRONT

Breaker

Power Cord

Rear Roller

Adjustment Bolt 'Incline Leg

d Walking

Platform for maximum

exercise comfort

RIGHT SIDE

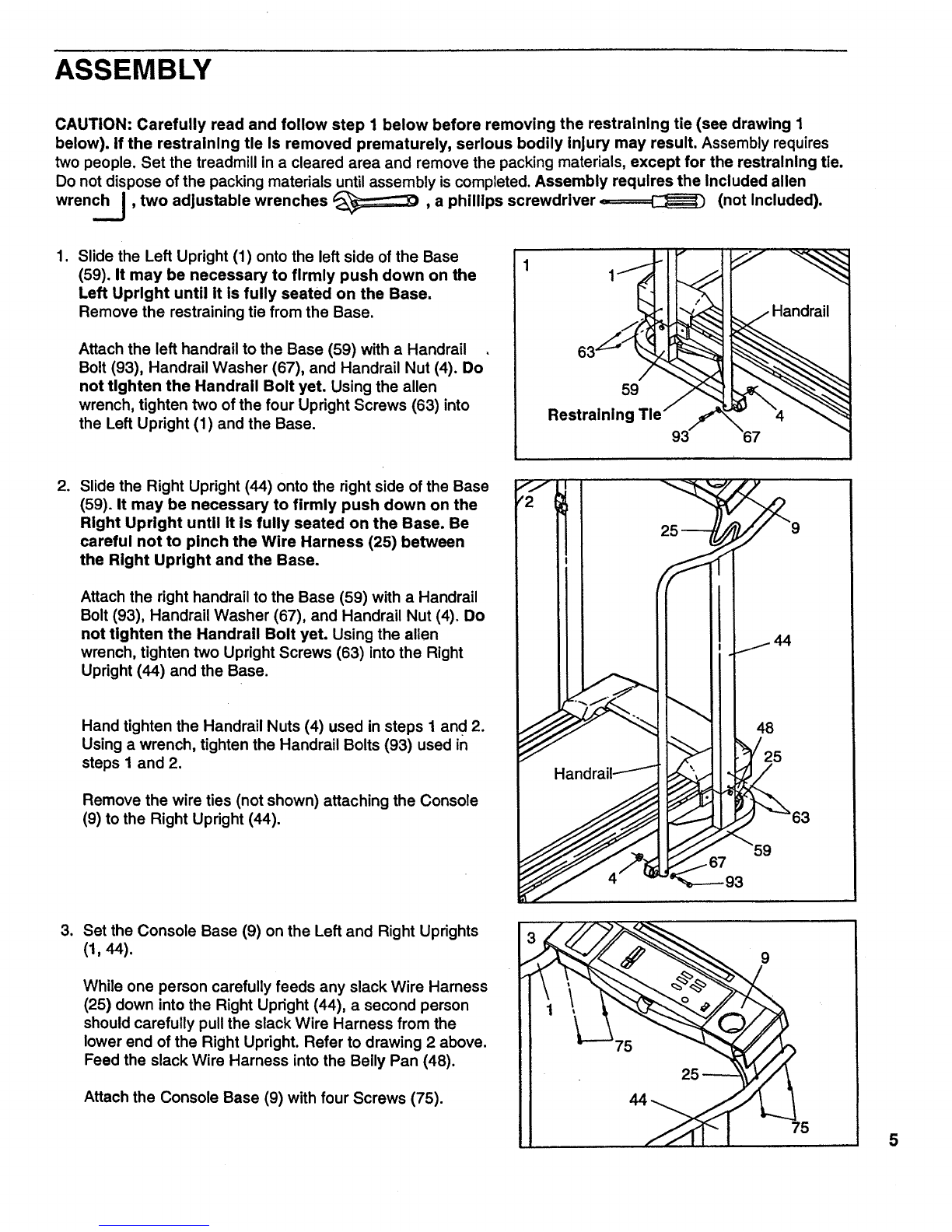

ASSEMBLY

CAUTION: Carefully read and follow step I below before removing the restralnlng tie (see drawing 1

below). If the restraining tie Is removed prematurely, serious bodily injury may result. Assembly requires

two people. Set the treadmill in a cleared area and remove the packing materials, except for the restraining tie.

Do not dispose of the packing materials until assembly is completed. Assembly requires the Included allen

wrench I ,two adjustable wrenches _ , a phillips screwdriver .-===--={_) (not Included).

°Slide the Left Upright (1) onto the left side of the Base

(59). It may be necessary to firmly push down on the

Left Upright until it Is fully seated on the Base.

Remove the restraining tie from the Base.

Attach the left handrail to the Base (59) with aHandrail

Bolt (93), Handrail Washer (67), and Handrail Nut (4). Do

not tighten the Handrail Bolt yet. Using the allen

wrench, tighten two of the four Upright Screws (63) into

the Left Upright (1) and the Base.

Restraining

2. Slide the Right Upright (44) onto the right side of the Base

(59). It may be necessary to firmly push down on the

Right Upright until it is fully seated on the Base. Be

careful not to pinch the Wire Harness (25) between

the Right Upright and the Base.

Attach the right handrail to the Base (59) with a Handrail

Bolt (93), Handrail Washer (67), and Handrail Nut (4). Do

not tighten the Handrail Bolt yet. Using the allen

wrench, tighten two Upright Screws (63) into the Right

Upright (44) and the Base.

Hand tighten the Handrail Nuts (4) used in steps 1 and 2.

Using a wrench, tighten the Handrail Bolts (93) used in

steps 1 and 2.

Remove the wire ties (not shown) attaching the Console

(9) to the Right Upright (44).

3. Set the Console Base (9) on the Left and Right Uprights

(1,44).

While one person carefully feeds any slack Wire Harness

(25) down into the Right Upright (44), a second person

should carefully pull the slack Wire Harness from the

lower end of the Right Upright. Refer to drawing 2 above.

Feed the slack Wire Harness into the Belly Pan (48).

Attach the Console Base (9) with four Screws (75).

75 5

With the help of a second person, carefully lower the Left

and Right Uprights (1,44) until the handrails are resting

on the floor.

Attach six Base Pads (57) to the bottom of the Base (59)

in the indicated locations. Note: An extra Base Pad may

be included.

(See drawing 4 above.) With the help of a second per-

son, raise the Left and Right Uprights (1,44) until the

Base (59) is resting flat on the floor.

Before moving the treadmill, see HOW TO MOVE THE

TREADMILL on page 11.

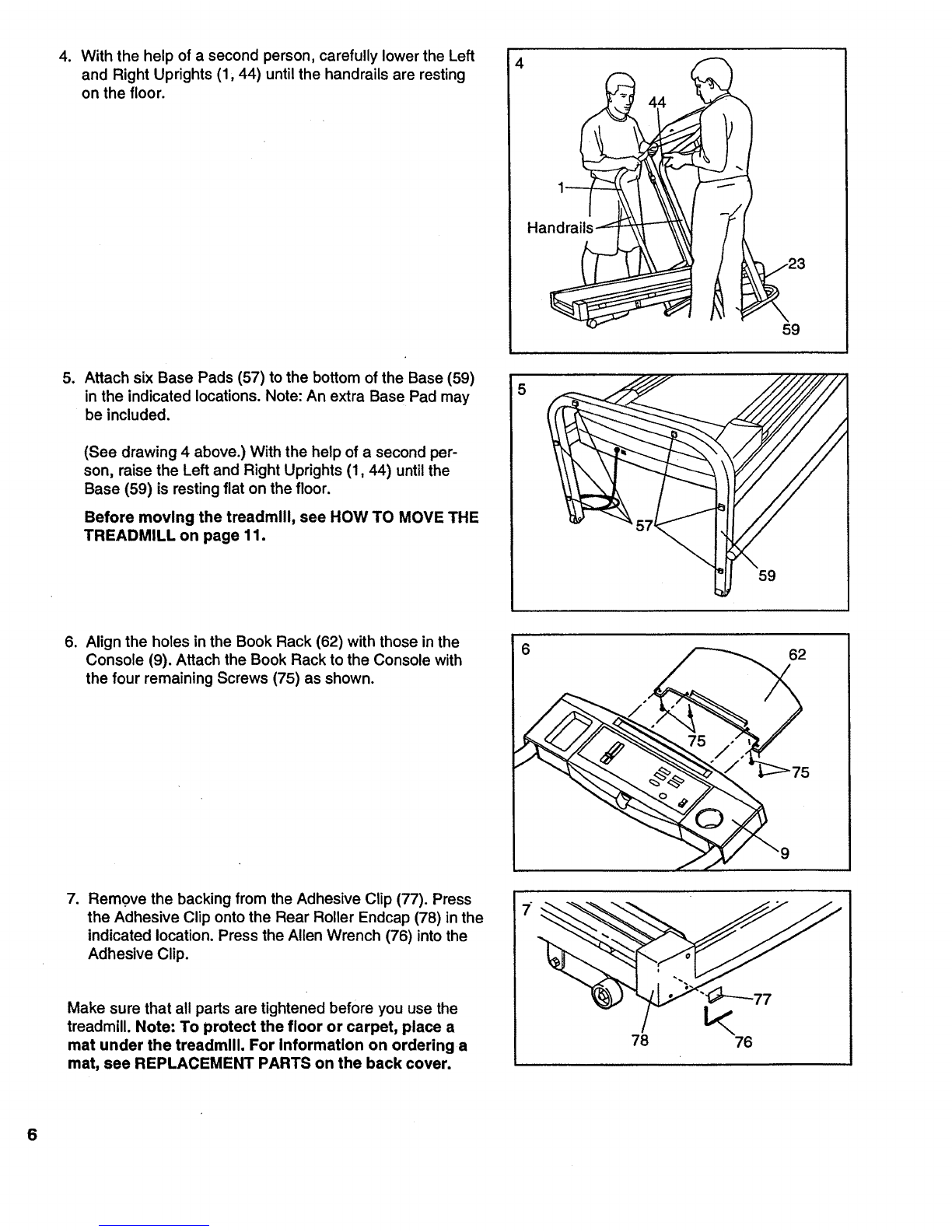

6. Align the holes in the Book Rack (62) with those in the

Console (9). Attach the Book Rack to the Console with

the four remaining Screws (75) as shown.

662

7. Remove the backing from the Adhesive Clip (77). Press

the Adhesive Clip onto the Rear Roller Endcap (78) in the

indicated location. Press the Allen Wrench (76) into the

Adhesive Clip.

Make sure that all parts are tightened before you use the

treadmill. Notre To protect the floor or carpet, place a

mat under the treadmill. For information on ordering a

mat, see REPLACEMENT PARTS on the back cover.

78 76

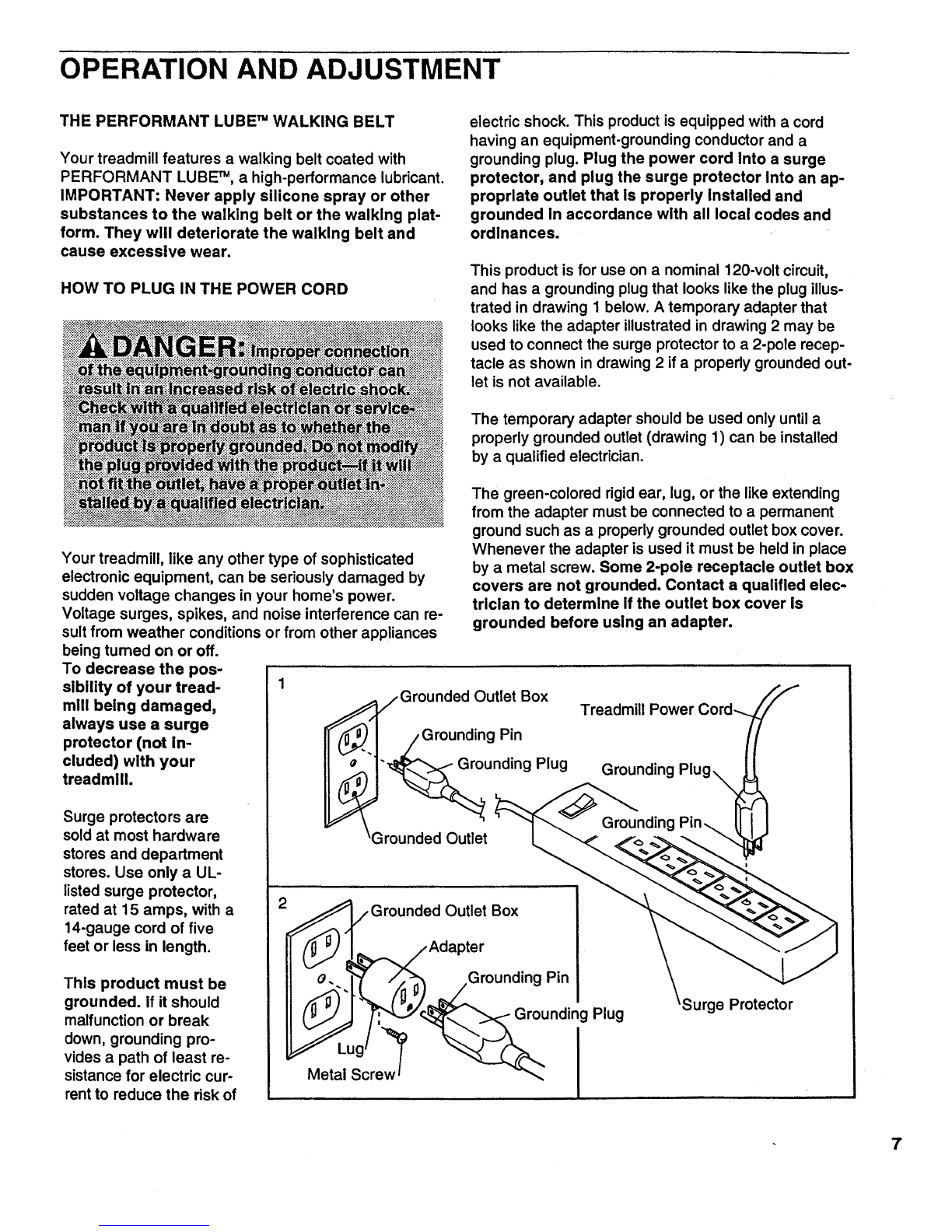

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. They will deteriorate the walking belt and

cause excessive wear.

HOW TO PLUG IN THE POWER CORD

electric shock. This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord Into a surge

protector, and plug the surge protector Into an ap-

propriate outlet that Is properly Installed and

grounded in accordance with all local codes and

ordinances.

This product is for use on anominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. Atemporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge protector to a 2-pole recep-

tacle as shown in drawing 2 if a properly grounded out-

let is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can re-

suit from weather conditions or from other appliances

being tumed on or off.

To decrease the pos-

sibility of your tread- 1

mill being damaged,

always use a surge

protector (not in-

cluded) with your

treadmill.

Surge protectors are

sold at most hardware

stores and department

stores. Use only a UL-

listedsurge protector,

rated at 15 amps, with a

14-gauge cord of five

feet or less in length.

This product must be

grounded, if it should

malfunction or break

down, grounding pro-

vides a path of least re-

sistance for electric cur-

rentto reduce the risk of

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

jGrounded Outlet Box

!Grounding Pin

"_unding Plug

\Grounded Outlet

Treadmill

Surge Protector

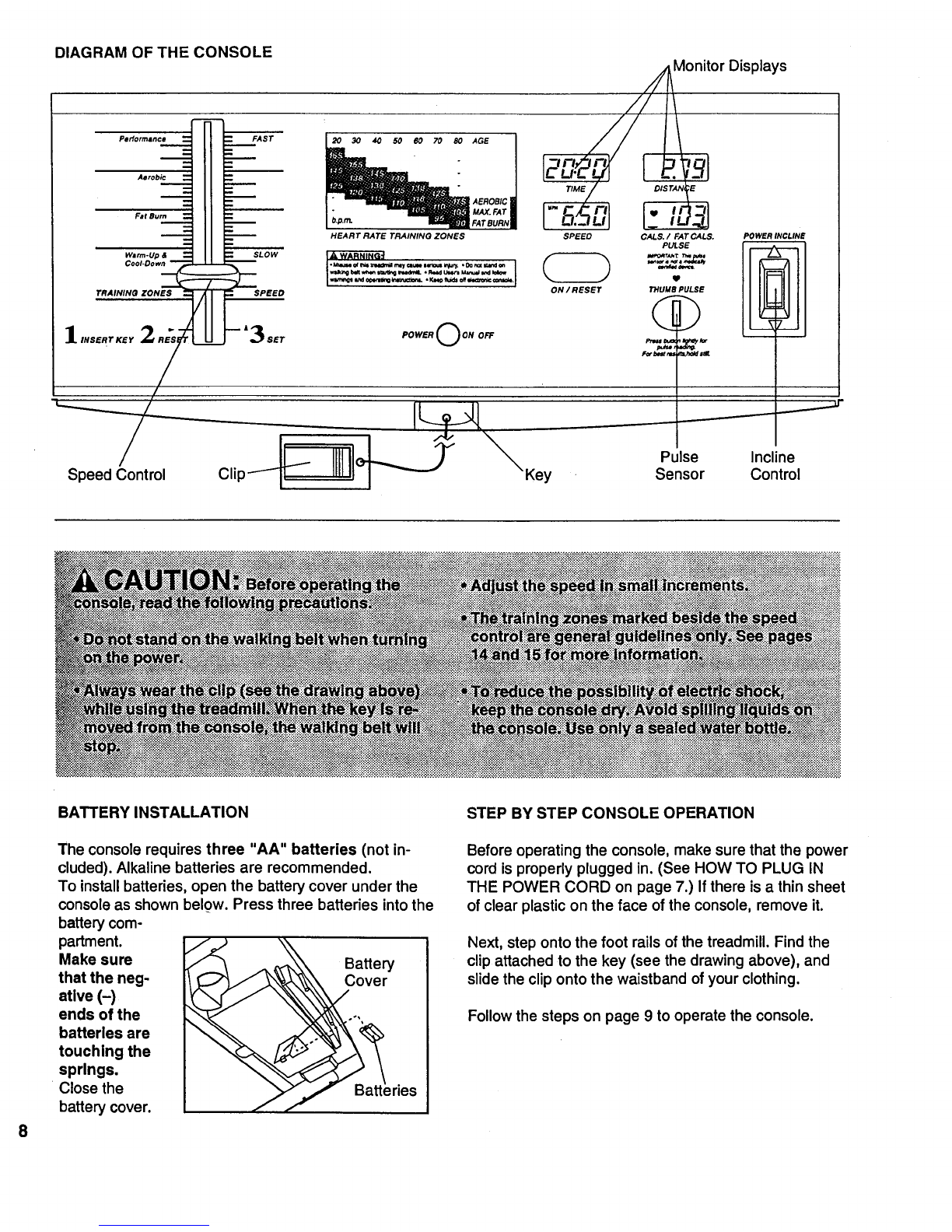

DIAGRAM OF THE CONSOLE Monitor Displays

BATTERY INSTALLATION

The console requires three "AA" batteries (not in-

cluded). Alkaline batteries are recommended.

To install batteries, open the battery cover under the

console as shown below. Press three batteries intothe

battery com-

partment.

Make sure Battery

that theneg-ative(-) ___./CoOVer

ends of the

batteries are _a_tte

touching the

springs.

Close the des

battery cover.

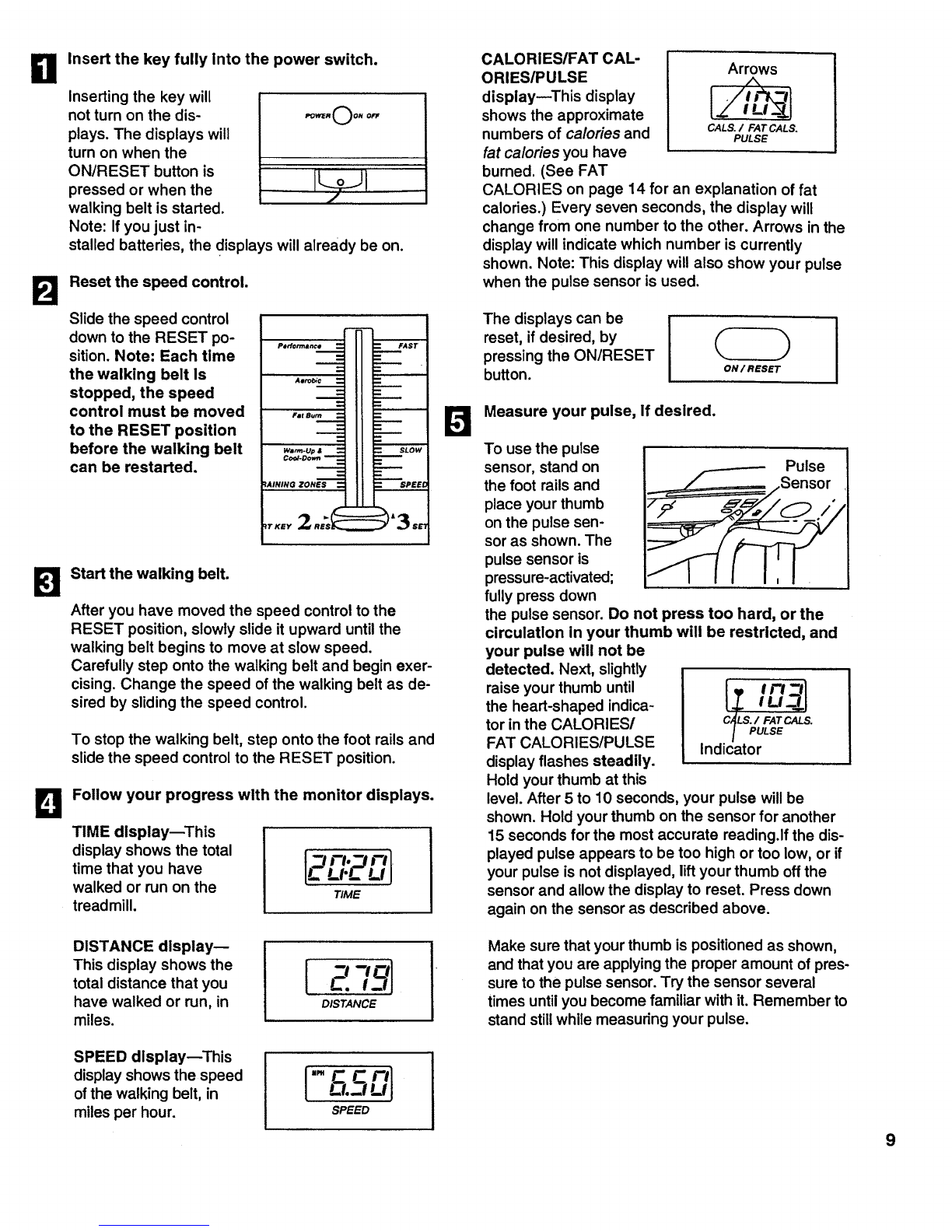

STEP BY STEP CONSOLE OPERATION

Before operating the console, make sure that the power

cord is properly plugged in. (See HOW TO PLUG IN

THE POWER CORD on page 7.) If there is a thin sheet

of clear plastic on the face of the console, remove it.

Next, step onto the foot rails ofthe treadmill. Find the

clip attached to the key (see the drawing above), and

slide the clip onto the waistband ofyour clothing.

Follow the steps on page 9 to operate the console.

Insertthekeyfully intothepowerswitch.

Inserting the key will

not turn on the dis-

plays. The displays will

turn on when the

ON/RESET button is

pressed or when the

walking belt is started.

Note: If you just in-

POW_ROON OFF

stalled batteries, the displays will already be on.

Reset the speed control.

CALORIES/FAT CAL-

ORIES/PULSE

display--This display

shows the approximate

numbers of calories and

fat calories you have

burned. (See FAT

Arrows

•Ii -I

CALS. I PAT CALS.

PULSE

CALORIES on page 14 for an explanation of fat

calories.) Every seven seconds, the display will

change from one number to the other. Arrows in the

display will indicate which number is currently

shown. Note: This display will also show your pulse

when the pulse sensor is used.

Slide the speed control

down to the RESET po-

sition. Note: Each time

the walking belt Is

stopped, the speed

control must be moved

to the RESET position

before the walking belt

can be restarted.

Performance FAST

Aero£_'€

Fat Bum

Wan-Up &SLOW

Coot-Dom_

:_AINING ZON

Start the walking belt.

After you have moved the speed control to the

RESET position, slowly slide it upward until the

walking belt begins to move at slow speed.

Carefully step onto the walking belt and begin exer-

cising. Change the speed of the walking belt as de-

sired by sliding the speed control.

To stop the walking belt, step onto the foot rails and

slide the speed control to the RESET position.

Follow your progress with the monitor displays.

TIME dlsplay--This

display shows the total

time that you have

walked or run on the

treadmill.

_r LI'L- LI j

TIME

The displays can be

reset, if desired, by

pressing the ON/RESET

button. ON / RESET

Measure your pulse, If desired.

To use the pulse

sensor, stand on Pulse

the foot rails and Sensor

place your thumb

on the pulse sen-

sor as shown. The

pulse sensor is

pressure-activated;

fully press down

the pulse sensor. Do not press too hard, or the

circulation in your thumb will be restricted, and

your pulse will not be

detected. Next, slightly

raise your thumb until [vt FI "tl

the heart-shaped indica- I-L ILI _-.fl

C#LS. / FAT CALS.

tor in the CALORIES/ I PULSE

FAT CALORIES/PULSE Indicator

display flashes steadily.

Hold your thumb at this

level. After 5 to 10 seconds, your pulse will be

shown. Hold your thumb on the sensor for another

15 seconds for the most accurate reading.If the dis-

played pulse appears to be too high or too low, or if

your pulse is not displayed, lift your thumb offthe

sensor and allow the display to reset. Press down

again on the sensor as described above.

DISTANCE display--

This display shows the

total distance that you

have walked or run, in

miles.

I lJl

DISTANCE .

Make sure that your thumb is positioned as shown,

and that you are applying the proper amount of pres-

sure to the pulse sensor. Try the sensor several

times untilyou become familiar with it. Remember to

stand stillwhile measuring your pulse.

SPEED display--This

display shows the speed

of the walking belt, in

miles per hour.

"" r" F FI]

O._u I

SPEED

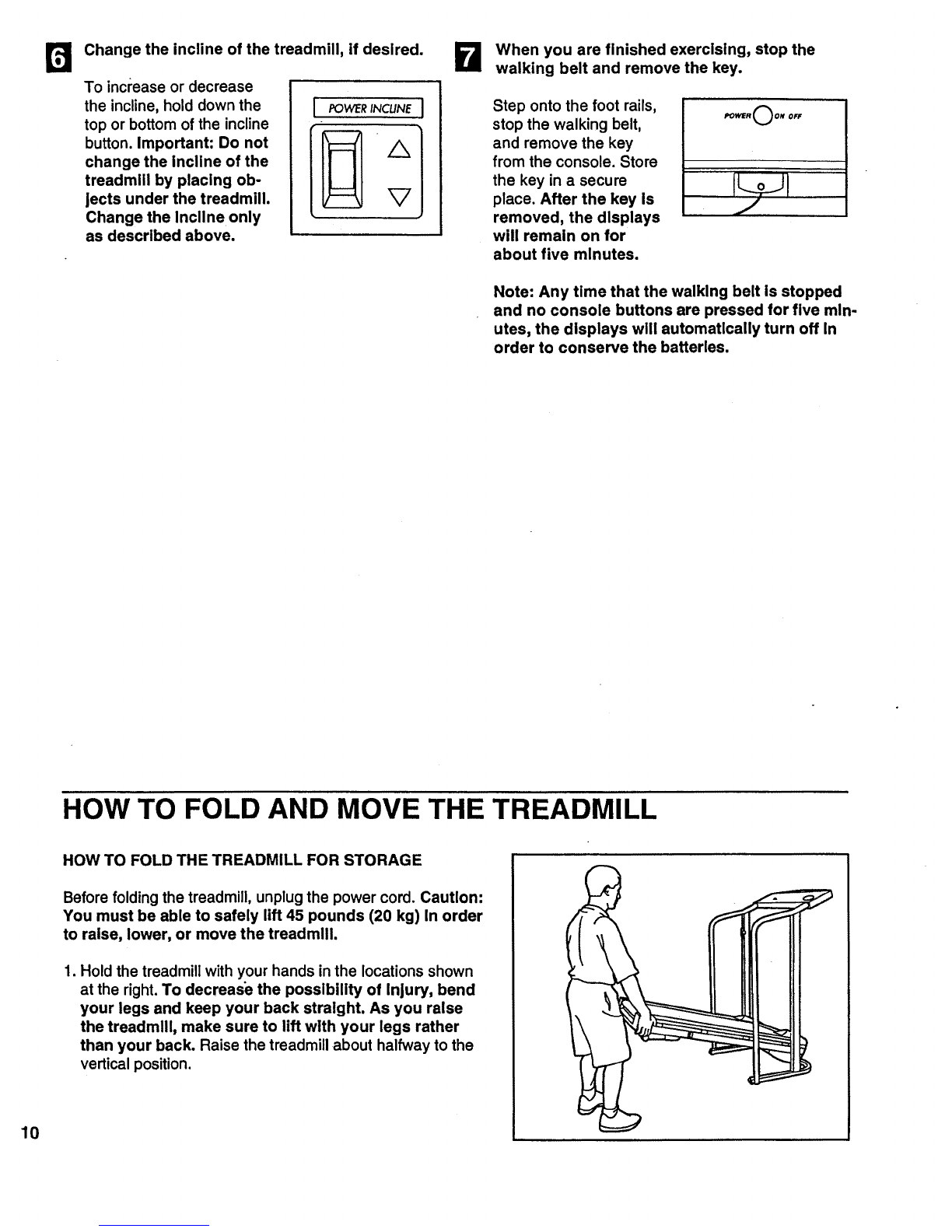

BChange the incline of the treadmill, if desired.

To increase or decrease

the incline, hold down the

top or bottom of the incline

button. Important: Do not

change the incline of the

treadmill by placing ob-

Jects under the treadmill.

Change the Incline only

as described above.

POWER INCUNE I

B hen you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails,

stop the walking belt,

and remove the key

from the console. Store

the key in a secure

place. After the key Is

removed, the displays

will remain on for

about five minutes.

POWEROON OFF

Note: Any time that the walking belt is stopped

and no console buttons are pressed for five min-

utes, the displays will automatically turn off In

order to conserve the batteries.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. Caution:

You must be able to safely lift 45 pounds (20 kg) In order

to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right.To decrease the possibility of Injury, bend

your legs and keep your back straight. As you raise

the treadmill, make sure to lift wlth your legs rather

than your back. Raise the treadmill about halfway to the

vertical position.

Andere Handbücher für expance 800

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LIFESTYLER Tretmühle Handbücher

LIFESTYLER

LIFESTYLER LS elite 780 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 2000 831.297271 Bedienungsanleitung

LIFESTYLER

LIFESTYLER EXPANSE 500 831.297432 Bedienungsanleitung

LIFESTYLER

LIFESTYLER 831.297452 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Auto incline 2800 Bedienungsanleitung

LIFESTYLER

LIFESTYLER 7.0 Bedienungsanleitung

LIFESTYLER

LIFESTYLER EXPANSE 2000 Bedienungsanleitung

LIFESTYLER

LIFESTYLER 831.29725 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Lifestyler Extend 10.0 Bedienungsanleitung

LIFESTYLER

LIFESTYLER 831.295401 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 600 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 2000 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 2000 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 750 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 500 Bedienungsanleitung

LIFESTYLER

LIFESTYLER EXPANSE 1000 831.297451 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expanse 850 831.297191 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 850 Bedienungsanleitung

LIFESTYLER

LIFESTYLER 831.297420 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Expance 550 Bedienungsanleitung

LIFESTYLER

LIFESTYLER 8.0 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Lifestyler 3800pi Bedienungsanleitung

LIFESTYLER

LIFESTYLER 831.297242 Bedienungsanleitung

LIFESTYLER

LIFESTYLER Lifestyler 3500ps Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung

LIFESTYLER expance 800 Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken
