Lionel

GP-38-2 Diesel Locomotive

Owner’s Manual

Featuring

Lionel

GP-38-2 Diesel Locomotive

Owner’s Manual

Congratulations!

Congratulations on your purchase of the Lionel GP-38-2 Diesel Locomotive! On the outside,

this locomotive features numerous prototypical details and expert decoration in your

favorite livery. Inside the body, this locomotive is equipped with some of the most advanced

sounds and controls in model railroading. The GP-38-2 is ready for duty on your layout.

Features of the locomotive

• LEGACY Control System equipped—able to run with the new LEGACY

Control system, in the TrainMaster Command Control environment, or in

the conventional environment with only a standard transformer

• LEGACY RailSounds sound system with intelligible CrewTalk dialog and

TowerCom announcements, each with different scenarios depending on

whether the locomotive is in motion or stopped

• Odyssey II Speed Control with ON/OFF switch

• Directional lighting including operating LED headlights

• Two ElectroCouplers

• Dual powerful maintenance-free motors with momentum flywheels

• Four traction tires

• Fan-driven smoke unit

• Directional bi-color market lights

• Lighted number boards

• Lighted cab interior

• Minimum curve: O-31

The following Lionel marks may be used throughout this instruction manual and are protected under law. All

rights reserved.

Lionel®, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™, DynaChuff™, StationSounds™,

Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote Controller, PowerMaster®, Lionel

ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®, Wireless Tether™, LionMaster®, FatBoy™,

American Flyer®, TrainSounds™, PowerMax™, LEGACY™, PowerMax™Plus

The name FasTrack®is used with permission from Pitsco, Inc.

Table of contents

Quick Start

LEGACY Control operations 4

TrainMaster Command Control operations 4

Transformer operations 4

LEGACY Control Systems operations

Get ready to run 5

Start ‘Er Up 5

The LEGACY CAB-2 Remote Controller 6

The velocity throttle 7

The multi-controller 7-8

The train brake slider 8

The warning sound controller 9

The speed bar 10

Locomotive switch function overview

Switch overview 11

TrainMaster Command Control operations

TrainMaster Command Control operations 12

Operating your locomotive in the Command Control environment 12

CAB-1 Remote Controller commands 13

CAB-1 Remote Controller numeric keypad commands 14

CAB-1 numeric keypad table 15

Tuning your locomotive’s performance 16-17

Assigning your locomotive a new ID# 18

Building a lash-up 19

Reprogramming your locomotive to restore features 20

Conventional transformer operations

Operating your locomotive in the conventional environment 21-22

Locking your locomotive into a single direction 23

Uncoupling in the conventional environment 23

Odyssey II Speed Control system operations

Odyssey II Speed Control system operations 24

Odyssey II Speed Control system LEGACY Control operation 24

Odyssey II Speed Control system TrainMaster Command Control operation 24

Odyssey II Speed Control system conventional transformer operation 24

LEGACY RailSounds sound system operations

LEGACY RailSounds sound system operations 25

Installing the battery 26

Using the LEGACY RailSounds sound system in the conventional environment 27

Installing a Lionel Sound Activation Button for conventional operation 28

Activating the CrewTalk dialog and TowerCom announcements

in the conventional environment 29

Using the LEGACY RailSounds sound system in the TrainMaster Command Control environment 30

Activating the CrewTalk dialog and TowerCom announcements

in the Command Control environment 31

LEGACY RailSounds on a round trip 32

Maintaining and servicing your locomotive

Lubricating your locomotive 33

Adding fluid to your locomotive’s smoke generator 34

Adjusting the smoke output 35

Replacing your locomotive’s LEDs and lamps 35

Replacing the traction tires 35

Limited Warranty/Lionel Service 36

Quick Start

Power your locomotive with an alternating-current (AC) transformer only. Powering

your locomotive with a direct-current (DC) transformer, or in excess of 19 volts AC, may

result in damage to sensitive electronic components.

LEGACY Control operations

For the finest operating experience, your GP-7 locomotive is fully compatible with the new

LEGACY Control System.

To operate in LEGACY mode, you need a LEGACY Command Base and LEGACY CAB-2 Remote

Controller. Both products are offered together in the LEGACY Command Set, 6-14295.

1. Turn off track power and plug in the LEGACY Base.

2. Place your locomotive on Lionel or Lionel-compatible O-31 or larger track.

3. Increase track power voltage to full power (no more than 19 volts AC).

4. Press ENG and 1 to address your locomotive with your LEGACY CAB-2 Remote

Controller.

5. Throttle up and move ‘em out.

TrainMaster Command Control operations

To operate your locomotive in the Command Control environment, you need a Command Base

(available separately, 6-12911) and a CAB-1 Remote Controller (available separately, 6-12868).

1. Turn off track power and plug-in the Command Base.

2. Place your locomotive on Lionel or Lionel-compatible O-31 or larger track.

3. Increase track voltage to full power (no more than 19 volts AC).

4. Press ENG and 1 to address your locomotive with your CAB-1 Remote

Controller.

5. Throttle up and move ‘em out.

Transformer operations

1. Place your locomotive on Lionel or Lionel-compatible O-31 or larger track.

2. Power your locomotive at 12-18 volts with your alternating current (AC)

transformer.

3. Wait three to eight seconds until the locomotive’s headlight illuminates and

the LEGACY RailSounds sound system starts up.

4. Move ‘em out! Press the DIRECTION button on your controller, then throttle

up.

Note!

LEGACY Control System operations

This section is a brief overview of the LEGACY Control System. For a more in depth

explanation of the LEGACY Control System features, please see your LEGACY Control

System Operations Manual.

GET READY TO RUN

Get your engine running now by following the instructions in this guide. We'll power up

the track, "address the engine" so it can be controlled by your CAB-2 remote and learn to

use the Velocity Throttle, Whistle, Bell, Brake and Direction commands.

Power Up The Track

Refer to PowerMaster, TPC, or ZW manual for correct method. With your engine on the track

and ready to roll, power-up your track to a constant 18 volts. If a circuit breaker trips when you turn

on the Lionel power supply, check the wheels of your locomotive to make sure they are all securely

on the track. Check to make sure the track is free of all metals that may cause a short circuit.

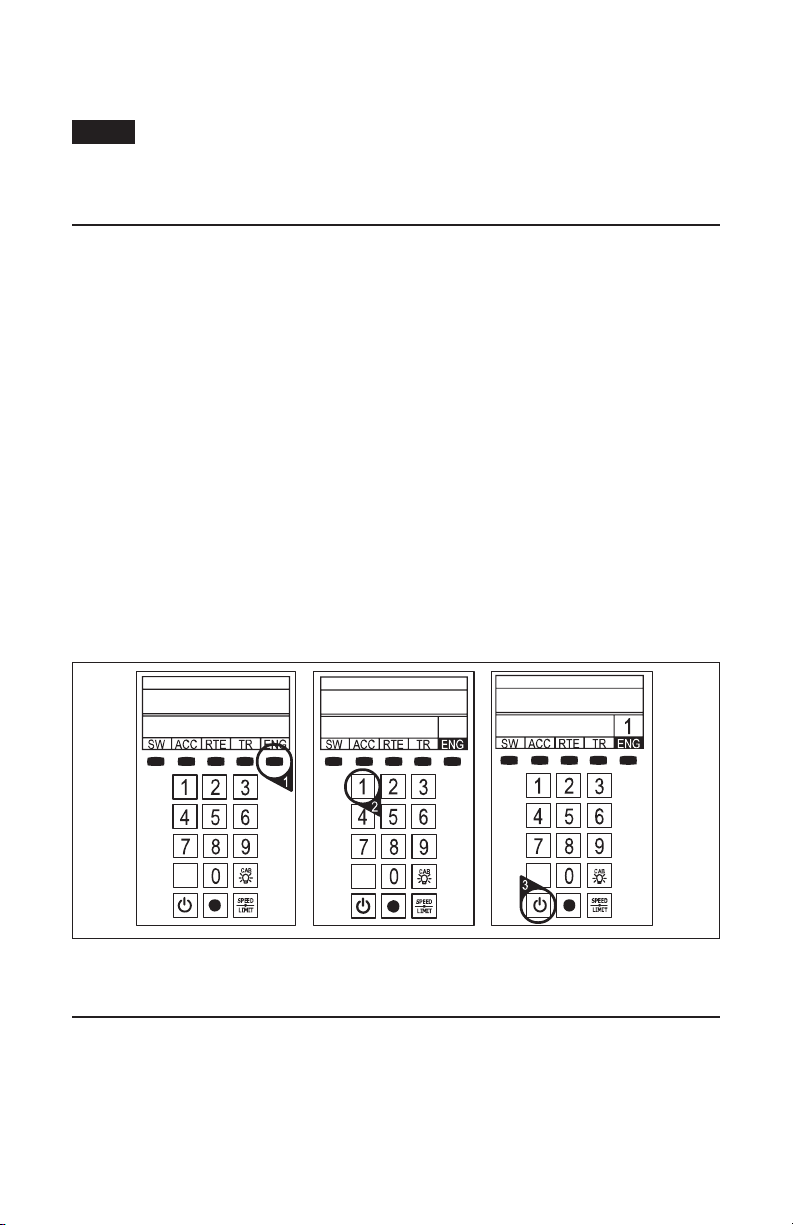

Address Your Engine

First, you must address the engine. This "tells" your CAB-2 which locomotive you want to

control. This is important when you have more than one engine on your layout.

To address an engine:

1. Press ENG

2. Press 1

3. Press Start Up

See reference numbers 1, 2, and 3

Start 'Er Up

Now it is time to start up your engine's sound system.

To start the engine's Railsounds system, press Start on the touch-screen or any action key

(Whistle, Bell, Velocity Throttle, etc.).

Your engine sound system will start up and the Touch-screen Control Panel will appear.

Note!

LEGACY Control System operations

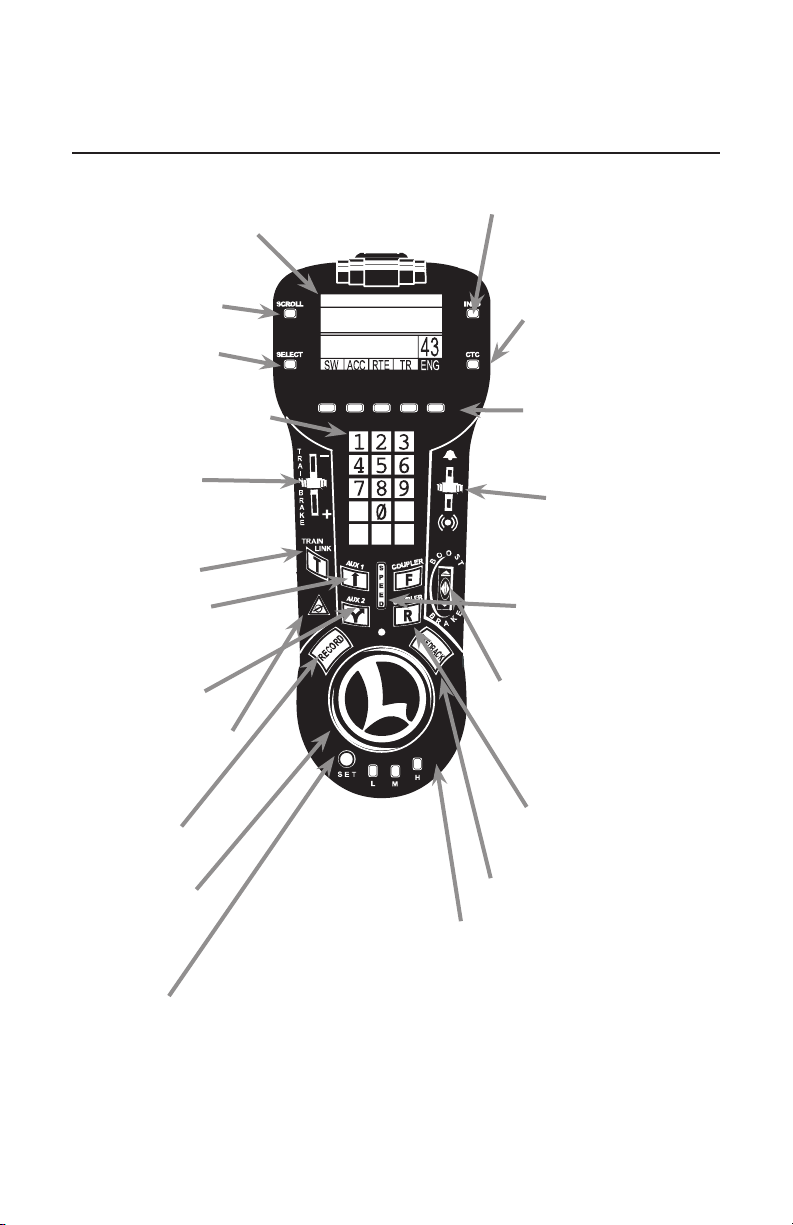

The LEGACY CAB-2 Remote Controller

Main Display

Displays real-time information about your railroad

system. Displays real-time feedback of operation.

Scroll Button

Navigates through the entire list

of Engines, Trains, Switches, etc.

Select Button

Performs addressing by

3-4 digit road number.

Touch Screen Key Pad

A group of touch sensitive keys

with icons for each function. These

keys serve many purposes and

their icons change accordingly.

Train Brake Slider

This slider is used to increase

or decrease the amount of Train

Brake effecting the engine or train.

Train Link Button

For future use.

AUX-1/Thru Button

Press to view the Control Panel

while operating. Controls switch

direction.

AUX-2/Out Button

Controls switch direction.

Emergency Halt Button

Stops everything on

layout, also stops

recording playback.

Record Button

Used to record and

playback events.

Velocity Throttle

Throttle control over

engines, also used

to navigate thru info/

options.

Set Button

Used to set Engine address and for

programming.

Info Button

Used to enter/view the info/options of

selected components.

CTC Button

Turns the Remote Control ON and

OFF. Used to enter the Remote and

Base options. Pressing CTC while

in a menu will always bring you

back to main screen.

Soft Keys

These keys directly correlate to the

5 selection boxes located at the

bottom of the main screen. These

are also used in the info/option

menus to select options.

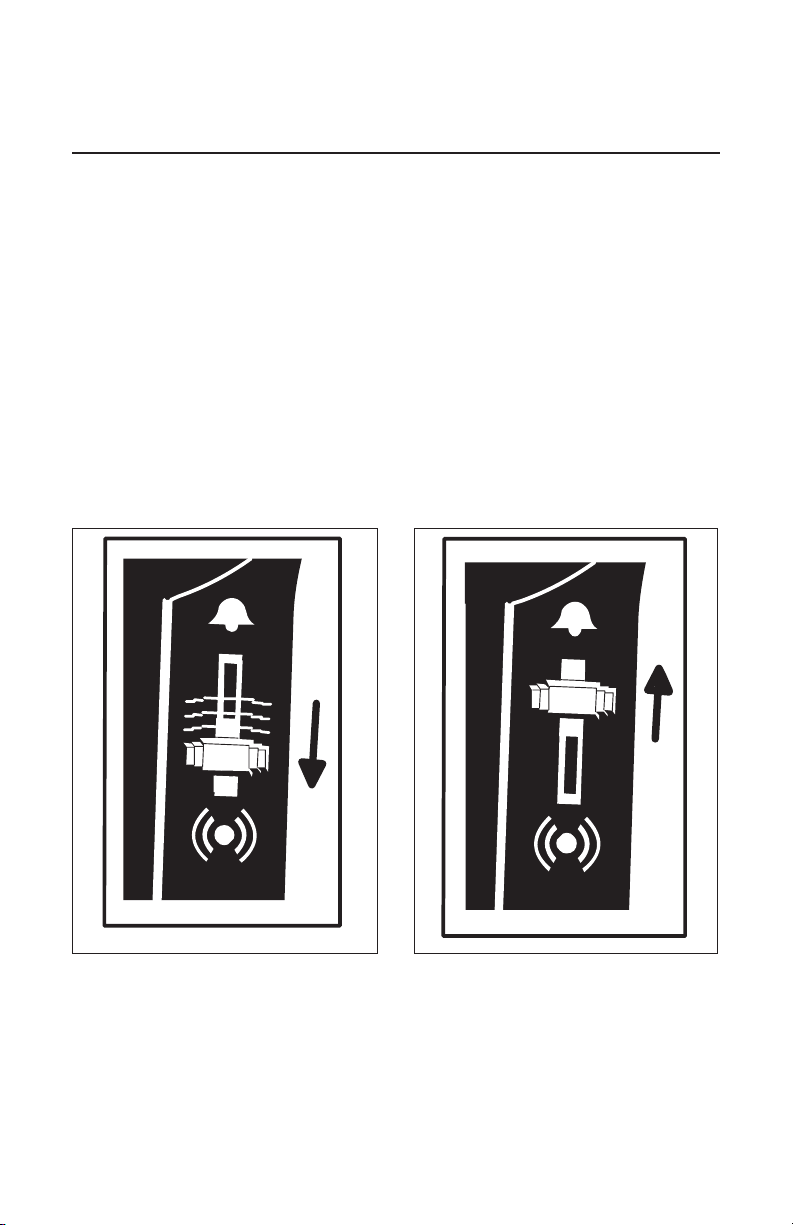

Warning Sound Controller

Warning Bell and Variable Whistle/

Horn control. Pull down to sound

Whistle/Horn. Push up and release

to trigger Warning Bell.

Official R.R. Speed Control Bar

Toggles the touchscreen display of R.R.

preset speeds and control panel.

Multi Controller

Boost, Brake, and Direction control.

Rock forward for Boost, rock

backward for engine brake, and

press down for direction change.

Click-hold-and rock for absolute

direction select.

Front & Rear Coupler Buttons

Fire couplers.

Feedback Buttons

Toggle ON/OFF the vibration feedback

feature in the CAB-2 Remote.

Low, Medium, High Momentum Buttons

Used to select the desired momentum of

your addressed engine/train/accessory.

LEGACY Control System operations

THE VELOCITY THROTTLE

The Velocity Throttle (that big red rotary knob in the middle of your Lionel remote) is

used to start your engine moving, slow it down or speed it up. Use it simply by turning it

clockwise (speed up) or counter-clockwise (slow down).

4. Turn the Velocity Throttle clockwise a small amount. Your engine will begin to move.

5. Experiment with the engine’s response to the Velocity Throttle. Turn the Velocity Throttle

clock-wise and counter-clock-wise.

6. Slow and stop your engine by turning the Velocity Throttle counter-clockwise.

See reference numbers 4, 5, and 6

See reference numbers 7, and 8

THE MULTI-CONTROLLER

Direction

The direction of your engine toggles between forward and reverse at the touch of the Multi-

Controller.

7. Press the Multi-Controller once. Your engine's lights will change directions.

8. Turn the Velocity Throttle clockwise a small amount. Your Engine will reverse directions

and travel in the opposite direction.

LEGACY Control System operations

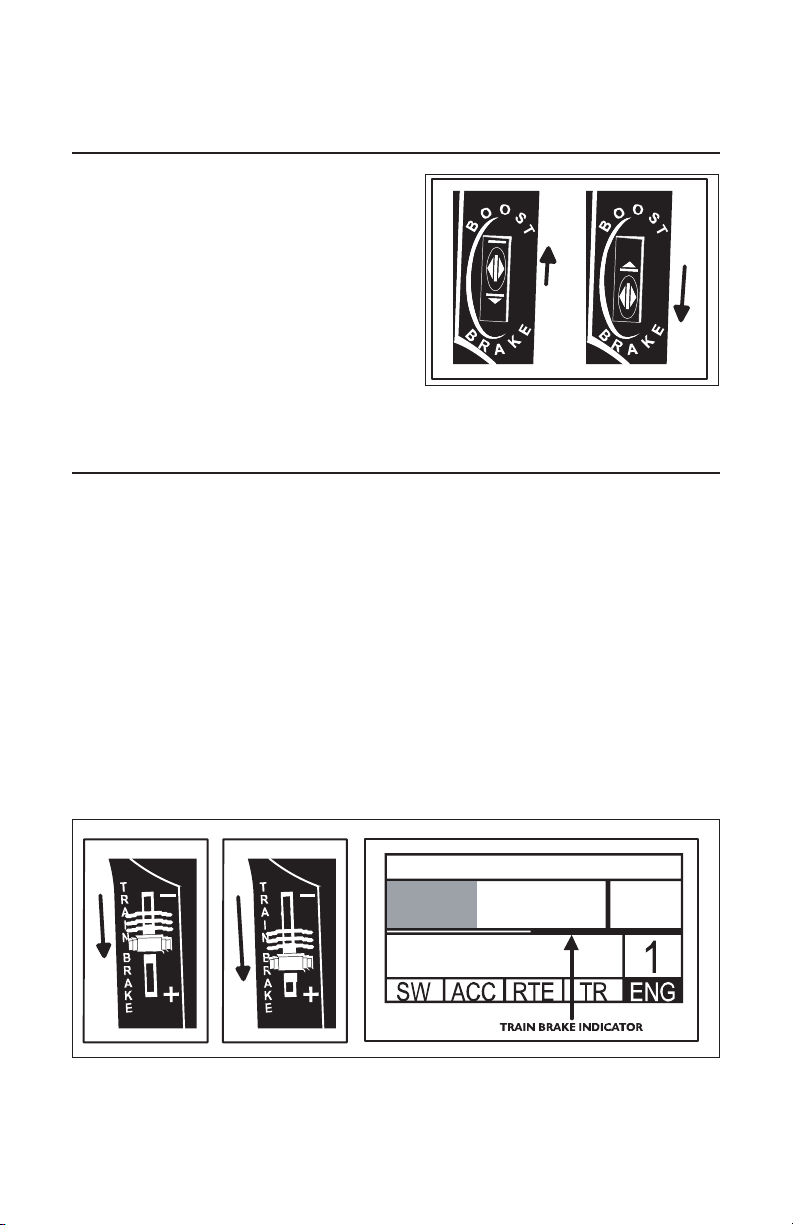

THE MULTI-CONTROLLER (continued)

Boost & Brake

Boost and brake give you another way to

control the speed of your train. Boost gives your

loco a temporary increase in tractive power, and

returns to the previous speed when you release the

control, while the brake command slows you down

quicker than the Velocity Throttle alone and holds

your speed at the adjusted level.

9. Experiment with Boost and Brake. Notice how

your engine responds to the Multi-Controller. See reference number 9

THE TRAIN BRAKE SLIDER

Train Brake is used to slow down and limit the top speed of your train by adding a load.

The more the Train Brake is applied by pulling the Train Brake Slider down, the more

laboring is heard from the engine. Eventually Train Brake application will slow down the train

and it is even possible to stop a train by pulling the Train Brake Slider all the way down. A

tremendous amount of laboring can be heard whenever you apply the Train Brake in a large

amount.

10. Experiment with the Train Brake. Try a small amount of the Train Brake when your

engine is moving down the rails at a medium speed. Notice the effect the Train Brake has

on sound and speed. Try adding more Train brake and notice that the Train Brake can

limit the top speed available to your engine.

Try adding even more Train Brake and notice that the Engine sounds like it is working

harder and harder as the Train Brake is applied more.

See reference number 10

LEGACY Control System operations

THE WARNING SOUND CONTROLLER

Warning sounds are an important part of Lionel Railroading. Your Lionel Legacy Control

System equipped engines have a real-time variable "quilling" whistle and horn, while

Lionel TMCC engines do not have this feature.

11. Blow the Horn/Whistle by pulling down on the Warning Sound Controller.

12. Try pulling down the Warning Sound Controller various amounts and listen. Notice the

difference in intensity of the Whistle or Horn.

13. Push the Warning Sound Controller up once and quickly release. Notice that the bell rings

once.

14. Push the Warning Sound Controller up and hold it for 1.5 seconds. Notice that the Bell is

sounding continuously.

15. Push the Warning Sound Controller up once. Notice that the continuous Bell stops.

16. Experiment with ringing the Bell in your own rhythm or continuously, depending on how

you push the Warning Sound Controller

See reference numbers 11, and 12 See reference numbers 13, 14, 15, and 16

LEGACY Control System operations

THE SPEED BAR

Selection of Official Rail Road Speeds

The Speed Bar is used to select a new touch-screen Icon Control set. This set of touch-

screen keys is used to select official Railroad Speeds. Two additional controls, "High Ball,"

(Top Speed) and "Brake to Roll," (speed step one) are possible with this Touch-Screen set of

controls. Pressing AUX-1 returns you to the standard control panel.

17. Press, hold and release the

RR Speed icons one by one.

Experiment.

18. The speed of the engine

changes with each press and

release of a different RR

Speed key.

19. TowerCom dialog occurs each

time you press and hold a RR

speed key.

20. The Engineer dialog

responds and the speed of the

engine changes as soon as

you release the RR speed key.

21. If you touch a RR speed

key and release it quickly, a

speed change is enabled with

no dialog scene.

22. You can also use the Velocity

Throttle and other action

controls in this mode and

continue to use Official RR

speeds at the same time.

23. Repeat step 17.

24. Press AUX-1 to leave the RR speed mode and return to the standard mode and return to

the standard control panel.

25. Press the speed bar to toggle between the Official RR Speed Control Panel and the

Standard Control Panel.

At this point you know the basics of how to operate. There is a lot of fun waiting as you

experience the interaction of the controls and the touch-screen.

Be sure to read the entire Lionel Legacy Control System Manual to get the most from your

Lionel products.

See reference numbers 17, 18, 19, 20, 21, 22, 23, 24, and 25

Inhaltsverzeichnis

Andere Lionel Spielzeug Handbücher

Lionel

Lionel Pennsylvania ALCo A-A Set Bedienungsanleitung

Lionel

Lionel ALCo S-2 Bedienungsanleitung

Lionel

Lionel H16-44 Bedienungsanleitung

Lionel

Lionel 73-6002-250 Bedienungsanleitung

Lionel

Lionel LionChief Plus 2.0 ET44 Bedienungsanleitung

Lionel

Lionel Thomas & Friends Bedienungsanleitung

Lionel

Lionel Oil Pump Bedienungsanleitung

Lionel

Lionel Midwest FreightReady-to-Run Set Bedienungsanleitung

Lionel

Lionel F9 Bedienungsanleitung

Lionel

Lionel Westside Lumber Shay Bedienungsanleitung

Lionel

Lionel Century Club II Bedienungsanleitung

Lionel

Lionel 4-6-2 STEAM LOCOMOTIVE WITH TENDER Handbuch

Lionel

Lionel SD-80 Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Empire State Express Hudson Bedienungsanleitung

Lionel

Lionel LL Bean Ready-To-Run O-27 Set Bedienungsanleitung

Lionel

Lionel Truss Bridge with Flasher and Piers Bedienungsanleitung

Lionel

Lionel Southern Diesel Freight Bedienungsanleitung

Lionel

Lionel Missile Launch Set Bedienungsanleitung

Lionel

Lionel Trolley Bedienungsanleitung

Lionel

Lionel Gingerbread Junction Docksider Bedienungsanleitung

Lionel

Lionel 2289WS Berkshire Freight Set Bedienungsanleitung

Lionel

Lionel Snap-On Bedienungsanleitung

Lionel

Lionel Frisco 0-27 Bedienungsanleitung

Lionel

Lionel Operation Eagle Justice Train Set Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
