P. 1 / 3EM-8967

DC CURRENT INPUT MODULE

(16 points, non-isolated) MODEL

R3Y-SS16N

INSTRUCTION MANUAL

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■ PACKAGE INCLUDES:

DC current input module ............................................. (1)

■ MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■ INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■ HOT INSERTION/REMOVAL OF MODULES

Removing or replacing modules does not affect other mod-

ules on the same backplane. It is possible to replace them

without removing the power supply. However, replacing

multiple modules at once may greatly change line voltage

levels. We recommend that you replace them one by one.

■ ENVIRONMENT

• Indoor use

• When heavy dust or metal particles are present in the air,

install the unit inside proper housing with sufﬁcient ven-

tilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■ WIRING

• Do not install cables (power supply, input and output)

close to noise sources (relay drive cable, high frequency

line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■ UNUSED INPUT CHANNELS

Set the unused channels to -20 – +20mA or 0 – 20mA range.

Otherwise, set them as “Unused” with PC Conﬁgurator soft-

ware: R3CON. Unused channels left open with 4 – 20mA

setting are equal to the input lower than -15%, which sets a

data abnormality at the PLC or the host device.

■ AND ....

The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for sat-

isfying complete performance described in the data sheet.

INSTALLATION

Use the Installation Base (model: R3-BSx).

R3Y-SS16N

P. 2 / 3EM-8967

SW1SW2

SW3

� FRONT VIEW � SIDE VIEW

Input Connector

RUN LED

ERR LED

• Pin Assignment

Conv.

Rate Range

Input 1-8 (SW1)

Input 9-16 (SW2)

Functions

COMPONENT IDENTIFICATION

■ STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

ERR indicator: Bi-color (red/ green) LED;

Red with the input circuit abnormality (AD

converter response failure);

Green in normal operating conditions.

■ SIDE DIP SW

• Input Range: SW1, SW2 (selectable per 8 channels)

INPUT 1 through INPUT 8 (SW1)

RANGEINPUT 9 through INPUT 16 (SW2)

1 2 3 4

OFF OFF OFF OFF 4 – 20mA (*)

ON OFF OFF OFF 0 – 20mA

OFF ON OFF OFF -20 – +20mA

• Conversion Rate: SW3

SW CONVERSION RATE

100 ms (*)50 ms 20 ms 10 ms

SW3-1 OFF ON OFF ON

SW3-2 OFF OFF ON ON

(*) Factory setting

R3Y-SS16N

P. 3 / 3EM-8967

130 (5.12)

27.5 (1.08) 110 (4.33) POSITIONING

GUIDE

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

INPUT 6

INPUT 7

INPUT 8

INPUT 9

INPUT 10

INPUT 11

INPUT 12

INPUT 13

INPUT 14

INPUT 15

INPUT 16

COM

20A/20B

18A/18B

16A/16B

14A/14B

12A/12B

10A/10B

8A/8B

6A/6B

19A/19B

17A/17B

15A/15B

13A/13B

11A/11B

9A/9B

7A/7B

5A/5B

4A/4B

3A/3B

2A/2B

1A/1B

INTERNAL POWER

BUS A

BUS B*

*For dual redundant communication.

BUS CONNECTOR

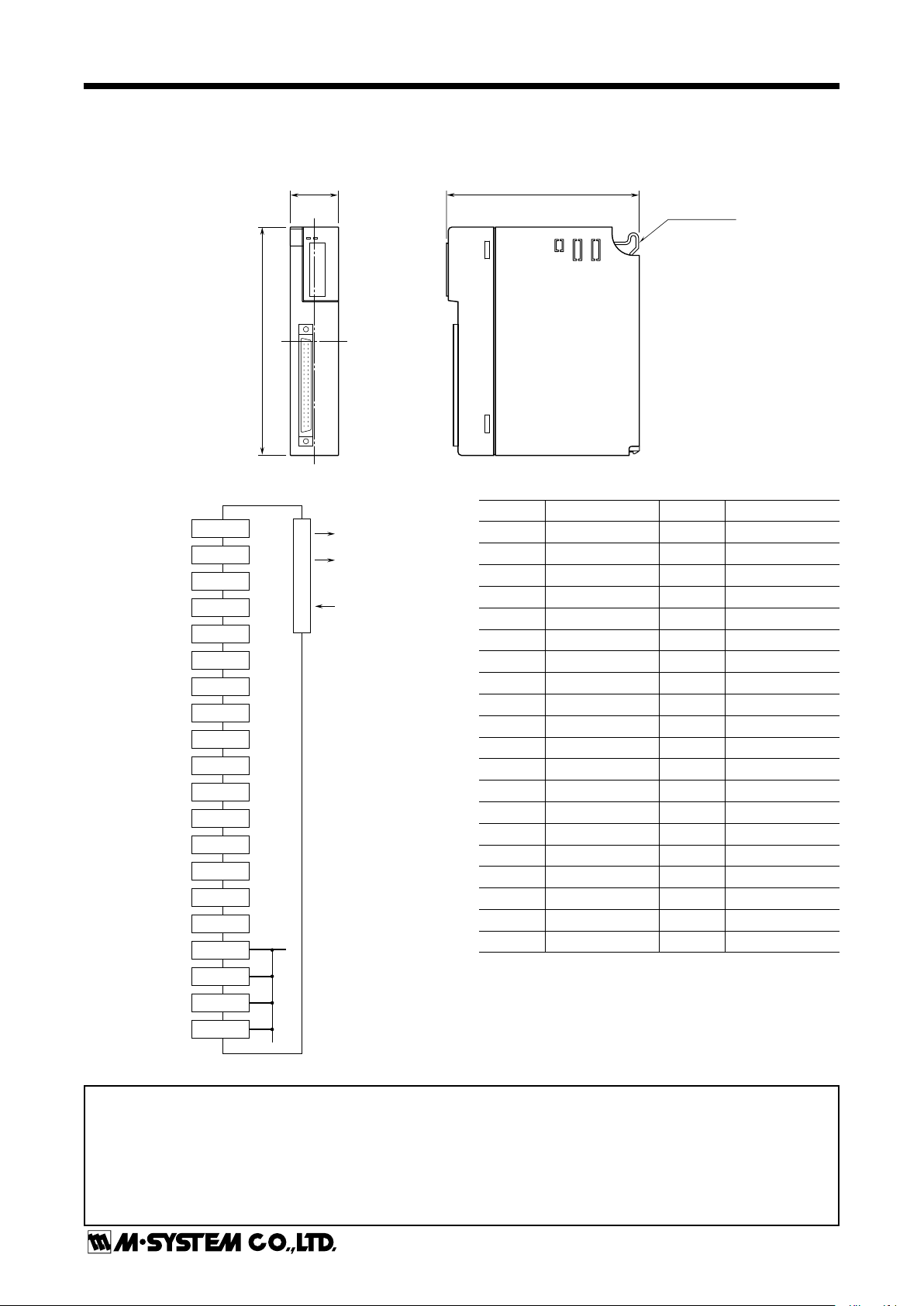

■ DIMENSIONS mm (inch)

■ CONNECTION DIAGRAM

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

M-SYSTEM WARRANTY

M-System warrants such new M-System product which it manufactures to be free from defects in materials and workmanship during the 36-month period following the date that such

product was originally purchased if such product has been used under normal operating conditions and properly maintained, M-System’s sole liability, and purchaser’s exclusive

remedies, under this warranty are, at M-System’s option, the repair, replacement or refund of the purchase price of any M-System product which is defective under the terms of this

warranty. To submit a claim under this warranty, the purchaser must return, at its expense, the defective M-System product to the below address together with a copy of its original

sales invoice.

THIS IS THE ONLY WARRANTY APPLICABLE TO M-SYSTEM PRODUCT AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. M-SYSTEM SHALL HAVE NO LIABILITY FOR CONSEQUENTIAL, INCIDENTAL OR

SPECIAL DAMAGES OF ANY KIND WHATSOEVER.

M-System Co., Ltd., 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN, Phone: (06) 6659-8201, Fax: (06) 6659-8510, E-mail: [email protected]

PIN NO. ASSIGNMENT PIN NO. ASSIGNMENT

1A COM 1B COM

2A COM 2B COM

3A COM 3B COM

4A COM 4B COM

5A IN16 5B IN16

6A IN8 6B IN8

7A IN15 7B IN15

8A IN7 8B IN7

9A IN14 9B IN14

10A IN6 10B IN6

11A IN13 11B IN13

12A IN5 12B IN5

13A IN12 13B IN12

14A IN4 14B IN4

15A IN11 15B IN11

16A IN3 16B IN3

17A IN10 17B IN10

18A IN2 18B IN2

19A IN9 19B IN9

20A IN1 20B IN1

■ INPUT CONNECTOR (40-pin)
