M-system Remote I/O R8 Series Bedienungsanleitung

MODEL: R8-PS1

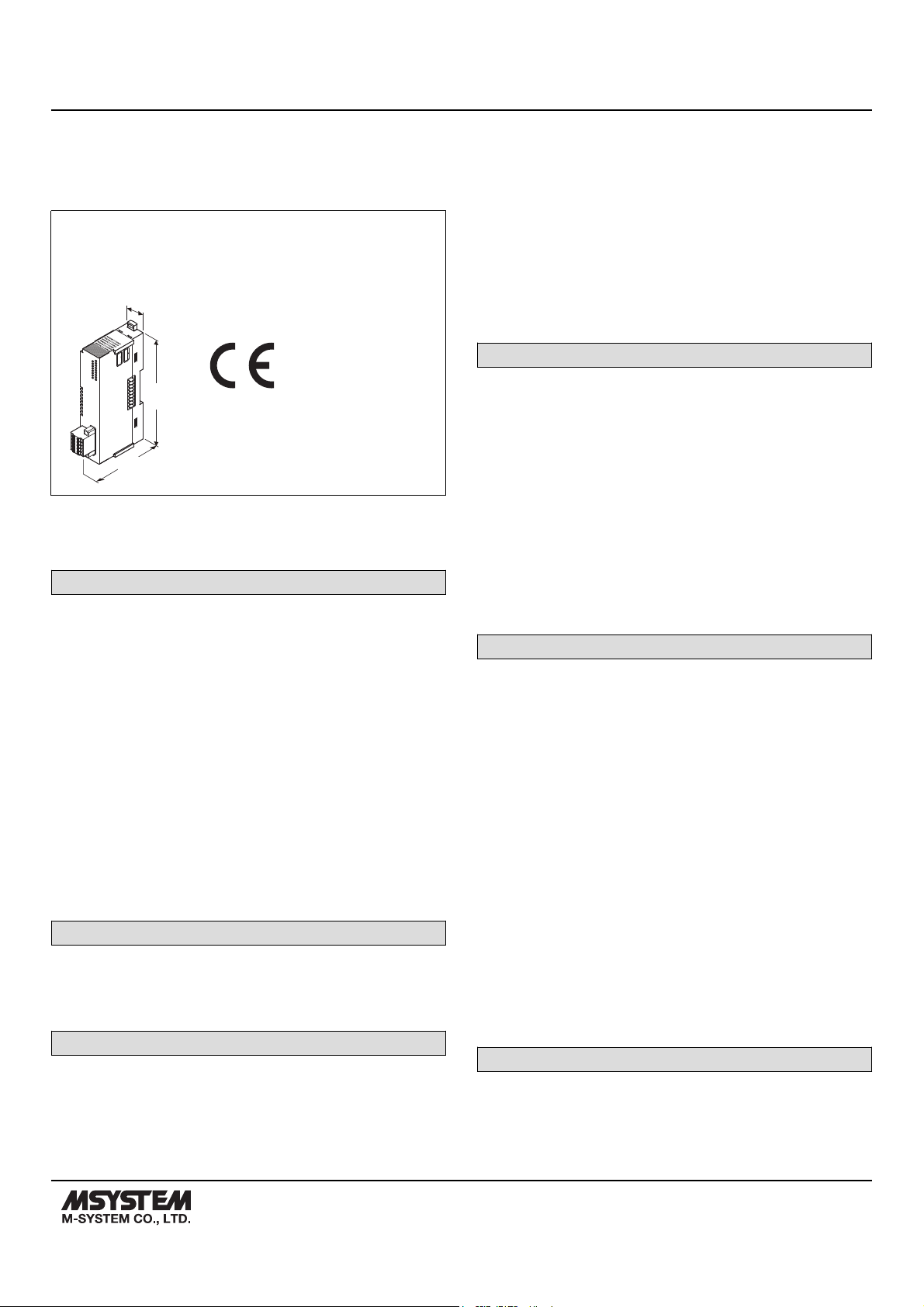

R8-PS1 SPECIFICATIONS ES-9789 Rev.5 Page 1/3

https://www.m-system.co.jp/

Remote I/O R8 Series

EXTENSION POWER SUPPLY MODULE

(non-isolated)

Functions & Features

• Inserted between I/O modules and supply the power

• Up to two R8-PS1 use is available

24 [.94]

mm [inch]

115

[4.53]

72 [2.83]

MODEL: R8–PS1-R[1]

ORDERING INFORMATION

• Code number: R8-PS1-R[1]

Specify a code from below for [1].

(e.g. R8-PS1-R/Q)

• Specify the specification for option code /Q

(e.g. /C01)

POWER INPUT

DC power

R: 24 V DC

(Operational voltage range: ±10 %; ripple 10 %p-p max.)

[1] OPTIONS

blank: none

/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

CAUTION

OUTPUT CURRENT & NUMBER OF CONNECTABLE UNIT

It is NOT available to connect 16 of R8-YV4N to

power/network module because of limitation of output

current of internal supply. The max. output current for

internal supply of power/network module is 1.6 A.

The max. consumption current for internal supply of R8-

YV4N is 160 mA.

1.6 (A) < 160 (mA) x 16 = 2.56 (A)

Inserting the R8-PS1 between 10th and 11th R8-YV4N

enables to connect 16 of R8-YV4N.

POWER UP

Turn the power on at the same time as the power/network

module or turn the R8-PS1 on before the power/network

module turned on. If the R8-PS1 is not turned on within 3

seconds after the power/network module is turned on, I/O

modules are not correctly recognized

GENERAL SPECIFICATIONS

Connection

•Power input, excitation supply: Tension clamp (Front Twin

connection)

Applicable wire size: 0.2 - 1.5 mm2

Stripped length: 10 mm

•Internal bus or internal power: Via connector

Max. number of I/O modules: 16

(Max. consumption current of I/O modules: 1.6 A)

Isolation: Internal bus or internal power or power input to

exc. supply to FE1

Power indicator LED: Green LED turns on when the power is

supplied.

INSTALLATION

Power consumption

•DC: Approx. 11 W 24 V DC (@ internal power max. current

1.6 A)

Internal power supply (power supply for I/O module):

• DC power supply: 5 V DC

• Current capacity: 1.6 A

Excitation supply output (excitation for I/O module)

•DC: 24 V DC ±10 %

•Operational current: 8 A

(From power supply, exitation supply connector, via

connector for internal bus, supplied to each I/O module.

Power output current consumption must be under

operational current.)

Operating temperature: -10 to +55°C (14 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Atmosphere: No corrosive gas or heavy dust

Mounting: DIN rail

Weight: 100 g (0.22 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @ 1 minute

(internal bus or internal power or power input to exc. supply

to FE1)

MODEL: R8-PS1

R8-PS1 SPECIFICATIONS ES-9789 Rev.5 Page 2/3

https://www.m-system.co.jp/

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EXTERNAL VIEW

■ FRONT VIEW ■ SIDE VIEW

Internal Bus Connector

Connector for Power Supply and

Excitation Supply

Power indicator LED

Unused

24V

FE1

Power

CONNECTION DIAGRAMS

PIN ID FUNCTION

No.

1 24V Power supply 24V DC

2 0V Power supply 0V DC

3 + Excitation supply 24V DC

4 − Excitation supply 0V DC

5 FE1 Grounding

Note: The numbers marked on the connector have no relationship to the pin number of the unit.

Wire according to the instruction manual of the unit.

■ POWER SUPPLY, EXCITATION SUPPLY CONNECTOR ASSIGNMENT

Printed-circuit board connector (Phoenix Contact)

Unit side connector: MC1,5/5-GF-3,5

Cable side connector: TFMC1,5/5-STF-3,5

MODEL: R8-PS1

R8-PS1 SPECIFICATIONS ES-9789 Rev.5 Page 3/3

https://www.m-system.co.jp/

EXTERNAL DIMENSIONS unit: mm [inch]

115 [4.53](6 [.24])

(7 [.28]) (7 [.28])

(3 [.12]) (4 [.16])

(72 [2.83])

55 [2.17]

24 [.95]

(6 [.24])

DIN RAIL

(35 mm wide)

SCHEMATIC CIRCUITRY

Note: In order to improve EMC performance, bond the FE1 terminal to ground.

Caution: FE1 terminal is NOT a protective conductor terminal.

EXC. SUPPLY (24V)

INTERNAL POWER (5V)

INTERNAL BUS

+24V

＋−FE1

CONNECTOR

Internal bus is connected for the modules near to the power/network module out of the modules connected to the R8-PS1. Internal

power and Exc. supply are not connected. All modules far from the power/network module are connected.

POWER LED

Power

Circuit

(No isolation)

Specifications are subject to change without notice.
