88-00-8000
AW-800PKUV
INSTALLATION
INSTRUCTIONS
APPLICATIONS
CAR PAGE
TOYOTA
4Runner 1984-88......................................................................... 1
4Runner 1989-95......................................................................... 1
4Runner 1996-99......................................................................... 2
Camry 1987-91............................................................................ 2
Celica(GT/GTS) 1986-89...............................................................3
Celica 1990-93............................................................................. 3
Corolla(GTS/SR5) 1984-87...........................................................4
Corolla(sedan/wagon-lowerdash) 1988-92.................................. 4
Corolla(sedan/wagon-upperdash) 1988-92..................................5
Corolla (coupe-lowerdash) 1993-97.............................................. 5
Corolla(coupe-upperdash) 1993-97............................................. 6
MR2 1991-94............................................................................... 6
Pickup 1984-88............................................................................ 7
Pickup 1989-91............................................................................ 7
Pickup 1992-95............................................................................ 8
Supra 1986-92............................................................................. 8
T100 1993-98.............................................................................. 9
Tacoma 1995-00...........................................................................9
KIT FEATURES
Workswith
factorybrackets
orMetra's
99-8101
Fillsspaceleft
afterremoving
double-DINunit
KIT COMPONENTS
TOOLS REQUIRED
Cuttingtool
Phillipsscrewdriver
KIT FEATURES
Pocket
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray and (3) screws from the ashtray
bracket. Remove (1) screw from each side
of the dash console and unsnap the trim
bezel.

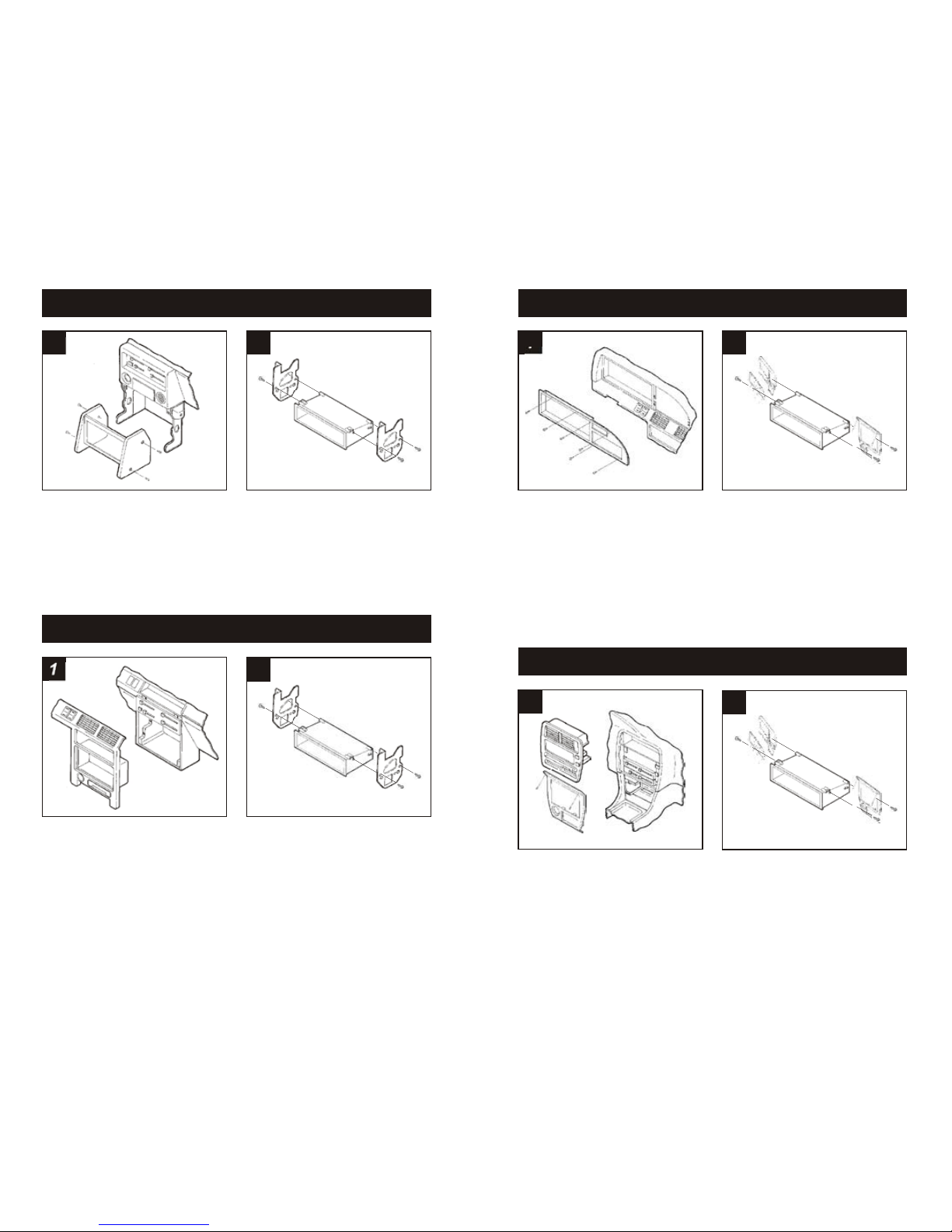

1
TOYOTA 4Runner 1984-88
2
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the driver's side speaker panel by removing
(3) screws and (1) 10mm bolt. Remove (1)
screw from the left side of the housing and
unsnap the ignition cover. Remove the
glove compartment assembly by removing
(1) 10mm bolt from the bottom of the
speaker panel and (3) screws from the right
side of the housing. Remove the remaining
(3)screwssecuringtheradiotrimbezel.
1
TOYOTA 4Runner 1989-95
1
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
USE THE FOLLOWING INSTRUCTIONS FOR APPLICATIONS USING
FACTORY BRACKETS. FOR APPLICATIONS USING METRA'S 99-
8101,USETHEINSTRUCTIONSPROVIDEDWITHTHATKIT.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Open
the center armrest door. Unsnap the
parking brake trim panel to access the gear
shifter trim panel. Unsnap the gear shifter
trimpanel and remove. Removetheclimate
control knobs. Remove the climate control
trim plate and (2) Phillips screws exposed.
Unclip the radio trim bezel and remove.
Remove (4) Phillips screws securing the
factoryheadunitanddisconnectthewiring.
1
TOYOTA 4Runner 1996-99
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws above the climate controls and
gentlyunsnapthedashtrimbezel. Remove
(4) screws securing the factory head unit
anddisconnectthewiring.
1
TOYOTA Camry 1987-91
2
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws from the lower steering column
panel and remove. Remove the (2) screws
exposed on the radio trim bezel. Open the
glove box and remove (1) screw and (1) bolt
exposed. Remove (2) screws from the ash-
tray cavity and (2) screws from the bracket.
Remove (2) screws from each lower side of
thetrimbezelandunsnapthebezel.
1
TOYOTA Celica (GT/GTS) 1986-89
Disconnect the negative battery terminal to
preventanaccidentalshortcircuit. Carefully
pry up on the gear shifter trim panel and
remove. Remove (2) screws exposed on
the bottom edge of the radio trim panel.
Unsnap the panel and disconnect the
ashtrayandcigarettelighterwiring.
1
TOYOTA Celica 1990-93
3
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(1) screw located to the right of the ignition
switch. Remove (1) screw located above
the driver's side speaker. Carefully unsnap
the dash trim bezel (some force may be
required).
1
TOYOTA Corolla (sed/wag-lower dash) 1988-92
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) Phillips screws from each side of the
console trim bezel. Remove (4) screws
securing the factory head unit and
disconnectthewiring.
1
TOYOTA Corolla (GTS/SR5) 1984-87
4
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the climate control knobs, unsnap the upper
trim bezel and disconnect the hazard and
clock leads. Remove (2) screws from the
lowertrimbezelandremove.
1
TOYOTA Corolla (coupe-lower dash) 1993-97
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(4) screws from the top edge of the
instrument trim bezel and (2) screws below
the radio opening. Remove (1) screw from
the lower-left tab of the bezel ( to the right of
thea/cvent)andunsnapthebezel.
1
TOYOTA Corolla (sed/wag-upper dash) 1988-92
5
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the climate control knobs and unsnap the
dash trim bezel. Disconnect the clock and
hazardleads.
1
TOYOTA Corolla (coupe-upper dash) 1993-97
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray and (2) screws from the ashtray
cavity. Unsnap and remove the shifter
consolebezel. Remove(1) screwbelowthe
ignition switch and remove the dash trim
bezel.
1
TOYOTA MR2 1991-94
6
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
2
Remove the mounting brackets from the
factory head unit assembly. Align the holes
inthemountingbracketswiththeholesinthe
Pocket. Mount the factory mounting
brackets to the Pocket with those screws
previouslyremoved.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray and (3) screws from the ashtray
bracket. Remove (1) screw from each side
of the dash console and unsnap the trim
bezel.
1
TOYOTA Pickup 1984-88
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the driver's side speaker panel by removing
(3) screws and (1) 10mm bolt. Remove (1)
screw from the left side of the housing and
unsnap the ignition cover. Remove the
glove compartment assembly by removing
(1) 10mm bolt from the bottom of the
speaker panel and (3) screws from the right
side of the housing. Remove the remaining
(3)screwssecuringtheradiotrimbezel.
1
TOYOTA Pickup 1989-91
7
2
