Metra Electronics 99-7609G Bedienungsanleitung

METRA. THE WORLD’S BEST KITS.™

APPLICATIONS

KIT FEATURES

KIT COMPONENTS

TOOLS REQUIRED

1-800-221-0932 metraonline.com

METRA. THE WORLD’S BEST KITS.™

REV. 3/04/2010

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 99-7609GINSTALLATION INSTRUCTIONS FOR PART 99-7609G

INFINITI I30 2000-2001

INFINITI I35 2002-2004

99-7609G

• DIN Head Unit Provision w/ Pocket

• ISO DIN Head Unit Provision w/ Pocket

• DDIN Head Unit Provision

• ISO Stacked Head Unit Provision

• Painted Gray to Match Factory Color & Finish

• A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) ISO Trim Plate

• E) DDIN Brackets • F) DDIN Trim Plate • G) Snap-In Pocket • H) (4) PPH38 Screws

• Phillips Screwdriver • Panel Removal Tool • Socket Wrench

WIRING & ANTENNA CONNECTIONS

(Sold Separately)

WIRE HARNESS:

• 70-7551 1995-up Nissan Amp Integration Harness

ANTENNA ADAPTER:

• 40-NI10 Nissan to Aftermarket Radio Antenna Adapter

TABLE OF CONTENTS

DASH DISASSEMBLY

• INFINITI I30 2000-01 / I35 2002-04 . . . . . . . . . . . . . . 1

KIT PREPARATION

• INFINITI I30 2000-01 / I35 2002-04 . . . . . . . . . . . . . . 2

KIT ASSEMBLY

INFINITI I30 2000-01 / I35 2002-04

• DIN HEAD UNIT PROVISION . . . . . . . . . . . . . . . . . . . . 3

• ISO DIN HEAD UNIT PROVISION . . . . . . . . . . . . . . . . . 4

• DDIN / STACKED ISO DIN HEAD UNIT PROVISION . . . . . . 5

NOTE: Refer Also to the instructions included with the aftermarket radio.

CAUTION: Metra recommends disconnecting the negative battery

terminal before beginning any installation. All accessories, switches,

and especially air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

99-7609G 99-7609G

Metra recommends MECP certiﬁed

technicians

Inﬁniti I30 2000-2001

Inﬁniti I35 2002-2004

DDIN / STACKED ISO HEAD UNIT PROVISION

Cut and remove the center bar from

the radio housing. (Fig. A)

Snap the Double DIN brackets to

the inside edge of the Double DIN

trim plate. (Fig. B)

Slide the Double DIN head unit or

stacked ISO head units into the

bracket/radio housing assembly and

secure the Double DIN head unit

or stacked ISO head units to the

assembly using the screws supplied

with the radio. (Fig. C)

Snap the double DIN trim plate into

the radio housing. (Fig. C)

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from

Metra or AXXESS. Re-connect the

negative battery terminal and test

the unit for proper operation.

Reassemble dash in reverse order

of disassembly.

In niti I30 2000-01 / I35 2002-04

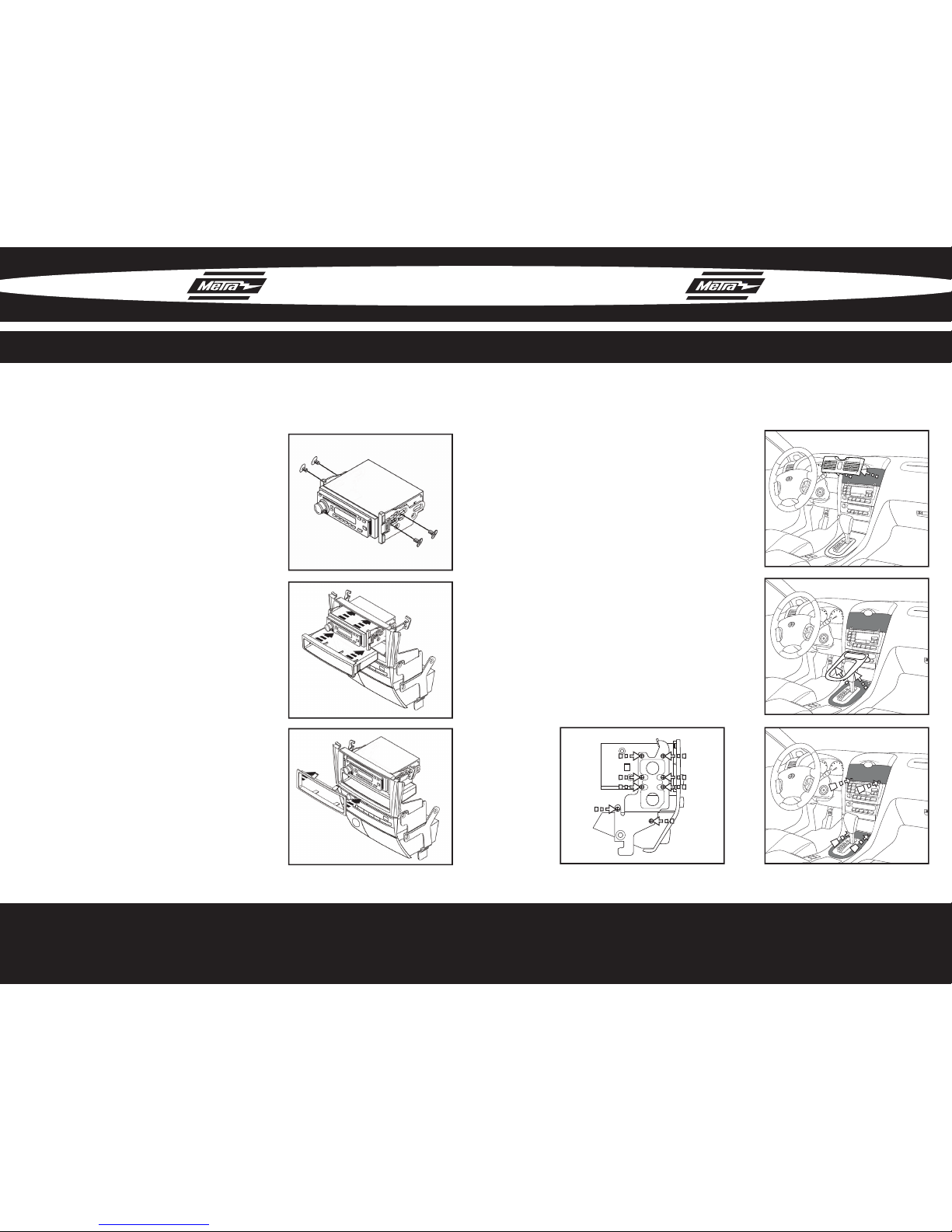

99-7609G DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the a/c vents

above the radio. (Fig. A)

Unclip and remove the shifter panel

surrounding the shifter. (Fig. B)

Remove (4) Phillips screws securing

the radio/climate control/ashtray

assembly. (Fig. C)

Remove (8) Phillips screws securing

the climate control and ashtray to

the assembly. (Fig. D)

Continue to Kit Preparation

99-7609G

In niti I30 2000-01 / I35 2002-04

ISO DIN HEAD UNIT PROVISION

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit. (Fig. A)

Snap the pocket into the bottom

opening of the radio housing.

(Fig. B)

Slide the head unit into the radio

opening until the side clips engage.

(Fig. B)

Snap the Trim plate into the Radio

Housing. (Fig. C)

Locate the factory wiring harness

and antenna plug in the dash.

Metra recommends using the proper

mating adapters from Metra and/or

AXXESS.

Reassemble dash in reverse order

of disassembly.

2 3

99-7609G KIT PREPARATION 99-7609G KIT ASSEMBLY

Continue to Kit Assembly

Inniti I30 2000-01 / I35 2002-04 Inniti I30 2000-01 / I35 2002-04

DIN HEAD UNIT PROVISION

Attach the radio housing brackets to

the radio housing using the supplied

(4) Phillips screws. (Fig. A)

Secure the climate control to the

radio housing bracket assembly

using the factory hardware. (Fig. B)

Attach the ashtray to the radio

housing bracket assembly using the

factory hardware. (Fig. B)

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down. (Fig. A)

Snap the pocket into the bottom

opening of the radio housing.

(Fig. B)

Slide the aftermarket head unit into

the cage and secure. (Fig. C)

Locate the factory wiring harness

and antenna plug in the dash.

Metra recommends using the proper

mating adapters from Metra and/or

AXXESS.

Reassemble dash in reverse order

of disassembly.
