INSTALLATION INSTRUCTIONS FOR PART 95-7325

95-7325

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Units Provision

A) Double DIN Trim Plate B) Double DIN Brackets

KIT COMPONENTS

Small Flat Blade Screwdriver • Panel Removal Tool

•Phillips Screwdriver

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

Hyundai Santa Fe

2007-10

(excludes 2010 NAV models)

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

•70-7302 - Hyundai Harness 2007-up

•70-7305 - Hyundai / KiA Harness 2009

Antenna Adapter:

•40-KI11 - 2009-10 Santa Fe Adapter

Dash Disassembly

-HyundaiSantaFe2007-10.........................................1

Kit Assembly

-DoubleDINRadioProvision.......................................2

-StackedISOUnitsProvision.......................................3

Final Assembly ..........................................4

TABLE OF CONTENTS

95-7325

*Note:

Refer also to the instructions included with the aftermarket radio.

95-7325 DASH DISASSEMBLY

HYUNDAI SANTAFE 2007

-10

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (1) Phillips screw from the

right side of the panel below the

steering column then unclip and let

right side of panel hang.

(Figure A)

Unclip and remove the cover above

the clock on top of panel surrounding

the radio.

(Figure B)

Unclip and remove the panel extend-

ing across the dash belowthe a/c

control and above the glove box

including the ash tray.

(Figure C)

Remove (2) Phillips screws then

unclip and remove the panel sur-

rounding the radio including the a/c

vents.

(Figure D)

Remove (4) Phillips screws securing

the radio. Unplug and remove radio.

Continue to kit assembly.

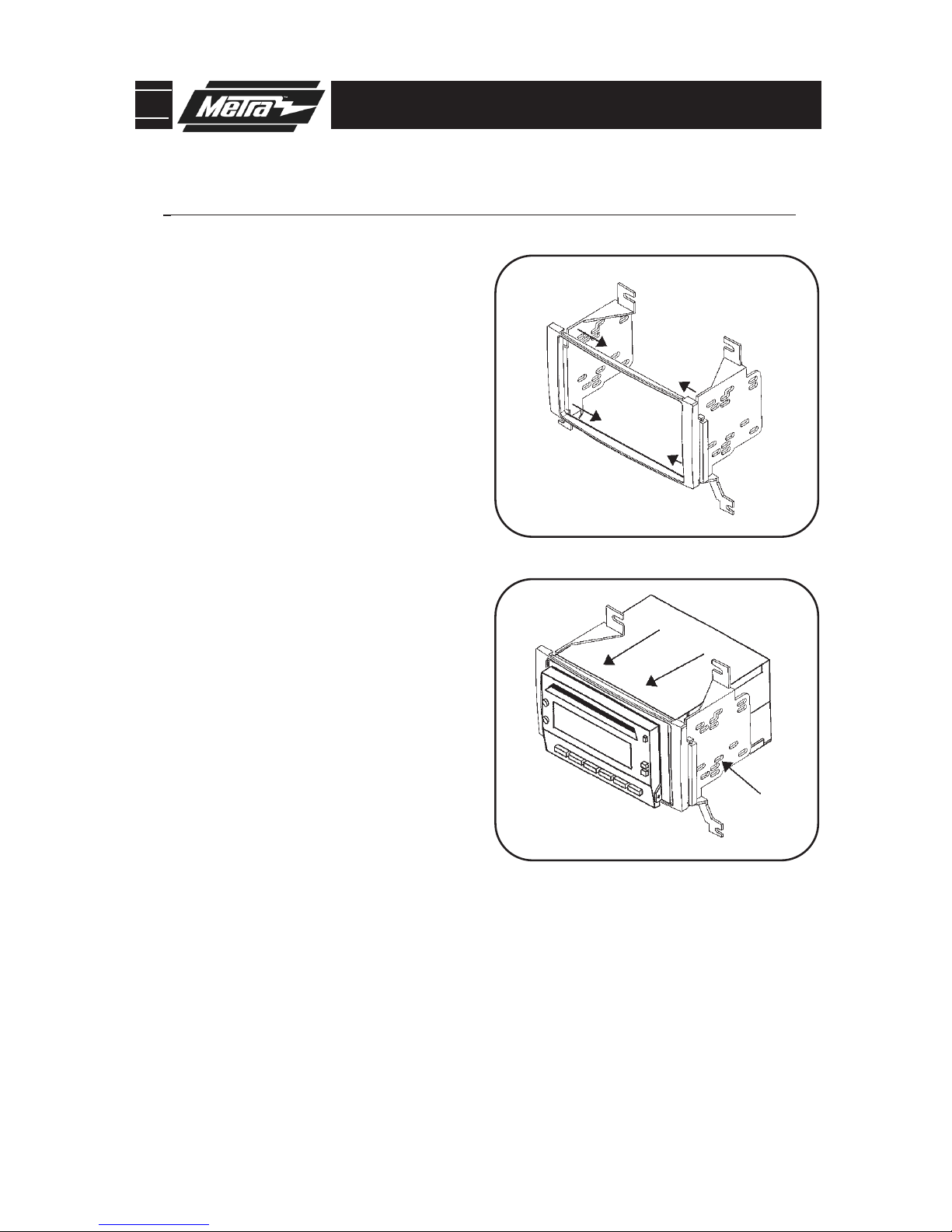

95-7325 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION

Slide the Double DIN radio into the

bracket/trim plate assembly and

secure the radio to the assembly using

the screws supplied with the radio.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Snap the Double DIN brackets to the

outside edge of the Double DIN trim

plate.

(Figure A)

95-7325 KIT ASSEMBLY

STACKED ISO UNITS PROVISION

Slide the stacked ISO units into the

bracket/trim plate assembly and

securethe units to the assembly using

the screws supplied with the units.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Snap the Double DIN brackets to the

outside edge of the Double DIN trim

plate.

(Figure A)

95-7325 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative batteryterminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of anyunused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer.................Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

95-7325

NOTES

95-7325 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
