INSTALLATION INSTRUCTIONS FOR PART 99-5806
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION

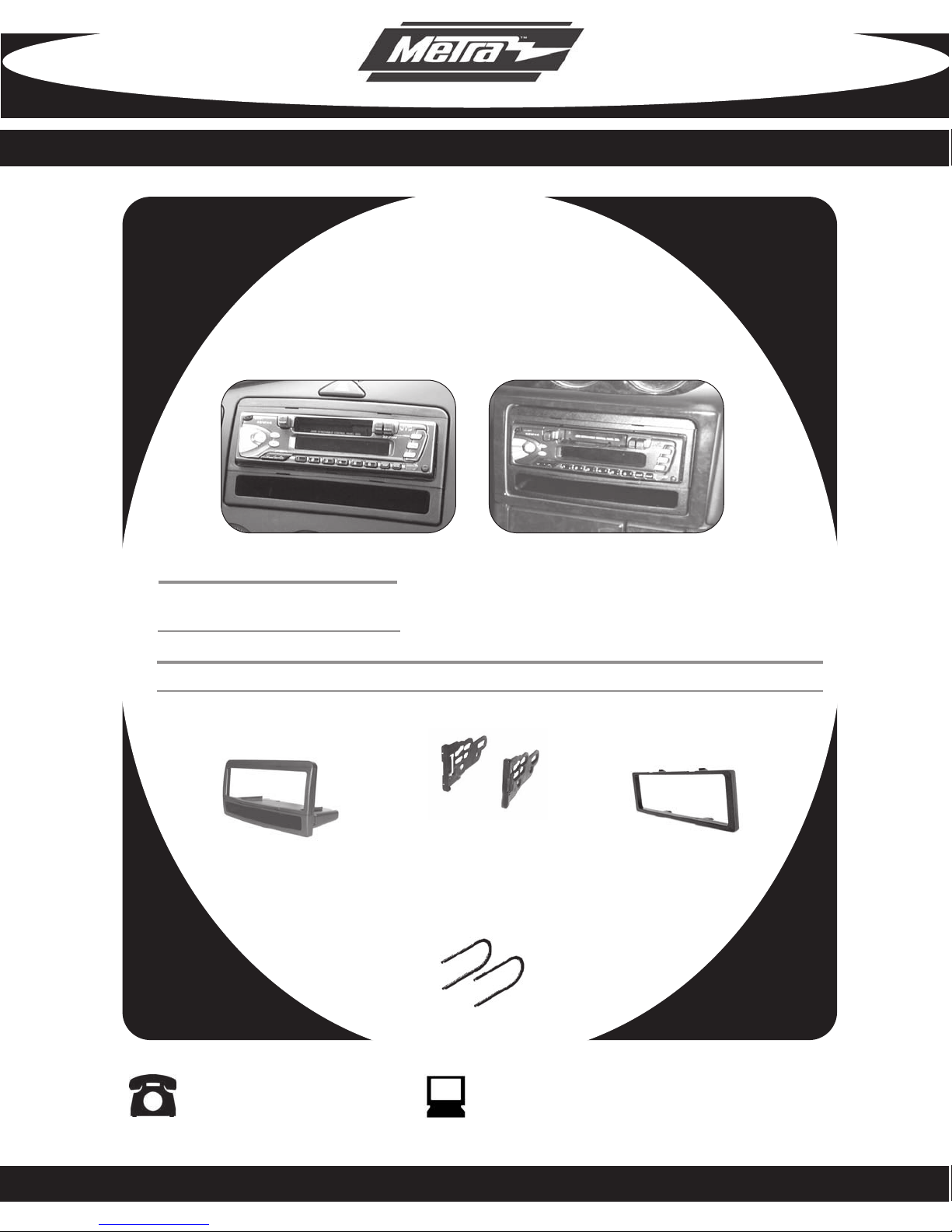

KIT FEATURES
• ISO DIN head unit provision with pocket
• DIN head unit provision with pocket
A) Radio Housing l B) ISO Brackets l C) Trim Plate
KIT COMPONENTS
TOOLS REQUIRED:
99-5806
86-5618 Head Unit Removal Keys
••••••••••••• •
•••••••••
B
AC
Ford Focus
2000-2004
Mercury Cougar
1999-2002
99-5806
2000-2004 Ford Focus
1999-2002 Mercury Cougar
Dash Disassembly .......................................................... 1
Kit Assembly .................................................................. 2
Head Unit Provision Assembly ...................................... 3
Final Assembly .............................................................. 4
Notes........................................................................... 5-6
T STNETNOCFOELBA
••••••••••••• •
•••••••••
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.

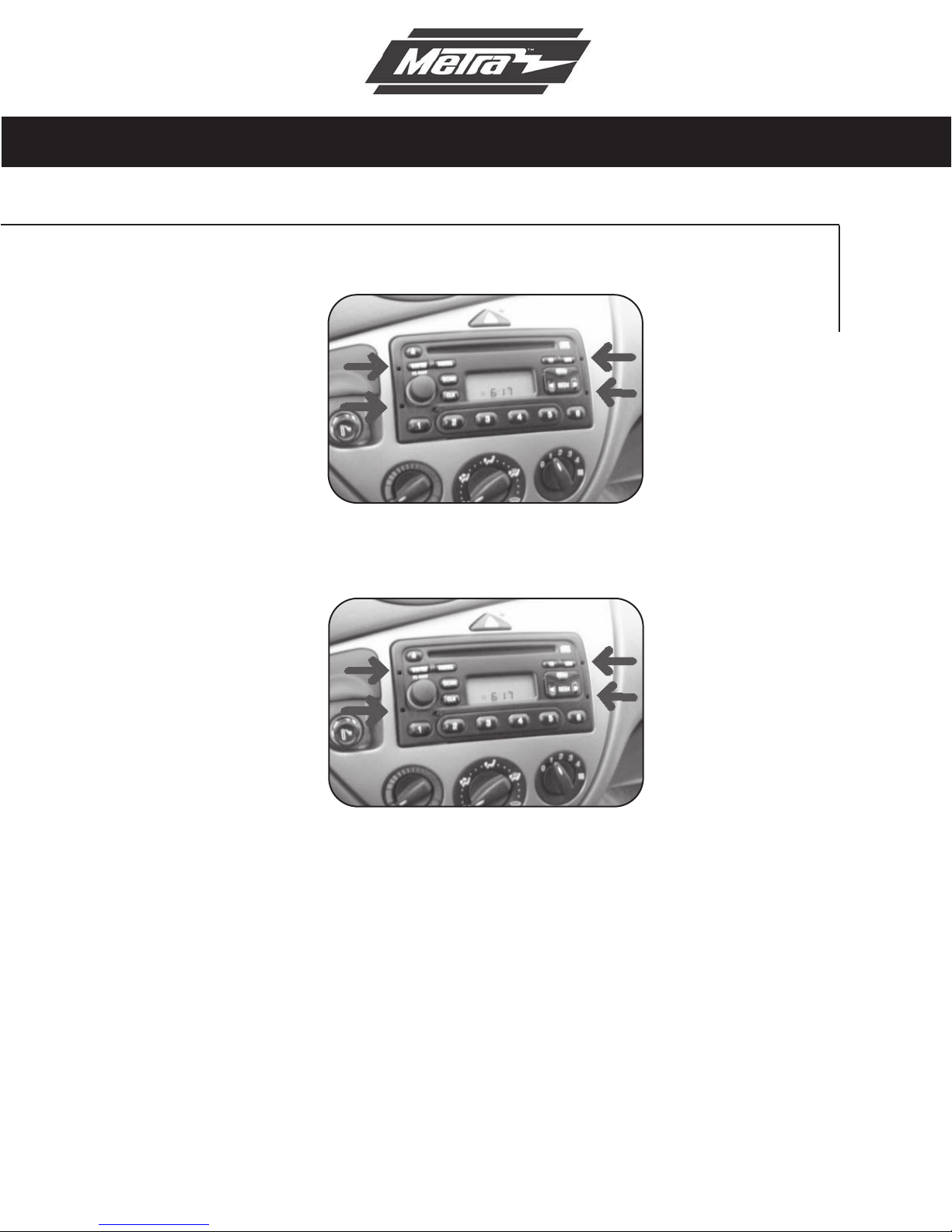

DASH DISASSEMBLY
2000-2004 FORD FOCUS
Using Metra’s 86-5618, pull the
factory head unit from the dash
and disconnect the wiring.
1
99-5806
1
1999-2002 MERCURY COUGAR
3
YLBMESSA TIK
DIN HEAD UNIT PROVISIONS:
1
Slide the DIN cage into the
Radio Housing and secure
by bending the metal locking
tabs down.
2
Slide the after-market head
unit into the cage and
secure. Snap the Trim plate
into the Radio Housing.
99-5806
ISO DIN HEAD UNIT PROVISIONS:
1
Mount the ISO Brackets to
the head unit with the screws
supplied with the unit.
2
Slide the head unit into the
radio opening until the side
clips engage. Snap the Trim
plate into the Radio Housing.
NOTE: When reinstalling the screws
into the bottom of the 99-5806 use the
(2) supplied Phillips screws instead of
the factory screws removed in step 5
in Dash Disassembly.
4
FINAL ASSEMBLY
1
Locate the factory wiring har-
ness in the dash. Metra recom-
mends using the proper mating
adapter and making the con-
nections as shown. (Isolate and
individually tape off the ends of
any unused wires to prevent
electrical short circuit)
2
Re-connect the negative battery
terminal and test the unit for
proper operation.
3
Snap radio / kit assembly into the
factory radio opening.
A
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
B
C
D
99-5806
5
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
99-5806
NOTAS
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-5806
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
CARACTERÍSTICAS DEL KIT
•Accesorio para unidades centrales
DIN ISO con bolsillo
•Accesorio para unidades centrales DIN
con bolsillo
A) Alojamiento del radio B) Soportes ISO C) Placa de terminación
COMPONENTES DEL KIT
HERRAMIENTAS REQUERIDAS
99-5806
86-5618 Llaves de extracción para la unidad central
•••••••••••• • •
•••••••• •
B
AC
Ford Focus
2000-2004
Mercury Cougar
1999-2002
99-5806
2000-2004 Ford Focus
1999-2002 Mercury Cougar
Desmontaje del tablero ...................................................1
Montaje del kit ............................................................... 2
Montaje del accesorio para unidades centrales ............3
Montaje final .............................................................. 4
Notas.............................................................................. 5
ÍNDICE
•••••••••••• • •
•••••••• •
DESMONTAJE DEL TABLERO
2000-2004 FORD FOCUS
Utilizando el 86-5618 de Metra,
quite la unidad central de fábrica
del tablero y desconecte el cableado.
1
99-5806
1
1999-2002 MERCURY COUGAR
3
MONTAJE DEL KIT
ACCESORIOS PARA UNIDADES CENTRALES DIN:
1
Deslice la caja DIN en el alojamiento
del radio y sujétela doblando las
lengüetas de cierre de metal hacia
abajo.
2
Deslice la unidad central en la
abertura del radio hasta que engan-
chen los ganchos laterales. Coloque
a presión la placa de terminación en
el alojamiento del radio.
99-5806
ACCESORIOS PARA UNIDADES CENTRALES DIN ISO:
1
Monte los soportes ISO en la
unidad central con los tornillos
suministrados con la unidad.
2
Deslice la unidad central en la
abertura del radio hasta que
enganchen los ganchos later-
ales. Coloque a presión la placa
de terminación en el alojamiento
del radio.
NOTA: Cuando reinstale los tornillos en la parte inferior de la pieza 99-5806,
utilice los (2) tornillos Phillips suministrados en lugar de los tornillos de
fábrica que retiró en el paso 5,
