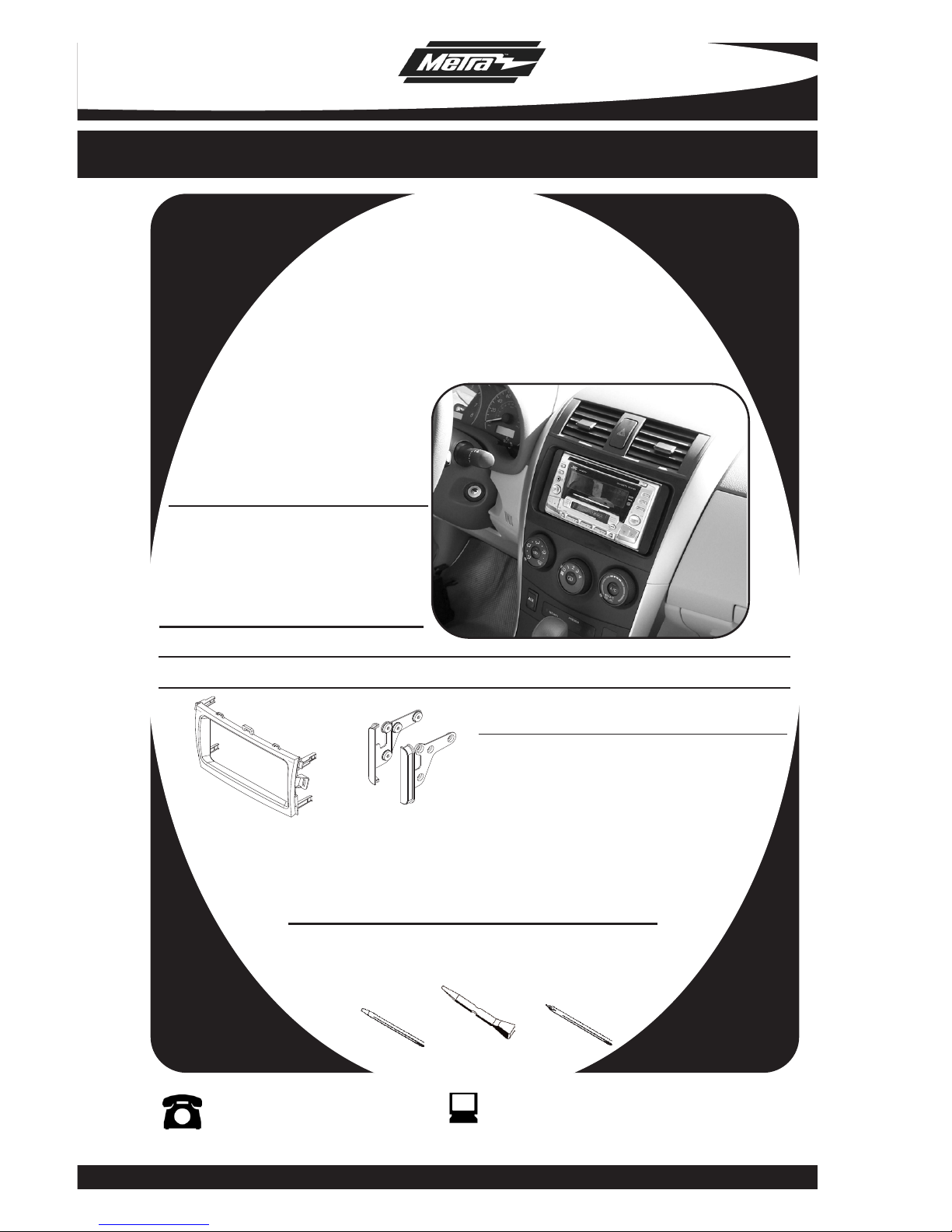

INSTALLATION INSTRUCTIONS FOR PART 95-8223

APPLICATIONS

Toyota Corolla

2009

-10

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

•Painted ToMatch Factory Dash

95-8223= BLACK

95-8223S= SILVER

•A) Radio Housing Trim Plate • B) Double Din Trim Plate

Harness & Antenna Connections (sold separately)

•70-1761 Toyota Harness 87-up

•TYTO-01 Toyota Amp Interface 03-up

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver

1-800-221-0932

www.metraonline.com

95-8223/

95-8223S

Dash Disassembly

Toyota Corolla 2009-10. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . 1

Kit Assembly

-Double DIN/Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . 2

Final Assembly ...........................................3

TABLE OF CONTENTS

95-8223

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

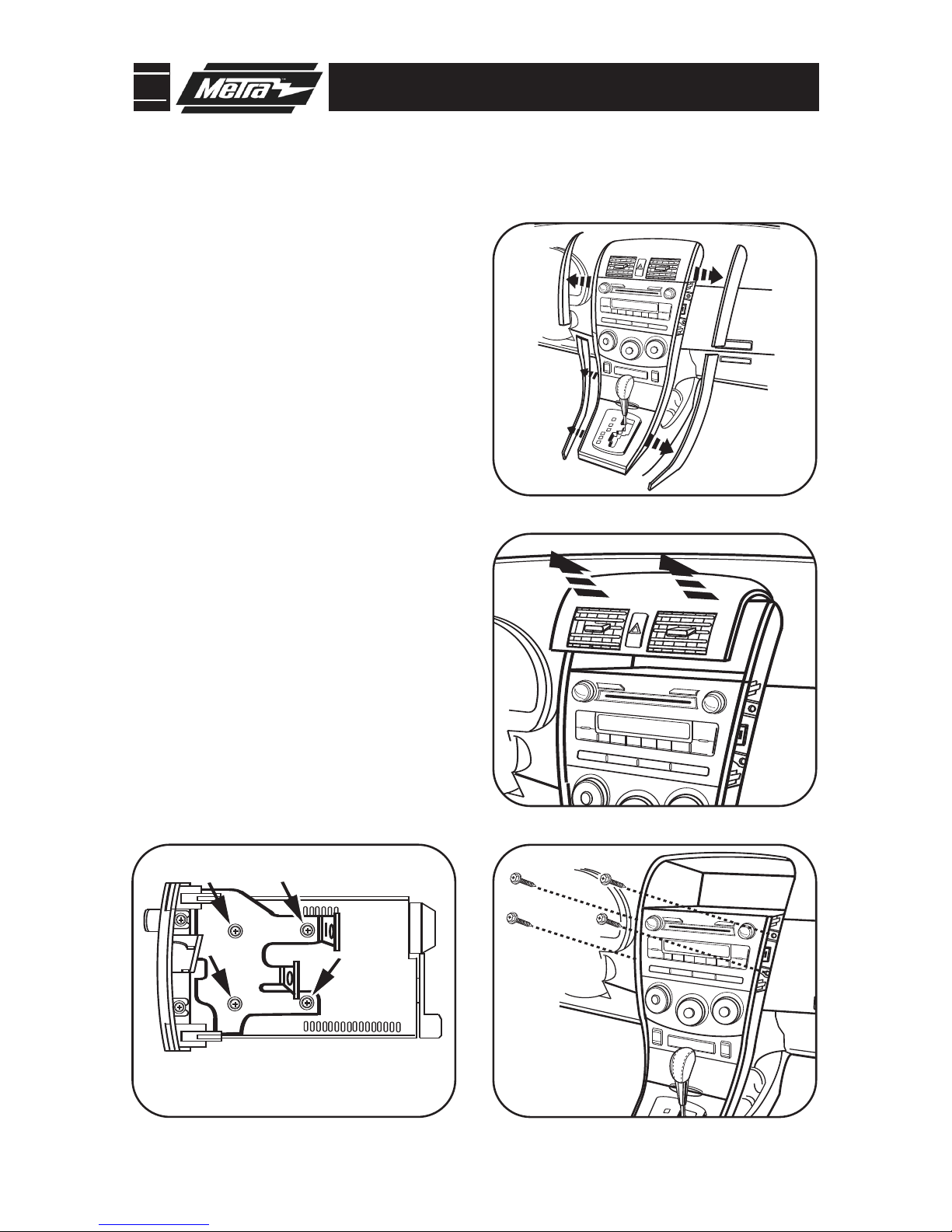

95-8223 DASH DISASSEMBLY

Toyota Corolla 2009-10

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the (4) side trim

panels from the right and left side of

the radio and a/c controls. (

Figure A)

Unclip and remove the a/c vent panel

above the factory radio.

(Figure B)

Remove (4) 10 MM bolts securing the

radio.

(Figure C)

Remove (4) plastic clips from the

back of the factory radio. (Retain the

clips for re-use during kit assembly.)

Remove (8) screws securing the

brackets to the factoryradio and

remove the brackets. (Retain the

brackets for re-use during kit

assembly.)

(Figure D)

Continue to kit assembly.

REMOVE (4) SCREWS

FROM FACTORY BRACKET FROM EACH SIDE

95-8223 KIT ASSEMBLY

DOUBLE DIN/STACKED ISO MOUNT UNITS PROVISION

Attach the factory mounting brackets

and the Double DIN trim plates to the

Double DIN or the stacked ISO mount

unit(s) using the screws supplied with

the unit(s).

(Figure B)

Attach the clips removed from the

factory radio to the back of the radio

housing trim plate.

(Figure A)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

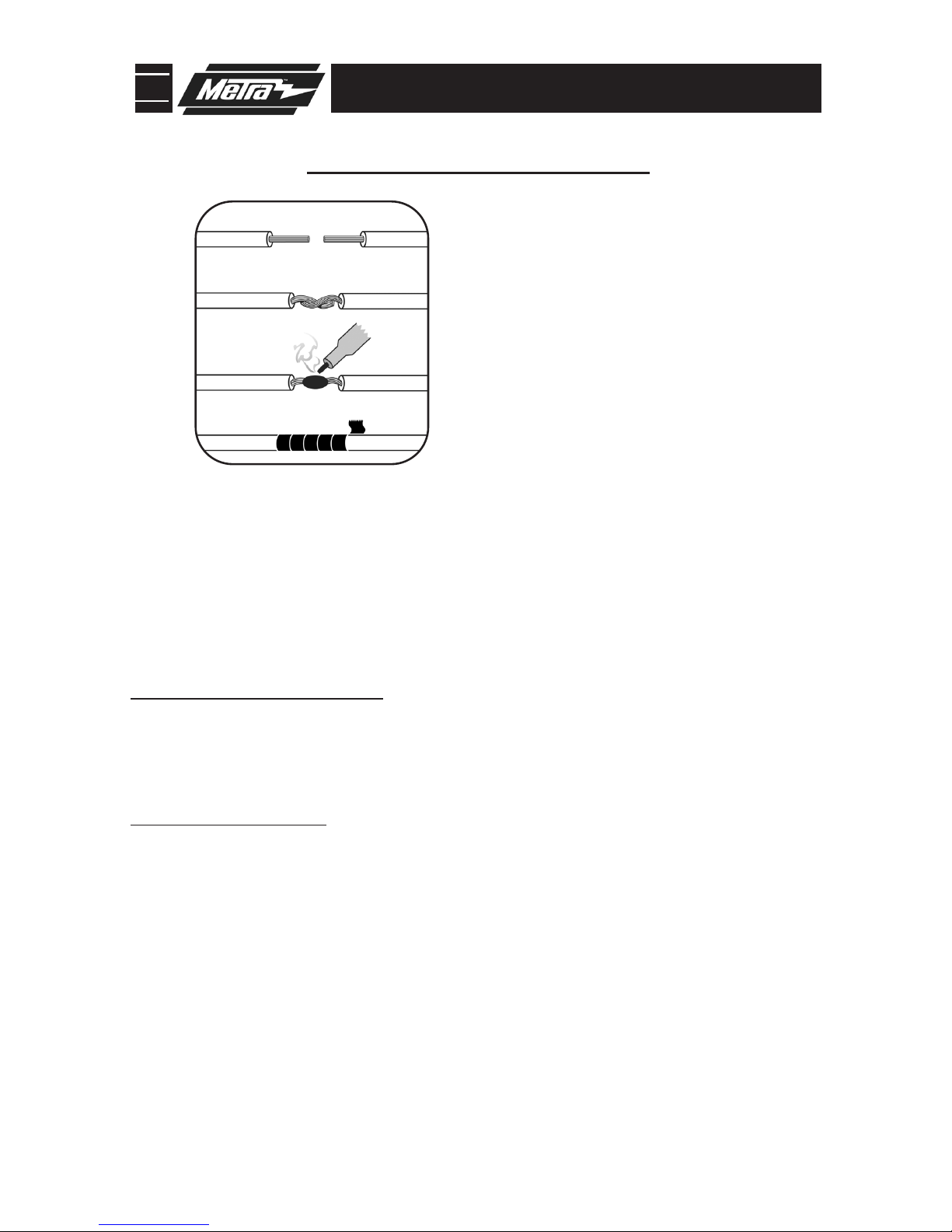

95-8223 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble in reverse order of disassembly using the 95-8223 Radio Housing

Trim Plate in place of the factory radio trim panel.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc..........Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

95-8223

NOTES

95-8223

NOTES

95-8223 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
