Metra Electronics 99-5500 Bedienungsanleitung

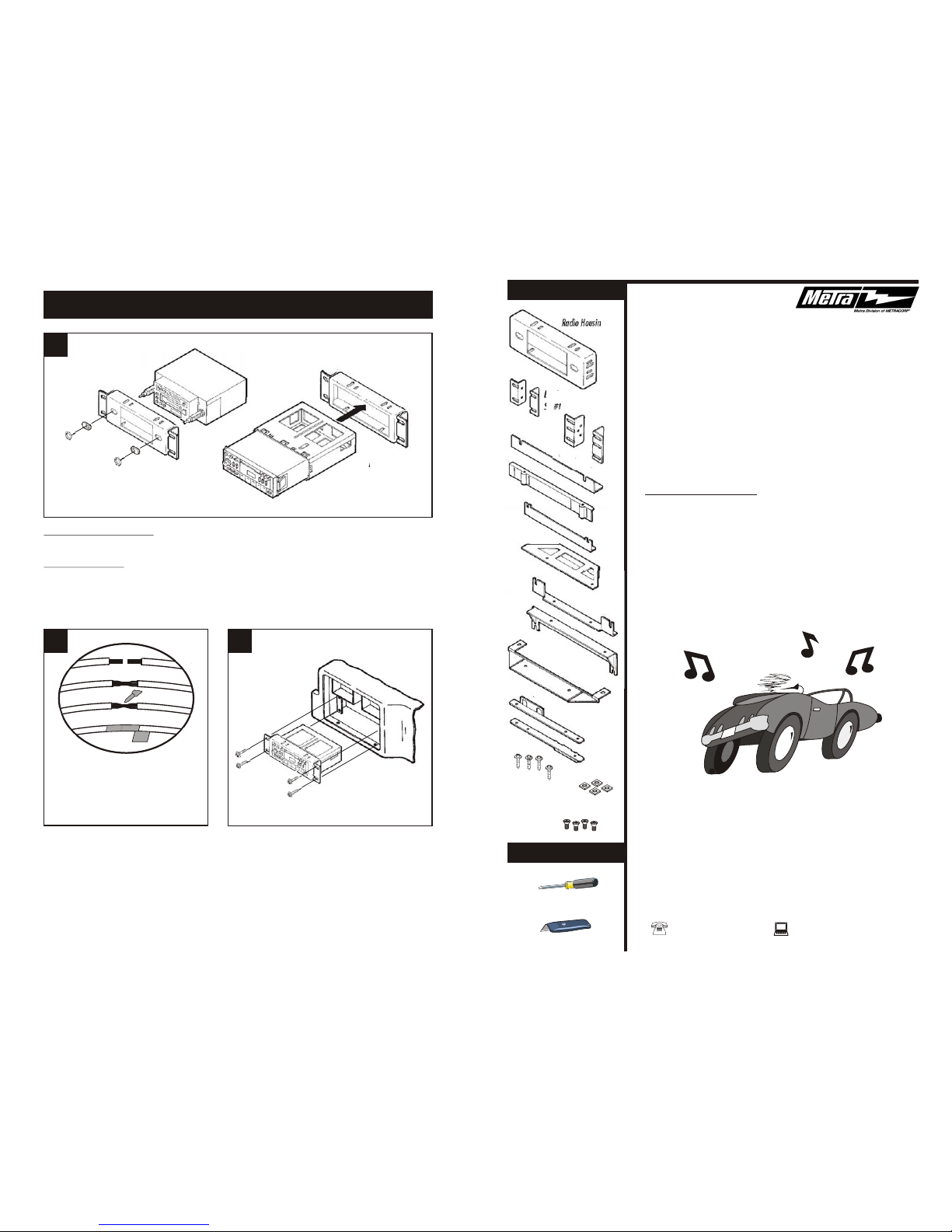

TOOLS REQUIRED

Cutting tool

Phillips screwdriver

KIT COMPONENTS

Radio Housing

Bracket

Set #1

APPLICATIONS

FORD/MERCURY 1979-91

(SEE INSIDE FOR SPECIFIC APPLICATIONS)

99-5500

INSTALLATION

INSTRUCTIONS

ALL VEHICLES

4 5

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Re-connect the battery terminal and test the unit

for proper operation. Mount the radio/kit

assembly to the sub-dash with those screws

previously removed in step #1.

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

2-SHAFT HEAD UNITS: Attach the Shaft Masks to the Radio Housing. Slide the

aftermarket head unit into the kit and secure with shaft nuts. (see Fig. A)

DIN HEAD UNITS: Using the scored lines on the back of the Radio Housing as a guide, cut

and remove the shaft supports. Slide the DIN cage into the kit and secure by bending the metal

locking tabs down. Slide the aftermarket head unit into the cage until secure. (see Fig. B)

Fig. A

Fig. B

Bracket

Set #4

Bracket

Set #5

Bracket

Set #2

Bracket

Set #3

Bracket #6

Bracket

Set #7

(4) Nuts

(4) 3/8" Phillips

Flat-head Screws

(4) #8 x ¾"

Hex-head Screws

1-800-221-0932 www.metraonline.com

rev. 030701

TABLE OF CONTENTS

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) screws from the bottom of the radio trim

bezel. Pry down on the (2) tabs located at

the top of the radio trim bezel and remove

the bezel. Remove (4) screws securing the

factory head unit and disconnect the wiring.

FORD Aerostar 1985-91

Mount Bracket Set #1 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Mount Bracket Set #1 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Mount Bracket Set #3 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the ashtray by disengaging the release tab

at the rear of the ashtray bracket. Remove

(2) screws from the lower edge of the dash

trim bezel. Unsnap the top edge of the bezel

and remove. Remove (4) screws securing

the factory head unit and disconnect the

wiring.

FORD Tempo / MERCURY Topaz 1985-88

Disconnect the negative battery terminal to

prevent an accidental short circuit. Open

the ashtray and remove (2) screws exposed

in the ashtray cavity. Remove (2) screws

from the top of the dash trim bezel. Remove

the bezel. Remove (4) screws securing the

factory head unit and disconnect the wiring.

FORD Thunderbird / MERCURY Cougar 1985-88

CAR PAGE

FORD

Aerostar 1985-91................. 1

Bronco 1980-86................... 2

Bronco II 1983-88................ 2

Crown Victoria 1984-90........3

Econoline 1975-91............... 3

Escort 1985-90.....................4

EXP 1985-90........................3

LTD 1983-86........................ 4

Mustang 1985-86................. 5

Pickup 1980-86.................... 2

Ranger 1983-88................... 2

CAR PAGE

FORD (cont).

Taurus 1986-89.................... 5

Tempo 1985-88.................... 6

Thunderbird 1985-88........... 6

MERCURY

Capri 1985-86...................... 5

Cougar 1985-88................... 6

Grand Marquis 1984-90....... 3

Lynx 1985-90....................... 4

Marquis 1983-86.................. 4

Sable 1986-89......................5

Topaz 1985-88..................... 6

If a 2-shaft head unit is being installed, be sure the studs on the Brackets fit into

the SMALL ROUND HOLES in the Housing during the kit assembly in step #2.

If a DIN head unit is being installed, be sure the studs on the Brackets fit into

the SLOTTED HOLES in the Housing during the kit assembly in step #2.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) screws from the top edge of the dash trim

bezel. Pull out on the top of the bezel,

unhook the base and remove the bezel. If a

factory head unit is NOT present, scribe the

(4) mounting holes and radio opening onto

the bezel. Drill the holes, cut the opening

and place (4) U-clips over the mounting

positions.

FORD Bronco / Pickup 1980-86

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) screws from the top edge of the dash trim

bezel. Remove the light switch knob,

cigarette lighter and ashtray. Unsnap the

black trim molding under the dash trim bezel

and remove (2) screws exposed. Remove

the bezel. Remove (4) screws securing the

factory head unit and disconnect the wiring.

FORD Bronco II / Ranger 1983-88

Disconnect the negative battery terminal to

prevent an accidental short circuit. Open

the console storage box and remove (4)

screws exposed in the bottom of the box.

Remove (2) screws securing the emergency

brake trim and remove the trim. Unclip the

gear shifter trim and remove. Open the

ashtray and remove (2) screws exposed.

Remove (4) screws under the ashtray

opening. Remove the console. Remove (3)

screws securing the factory head unit and

disconnect the wiring.

FORD Mustang / MERCURY Capri 1985-86

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) screws from the bottom of the radio trim

bezel. Pry out on the edges of the bezel and

remove. Remove (4) screws securing the

factory head unit and disconnect the wiring.

FORD Taurus / MERCURY Sable 1986-89

Mount Bracket #6 to the Radio Housing

with (2) 3/8" Phillips Flat-head Screws and

(2) Nuts supplied. Skip to the Installation

Instructions for ALL VEHICLES on Page #7.

Mount Bracket Set #7 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Mount Bracket Set #5 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Mount Bracket Set #1 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Open

the ashtray and remove (2) screws exposed.

Unclip the dash trim bezel and remove the

radio dummy plate. Place (4) U-nuts over

the mounting positions in the sub-dash.

FORD Crown Victoria 1984-90

MERCURY Grand Marquis 1984-90

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(3) screws from the lower edge of the dash

trim bezel. Remove (2) screws above the

radio opening. Unsnap the right corner of

the dash trim bezel, disconnect the cigarette

lighter wiring and remove the bezel.

Remove the screws securing the factory

head unit and disconnect the wiring.

FORD Econoline 1975-91

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(4) screws from the top edge of the radio trim

bezel. Remove (2) screws from the bottom

edge of the radio trim bezel. Remove the

climate control knobs and unclip the bezel.

Remove (4) screws securing the factory

head unit and disconnect the wiring.

FORD Escort / MERCURY Lynx 1985-90

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the ashtray and climate control knobs.

Remove (2) screws from the bottom of the

dash trim bezel. Lift up on the bottom of the

bezel and remove. Remove the screws

securing the factory head unit and

disconnect the wiring.

FORD LTD / MERCURY Marquis 1983-86

Mount Bracket Set #1 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Mount Bracket Set #2 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Mount Bracket Set #4 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.

Mount Bracket Set #1 to the Radio

Housing with (4) 3/8" Phillips Flat-head

Screws and (4) Nuts supplied. Skip to the

Installation Instructions for ALL VEHICLES

on Page #7.
