INSTALLATION INSTRUCTIONS FOR PART 95-8208

APPLICATIONS

Toyota Sienna

2004-2010

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

•A) Radio Housing • B) Double Din Trim Plate • C) Double DIN Brackets

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

•Socket Set

1-800-221-0932

www.metraonline.com

95-8208

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• 70-1761 -Toyota harness 1987-up

•TYTO-01 - Toyota amp harness 2003-up

Antenna Adapter:

•Not required

Dash Disassembly

Toyota Sienna 2004-2010 . . . . . . . . . . . . . . . . . . . . . .

. . . . . . 1

Kit Assembly

-Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

-Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Final Assembly ........................................... 4

TABLE OF CONTENTS

95-8208

*Note:

Refer also to the instructions included with the aftermarket radio.

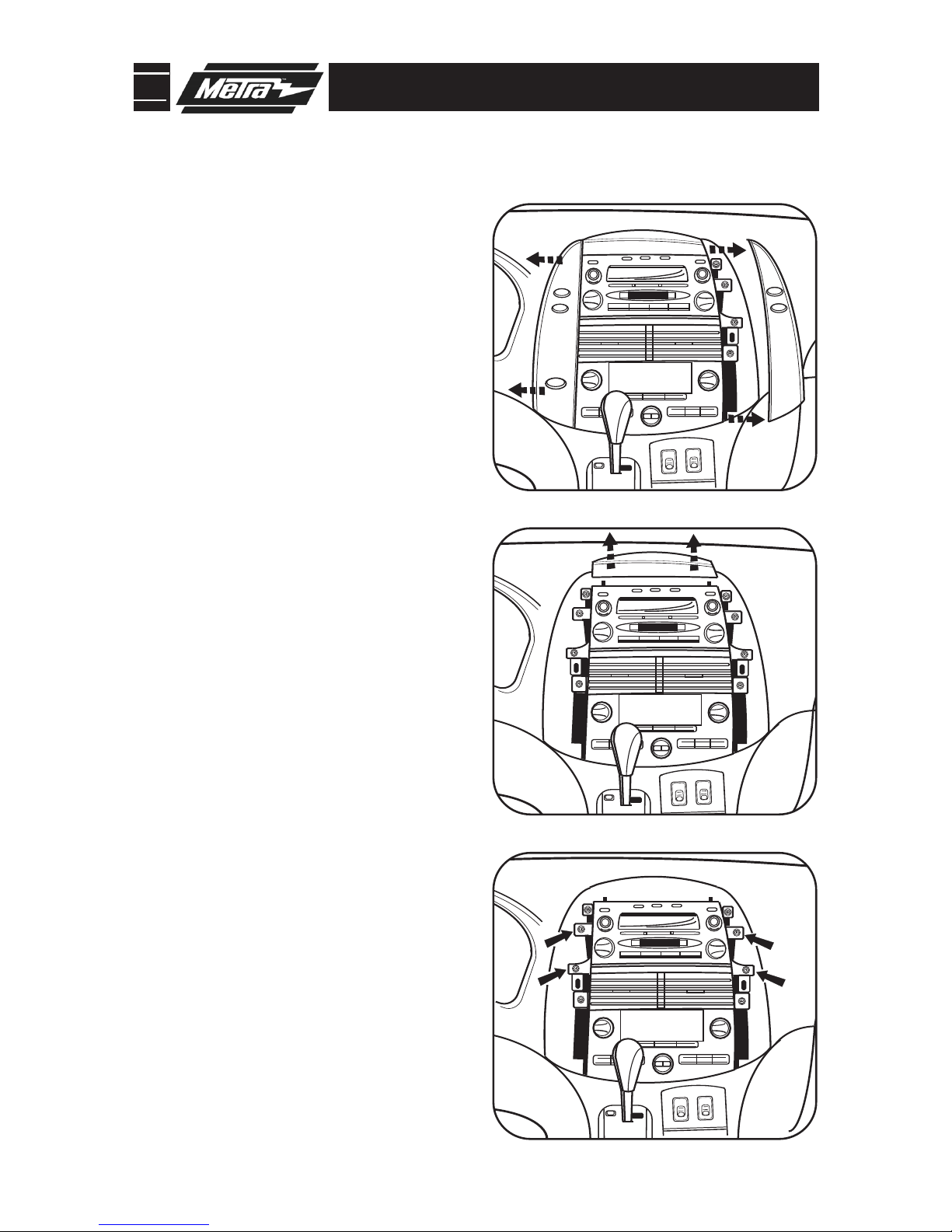

95-8208 DASH DISASSEMBLY

Toyota Sienna 2004-2010

Unclip and remove panels from left

and right side of radio. (

Figure A)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove panel or speaker

cover above radio.

(Figure B)

Remove (4) 10 MM bolts securing the

radio. Unplug and remove the radio.

(Figure C)

Continue to final assembly.

95-8208 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION

Slide the Double DIN radio into the

bracket/housing assembly and secure

the radio to the assembly using the

screws supplied with the radio.

(Figure B)

Snap the Double DIN brackets to the

inside edge of the radio housing.

(Figure A)

Snap the Double DIN Trim plate into

the Radio Housing.

(Figure C)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

95-8208 KIT ASSEMBLY

STACKED ISO UNITS PROVISION

Slide the stacked ISO units into the

bracket/housing assembly and secure

the units to the assembly using the

screws supplied with the units.

(Figure B)

Snap the Double DIN Trim plate into

the Radio Housing.

(Figure C)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Snap the Double DIN brackets to the

inside edge of the radio housing.

(Figure A)

95-8208 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’sspecifications.

NOTES

95-8208

95-8208 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
