INSTALLATION INSTRUCTIONS FOR PART 95-5812 or 99-5812
APPLICATIONS
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
REV. 9/20/2013 INST-5812
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Ford multi-kit 2004-up
95-5812 or 99-5812
See application list inside
95-5812:
• Double DIN radio provision
• Stacked ISO DIN radio provision
99-5812:
• DIN radio provision with pocket
• ISO radio provision with pocket
95-5812: • A1) Radio housing (DDIN & stacked ISO DIN) • B1) Double DIN brackets
• C1) Spacers • D1) (4) Screws
99-5812: • A2) Radio housing • B2) ISO brackets • C2) Trim plate • D2) Side brackets
• E2) Spacers • F2) (4) Screws
KIT FEATURES
KIT COMPONENTS
A2B1A1
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-5520 - Ford harness 2003-up
• 70-5521 - Ford amplified harness 2003-up
• 70-5522 - Ford sub harness 2003-up
• XSVI-5520 - NAV Ford interface 2006-up
Antenna Adapter:
• 40-CR10 - Chrysler/GM antenna adapter 2002-up
• Panel removal tool • Phillips screwdriver
• Socket wrench
TOOLS REQUIRED
C1 D1
B2
E2
C2
F2D2
INST-5812
Applications
2
Ford
Edge .............................. 2007-2010
Expedition ..................... 2007-up
Explorer ......................... 2006-2010
Explorer Sport Trac ........ 2007-2010
F-150 ............................ 2004-2008
F-250/F-350/F-450/
F-550 ............................ 2005-up
F-650/F-750 ................. 2011-up
E-Series ........................ 2009-up
F-Series Super Duty ...... 2005-up
Five-Hundred ................ 2005-2007
Focus ............................ 2005-2007
FreeStar ........................ 2004-2007
Freestyle ....................... 2005-2007
Fusion ........................... 2006-2009
Mustang ........................ 2005-2009
Taurus ........................... 2008-2009
Taurus X ........................ 2008-2009
Transit ........................... 2012-up
Lincoln
Mark LT ......................... 2006-2008
Factory navigation models only:
MKX .............................. 2007-2010
Navigator ....................... 2007-up
Mercury
Monterey ....................... 2004-2007
Milan ............................. 2006-2009
Montego ........................ 2005-2007
Mountaineer .................. 2006-2010
Sable ............................. 2008-2009
Dash Disassembly
– Ford E-Series 2009-up .............................7
– Ford Edge 2007-2010 ..............................3
– Ford Expedition 2007-up ..........................3
– Ford Explorer 2006-2010 .........................7
– Ford Explorer Sport Trac 2007-2010.........7
– Ford F-150 2004-2008 ............................3
– Ford F-250/F-350/F-450/F-550 ...............8
– Ford F-650/F-750 2011-up ......................8
– Ford F-Series Super Duty 2005-up ...........7
– Ford Five Hundred 2005-2007 .................4
– Ford Freestar 2004-2007 .........................6
– Ford Freestyle 2005-2007 ........................5
– Ford Focus 2005-2007 .............................6
– Ford Fusion 2006-2009 ...........................5
– Ford Mustang 2005-2009 .................... 3-4
– Ford Taurus 2008-2009 ...........................4
– Ford Taurus X 2008 -2009 .......................5
– Ford Transit 2012-up ................................9
– Lincoln Mark LT 2006-2008 .....................3
– Lincoln MKX* 2007-2010 ........................8
– Lincoln Navigator* 2007-up .....................9
– Mercury Milan 2006-2009 .......................5
– Mercury Montego 2005-2007 ..................4
– Mercury Monterey 2004-2007 .................6
– Mercury Mountaineer 2006-2010 ............7
–Mercury Sable 2008-2009 .......................4
Kit Assembly
–Double DIN radio provision .....................10
–Stacked ISO radio provision ....................11
–DIN radio provision with pocket ..............12
–ISO radio provision with pocket ..............13
Table of Contents
*Factory navigation models only
3
Dash Disassembly
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
Ford Edge 2007-2010/F-150
2004-2008/Expedition 2007-up,
Lincoln Mark LT 2006-2008
Ford Mustang 2005-2009
(Figure B)(Figure A)
1. Remove the small rectangular
shifter lever trim panel if equipped.
(Figure A)
2. Remove (2) Phillips screws from
under the center armrest at the
back of the shifter trim panel
(including cup holders). (Figure B)
3. Unclip and remove panel.
(Figure B)
4. Unclip and remove the (2) center
stack trim panels from the left and
right side of the radio and climate
controls. (Figure C)
5. Remove (6) 9/32” screws from
center trim panel surrounding
the radio and climate controls
then unclip and remove panel.
(Figure D, see next page)
6. Remove (4) 9/32” screws from
the radio to remove.
(Figure E, see next page)
Continue to kit assembly
(Figure C)
(Figure B)
(Figure A)

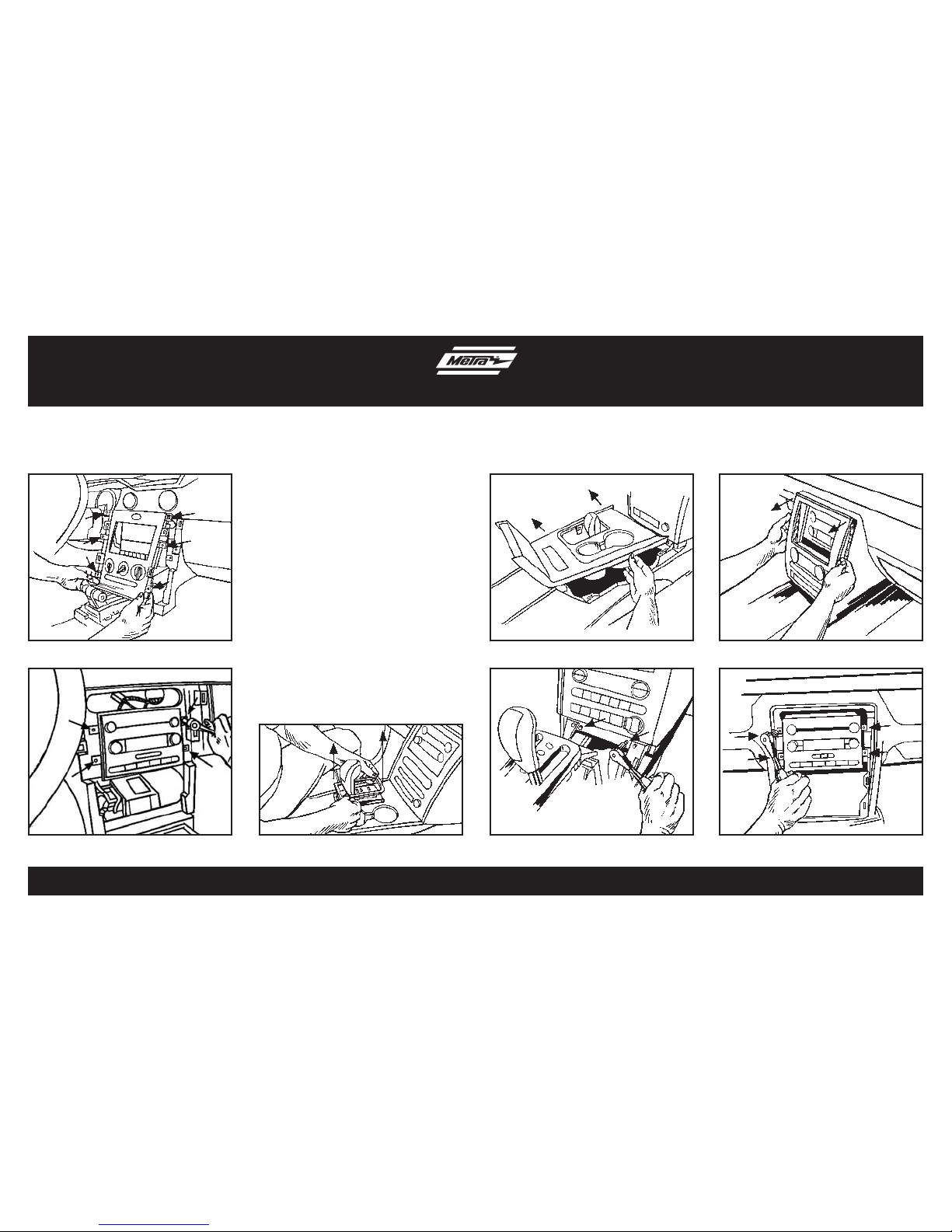

4
Dash Disassembly
Ford Five-Hundred 2005-2007/Taurus 2008-2009,
Mercury Montego 2005-2007/Sable 2008-2009
1. Unclip and remove the small
rectangular trim around shift lever.
(Figure A)
2. Unclip and remove the entire panel
(including cup holders) surrounding
the shift lever. (Figure B)
3. Remove (2) 9/32” screws at the
bottom of the center radio/climate
control panel. (Figure C)
4. Unclip and remove the center
panel. (Figure D)
5. Remove (4) 9/32” screws from the
radio to remove. (Figure E)
Continue to kit assembly
(Figure D)
(Figure E)
Ford Mustang
2005-2009
(Figure D)
(Figure E)
(Figure B)
(Figure C)(Figure A)
5
Dash Disassembly
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
Ford Fusion 2006-2009
Mercury Milan 2006-2009
Ford Freestyle 2005-2007
Ford Taurus X 2008-2009
(Figure B)(Figure A)
1. Unclip and remove entire panel
surrounding the radio and A/C
controls. (Figure A)
2. Remove (4) 9/32” screws from radio
to remove. (Figure B)
Continue to kit assembly
(Figure B)(Figure A)
6
Dash Disassembly
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
Ford Freestar 2004-2007
Mercury Monterey 2004-2007
Ford Focus
2005-2007
(Figure B)(Figure A)
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
(Figure B)(Figure A)
7
Dash Disassembly
1. Open center console and remove (2)
Phillips screws then unclip and remove
entire panel surrounding shifter.
(Figure A)
2. Remove dash panel surrounding radio to
access the factory radio screws.
(Figure B)
3. Remove (4) 9/32” screws to remove the
factory radio. (Figure C)
Continue to kit assembly
Ford Explorer 2006-2010
Ford Sport Trac 2007-2010
Mercury Mountaineer 2006-2010
(Figure A) (Figure C)
Ford E-Series 2009-up,
Ford F-Series Super Duty
2005-up
1. Unsnap and
remove entire panel
surrounding the
radio and climate
controls. (Figure A)
2. Remove (4) 9/32”
screws to remove
the factory radio.
(Figure B)
Continue to kit
assembly (Figure A)
(Figure B)
(Figure B)
8
Dash Disassembly
1. Open center console lid and unclip and
remove the center console trim panel
surrounding the shifter. (Figure A)
2. Remove (2) Phillips screws from the
storage bin then unclip and remove the
bin. (Figure B)
3. Unclip and remove the upper and lower
center trim panel as one assembly.
(Figure C)
4. Remove (4) 9/32” screws securing the
radio. Unplug and remove the radio.
Continue to kit assembly
Lincoln MKX 2007-2010
(Factory navigation models only)
Ford Super Duty F-250/F-350/
F-450/F-550 2005-up, Ford Super
Duty F-650/F-750 2011-up
1. Unclip and remove the power
outlet panel and the blank panel
on the left and right side of the
radio trim panel. (Figure A)
2. Remove the (2) 9/32” screws
exposed behind the two panels
previously removed.
3. Unclip and remove the entire
radio trim panel including the
A/C control and vents.
4. Remove (4) 9/32” screws
securing the radio.
Continue to kit assembly
(Figure A) (Figure C)(Figure A)
(Figure B)
1. Unclip and remove the panel
surrounding the shifter. (Figure A)
2. Remove (2) 9/32” screws from the
bottom of the radio/climate control
trim panel. (Figure B)
3. Unclip and remove the entire panel
surrounding the radio and including
the climate controls. (Figure B)
4. Remove (4) 9/32” screws
securing the radio. Unplug and
remove the radio.
Continue to kit assembly
Lincoln Navigator 2007-up
(Factory navigation models only)
Ford Transit
2012-up
(Figure B)(Figure A)
1. Unclip the dash panel and remove.
(Figure A)
2. Remove four screws securing the
radio to the dash and remove.
(Figure B)
Continue to kit assembly
(Figure B)(Figure A)
9
Dash Disassembly
10
Kit Assembly 95-5812
1. For the Ford Freestar 2004-2007, Mercury
Monterey 2004-2007, Ford Focus 2005-2007,
and the Ford F Series Super Duty 2005-up:
Do not cut the rear mounting tabs from the
double DIN brackets. If your vehicle is not listed
above move to step 2.
2. If your vehicle was not listed above, attach the
included spacers to the back of the radio housing
mounting tabs. Cut and remove the rear mounting
tabs. (Figure A)
3. Attach the double DIN brackets to the radio
housing. Note: The notch in the housing should
be on top. (Figure A & B)
4. Slide the double DIN radio into the radio housing/
bracket assembly and secure the radio to the
assembly using the screws supplied with the radio.
(Figure C)
5. Locate the factory wiring harness in the dash.
Metra recommends using the proper mating
adapter from Metra or AXXESS. Re-connect the
negative battery terminal and test the unit for
proper operation.
6. Reassemble dash in reverse order of disassembly.
Double DIN radio provision
(Figure D)(Figure C)
(Figure B)(Figure A)
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere Metra Electronics Autozubehör Handbücher
Metra Electronics
Metra Electronics 99-8222 Bedienungsanleitung
Metra Electronics
Metra Electronics 95-3305 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-7804B Bedienungsanleitung
Metra Electronics
Metra Electronics Axxess CLASSII-100 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-8220 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-7334 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-7300 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-8715 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-7477 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-3412 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-6511 Bedienungsanleitung
Metra Electronics
Metra Electronics GMOS-11 Bedienungsanleitung
Metra Electronics
Metra Electronics 88-00-3302 Bedienungsanleitung
Metra Electronics
Metra Electronics MAZDA CX7 2007-09 99-7508 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-5841B Bedienungsanleitung
Metra Electronics
Metra Electronics 95-8153 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-7328 Bedienungsanleitung
Metra Electronics
Metra Electronics 99-7335S Bedienungsanleitung
Metra Electronics
Metra Electronics 99-7500 Bedienungsanleitung
Metra Electronics
Metra Electronics LEXUS 99-8156 Bedienungsanleitung
