Metra Electronics 2004-2006 Chrysler Pacifica Bedienungsanleitung

INSTALLATION INSTRUCTIONS FOR PART 99-6506

1-800-221-0932 www.metraonline.com

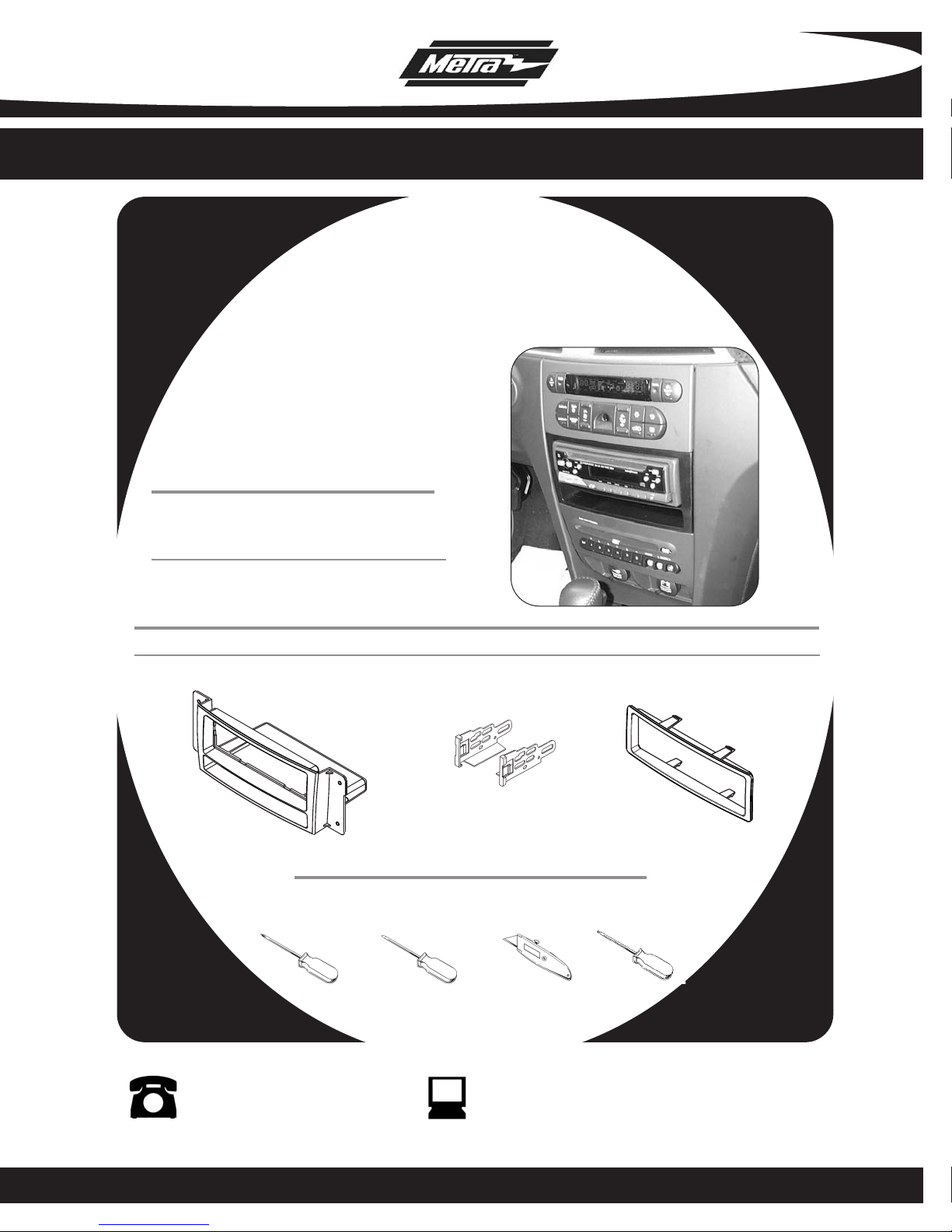

KIT FEATURES

•DIN Head unit provision with pocket

•ISO DIN Head unit provision with pocket

A) Radio Housing B) ISO Brackets C) Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

99-6506

APPLICATIONS

2004-2006 Chrysler Pacifica

Phillips Screwdriver • Small Flat Blade Screwdriver • Cutting Tool • T-15 Torx Driver

Dash Disassembly

2004-2006 Chrysler Pacifica . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Kit Assembly

Din Head Unit Provision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

ISO Din Head Unit Provision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Final Assembly .................................... . . . 4

TABLE OF CONTENTS

99-6506

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

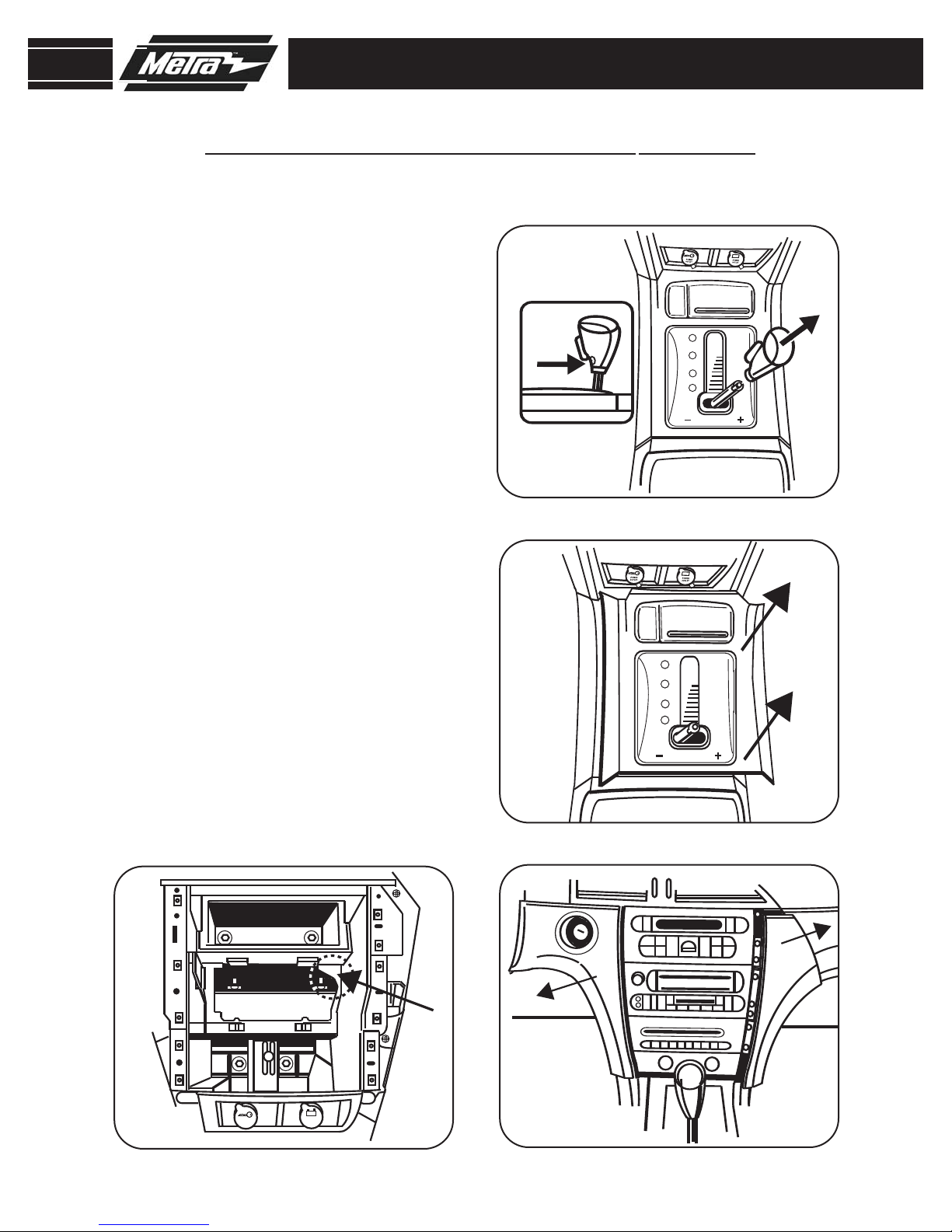

Loosen (1) T-15 Torx screw from the

front side of shift knob and pull up to

remove.

(Figure A)

2004-2006 CHRYSLER PACIFICA

Unsnap floor console trim around the

shifter. Unplug harness to console

trim and remove trim.

(Figure B)

Unsnap and remove ignition key

trimring.

Unsnap and remove the dash trim

panels from each side of the Radio/

Climate Controls.

(Figure C)

Remove (4) Phillips screws to

remove radio.

Note: When DIN mounting a radio a

piece of plastic in the dash cavity

may have to be removed for radio

depth clearance (

Figure D

DASH DISASSEMBLY

AUTOSTICK

POWER

OUTLET

POWER

OUTLET

99-6506

KIT ASSEMBLY

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure A)

Slide the aftermarket head unit into

the cage and secure. Snap the

Trimplate into the Radio Housing.

(

Figure B)

POWER

OUTLET

POWER

OUTLET

DIN HEAD UNIT PROVISION

Note: When DIN mounting a radio a

piece of plastic in the dash cavity may

have to be removed for radio depth

clearance. (

Figure C)

99-6506

KIT ASSEMBLY

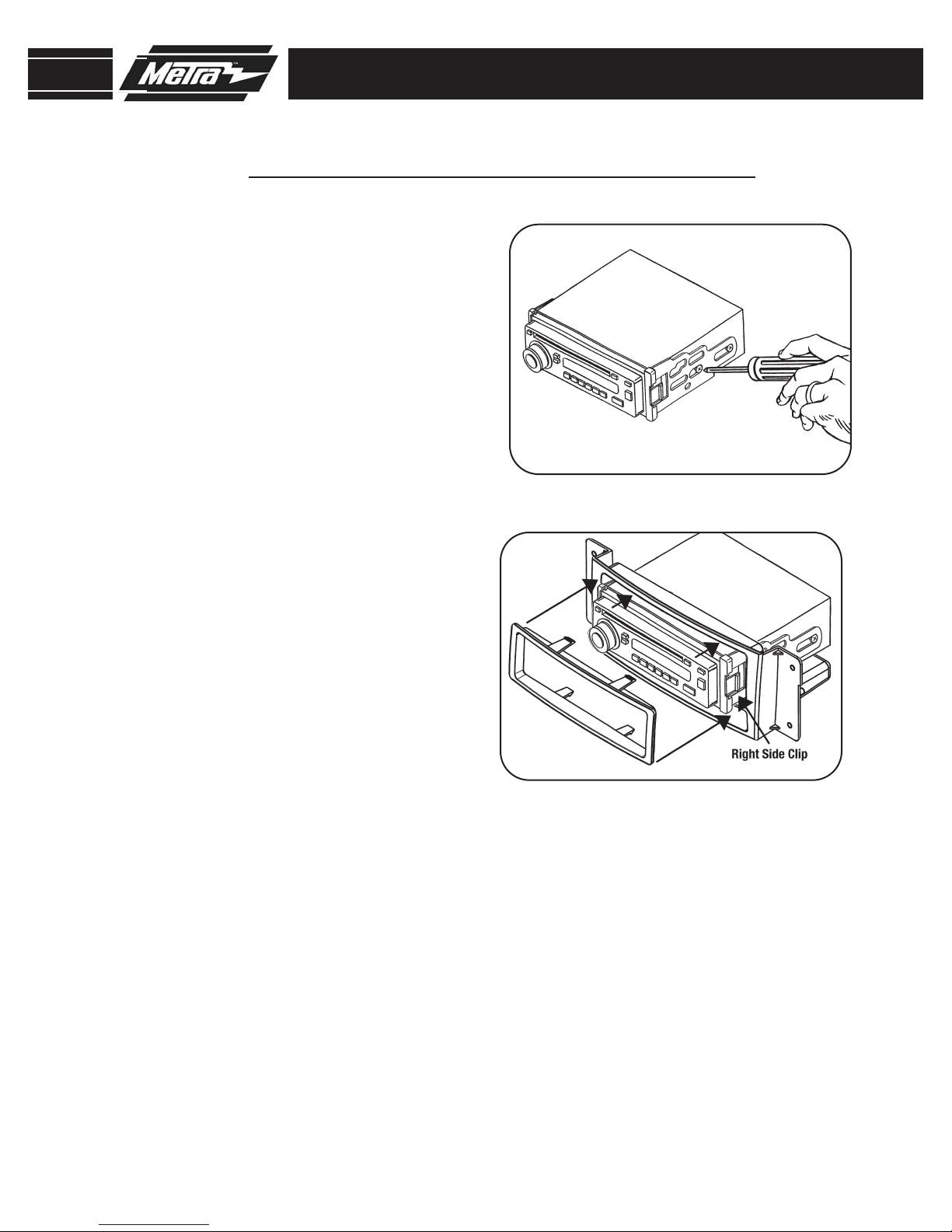

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit.

(Figure A)

Slide the head unit into the radio

opening until the side clips engage.

Snap the Trim Plate into the Radio

Housing.

(Figure B)

ISO DIN HEAD UNIT PROVISION

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recomends using the proper mating adapter and making the connections as

shown. (Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

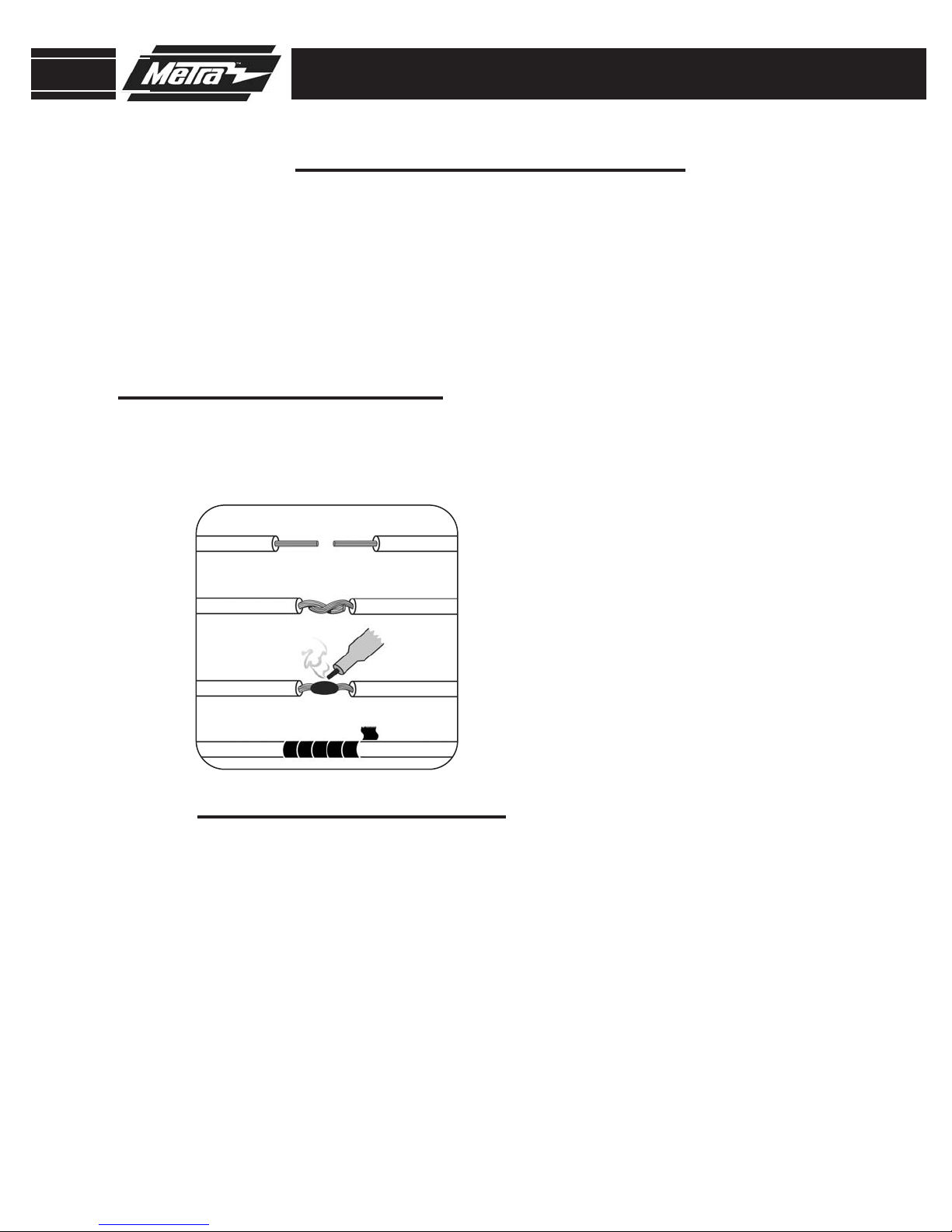

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-). . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-6506

FINAL ASSEMBLY

95-6506

NOTES

99-6506 INSTRUCTIONS

1-800-221-0932 www.metraonline.com

INST99-6506

REV. 02/08/06
